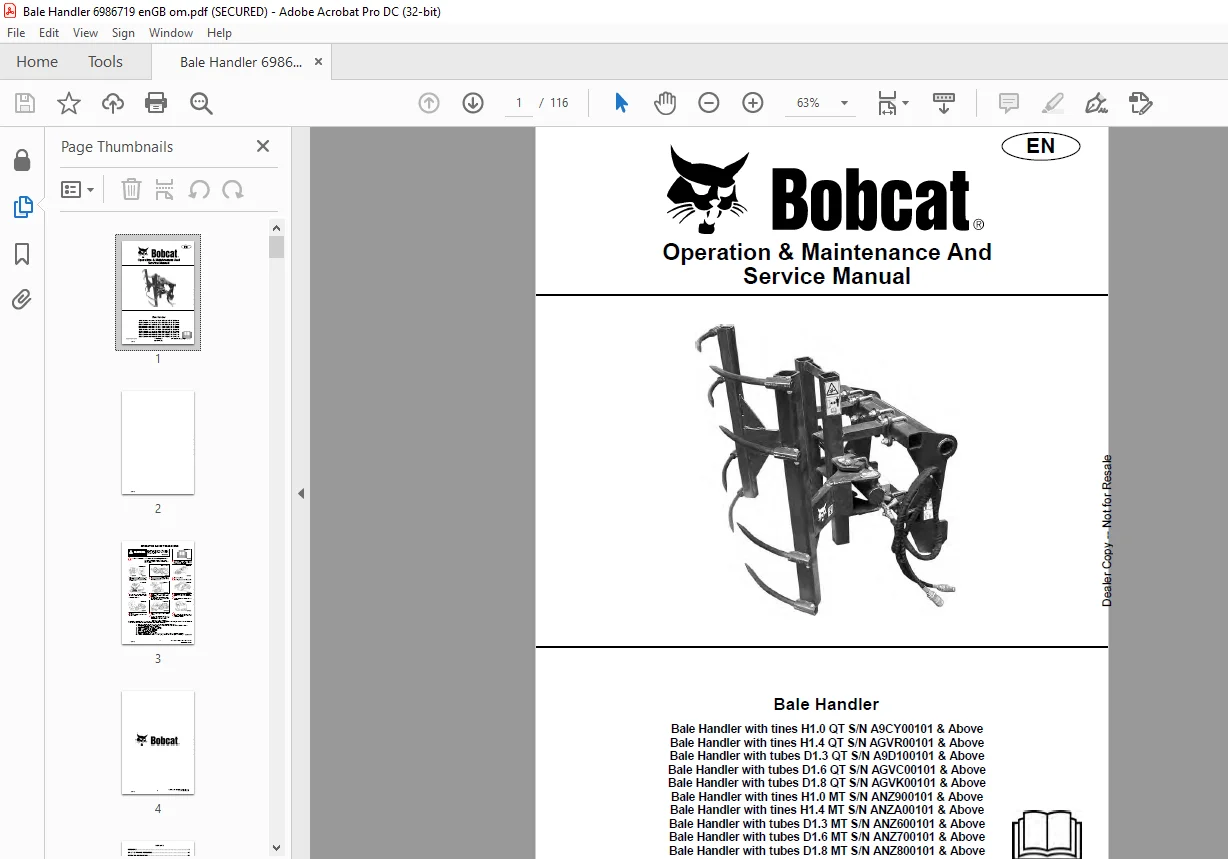

Bale Handler
Bale Handler with tines H1.0 QT S/N A9CY00101 & Above
Bale Handler with tines H1.4 QT S/N AGVR00101 & Above
Bale Handler with tubes D1.3 QT S/N A9D100101 & Above
Bale Handler with tubes D1.6 QT S/N AGVC00101 & Above
Bale Handler with tubes D1.8 QT S/N AGVK00101 & Above
Bale Handler with tines H1.0 MT S/N ANZ900101 & Above
Bale Handler with tines H1.4 MT S/N ANZA00101 & Above
Bale Handler with tubes D1.3 MT S/N ANZ600101 & Above
Bale Handler with tubes D1.6 MT S/N ANZ700101 & Above
Bale Handler with tubes D1.8 MT S/N ANZ800101 & Above

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT TELESCOPIC HANDLER. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your agriculture attachment.

SAFETY INSTRUCTIONS

Operator must have instructions before operating the machine. Untrained operators can cause injury or death.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and Regulations

• The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

•  Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.

Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment / implement (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
• Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
• Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
• Check that the implement is securely fastened to the machine.
• Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
• Operate the attachment / implement according to the Operation & Maintenance Manual.
• When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
• The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
• DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
• DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
• Keep shields and guards in place. Replace if damaged.

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat Bale Handler with tines H1.0 QT H1.4 QT D1.3 QT D1.6 QT D1.8 QT H1.0 H1.4 D1.3 D1.6 D1.8 Operation & Maintenance And Service Manual – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3

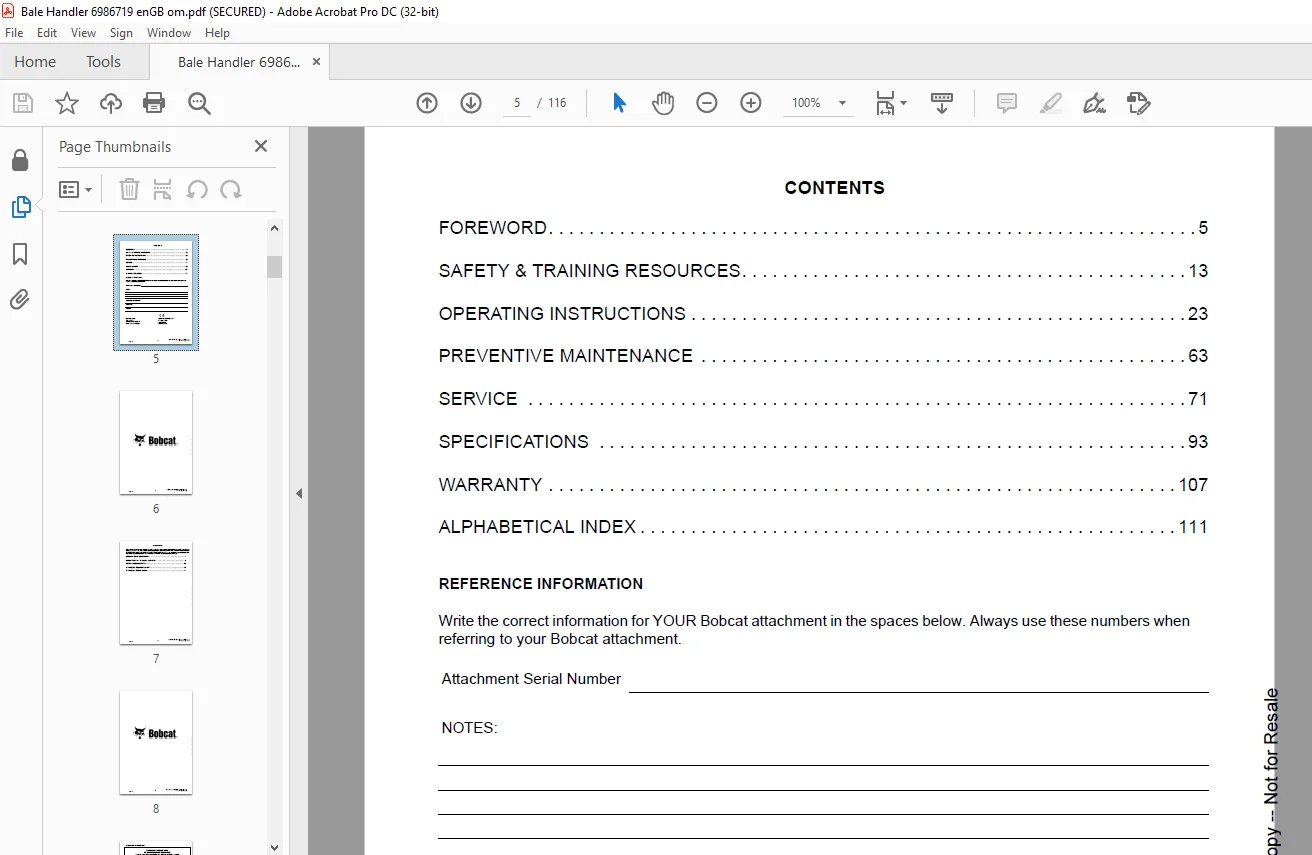

CONTENTS 5
FOREWORD 7
DECLARATION OF CONFORMITY 9
BOBCAT COMPANY IS IS0 9001 CERTIFIED 11
SERIAL NUMBER LOCATION 12
ATTACHMENT DELIVERY REPORT 12

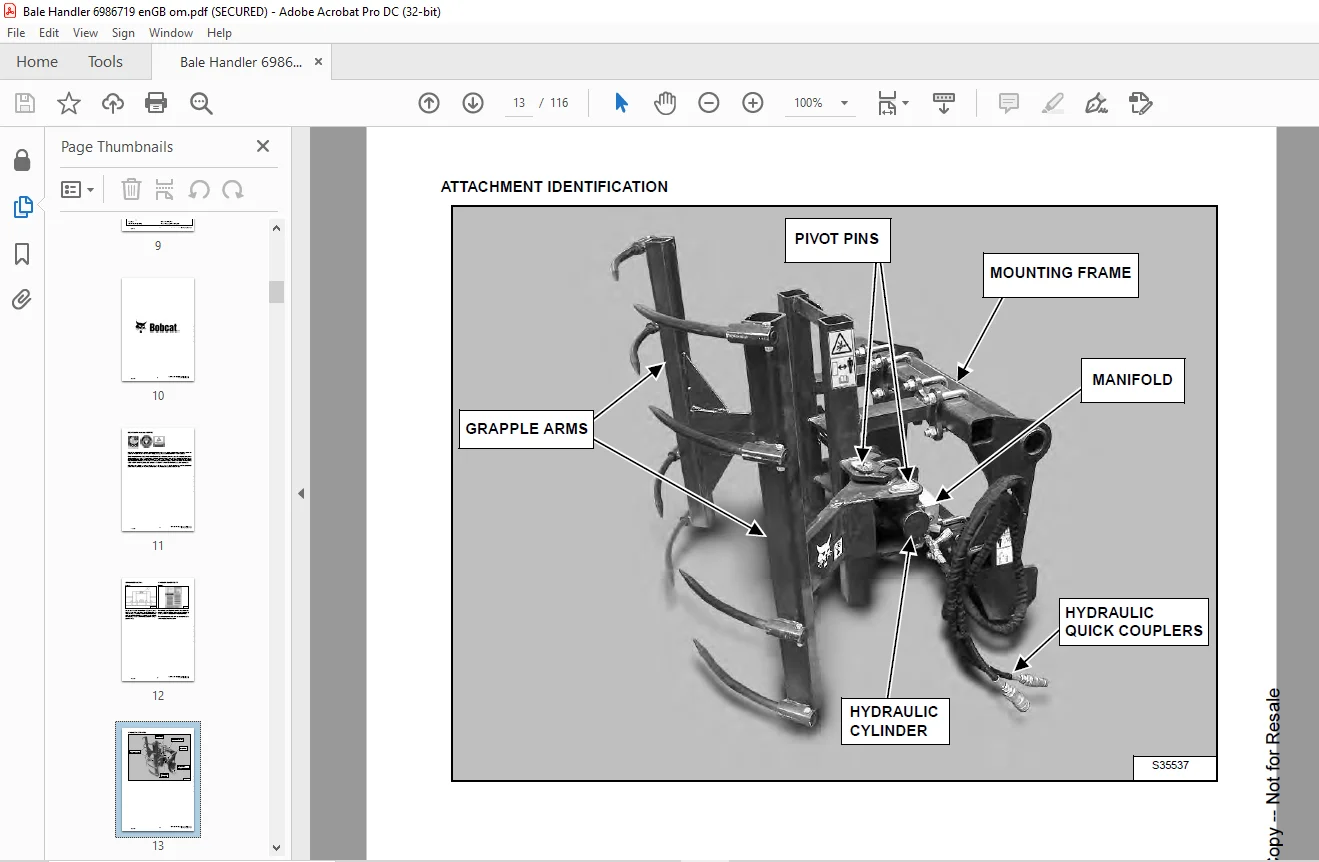

ATTACHMENT IDENTIFICATION 13
SAFETY & TRAINING RESOURCES 15
SAFETY INSTRUCTIONS 17
Safe Operation Is The Operator’s Responsibility 17
Safe Operation Needs A Qualified Operator 17
Use Safety Rules 18
Avoid Silica Dust 18
FIRE PREVENTION 19
Maintenance 19
Operation 19
Electrical 19
Hydraulic System 19
Fueling 19
Starting 19
Spark Arrester Exhaust System 19
Welding And Grinding 20
Fire Extinguishers 20
PUBLICATIONS AND TRAINING RESOURCES 21
ATTACHMENT SIGNS (DECALS) 22
Pictorial Only Safety Signs 23
OPERATING INSTRUCTIONS 25
DAILY INSPECTION 27
Bale Handler Mounting Frame 27
Telescopic Handler Attachment Carrier And Adapter Frame 28
OPERATING PROCEDURE 29
Approved Telescopic Handler Models And Requirements 29
Installation 31
Releasing Pressure At The Front Couplers 34
Hydraulic Quick Couplers 36
Operation With The Telescopic Handler 39
Changing The Maximum Auxiliary Flow 41
Load Capacity Charts 43
Removal 60
LIFTING THE BALE HANDLER 63
Procedure 63
TRANSPORTING THE BALE HANDLER 64
Fastening 64
PREVENTIVE MAINTENANCE 65
MAINTENANCE SAFETY 67
TROUBLESHOOTING 69
Chart 69
LUBRICATING THE BALE HANDLER 70
Lubrication Locations 70
ATTACHMENT STORAGE AND RETURN TO SERVICE 71
Storage 71
Return To Service 71
SERVICE 73
ATTACHMENT MOUNT FRAME 75
Removal And Installation 75
TINES 77
Removal And Installation 77
GRAPPLE ARMS 78
Removal And Installation 78
MANIFOLD 80
Removal And Installation 80
HYDRAULIC CYLINDER 83
Removal And Installation 83
Parts Identification 85
Disassembly 86
Assembly 89
SPECIFICATIONS 95
HYDRAULIC SCHEMATIC 97
SPECIFICATIONS 98
Bale Handler With Tubes (Quick-Tach) S/N A9D100101 & Above 98
Bale Handler With Tubes (Quick-Tach) S/N AGVC00101 & Above 99
Bale Handler With Tubes (Quick-Tach) S/N AGVK00101 & Above 100
Bale Handler With Tines (Quick-Tach) S/N A9CY00101 & Above 101
Bale Handler With Tines (Quick-Tach) S/N AGVR00101 & Above 102
Bale Handler With Tubes (Mani-Tach) S/N ANZ600101 & Above 103
Bale Handler With Tubes (Mani-Tach) S/N ANZ700101 & Above 104
Bale Handler With Tubes (Mani-Tach) S/N ANZ800101 & Above 105
Bale Handler With Tines (Mani-Tach) S/N ANZ900101 & Above 106
Bale Handler With Tines (Mani-Tach) S/N ANZA00101 & Above 107
WARRANTY 109
WARRANTY 111
ALPHABETICAL INDEX 113
