Bobcat Combination Bucket 44 In Operation & Maintenance Manual SN 030000101 & Above – PDF DOWNLOAD

Description

Bobcat Combination Bucket 44 In Operation & Maintenance Manual SN 030000101 & Above – PDF DOWNLOAD

FILE DETAILS:

Bobcat Combination Bucket 44 In Operation & Maintenance Manual SN 030000101 & Above – PDF DOWNLOAD

Language : English
Pages :74
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat Combination Bucket 44 In Operation & Maintenance Manual SN 030000101 & Above – PDF DOWNLOAD

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your Bobcat attachment.

SAFETY INSTRUCTIONS

Operator must have instructions before operating the machine. Untrained operators can cause injury or death.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and Regulations

• The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

•  Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.

Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment / implement (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
• Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
• Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
• Check that the implement is securely fastened to the machine.
• Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
• Operate the attachment / implement according to the Operation & Maintenance Manual.
• When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
• The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
• DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
• DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
• Keep shields and guards in place. Replace if damaged

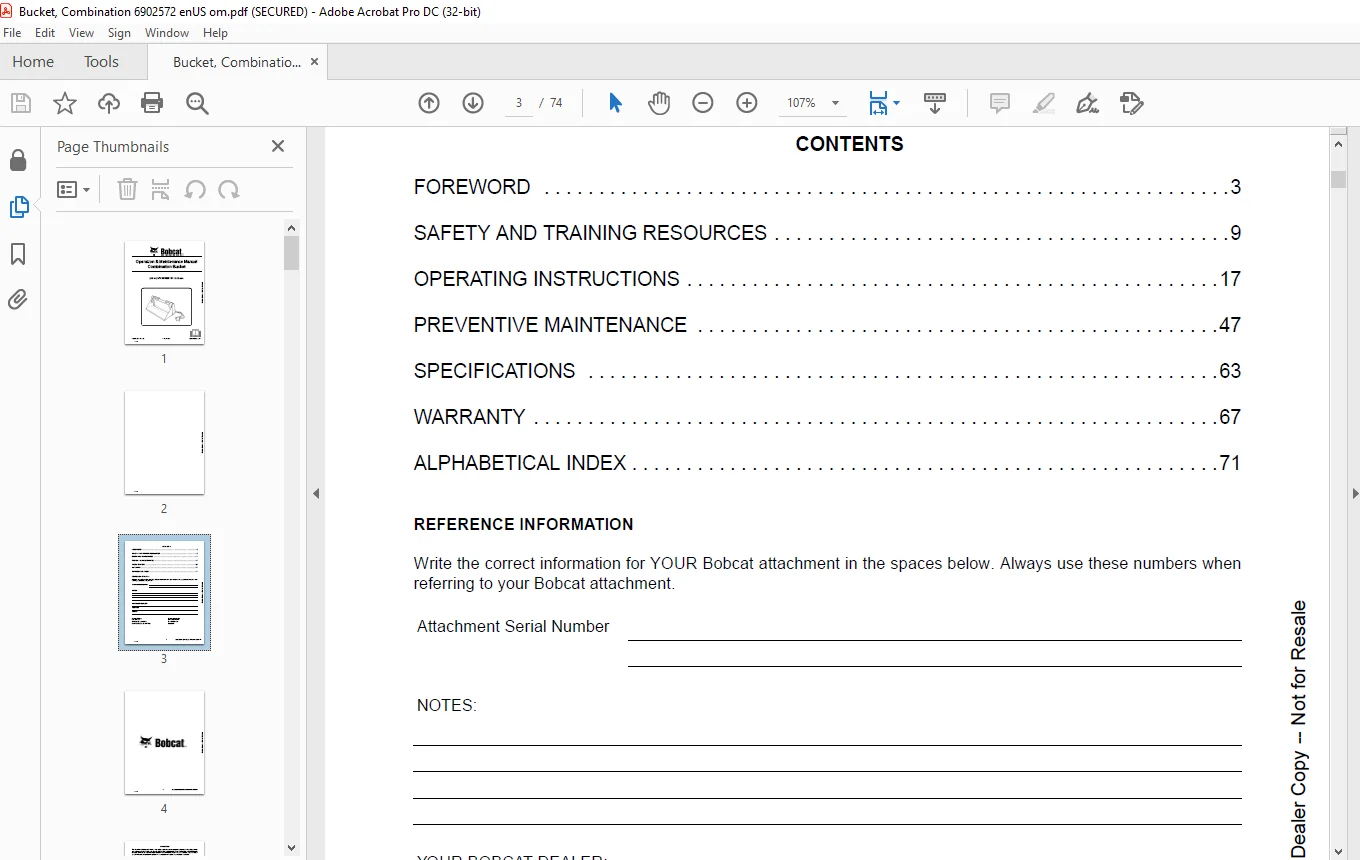

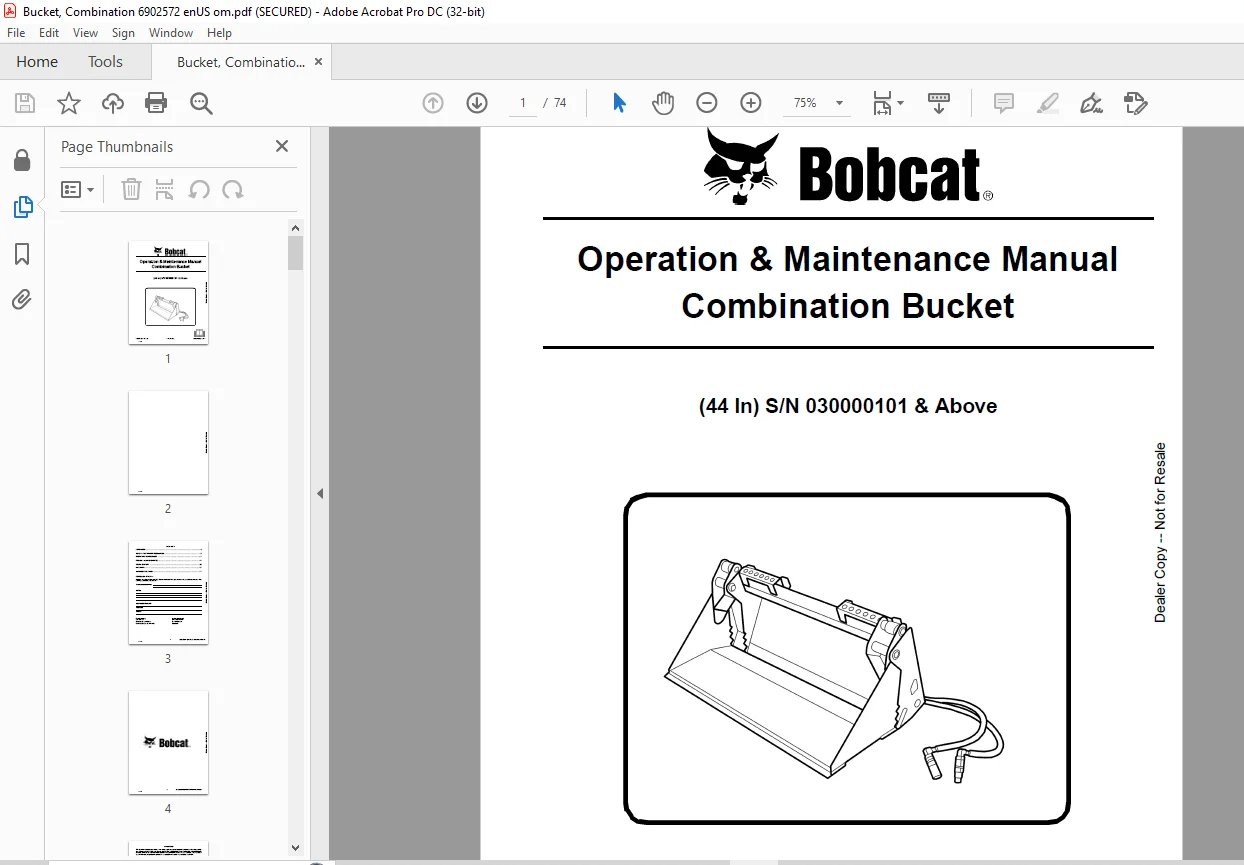

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat Combination Bucket 44 In Operation & Maintenance Manual SN 030000101 & Above – PDF DOWNLOAD

CONTENTS 3
FOREWORD 5
BOBCAT COMPANY IS IS0 9001 CERTIFIED 7
SERIAL NUMBER LOCATION 9
Attachment Serial Number 9
DELIVERY REPORT 9
ATTACHMENT IDENTIFICATION 10
SAFETY AND TRAINING RESOURCES 11
SAFETY INSTRUCTIONS 13
Safe Operation Is The Operator’s Responsibility 13
Safe Operation Needs A Qualified Operator 13
Use Safety Rules 14
Call Before You Dig 14
Avoid Silica Dust 14
FIRE PREVENTION 15
Maintenance 15
Operation 15
Electrical 15
Hydraulic System 15
Fueling 15
Starting 15
Spark Arrester Exhaust System 15
Welding And Grinding 16
Fire Extinguishers 16
PUBLICATIONS AND TRAINING RESOURCES 17
OPERATING INSTRUCTIONS 19
DAILY INSPECTION 21
Attachment Mounting Frame 21
Bob-Tach 22
OPERATING PROCEDURE WITH LOADERS 24
Approved Loader Models And Requirements 24
Entering And Exiting The Loader 25
Installation 26
Hydraulic Quick Couplers 32
Control Functions 33
Operation With The Loader 33
Removal 35
OPERATING PROCEDURE WITH MINI LOADERS 37
Approved Mini Loader Models And Requirements 37
Entering And Leaving The Operator’s Position 38
Installation 39
Hydraulic Quick Couplers 42
Control Functions 43
Operation With The Mini Loader 43
Removal 45
LIFTING THE ATTACHMENT 46
Procedure 46
TRANSPORTING THE ATTACHMENT ON A TRAILER 47
Fastening 47
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 48
Loading And Fastening 48
PREVENTIVE MAINTENANCE 49
MAINTENANCE SAFETY 51
TROUBLESHOOTING 53
Chart 53
LUBRICATING THE ATTACHMENT 54
Lubrication Locations 54
REMOVAL AND INSTALLATION HYDRAULIC CYLINDER 55
Procedure(s) 55
HYDRAULIC cylinder 56
Parts Identification 56
Disassembly 57
Assembly 59
ATTACHMENT STORAGE AND RETURN TO SERVICE 63
Storage 63
Return To Service 63
SPECIFICATIONS 65
SCHEMATIC 67
Hydraulic Schematic 67
COMBINATION BUCKET SPECIFICATIONS 68
Dimensions 68
Performance 68
Hydraulic System 68
WARRANTY 69
WARRANTY 71
ALPHABETICAL INDEX 73
