Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (01-15) – PDF DOWNLOAD

Description

Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (01-15) – PDF DOWNLOAD

FILE DETAILS:

Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (01-15) – PDF DOWNLOAD

Language : English
Pages :110
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (01-15) – PDF DOWNLOAD

(30 Cutter Crusher) S/N 991100101 & Above
(40 Cutter Crusher) S/N 991300101 & Above

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your Bobcat attachment.

SAFETY INSTRUCTIONS
Safe Operation Is The Operator’s Responsibility

Operator must have instructions before operating the machine. Untrained operators can cause injury or death

IMPORTANT

This notice identifies procedures which must be followed to avoid damage to the machine.

The Bobcat machine and attachment must be in good operating condition before use.
Check all of the items on the Bobcat Service Schedule Decal under the 8-10 hour column or as shown in the Operation & Maintenance Manual.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or co- ordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and
Regulations

• • The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. For driving on public roads, the machine must be equipped as stipulated by the local regulations authorising operation on public roads in your specific country. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

• Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
  Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, hearing protection, Special Applications Kits or a Front Window Guard are required for some work. See your Bobcat dealer about Bobcat Safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• • Read and follow instructions in the machine and the attachment’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the Bob-Tach™ levers are in the locked position and the wedges are fully engaged into the holes of the attachment (if applicable).
• Check that the attachment is securely fastened to the machine.
• Make sure all the machine controls are in the NEUTRAL position before starting the machine.
• Operate the attachment only from the operator’s position.
• Operate the attachment according to the Operation & Maintenance Manual.
• When learning to operate the attachment, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment.
• The attachment must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments for each machine model.
• DO NOT modify equipment or add attachments that are not approved by the manufacturer.
• DO NOT make any adjustments or repairs on the machine or attachment while the engine is running.
• Keep shields and guards in place. Replace if damaged.

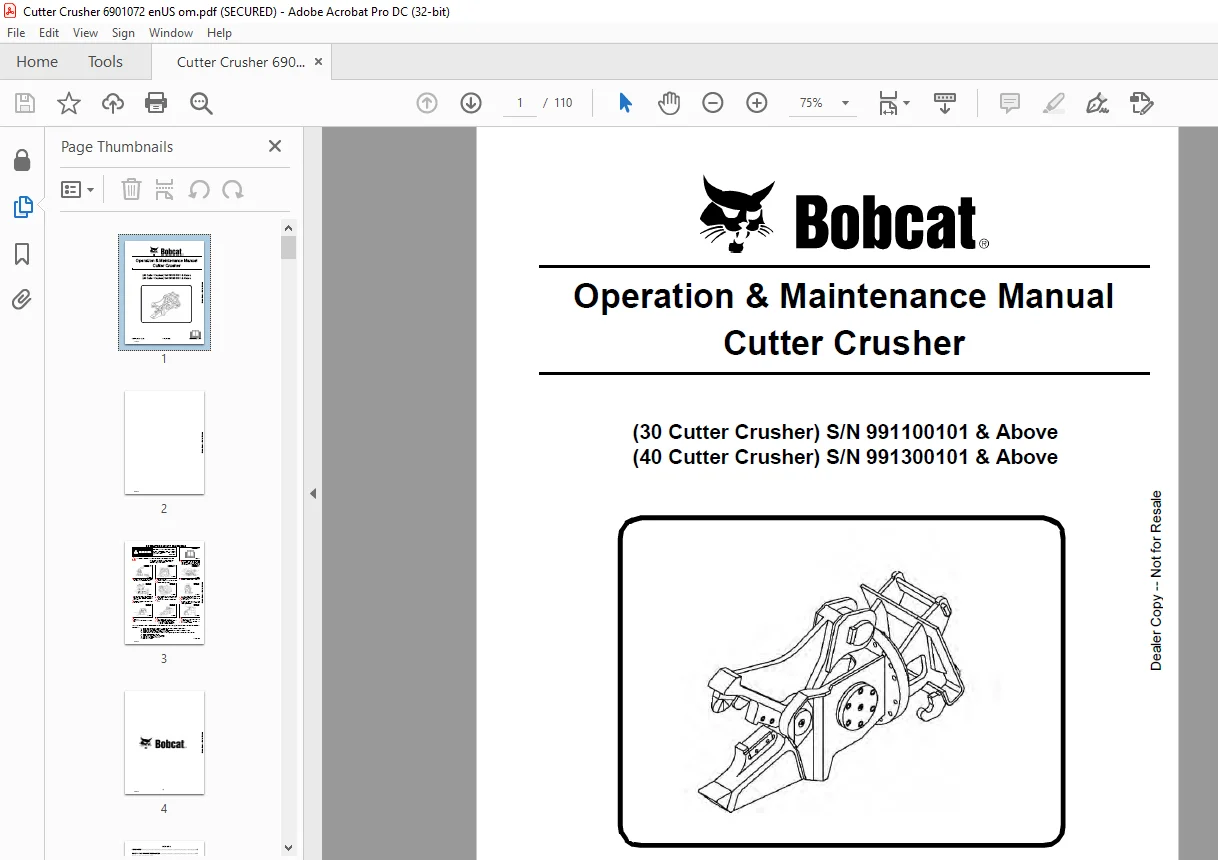

IMAGES PREVIEW OF THE MANUAL:

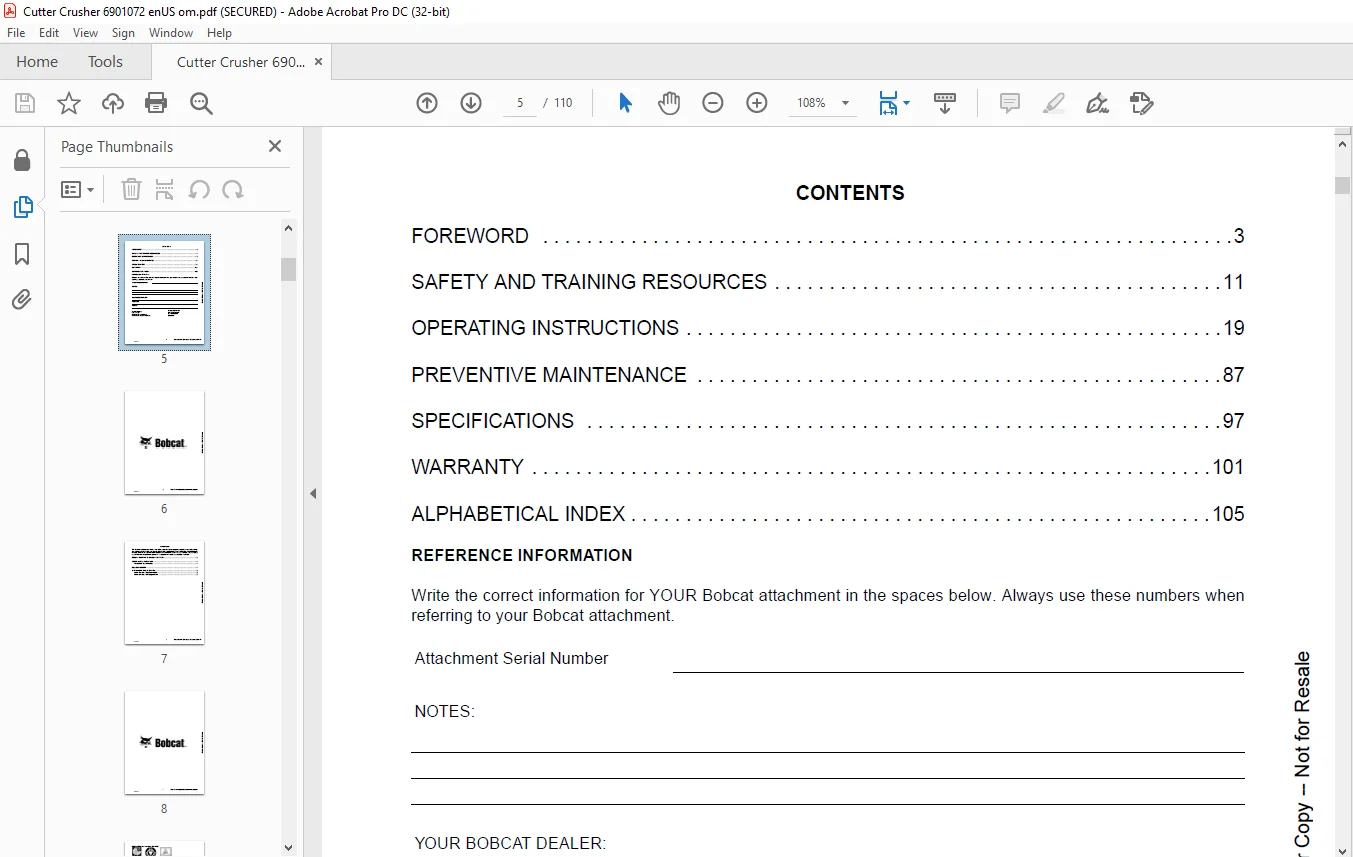

TABLE OF CONTENTS:

Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (01-15) – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
FOREWORD 7
BOBCAT COMPANY IS IS0 9001 CERTIFIED 9
SERIAL NUMBER LOCATION 11
Attachment Serial Number 11
DELIVERY REPORT 11
ATTACHMENT IDENTIFICATION 12
Cutter Crusher / Bob-Tach Mount 12
Cutter Crusher / X-Change Mount 13
SAFETY AND TRAINING RESOURCES 15
SAFETY INSTRUCTIONS 17
Safe Operation Is The Operator’s Responsibility 17
Safe Operation Needs A Qualified Operator 17
Use Safety Rules 18
Call Before You Dig 18
Avoid Silica Dust 18
FIRE PREVENTION 19
Maintenance 19
Operation 19
Electrical 19
Hydraulic System 19
Fueling 19
Starting 19
Spark Arrester Exhaust System 19
Welding And Grinding 20
Fire Extinguishers 20
PUBLICATIONS AND TRAINING RESOURCES 21

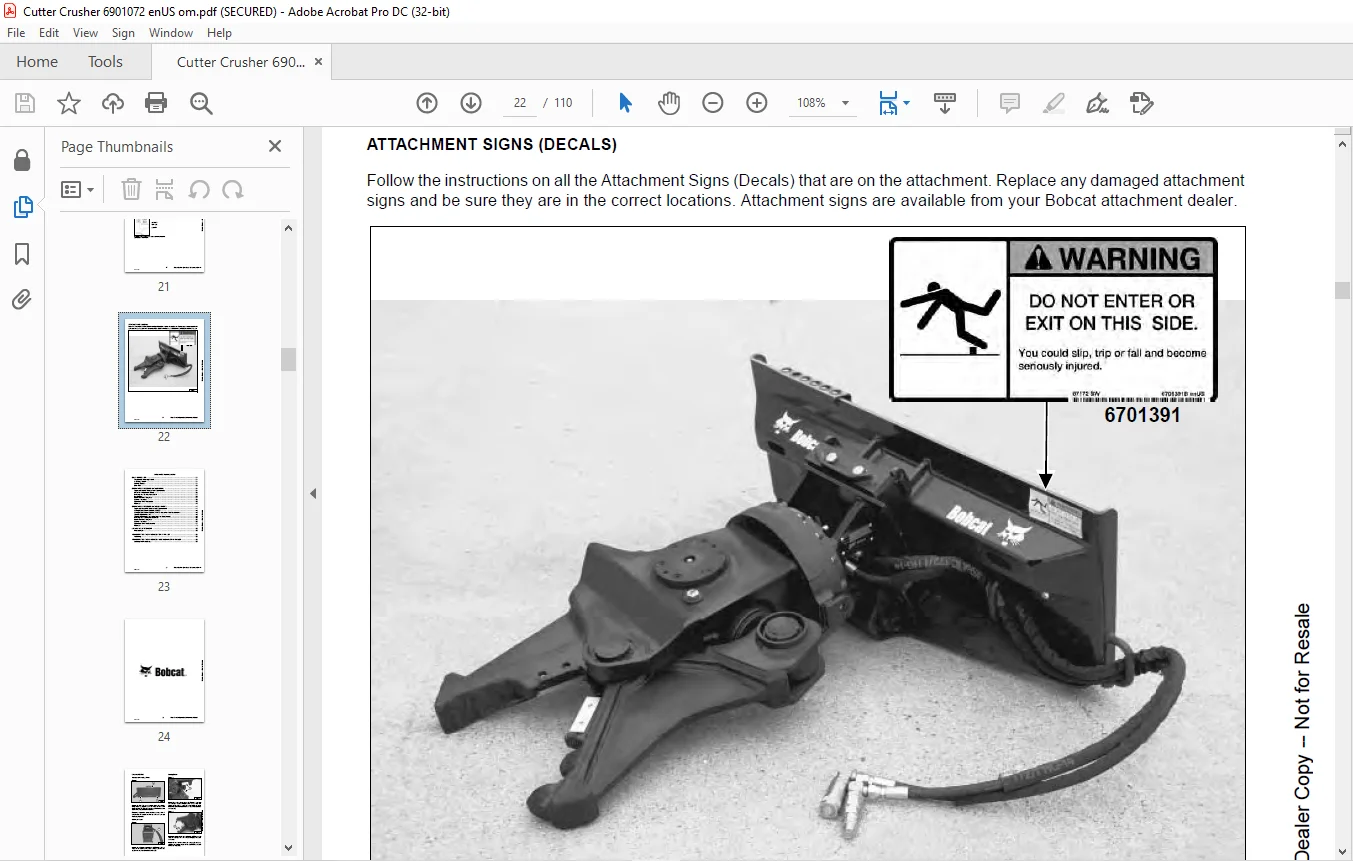

ATTACHMENT SIGNS (DECALS) 22
OPERATING INSTRUCTIONS 23
DAILY INSPECTION 25
Attachment Mounting Frame 25
X-Change Mount 25
Cutting Blades 25
Bob-Tach 26
OPERATING PROCEDURE WITH LOADERS 28
Approved Loader Models And Requirements 28
Machine / Attachment Setup 29
Entering And Exiting The Loader 31
Installation 32
Hydraulic Quick Couplers 41
Control Functions 42
Operation With The Loader 43
Removal 46
OPERATING PROCEDURE WITH EXCAVATORS 51
Approved Excavator Models And Requirements 51
Falling-Object Guard System (FOGS) 53
Falling-Object Guard System (FOGS) Inspection And Maintenance 53
Special Applications Kit 53
Special Applications Kit Inspection And Maintenance 53
Entering And Exiting the Excavator 54
Hydraulic Quick Couplers 66
Control Functions 67
Operation With The Excavator 71
Removal 76
LIFTING THE ATTACHMENT 87
Procedure(s) 87
TRANSPORTING THE ATTACHMENT ON A TRAILER 89
Fastening 89
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 90
Loading And Fastening 90
PREVENTIVE MAINTENANCE 91
MAINTENANCE SAFETY 93
TROUBLESHOOTING 95
Chart 95
LUBRICATING THE ATTACHMENT 96
Lubrication Locations 96
REMOVAL AND INSTALLATION OF CUTTING BLADES 97
Procedure(s) 97
HARD SURFACING WEAR AREAS 99
Procedure(s) 99
CRUSHER TEETH REPLACEMENT 99
Procedure(s) 99
ATTACHMENT STORAGE AND RETURN TO SERVICE 100
Storage 100
Return To Service 100
SPECIFICATIONS 101
CUTTER CRUSHER SPECIFICATIONS 103
Dimensions (30 Cutter Crusher) 103
Performance (30 Cutter Crusher) 103
CUTTER CRUSHER SPECIFICATIONS 104
Dimensions (40 Cutter Crusher) 104
Performance (40 Cutter Crusher) 104
WARRANTY 105
WARRANTY 107
ALPHABETICAL INDEX 109

Customer Support: [email protected]

https://vimeo.com/844217061?share=copy

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
