Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (05-17) – PDF DOWNLOAD

Description

Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (05-17) – PDF DOWNLOAD

FILE DETAILS:

Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (05-17) – PDF DOWNLOAD

Language : English
Pages :120
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (05-17) – PDF DOWNLOAD

(30 Cutter Crusher) S/N 991100101 & Above
(40 Cutter Crusher) S/N 991300101 & Above

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer.

SAFETY INSTRUCTIONS
Safe Operation Is The Operator’s Responsibility

Operator must have instructions before operating the machine. Untrained operators can cause injury or death

IMPORTANT

This notice identifies procedures which must be followed to avoid damage to the machine.

The Bobcat machine and attachment must be in good operating condition before use.
Check all of the items on the Bobcat Service Schedule Decal under the 8-10 hour column or as shown in the Operation & Maintenance Manual.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or co- ordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and
Regulations

• • The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. For driving on public roads, the machine must be equipped as stipulated by the local regulations authorising operation on public roads in your specific country. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

• Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
  Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, hearing protection, Special Applications Kits or a Front Window Guard are required for some work. See your Bobcat dealer about Bobcat Safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• • Read and follow instructions in the machine and the attachment’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the Bob-Tach™ levers are in the locked position and the wedges are fully engaged into the holes of the attachment (if applicable).
• Check that the attachment is securely fastened to the machine.
• Make sure all the machine controls are in the NEUTRAL position before starting the machine.
• Operate the attachment only from the operator’s position.
• Operate the attachment according to the Operation & Maintenance Manual.
• When learning to operate the attachment, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment.
• The attachment must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments for each machine model.
• DO NOT modify equipment or add attachments that are not approved by the manufacturer.
• DO NOT make any adjustments or repairs on the machine or attachment while the engine is running.
• Keep shields and guards in place. Replace if damaged.

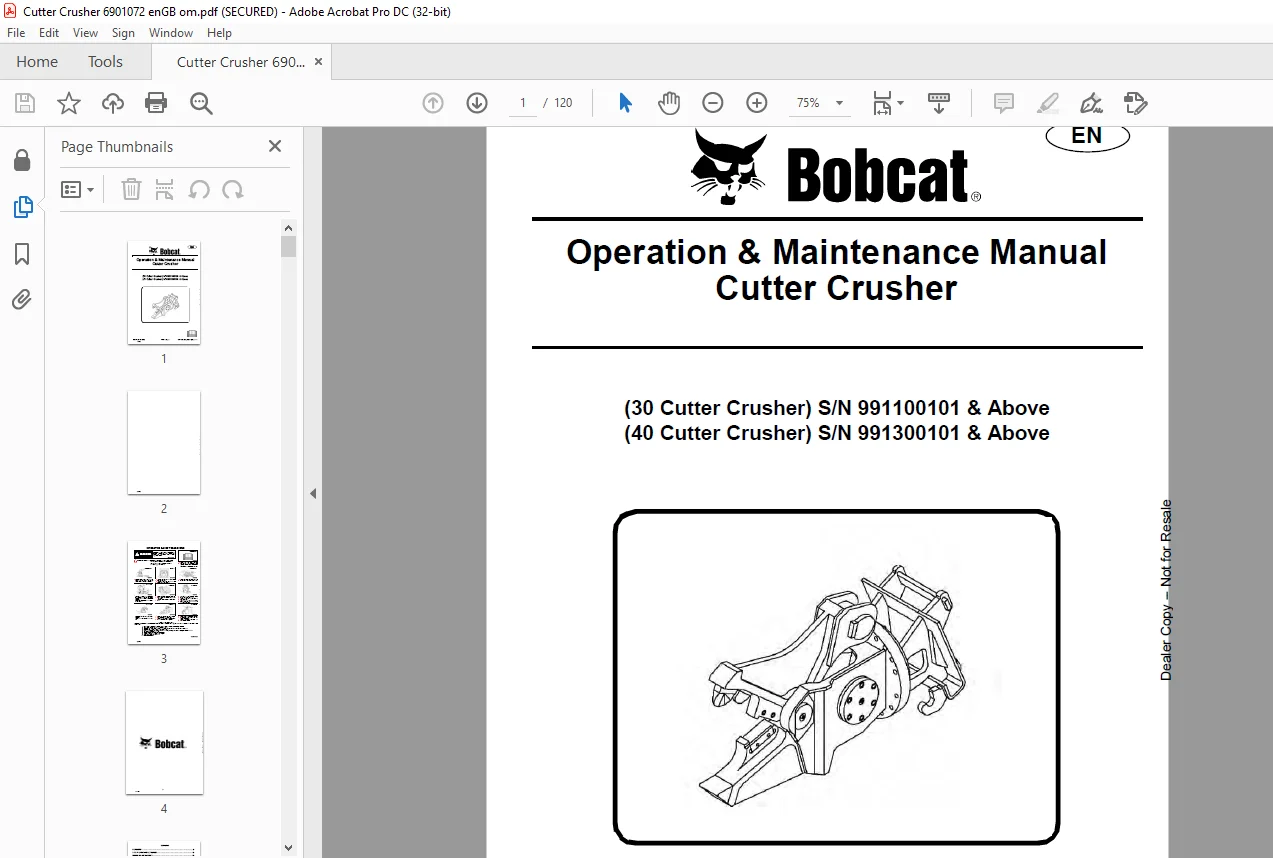

IMAGES PREVIEW OF THE MANUAL:

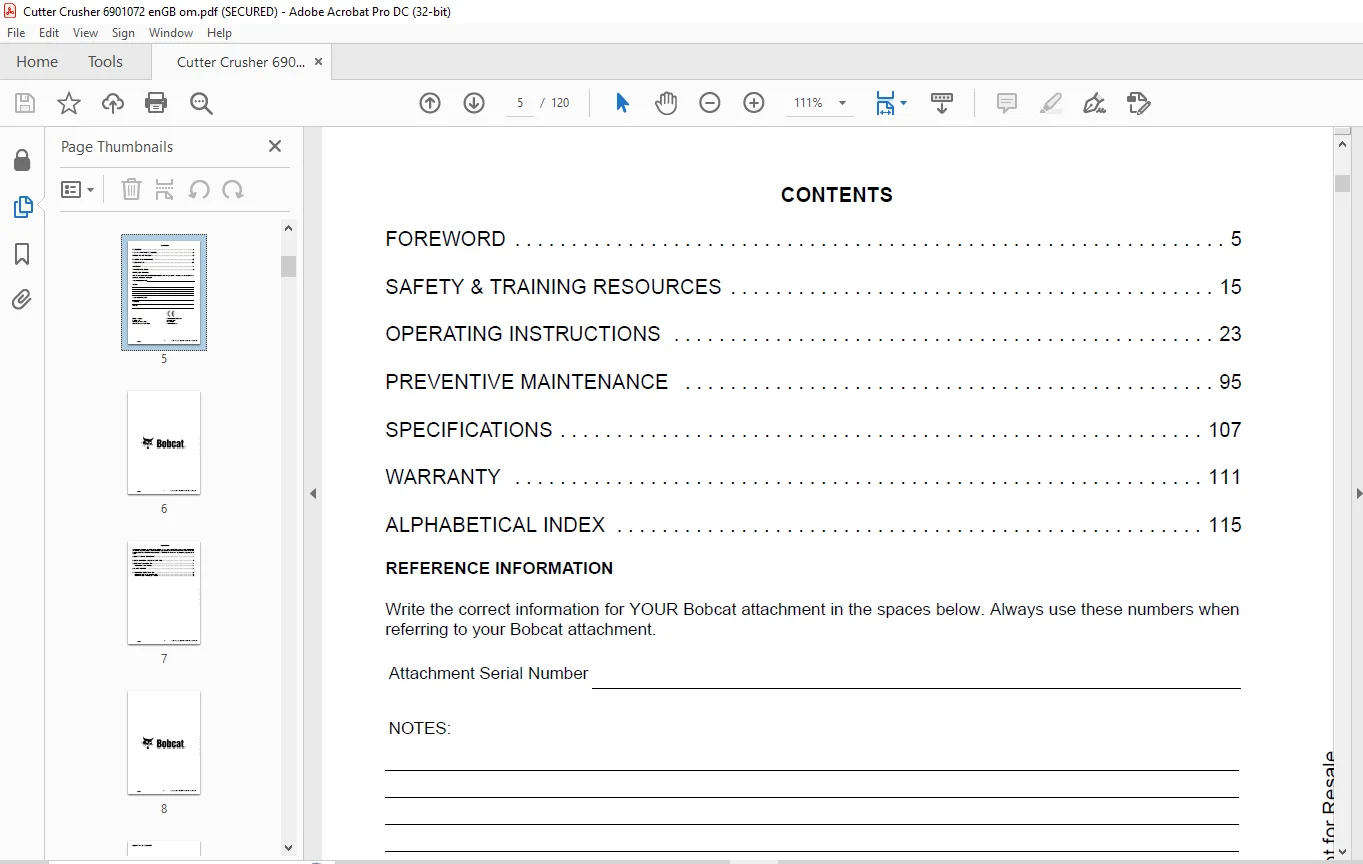

TABLE OF CONTENTS:

Bobcat Cutter Crusher 30 40 Maintenance Manual 6901072 (05-17) – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
CONTENTS 5
FOREWORD 7
DECLARATION OF CONFORMITY 9
BOBCAT COMPANY IS IS0 9001 CERTIFIED 11
SERIAL NUMBER LOCATION 13
Attachment Serial Number 13
DELIVERY REPORT 13

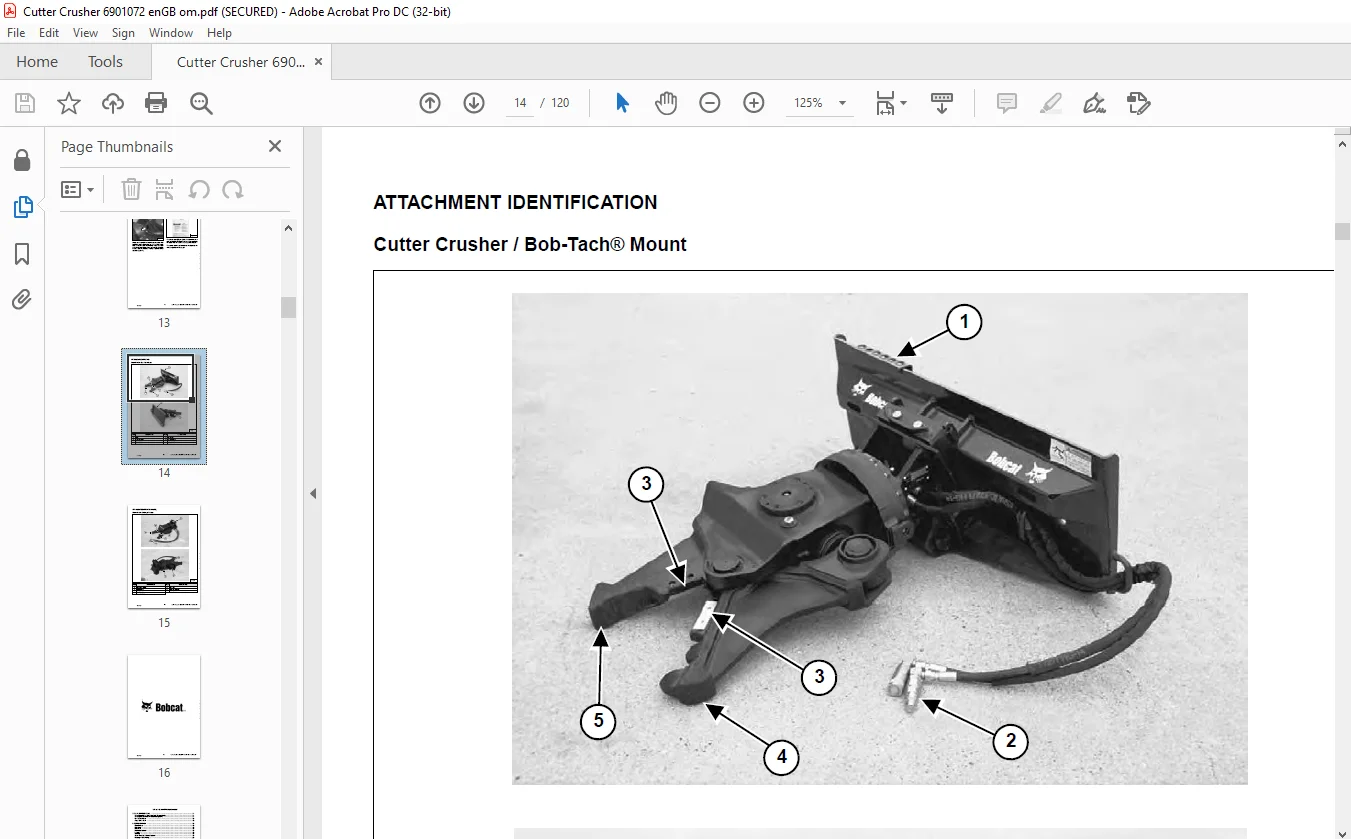

ATTACHMENT IDENTIFICATION 14
Cutter Crusher / Bob-Tach® Mount 14
Cutter Crusher / X-Change™ Mount 15
SAFETY & TRAINING RESOURCES 17
SAFETY INSTRUCTIONS 19
Safe Operation Is The Operator’s Responsibility 19
Safe Operation Needs A Qualified Operator 19
Use Safety Rules 20
Avoid Silica Dust 20
FIRE PREVENTION 21
Maintenance 21
Operation 21
Electrical 21
Hydraulic System 21
Fueling 21
Starting 21
Spark Arrester Exhaust System 21
Welding And Grinding 22
Fire Extinguishers 22
PUBLICATIONS AND TRAINING RESOURCES 23
ATTACHMENT SIGNS (DECALS) 24
OPERATING INSTRUCTIONS 25
DAILY INSPECTION 27
Attachment Mounting Frame 27
X-Change Mount 27
Cutting Blades 27
Bob-Tach 28
OPERATING PROCEDURE WITH LOADERS 30
Approved Loader Models And Requirements 30
Machine / Attachment Setup 31
Entering And Exiting The Loader 33
Installation 35
Hydraulic Quick Couplers 46
Control Functions 47
Operation With The Loader 48
Removal 51
OPERATING PROCEDURE WITH EXCAVATORS 56
Approved Excavator Models And Requirements 56
Falling-Object Guard System (FOGS) 58
Falling-Object Guard System (FOGS) Inspection And Maintenance 58
Special Applications Kit 58
Special Applications Kit Inspection And Maintenance 58
Entering And Exiting the Excavator 59
Hydraulic Quick Couplers 71
Control Functions 72
Operation With The Excavator 76
Removal 81
LIFTING THE ATTACHMENT 92
Procedure(s) 92
TRANSPORTING THE ATTACHMENT ON A TRAILER 94
Fastening 94
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 95
Loading And Fastening 95
PREVENTIVE MAINTENANCE 97
MAINTENANCE SAFETY 99
TROUBLESHOOTING 101
Chart 101
LUBRICATING THE ATTACHMENT 102
Lubrication Locations 102
REMOVAL AND INSTALLATION OF CUTTING BLADES 103
Procedure(s) 103
HARD SURFACING WEAR AREAS 105
Procedure(s) 105
CRUSHER TEETH REPLACEMENT 106
Procedure(s) 106
ATTACHMENT STORAGE AND RETURN TO SERVICE 107
Storage 107
Return To Service 107
SPECIFICATIONS 109
CUTTER CRUSHER SPECIFICATIONS 111
Dimensions (30 Cutter Crusher) 111
Performance (30 Cutter Crusher) 111
Dimensions (40 Cutter Crusher) 112
Performance (40 Cutter Crusher) 112
WARRANTY 113
WARRANTY 115
ALPHABETICAL INDEX 117

Contact us: [email protected]

https://vimeo.com/844214669?share=copy

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]
