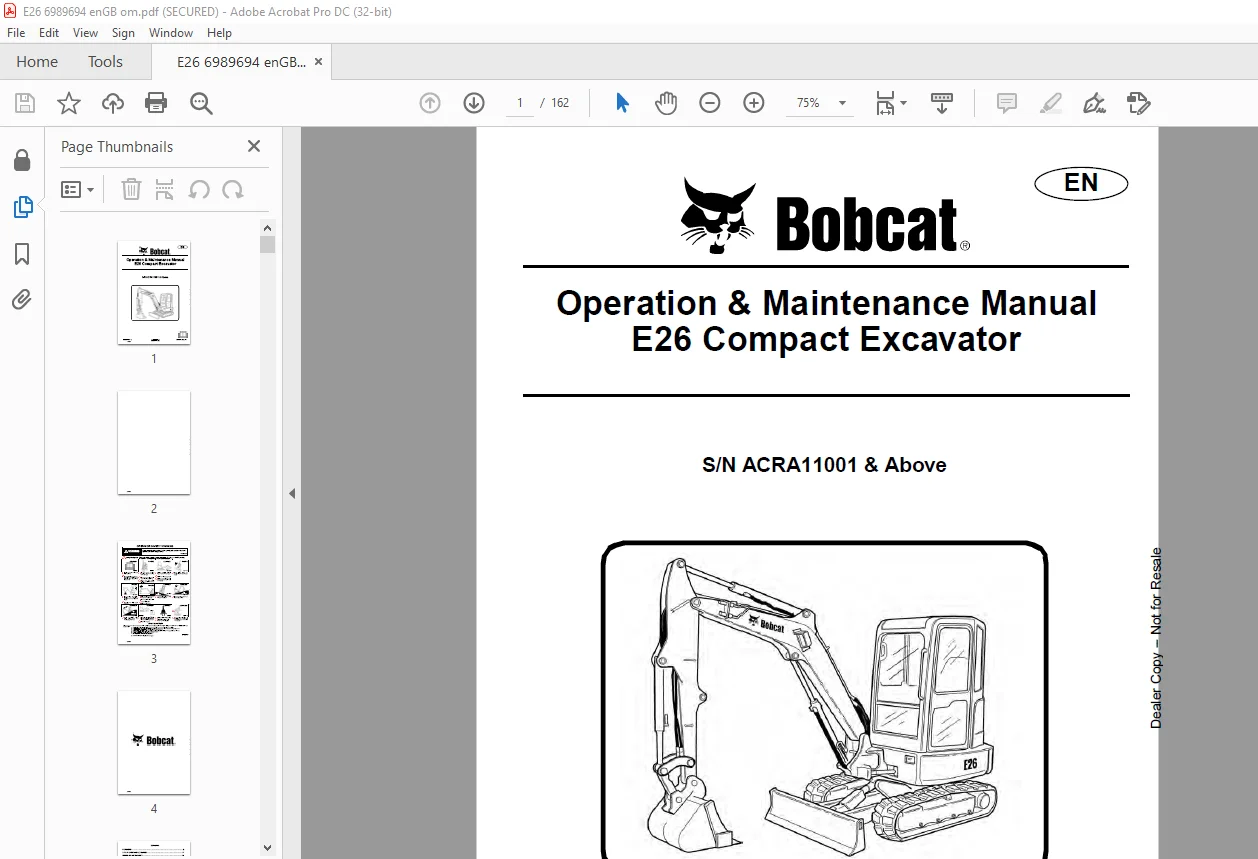

Bobcat E26 Compact Excavator Operation & Maintenance Manual 6989694(7-11) – PDF DOWNLOAD

Description

Bobcat E26 Compact Excavator Operation & Maintenance Manual 6989694(7-11) – PDF DOWNLOAD

FILE DETAILS:

Bobcat E26 Compact Excavator Operation & Maintenance Manual 6989694(7-11) – PDF DOWNLOAD

Language : English
Pages :162
Downloadable : Yes
File Type : PDF
Size:5.16 MB

DESCRIPTION:

Bobcat E26 Compact Excavator Operation & Maintenance Manual 6989694(7-11) – PDF DOWNLOAD

S/N ACRA11001 & Above

FOREWORD
This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation
and maintenance of the Bobcat excavator. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT EXCAVATOR. If you have any questions, see your Bobcat
dealer. This manual may illustrate options and accessories not installed on your excavator.

SAFETY INSTRUCTIONS
Before Operation

• This presents an operator with hazards associated with off motorway, rough terrain applications, common with Bobcat excavator usage. The Bobcat excavator has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so use the excavator with adequate ventilation.
• The dealer explains the capabilities and restrictions of the Bobcat excavator and attachment for each application. The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for a Rated Lift Capacity.
• They are designed for secure fastening to the Bobcat excavator. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the machine – attachment combination

The following publications and training materials provide information on the safe use and maintenance of the Bobcat machine and attachments:

TABLE OF CONTENTS:

Bobcat E26 Compact Excavator Operation & Maintenance Manual 6989694(7-11) – PDF DOWNLOAD

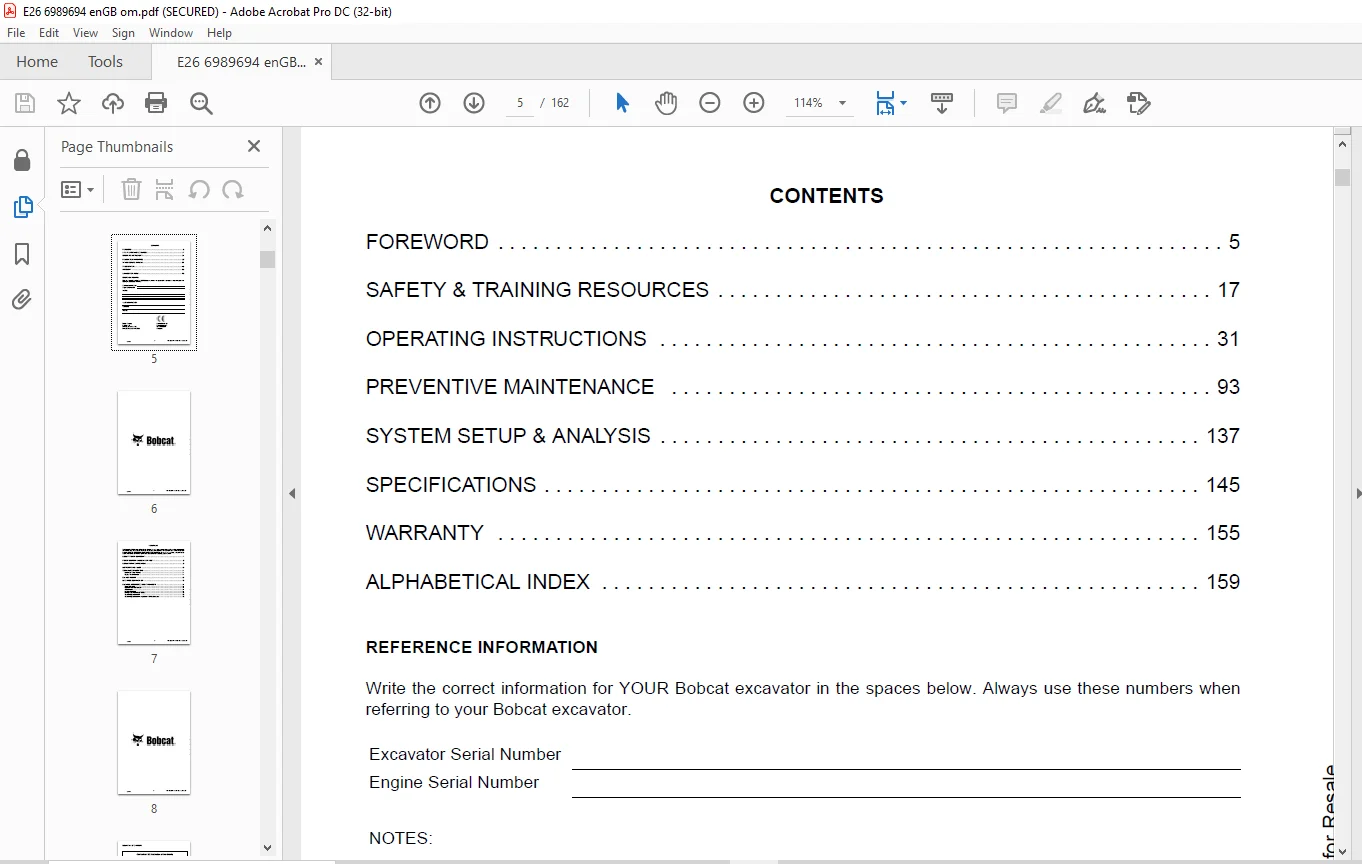

OPERATOR SAFETY WARNING 3
CONTENTS 5
FOREWORD 7
DECLARATION OF CONFORMITY 9
BOBCAT COMPANY IS IS0 9001 CERTIFIED 11
REGULAR MAINTENANCE ITEMS 11
LUBRICANTS AND FLUIDS 12
SERIAL NUMBER LOCATIONS 13
Excavator Serial Number 13
Engine Serial Number 13
DELIVERY REPORT 14

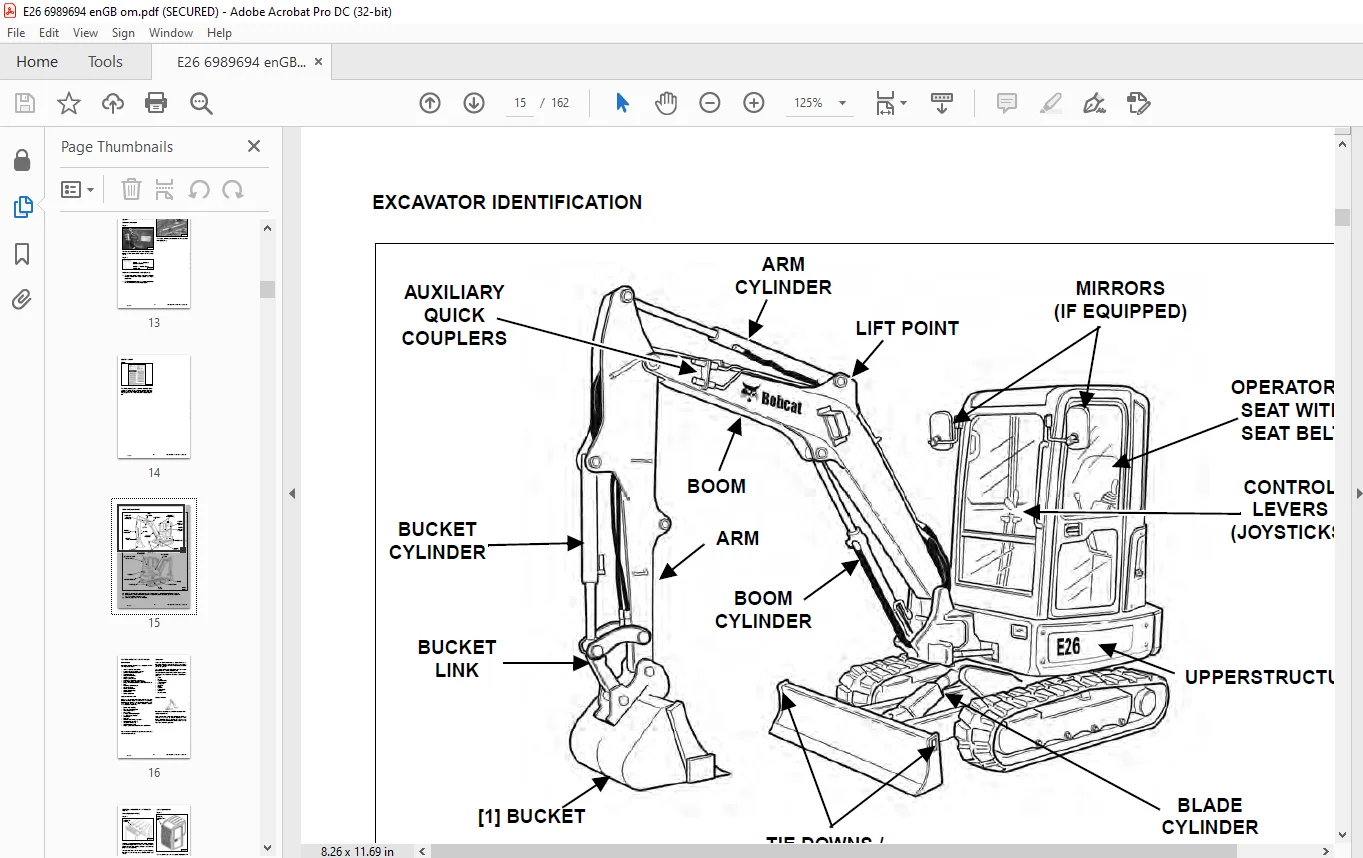

EXCAVATOR IDENTIFICATION 15
FEATURES, ACCESSORIES AND ATTACHMENTS 16
Standard Items 16
Options And Accessories 16
Attachments 16
Buckets Available 16
Falling Object Guards (FOGS) 17
Special Applications Kit 17
Special Applications Kit Inspection And Maintenance 17
SAFETY & TRAINING RESOURCES 19
SAFETY INSTRUCTIONS 21
Before Operation 21
Safe Operation Is The Operator’s Responsibility 22
Safe Operation Needs A Qualified Operator 22
Avoid Silica Dust 23
FIRE PREVENTION 23
Maintenance 23
Operation 23
Electrical 23
Hydraulic System 24
Fueling 24
Starting 24
Spark Arrester Exhaust System 24
Welding And Grinding 24
Fire Extinguishers 24
PUBLICATIONS AND TRAINING RESOURCES 25
MACHINE SIGNS (DECALS) 26
No-Text Safety Signs 28
OPERATING INSTRUCTIONS 33
INSTRUMENTS AND CONSOLES 37
Cab Interior Light 37
Left Console 37
Right Console 38
Indicator Icons 39
Raising And Lowering The Console 40
Two-Speed Travel 40
Auto Shift Drive Motors 40
Auto Idle Feature 41
OPERATOR CANOPY (ROPS / TOPS) 42
Description 42
OPERATOR CAB (ROPS / TOPS) 42
Description 42
Cab Door 43
Front Window 44
Front Wiper 45
Window Washer Reservoir 45
Right Side Window 46
Heating And Ventilation Ducting 47
EMERGENCY EXIT 48
Right Side Rear Window 48
Front Window 48
MOTION ALARM SYSTEM 49
Operation 49
TRAVEL CONTROLS 50
Forward And Reverse Travel 50
Turning 50
HYDRAULIC CONTROLS 52
Description 52
Quick Couplers 53
Auxiliary Hydraulics 54
Relieve Hydraulic Pressure (Excavator And Attachment) 54
Secondary Auxiliary Hydraulics 55
Relieve Hydraulic Pressure (Excavator And Attachment) 55
Return To Tank Valve 56
BLADE CONTROL LEVER 57
Raising And Lowering Blade 57
ENGINE SPEED CONTROL 57
Setting Engine Speed (Rpm) 57
BOOM SWING 58
Operation 58
BOOM LOAD HOLDING VALVE 59
Description 59
Lowering Boom With Load Holding Valve 59
ARM LOAD HOLDING VALVE 61
Description 61
Lowering Arm With Load Holding Valve 61
DAILY INSPECTION 63
Daily Inspection And Maintenance 63
PRE-STARTING PROCEDURE 64
Operation & Maintenance Manual And Operator’s Handbook Locations 64
Entering The Excavator 64
Seat Adjustment 65
Seat Belt 65
Control Console 66
Mirror Adjustment 66
STARTING THE ENGINE 67
Key Switch 67
Keyless 69
Cold Temperature Starting 70
Warming The Hydraulic System 71
STOPPING THE ENGINE AND LEAVING THE EXCAVATOR 72
Procedure 72
ATTACHMENTS 73
Installing And Removing The Attachment (Pin-On Attachment) 73
Installing And Removing The Attachment (Quick Coupler, Klac™ System) 74
Installing And Removing The Attachment (Quick Coupler, Lehnhoff® System) 78
OPERATING PROCEDURE 80
Inspect The Work Area 80
Basic Operating Instructions 80
Lowering The Work Equipment (Engine STOPPED) 80
Lifting A Load 81
Using The Clamp 82
Excavating 83
Boom Swing 85
Backfilling 86
Driving The Excavator 86
Operating On Slopes 87
Operating In Water 89
Avoiding Track Damage 90
TOWING THE EXCAVATOR 91
Procedure 91
LIFTING THE EXCAVATOR 92
Procedure 92
TRANSPORTING THE EXCAVATOR ON A TRAILER 93
Loading And Unloading 93
Fastening 94
PREVENTIVE MAINTENANCE 95
MAINTENANCE SAFETY 97
SERVICE SCHEDULE 99
Chart 99
CONTROL CONSOLE LOCKOUTS 100
Inspection And Maintenance 100
SEAT BELT 101
Inspection And Maintenance 101
MOTION ALARM SYSTEM 102
Description 102
Inspecting 102
Adjusting Switch Position 103
TAILGATE 104
Opening And Closing 104
Adjusting The Latch 104
RIGHT SIDE COVER 105
Opening And Closing 105
CAB FILTERS 106
Cleaning And Maintenance 106
AIR CLEANER SERVICE 107
Daily Check 107
Replacing The Filter Elements 107
FUEL SYSTEM 109
Fuel Specifications 109
Biodiesel Blend Fuel 109
Filling The Fuel Tank 110
Fuel Filter 110
Draining The Fuel Tank 111
Removing Air From The Fuel System 112
ENGINE LUBRICATION SYSTEM 113
Checking And Adding Engine Oil 113
Engine Oil Chart 113
Removing And Replacing Oil And Filter 114
ENGINE COOLING SYSTEM 115
Cleaning 115
Checking Level 116
Removing And Replacing Coolant 117
ELECTRICAL SYSTEM 118
Description 118
Fuse And Relay Location / Identification 118
Shutoff Switch 120
Battery Maintenance 120
Using A Booster Battery (Jump Starting) 121
Removing And Installing The Battery 122
HYDRAULIC SYSTEM 123
Checking And Adding Hydraulic Oil 123
Hydraulic / Hydrostatic Fluid Chart 124
Removing And Replacing The Hydraulic Filters 124
Removing And Replacing The Hydraulic Fluid 126
TRACK TENSION 127
Checking Tension 127
TRACK TENSION (CONT’D) 128
Adjusting Tension 128
TRAVEL MOTOR 129
Checking And Adding Oil 129
Removing And Replacing Oil 129
ALTERNATOR AND FAN BELT 130
Belt Adjustment 130
Belt Replacement 130
QUICK COUPLER 133
Quick Coupler And Attachment Inspection And Maintenance 133
TRACK ROLLER AND IDLER LUBRICATION 133
Procedure 133
BUCKET 134
Bucket Teeth Removal And Installation 134
LUBRICATION OF THE HYDRAULIC EXCAVATOR 135
Lubrication Locations 135
PIVOT PINS 137
Inspection And Maintenance 137
EXCAVATOR STORAGE AND RETURN TO SERVICE 138
Storage 138
Return to Service 138
SYSTEM SETUP & ANALYSIS 139
DIAGNOSTIC SERVICE CODES 141
Service Codes List 141
DISPLAY CONTROLLER PANEL SETUP 143
Passwords 143
Password Entry (For Starting and Operating the Machine) 143
Changing The Operator Password 143
Password Lockout Feature 144
Job Clock 144
RPM 144
MAINTENANCE CLOCK 145
Description 145
Setup 145
Reset 145
SPECIFICATIONS 147
(E26) EXCAVATOR SPECIFICATIONS 149
Machine Dimensions (Standard Arm) 149
Machine Dimensions (Long Arm) 151
Performance 153
Controls 153
Engine 154
Hydraulic System 154
Hydraulic Cylinders 155
Hydraulic Cycle Times 155
Electrical 155
Drive System 155
Slew System 155
Undercarriage 156
Capacities 156
Tracks 156
Ground Pressure 156
Environmental 156
WARRANTY 157
WARRANTY 159
ALPHABETICAL INDEX 161
