BOBCAT FCTSB49 FCTSB62 Front Compact Tractor Snowblower Operation Manual 6989401 PDF DOWNLOAD

Description

BOBCAT FCTSB49 FCTSB62 Front Compact Tractor Snowblower Operation Manual 6989401 PDF DOWNLOAD

FILE DETAILS:

BOBCAT FCTSB49 FCTSB62 Front Compact Tractor Snowblower Operation Manual 6989401 PDF DOWNLOAD

Language : English
Pages :  92
Downloadable : Yes
File Type : PDF

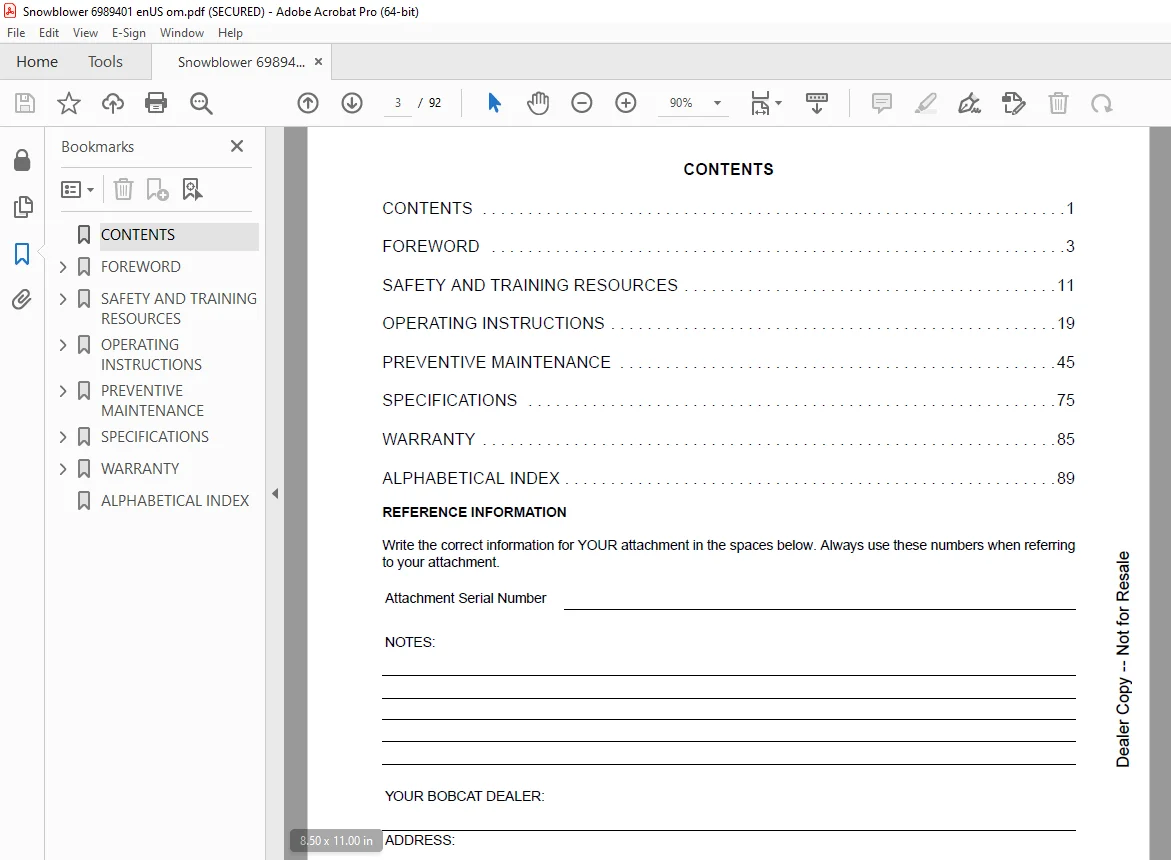

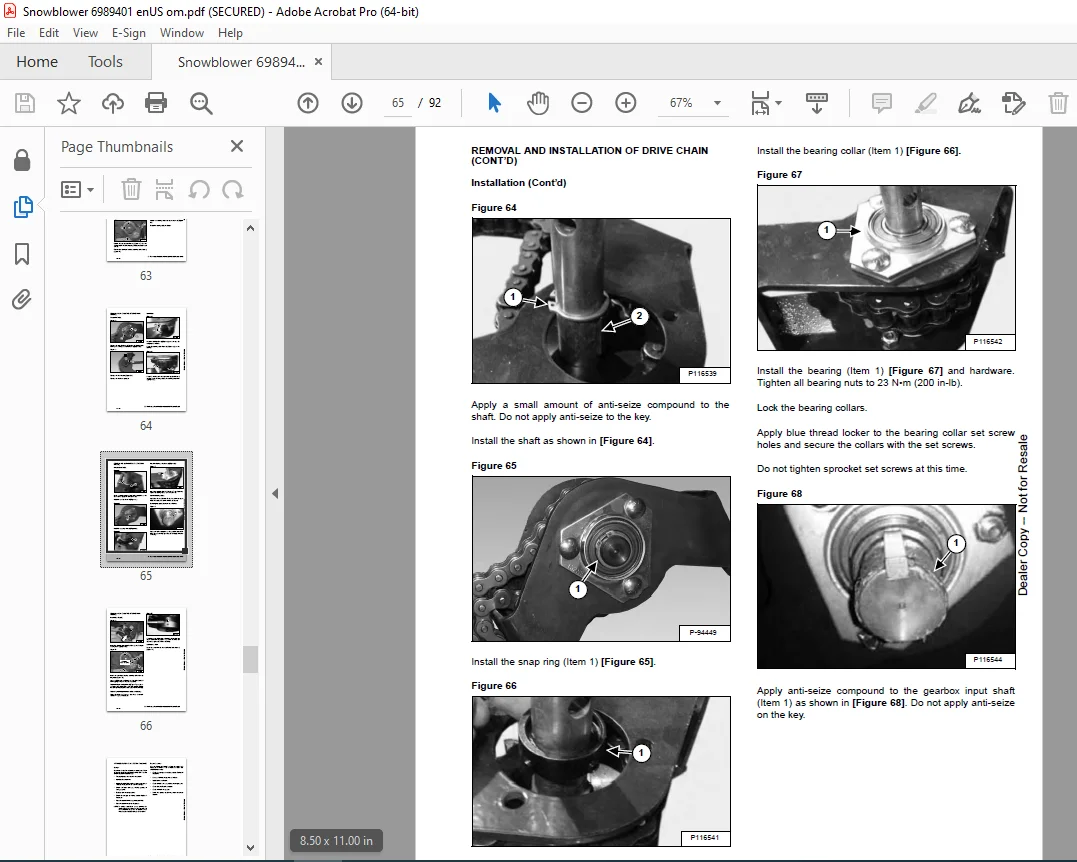

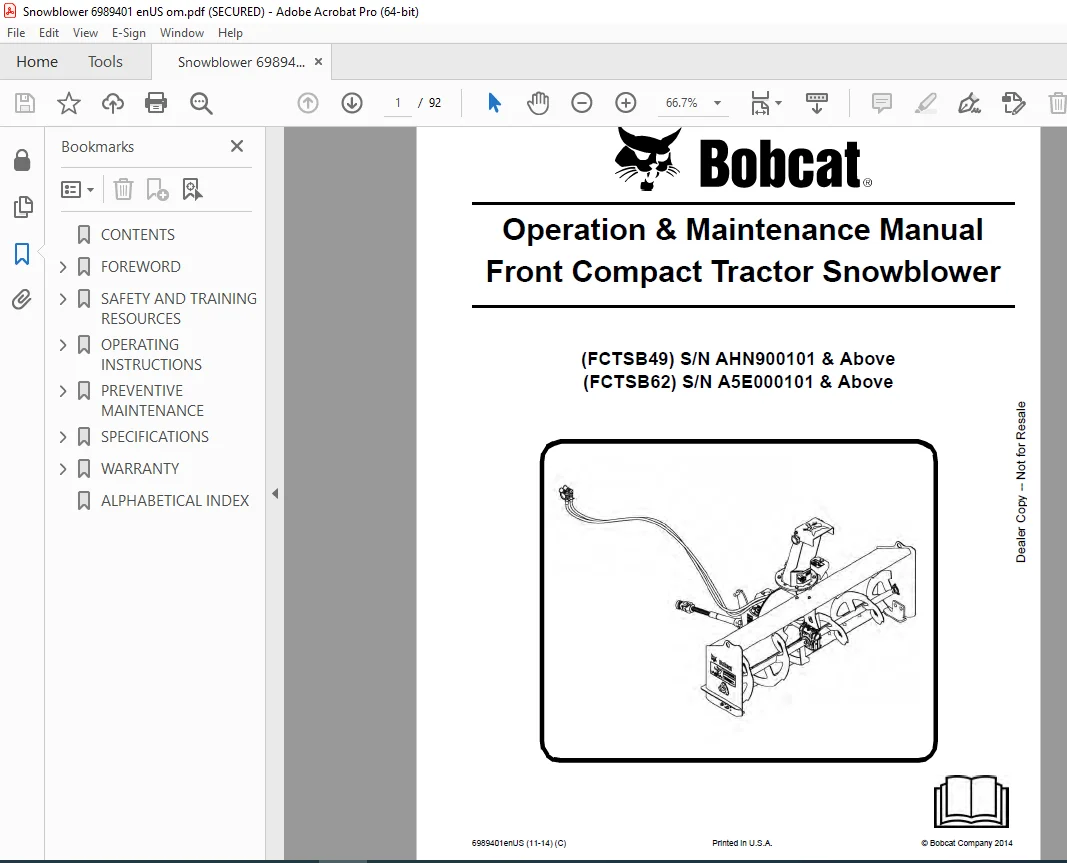

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BOBCAT FCTSB49 FCTSB62 Front Compact Tractor Snowblower Operation Manual 6989401 PDF DOWNLOAD

(FCTSB49) S/N AHN900101 & Above
(FCTSB62) S/N A5E000101 & Above

CONTENTS………………………………………………….. 3
FOREWORD………………………………………………….. 5
BOBCAT COMPANY IS IS0 9001 CERTIFIED……………………… 7
SERIAL NUMBER LOCATION………………………………….. 9
Attachment Serial Number…………………………….. 9
DELIVERY REPORT………………………………………… 9
ATTACHMENT IDENTIFICATION………………………………..10
FEATURES AND ACCESSORIES…………………………………11
Standard Items………………………………………11
Required Kits For Attachment………………………….11
SAFETY AND TRAINING RESOURCES………………………………..13
SAFETY INSTRUCTIONS……………………………………..15
Safe Operation Is The Operator’s Responsibility…………15
Safe Operation Needs A Qualified Operator………………15
Use Safety Rules…………………………………….16
Call Before You Dig………………………………….16
Avoid Silica Dust……………………………………16
FIRE PREVENTION…………………………………………17
Maintenance…………………………………………17
Operation…………………………………………..17
Electrical………………………………………….17
Hydraulic System…………………………………….17
Fueling…………………………………………….17
Starting……………………………………………17
Spark Arrester Exhaust System…………………………17
Welding And Grinding…………………………………18
Fire Extinguishers…………………………………..18
PUBLICATIONS AND TRAINING RESOURCES……………………….19
ATTACHMENT SIGNS (DECALS)………………………………..20
OPERATING INSTRUCTIONS………………………………………21
DAILY INSPECTION………………………………………..23
Attachment Mounting Frame…………………………….23
Compact Tractor Quick Hitch…………………………..23
Front-PTO Shaft Assembly……………………………..24
PTO Driveline……………………………………….24
OPERATING PROCEDURE WITH COMPACT TRACTORS………………….25
Approved Compact Tractor Models And Requirements………..25
Machine / Attachment Setup……………………………26
Entering And Exiting The Compact Tractor……………….27
Installation………………………………………..29
Front Power Take-Off (PTO)……………………………32
Hydraulic Quick Couplers……………………………..34
Control Functions Quick Hitch Attachment……………….36
Control Functions For Mid-PTO…………………………38
Operation With The Compact Tractor…………………….40
Removal…………………………………………….43
LIFTING THE ATTACHMENT…………………………………..44
Procedure…………………………………………..44
TRANSPORTING THE ATTACHMENT ON A TRAILER…………………..45
Fastening…………………………………………..45
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER………..45
Loading And Fastening………………………………..45
PREVENTIVE MAINTENANCE………………………………………47
MAINTENANCE SAFETY………………………………………49
TROUBLESHOOTING…………………………………………51
Chart………………………………………………51
SERVICE SCHEDULE………………………………………..52
Description…………………………………………52
REGULAR MAINTENANCE ITEMS………………………………..53
Auger Gearbox Fluid………………………………….53
Cleaning The Front Mount Snowblower……………………54
Skid Shoe Adjustment…………………………………55
Drive Chain Adjustment……………………………….56
LUBRICATING THE ATTACHMENT……………………………….57
Lubrication Locations………………………………..57
Chute Gear Adjustment………………………………..57
AUGER GEARBOX FLUID CHANGE……………………………….59
Procedure…………………………………………..59
REMOVAL AND INSTALLATION OF SHEAR BOLT…………………….60
Procedure…………………………………………..60
REMOVAL AND INSTALLATION OF SKID SHOE……………………..61
Procedure…………………………………………..61
REMOVAL AND INSTALLATION OF CUTTING EDGE…………………..61
Procedure…………………………………………..61
REMOVAL AND INSTALLATION OF CHUTE SLIDE……………………62
Procedure…………………………………………..62
REMOVAL AND INSTALLATION OF DRIVE CHAIN……………………63
Removal…………………………………………….63
Installation………………………………………..64
ATTACHMENT STORAGE AND RETURN TO SERVICE…………………..67
Storage…………………………………………….67
Return To Service……………………………………67
MACHINE SIGN TRANSLATIONS………………………………..71
Warning (6673385)……………………………………71
Warning (6673400)……………………………………72
Warning (7161599)……………………………………73
Danger (7179913)…………………………………….74
Danger (7179947)…………………………………….75
Danger (7117186)…………………………………….76
SPECIFICATIONS……………………………………………..77
(FCTSB49 AND FCTSB62) FRONT MOUNT SNOWBLOWER SPECIFICATIONS….79
Dimensions………………………………………….79
Performance…………………………………………80
Capacities………………………………………….80
TORQUE SPECIFICATIONS FOR BOLTS…………………………..81
Torque For General SAE Bolts………………………….81
Torque For General Metric Bolts……………………….82
HYDRAULIC CONNECTION SPECIFICATIONS……………………….83
O-ring Face Seal Connection…………………………..83
Straight Thread O-ring Fitting………………………..83
Tubelines And Hoses………………………………….83
Flare Fitting……………………………………….84
Port Seal Fitting……………………………………84
WARRANTY…………………………………………………..87
WARRANTY……………………………………………….89
ALPHABETICAL INDEX………………………………………….91

Customer Support: [email protected]

https://vimeo.com/844534336?share=copy

DESCRIPTION:

BOBCAT FCTSB49 FCTSB62 Front Compact Tractor Snowblower Operation Manual 6989401 PDF DOWNLOAD
FOREWORD

FIRE PREVENTION:
Maintenance

• The machine and some attachments have components that are at high temperatures under normal operating conditions. The primary source of high temperatures is the engine and exhaust system. The electrical system, if damaged or incorrectly maintained, can be a source of arcs or sparks.
• Flammable debris (leaves, straw, etc.) must be removed regularly. If flammable debris is allowed to accumulate, it can cause a fire hazard. Clean often to avoid this accumulation. Flammable debris in the engine compartment is a potential fire hazard.
• The operator’s area, engine compartment, and engine cooling system must be inspected every day and cleaned if necessary to prevent fire hazards and overheating.
• All fuels, most lubricants, and some coolant mixtures are flammable. Flammable fluids that are leaking or spilled onto hot surfaces or onto electrical components can cause a fire.

Operation

• Do not use the machine where exhaust, arcs, sparks, or hot components can contact flammable material, explosive dust, or gases.

Electrical

• Check all electrical wiring and connections for damage. Keep the battery terminals clean and tight. Repair or replace any damaged part or wires that are loose or frayed.
• Battery gas can explode and cause serious injury. Use the procedure in the Operation & Maintenance Manual for connecting the battery and for jump-starting. Do not jump-start or charge a frozen or damaged battery. Keep any open flames or sparks away from batteries. Do not smoke in the battery charging area.

Hydraulic System

• Check hydraulic tubes, hoses, and fittings for damage and leakage. Never use an open flame or bare skin to check for leaks. Hydraulic tubes and hoses must be properly routed and have adequate support and secure clamps. Tighten or replace any parts that show leakage.
• Always clean fluid spills. Do not use gasoline or diesel fuel for cleaning parts. Use commercial nonflammable solvents.

Fueling

• Stop the engine and let it cool before adding fuel. No smoking! Do not refuel a machine near open flames or sparks. Fill the fuel tank outdoors.
• Ultra Low Sulfur Diesel (ULSD) poses a greater static ignition hazard than earlier diesel formulations with higher Sulfur content. Avoid death or serious injury from fire or explosion. Consult with your fuel or fuel system supplier to ensure the delivery system is in compliance with fueling standards for proper grounding and bonding practices.

Starting

• Do not use ether or starting fluids on any engine that has glow plugs. These starting aids can cause an explosion and injure you or bystanders.
• Use the procedure in the Operation & Maintenance Manual for connecting the battery and for jump-starting.

Spark Arrester Exhaust System

• The spark arrester exhaust system is designed to control the emission of hot particles from the engine and exhaust system, but the muffler and the exhaust gases are still hot.
• Check the spark arrester exhaust system regularly to make sure it is maintained and working properly. Use the procedure in the Operation & Maintenance Manual for cleaning the spark arrester muffler (if equipped).
