Bobcat Front Mount Mower 66 Operation & Maintenance Manual SN AW4400101 & Above – PDF DOWNLOAD

Description

Bobcat Front Mount Mower 66 Operation & Maintenance Manual SN AW4400101 & Above – PDF DOWNLOAD

FILE DETAILS:

Bobcat Front Mount Mower 66 Operation & Maintenance Manual SN AW4400101 & Above – PDF DOWNLOAD

Language : English
Pages : 82
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat Front Mount Mower 66 Operation & Maintenance Manual SN AW4400101 & Above – PDF DOWNLOAD

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer.

SAFETY INSTRUCTIONS
Safe Operation Is The Operator’s Responsibility

Operator must have instructions before operating the machine. Untrained operators can cause injury or death

IMPORTANT

This notice identifies procedures which must be followed to avoid damage to the machine.

The Bobcat machine and attachment must be in good operating condition before use.
Check all of the items on the Bobcat Service Schedule Decal under the 8-10 hour column or as shown in the Operation & Maintenance Manual.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or co- ordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and
Regulations

• • The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. For driving on public roads, the machine must be equipped as stipulated by the local regulations authorising operation on public roads in your specific country. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

• Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
  Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, hearing protection, Special Applications Kits or a Front Window Guard are required for some work. See your Bobcat dealer about Bobcat Safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• • Read and follow instructions in the machine and the attachment’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the Bob-Tach™ levers are in the locked position and the wedges are fully engaged into the holes of the attachment (if applicable).
• Check that the attachment is securely fastened to the machine.
• Make sure all the machine controls are in the NEUTRAL position before starting the machine.
• Operate the attachment only from the operator’s position.
• Operate the attachment according to the Operation & Maintenance Manual.
• When learning to operate the attachment, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment.
• The attachment must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments for each machine model.
• DO NOT modify equipment or add attachments that are not approved by the manufacturer.
• DO NOT make any adjustments or repairs on the machine or attachment while the engine is running.
• Keep shields and guards in place. Replace if damaged.

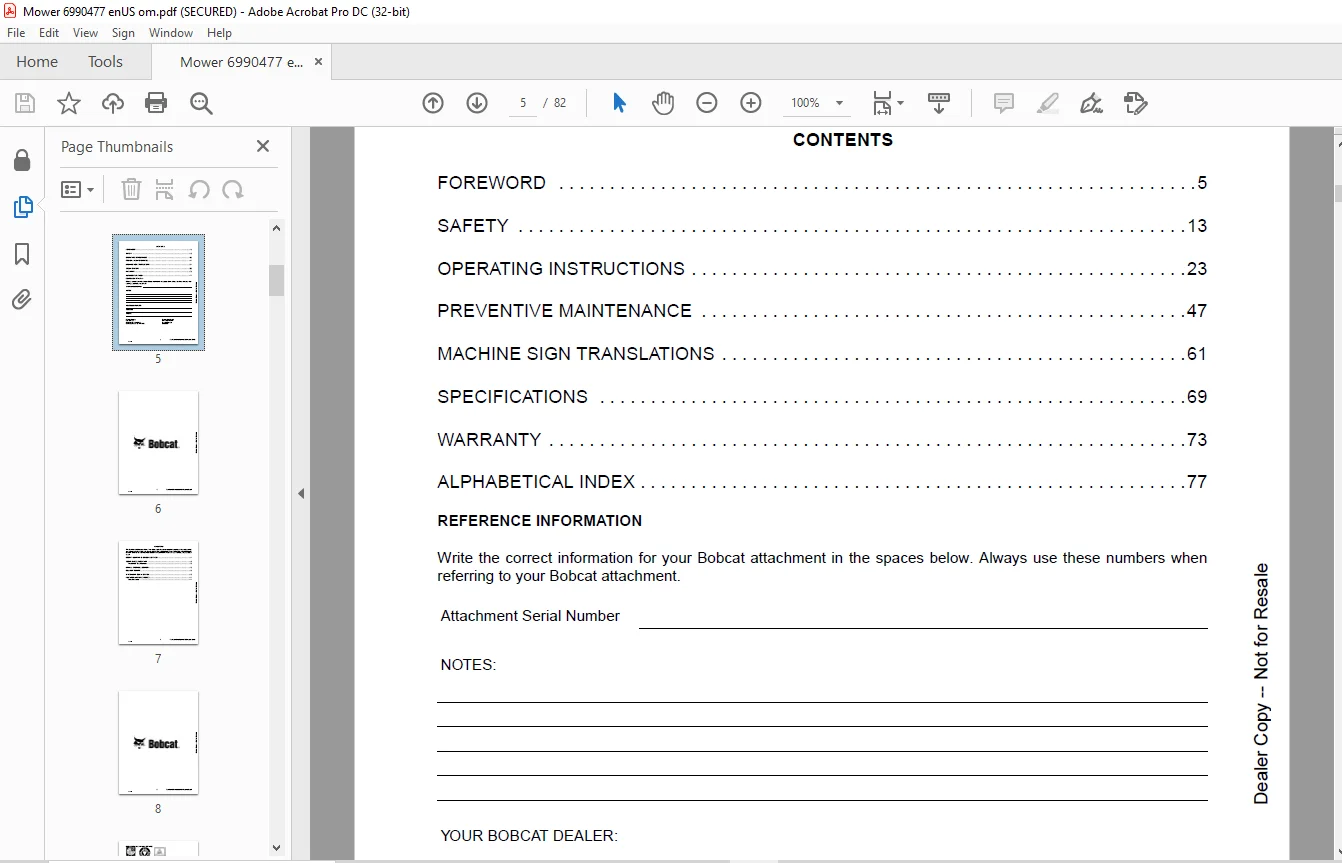

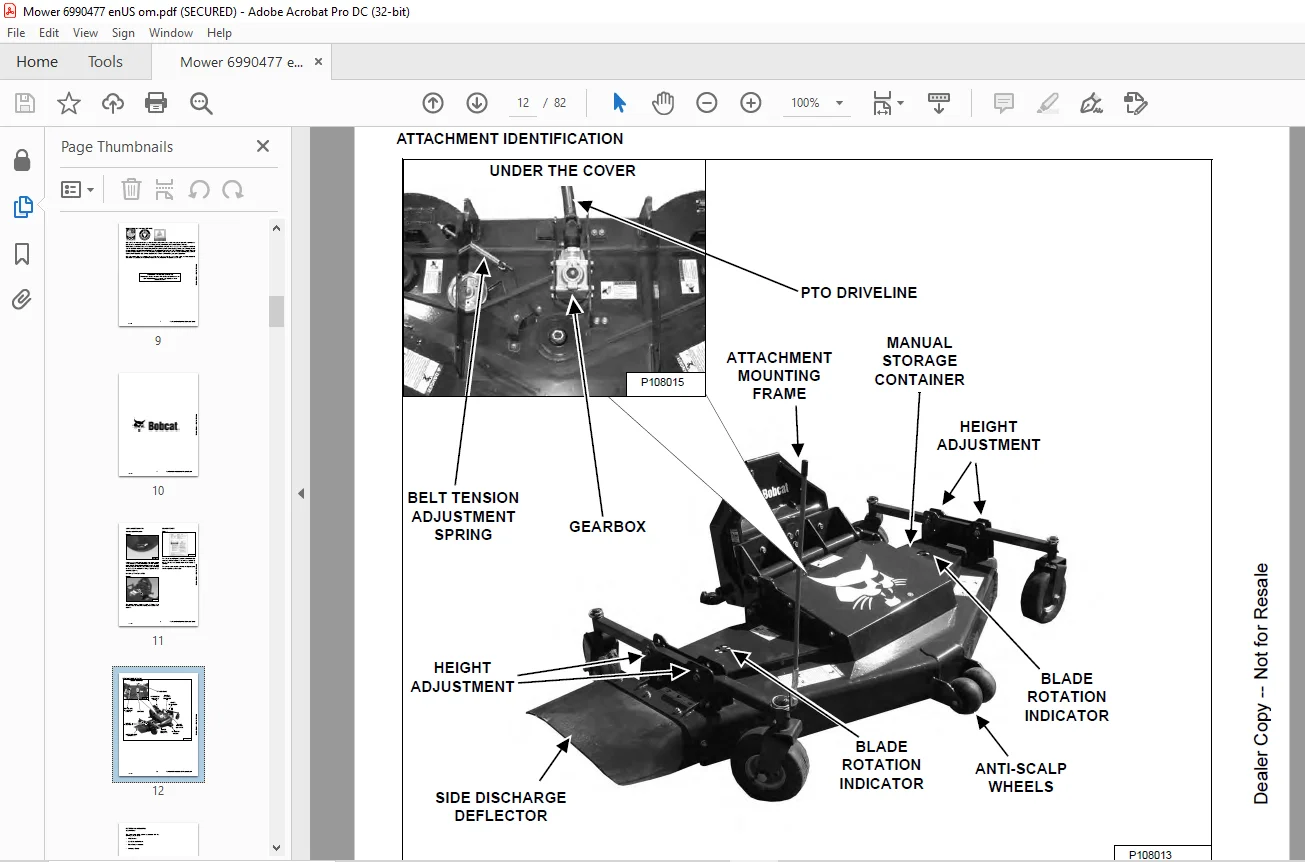

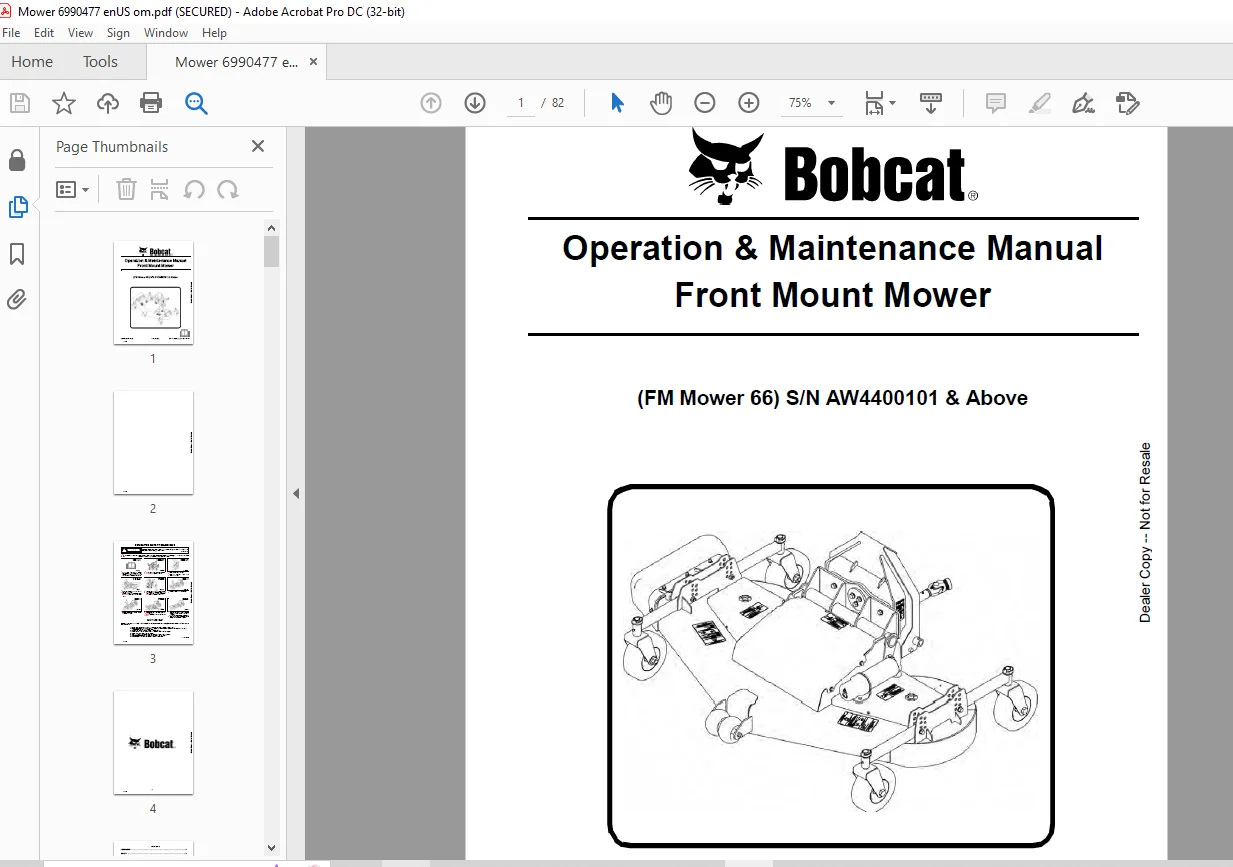

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat Front Mount Mower 66 Operation & Maintenance Manual SN AW4400101 & Above – PDF DOWNLOAD

FOREWORD 7
BOBCAT COMPANY IS IS0 9001 CERTIFIED 9
SERIAL NUMBER LOCATION 11
Attachment Serial Number 11
MANUAL STORAGE LOCATION 11
DELIVERY REPORT 11
ATTACHMENT IDENTIFICATION 12
FEATURES AND ACCESSORIES 13
Standard Items 13
SAFETY 15
SAFETY INSTRUCTIONS 17
Safe Operation Is The Operator’s Responsibility 17
Safe Operation Needs A Qualified Operator 17
Use Safety Rules 18
Call Before You Dig 18
Avoid Silica Dust 18
Safety Rules For Power Take-Off (PTO) Driven Attachments 19
Machine Requirements And Capabilities 19
FIRE PREVENTION 20
Maintenance 20
Operation 20
Electrical 20
Hydraulic System 20
Fueling 20
Starting 20
Spark Arrester Exhaust System 20
Welding And Grinding 21
Fire Extinguishers 21
PUBLICATIONS AND TRAINING RESOURCES 22
ATTACHMENT SIGNS (DECALS) 23
OPERATING INSTRUCTIONS 25
INITIAL SETUP 27
Cutting Height Settings 27
DAILY INSPECTION 28
Attachment Inspection 28
Attachment Mounting Frame 28
Front Mount Frame 29
PTO Driveline 30
OPERATING PROCEDURE WITH UTILITY VEHICLES 30
Approved Utility Vehicle Models And Requirements 30
Entering And Exiting The Utility Vehicle 31
Installation 33
Front Power Take-Off (PTO) 36
Control Functions Mount Frame Attachment 38
Control Functions For Front-PTO 39
Operation With The Utility Vehicle 41
Removal 44
LIFTING THE ATTACHMENT 46
Procedure 46
TRANSPORTING THE attachment ON A TRAILER 46
Fastening 46
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 47
Loading And Fastening 47
PREVENTIVE MAINTENANCE 49
MAINTENANCE SAFETY 51
TROUBLESHOOTING 53
Chart 53
REGULAR MAINTENANCE ITEMS 54
Adjusting Belt Tension 54
Blade Sharpening 55
Cleaning The Mower 56
PTO Shaft Debris Removal 57
Gearbox Oil Level 58
LUBRICATING THE ATTACHMENT 59
Lubrication Locations 59
BELT REMOVAL AND INSTALLATION 60
Procedure 60
BLADE REMOVAL AND INSTALLATION 61
Procedure 61
ATTACHMENT STORAGE AND RETURN TO SERVICE 61
Storage 61
Return To Service 61
MACHINE SIGN TRANSLATIONS 63
MACHINE SIGN TRANSLATIONS 65
Warning (7161604) 65
Danger / Warning (7179913) 66
Danger (7161602) 67
Danger (7161605) 68
Important (7237181) 69
SPECIFICATIONS 71
(FM MOWER 66) ATTACHMENT SPECIFICATIONS 73
Dimensions 73
Performance 74
WARRANTY 75
WARRANTY 77
ALPHABETICAL INDEX 79
