Bobcat HB1380 HB2380 Operation & Maintenance Manual 6904928 (07-18) – PDF DOWNLOAD

Description

Bobcat HB1380 HB2380 Operation & Maintenance Manual 6904928 (07-18) – PDF DOWNLOAD

FILE DETAILS:

Bobcat HB1380 HB2380 Operation & Maintenance Manual 6904928 (07-18) – PDF DOWNLOAD

Language : English
Pages :126
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Bobcat HB1380 HB2380 Operation & Maintenance Manual 6904928 (07-18) – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 3
OPERATOR SAFETY WARNINGS 5

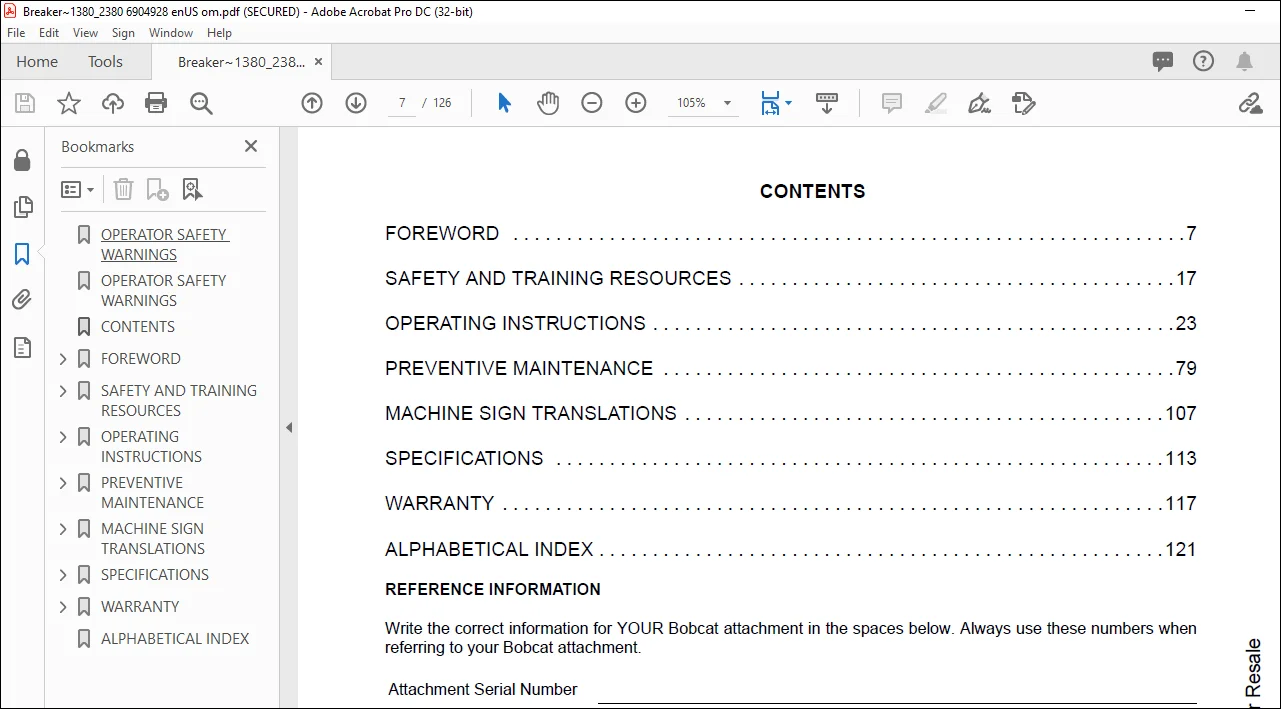

CONTENTS 7
FOREWORD 9
BOBCAT COMPANY IS IS0 9001 CERTIFIED 11
SERIAL NUMBER LOCATIONS 12
Attachment Serial Number 12
DELIVERY REPORT 12
ATTACHEMENT IDENTIFICATION 13
FEATURES AND ACCESSORIES 15
Options And Accessories 15
Available Breaker Bits 15
Special Applications Kit For Loaders 16
Falling-Object Guard Structure (FOGS) For Excavators 16
Special Applications Kit For Excavators 17
SAFETY AND TRAINING RESOURCES 19
SAFETY INSTRUCTIONS 21
Safe Operation Is The Operator’s Responsibility 21
Safe Operation Needs A Qualified Operator 21
Use Safety Rules 22
Call Before You Dig 22
Avoid Silica Dust 22
FIRE PREVENTION 23
Maintenance 23
Operation 23
Electrical 23
Hydraulic System 23
Fueling 23
Starting 23
Spark Arrester Exhaust System 23
Welding And Grinding 24
Fire Extinguishers 24
OPERATING INSTRUCTIONS 25
INITIAL SETUP 27
Assembly 27

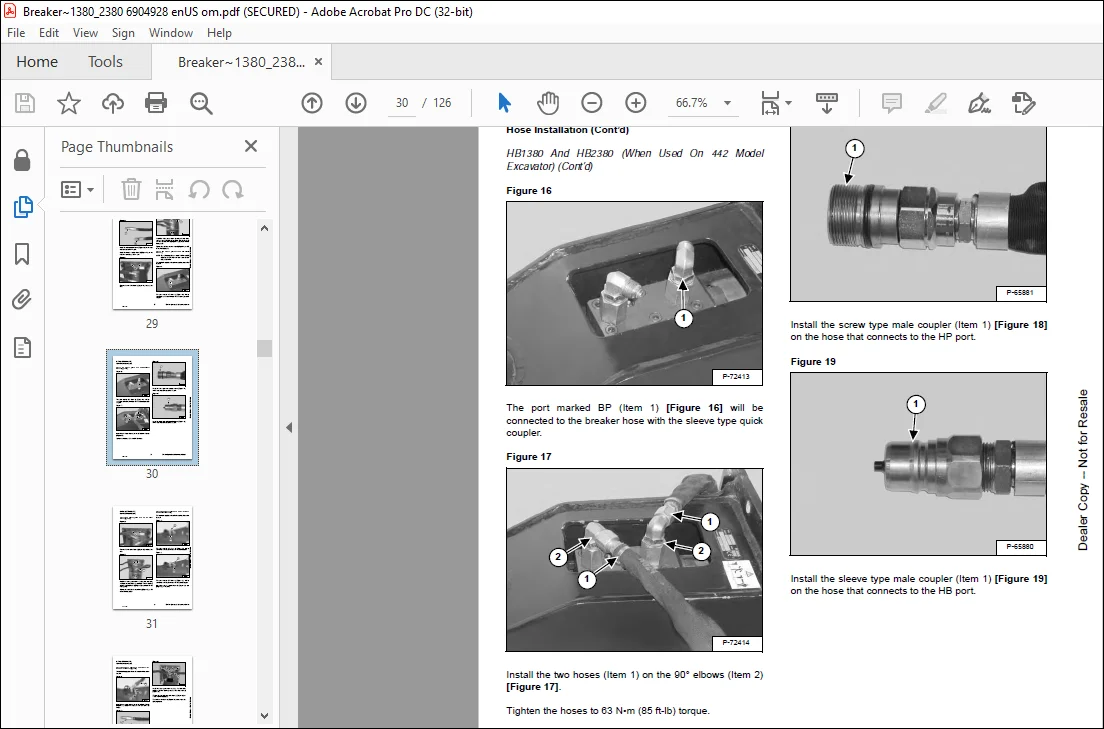

Hose Installation 28
DAILY INSPECTION 33
Bob-Tach 33
Pin-On X-Change™ 35
Pin-On Attachment 35
Manual Spring Loaded Coupler (442 And 444 Only) 36
Quick Coupler Inspection 36
OPERATING PROCEDURE WITH LOADERS 37
Approved Loader Models And Requirements 37
Special Applications Kit 38
Special Applications Kit Inspection And Maintenance 38
Machine / Attachment Setup 39
Entering And Exiting The Loader 40
Installation 41
Hydraulic Quick Couplers 47
Control Functions 48
Operation With The Loader 49
Removal 52
OPERATING PROCEDURE WITH EXCAVATOR 53
Approved Excavator Models And Requirements 53
Falling-Object Guard System (FOGS) 54
Falling-Object Guard System (FOGS) Inspection And Maintenance 54
Special Applications Kit 54
Special Applications Kit Inspection And Maintenance 54
Entering And Exiting The Excavator 55
Installation 57
Hydraulic Quick Couplers 67
Control Functions 68
Operation With The Excavator 70
Removal 73
LIFTING THE ATTACHMENT 76
Procedure 76
TRANSPORTING THE ATTACHMENT ON A TRAILER 78
Fastening 78
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 80
Loading And Fastening 80
PREVENTIVE MAINTENANCE 81
MAINTENANCE SAFETY 83
TROUBLESHOOTING 85
Charging Information 87
SERVICE SCHEDULE 88
Chart 88
REGULAR MAINTENANCE ITEMS 89
Weekly Inspection 89
Nitrogen Chamber 92
LUBRICATING THE ATTACHMENT 97
Lubrication Locations 97
REMOVAL AND INSTALLATION OF THE TOOL 100
Procedure (HB1380) 100
Procedure (HB2380) 103
ATTACHMENT STORAGE AND RETURN TO SERVICE 107
Storage 107
Return To Service 107
MACHINE SIGN TRANSLATIONS 109
MACHINE SIGN TRANSLATIONS 111
WARNING (7112678) 111
WARNING (7136743) 112
WARNING (7112677) 113
SPECIFICATIONS 115
(BREAKER HB1380) Specifications 117
Dimensions 117
Performance 117
Hydraulic System 117
Environmental 117
(BREAKER HB2380) Specifications 118
Dimensions 118
Performance 118
Hydraulic System 118
Environmental 118
WARRANTY 119
WARRANTY 121
ALPHABETICAL INDEX 123

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

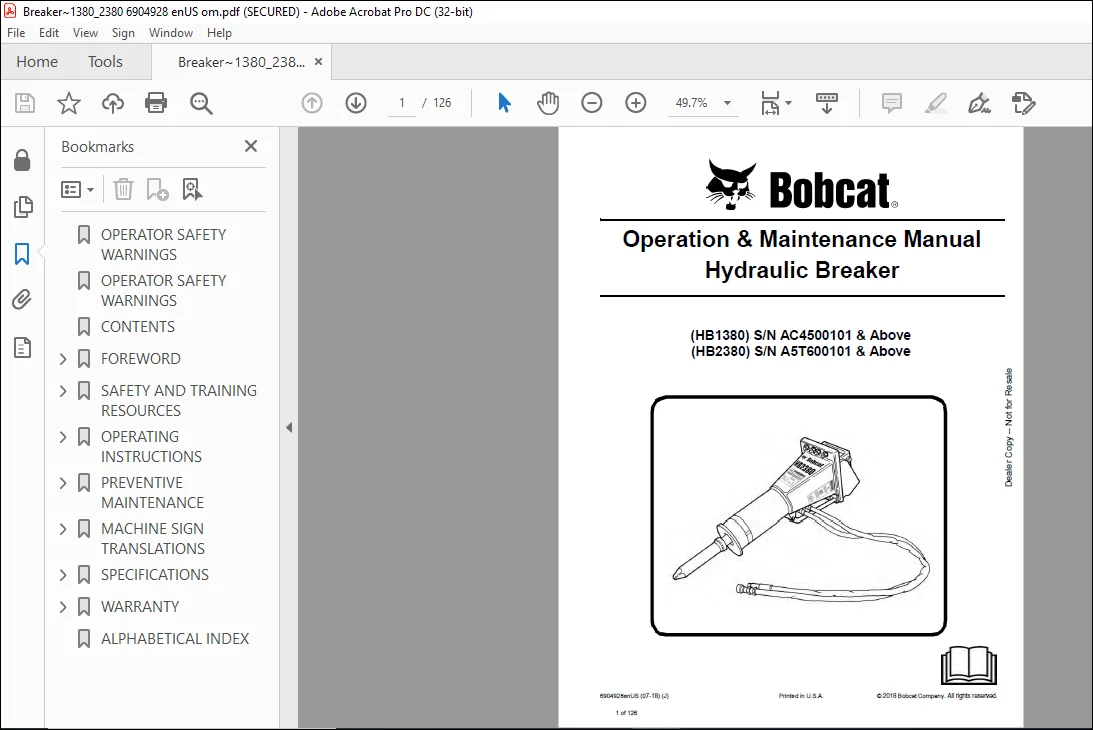

Bobcat HB1380 HB2380 Operation & Maintenance Manual 6904928 (07-18) – PDF DOWNLOAD

(HB1380) S/N AC4500101 & Above
(HB2380) S/N A5T600101 & Above

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer.

SAFETY INSTRUCTIONS

Operator must have instructions before operating the machine. Untrained operators can cause injury or death.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and Regulations

• The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

•  Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.

Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment / implement (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
• Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
• Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
• Check that the implement is securely fastened to the machine.
• Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
• Operate the attachment / implement according to the Operation & Maintenance Manual.
• When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
• The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
• DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
• DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
• Keep shields and guards in place. Replace if damaged.
