Bobcat Heater Generator Set HG40 Operation & Maintenance Manual SNB14F00101 & Above – PDF DOWNLOAD

Description

Bobcat Heater Generator Set HG40 Operation & Maintenance Manual SNB14F00101 & Above – PDF DOWNLOAD

FILE DETAILS:

Bobcat Heater Generator Set HG40 Operation & Maintenance Manual SNB14F00101 & Above – PDF DOWNLOAD

Language : English
Pages :102
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat Heater Generator Set HG40 Operation & Maintenance Manual SNB14F00101 & Above – PDF DOWNLOAD

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer.

SAFETY INSTRUCTIONS
Safe Operation Is The Operator’s Responsibility

Operator must have instructions before operating the machine. Untrained operators can cause injury or death

IMPORTANT

This notice identifies procedures which must be followed to avoid damage to the machine.

The Bobcat machine and attachment must be in good operating condition before use.
Check all of the items on the Bobcat Service Schedule Decal under the 8-10 hour column or as shown in the Operation & Maintenance Manual.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or co- ordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and
Regulations

• • The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. For driving on public roads, the machine must be equipped as stipulated by the local regulations authorising operation on public roads in your specific country. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

• Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
  Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, hearing protection, Special Applications Kits or a Front Window Guard are required for some work. See your Bobcat dealer about Bobcat Safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• • Read and follow instructions in the machine and the attachment’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the Bob-Tach™ levers are in the locked position and the wedges are fully engaged into the holes of the attachment (if applicable).
• Check that the attachment is securely fastened to the machine.
• Make sure all the machine controls are in the NEUTRAL position before starting the machine.
• Operate the attachment only from the operator’s position.
• Operate the attachment according to the Operation & Maintenance Manual.
• When learning to operate the attachment, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment.
• The attachment must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments for each machine model.
• DO NOT modify equipment or add attachments that are not approved by the manufacturer.
• DO NOT make any adjustments or repairs on the machine or attachment while the engine is running.
• Keep shields and guards in place. Replace if damaged.

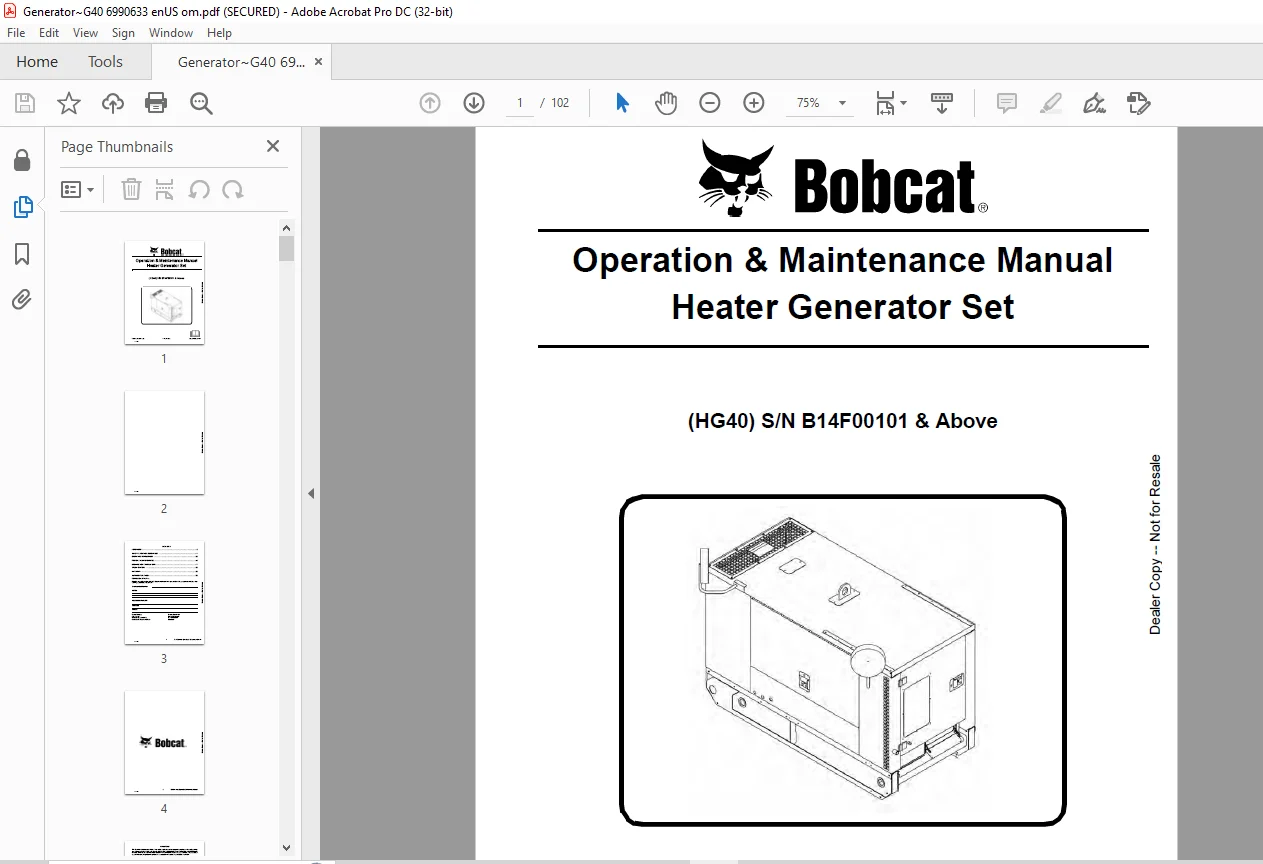

IMAGES PREVIEW OF THE MANUAL:

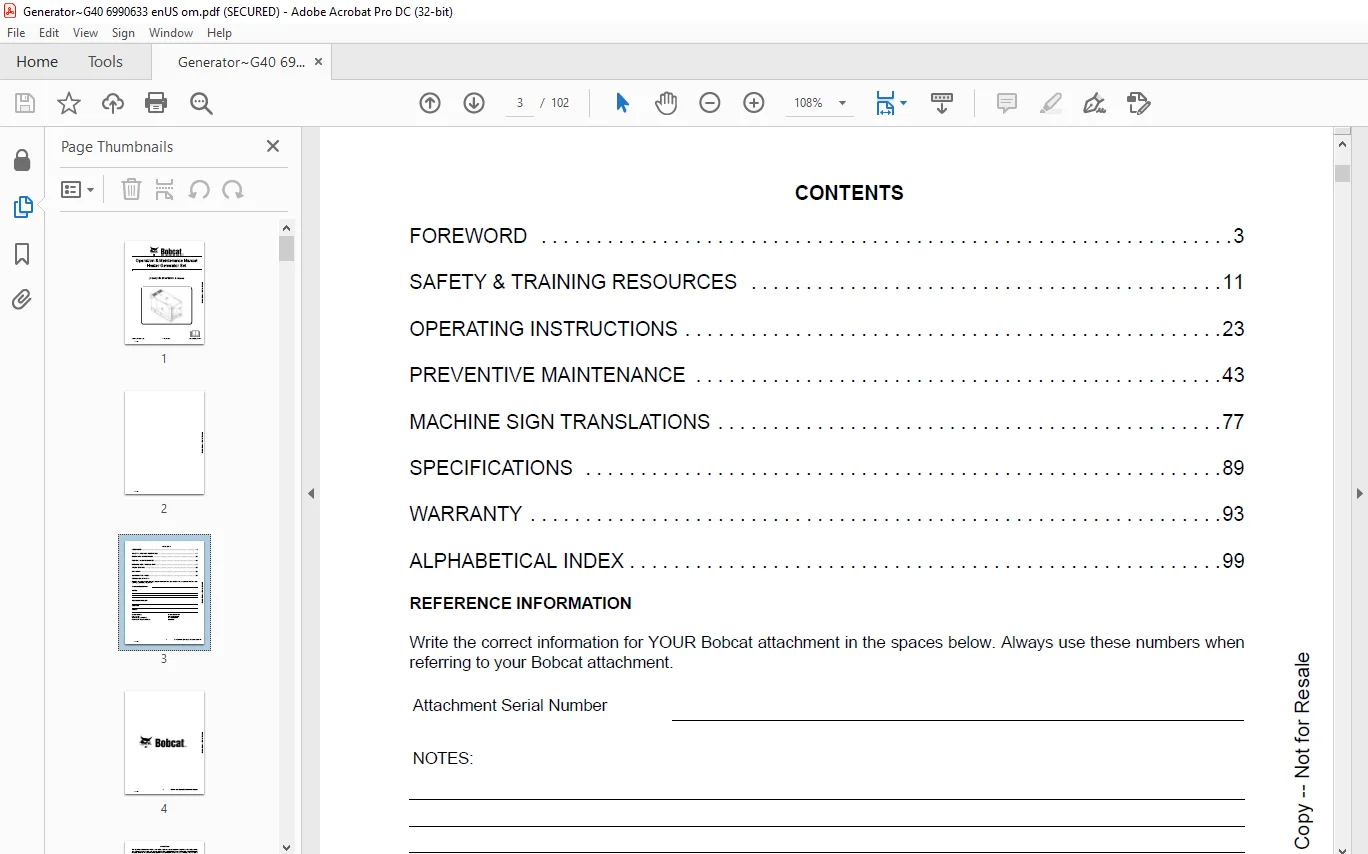

TABLE OF CONTENTS:

Bobcat Heater Generator Set HG40 Operation & Maintenance Manual SNB14F00101 & Above – PDF DOWNLOAD

CONTENTS 3
FOREWORD 5
BOBCAT COMPANY IS ISO 9001 CERTIFIED 7
REGULAR MAINTENANCE ITEMS 7
SERIAL NUMBER LOCATION 9
Heater Generator Set Serial Number 9
DELIVERY REPORT 9

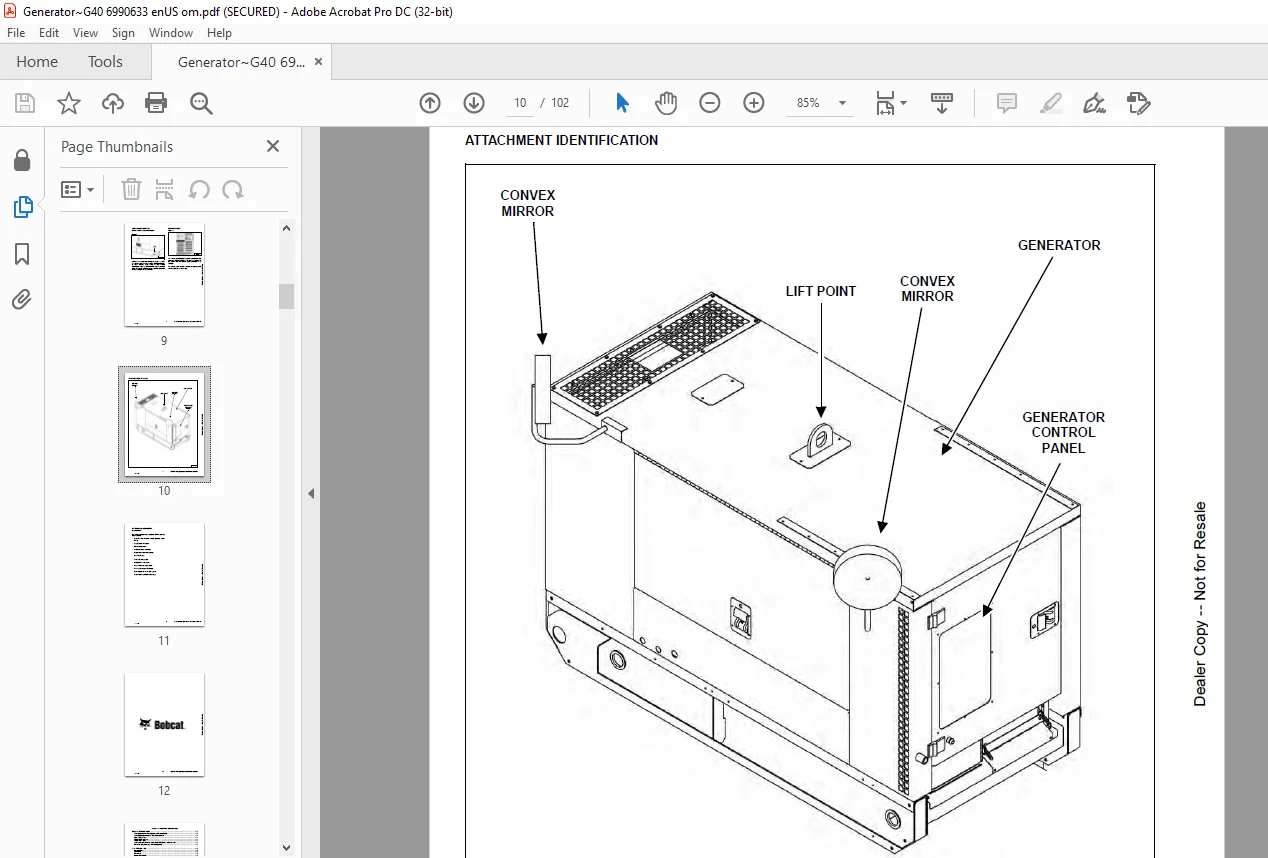

ATTACHMENT IDENTIFICATION 10
FEATURES AND ACCESSORIES 11
Standard Items 11
SAFETY & TRAINING RESOURCES 13
SAFETY INSTRUCTIONS 15
Safe Operation Is The Operator’s Responsibility 15
Safe Operation Needs A Qualified Operator 15
Use Safety Rules 16
Call Before You Dig 16
Avoid Silica Dust 16
Safety Rules For Power Take-Off (PTO) Driven Attachments 17
Machine Requirements And Capabilities 17
FIRE PREVENTION 18
Maintenance 18
Operation 18
Electrical 18
Hydraulic System 18
Fueling 18
Starting 18
Spark Arrester Exhaust System 18
Welding And Grinding 19
Fire Extinguishers 19
PUBLICATIONS AND TRAINING RESOURCES 20
ATTACHMENT SIGNS (DECALS) 21
OPERATING INSTRUCTIONS 25
INSTRUMENT PANEL IDENTIFICATION 27
Heater Generator Set System 27
Diagnostics / Auto Shutdown 28
INITIAL SETUP 29
Assembly 29
DAILY INSPECTION 35
Heater Generator Set 35
PRE-STARTING PROCEDURE 36
STARTING THE ENGINE 36
Before Starting The Heater Generator Set 36
Starting Procedure 37
Shut-Down Procedure 40
OPERATING PROCEDURE WITH ASPHALT HEATER 41
Operation 41
LIFTING THE ATTACHMENT 43
Procedure 43
TRANSPORTING THE ATTACHMENT ON A TRAILER 43
Loading Onto A Transport Vehicle 43
Fastening 44
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 44
Loading And Fastening 44
PREVENTIVE MAINTENANCE 45
MAINTENANCE SAFETY 47
TROUBLESHOOTING 49
Alternator Chart 49
Engine Chart 50
SERVICE SCHEDULE 52
Maintenance Intervals 52
REGULAR MAINTENANCE ITEMS 54
Fuel Specifications 54
Biodiesel Blend Fuel 54
Filling The Fuel Tank 55
Adjusting The Charge Alternator Belt 55
Replacing The Charge Alternator Belt 56
Cleaning The Cooling System 57
Checking Coolant Level 59
Replacing Air Filter Element 60
Battery Maintenance 61
Using A Booster Battery (Jump Starting) 62
Checking Engine Oil 63
Replacing The Oil And Filter 63
Fuel Filter(s) 65
Removing Air From The Fuel System 66
Testing The Emergency Stop Switch 67
Checking The Engine Protection Shutdown System 67
Checking The Voltage Selector Door Interlock Switch 68
Checking The High Containment Fluid Alarm System 69
STORAGE AND RETURN TO SERVICE 70
Storage 70
Return To Service 70
MINOR VOLTAGE OUTPUT DE-RATING PROCEDURE 71
Set Up Procedure 71
MACHINE SIGN TRANSLATIONS 79
MACHINE SIGN TRANSLATIONS 81
Warning (7026570) 81
Warning (7026571) 82
Warning (7026572) 83
Warning (7026573) 84
Warning (7026574) 85
Warning (7026575) 86
Warning (7026576) 87
Warning (7026577) 88
Warning (7228318) 89
SPECIFICATIONS 91
HEATER GENERATOR SET SPECIFICATIONS 93
Dimensions 93
Performance 94
Engine 94
Electrical 94
WARRANTY 95
WARRANTY 97
ALPHABETICAL INDEX 101
