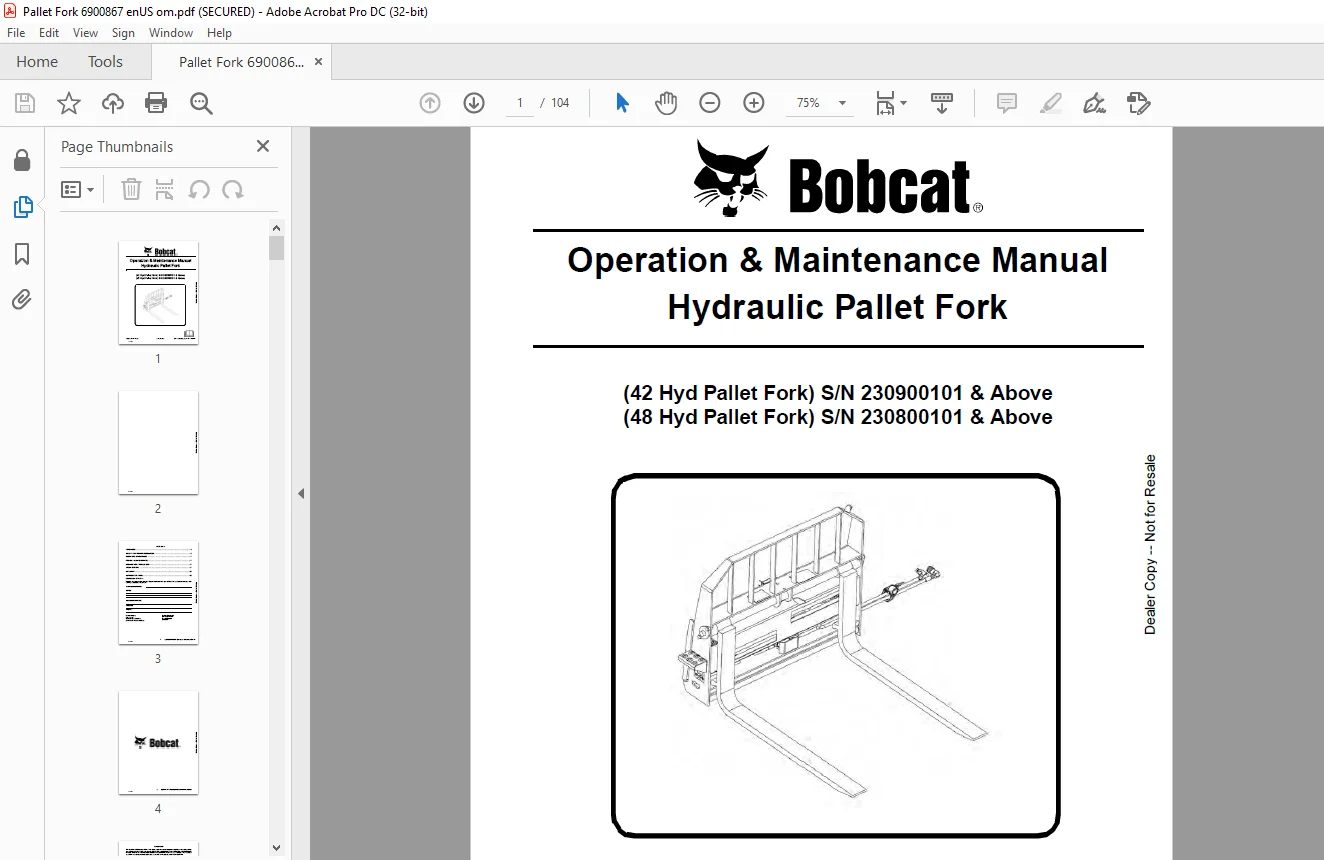

Bobcat Hydraulic Pallet Fork 42 48 Operation & Maintenance Manual – PDF DOWNLOAD

Description

Bobcat Hydraulic Pallet Fork 42 48 Operation & Maintenance Manual – PDF DOWNLOAD

FILE DETAILS:

Bobcat Hydraulic Pallet Fork 42 48 Operation & Maintenance Manual – PDF DOWNLOAD

Language : English
Pages :104
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat Hydraulic Pallet Fork 42 48 Operation & Maintenance Manual – PDF DOWNLOAD

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your Bobcat attachment.

SAFETY INSTRUCTIONS
Safe Operation Is The Operator’s Responsibility

Operator must have instructions before operating the machine. Untrained operators can cause injury or death

IMPORTANT

This notice identifies procedures which must be followed to avoid damage to the machine.

The Bobcat machine and attachment must be in good operating condition before use.
Check all of the items on the Bobcat Service Schedule Decal under the 8-10 hour column or as shown in the Operation & Maintenance Manual.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or co- ordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and
Regulations

• • The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. For driving on public roads, the machine must be equipped as stipulated by the local regulations authorising operation on public roads in your specific country. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

• Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.
  Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, hearing protection, Special Applications Kits or a Front Window Guard are required for some work. See your Bobcat dealer about Bobcat Safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• • Read and follow instructions in the machine and the attachment’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the Bob-Tach™ levers are in the locked position and the wedges are fully engaged into the holes of the attachment (if applicable).
• Check that the attachment is securely fastened to the machine.
• Make sure all the machine controls are in the NEUTRAL position before starting the machine.
• Operate the attachment only from the operator’s position.
• Operate the attachment according to the Operation & Maintenance Manual.
• When learning to operate the attachment, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment.
• The attachment must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments for each machine model.
• DO NOT modify equipment or add attachments that are not approved by the manufacturer.
• DO NOT make any adjustments or repairs on the machine or attachment while the engine is running.
• Keep shields and guards in place. Replace if damaged.

IMAGES PREVIEW OF THE MANUAL:

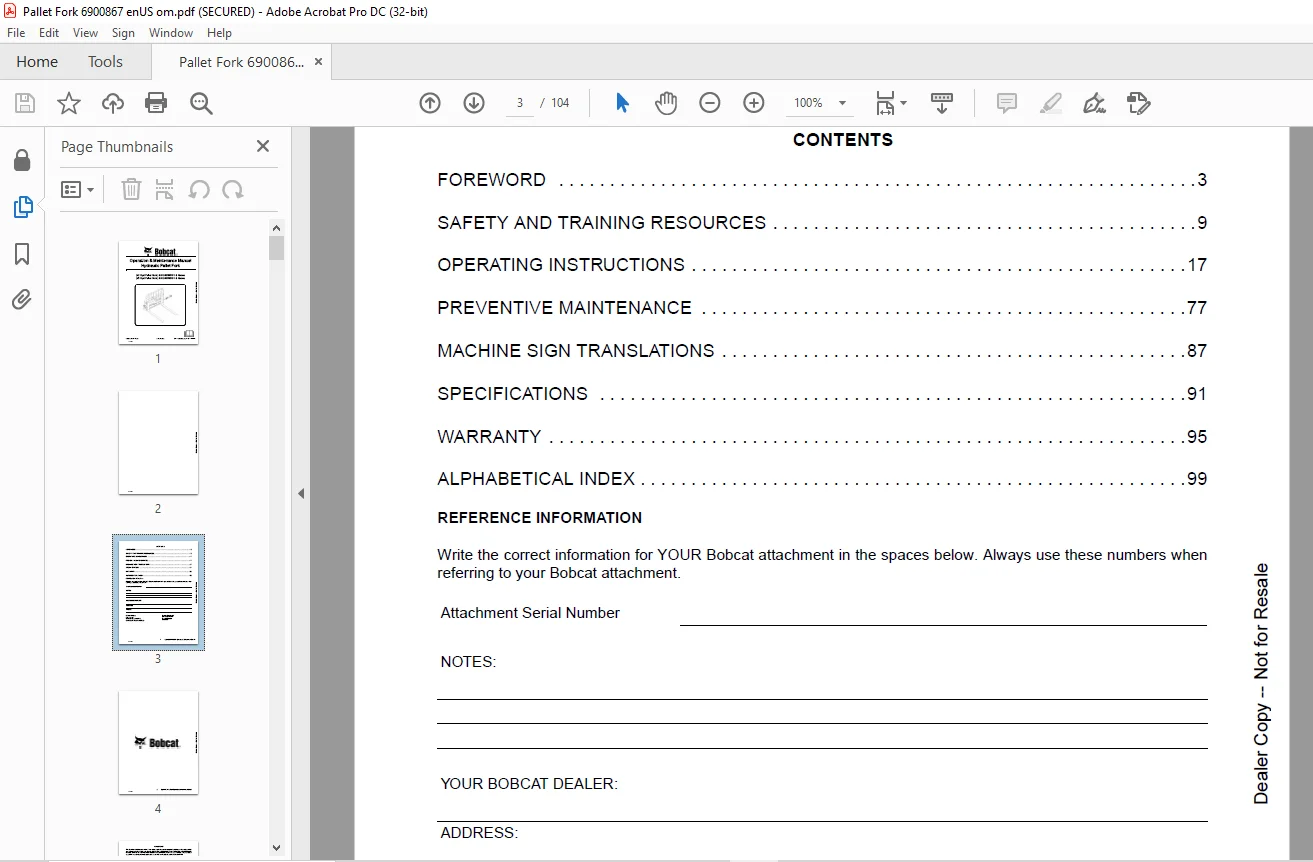

TABLE OF CONTENTS:

Bobcat Hydraulic Pallet Fork 42 48 Operation & Maintenance Manual – PDF DOWNLOAD

CONTENTS 3
FOREWORD 5
BOBCAT COMPANY IS ISO 9001 CERTIFIED 7
SERIAL NUMBER LOCATION 9
DELIVERY REPORT 9

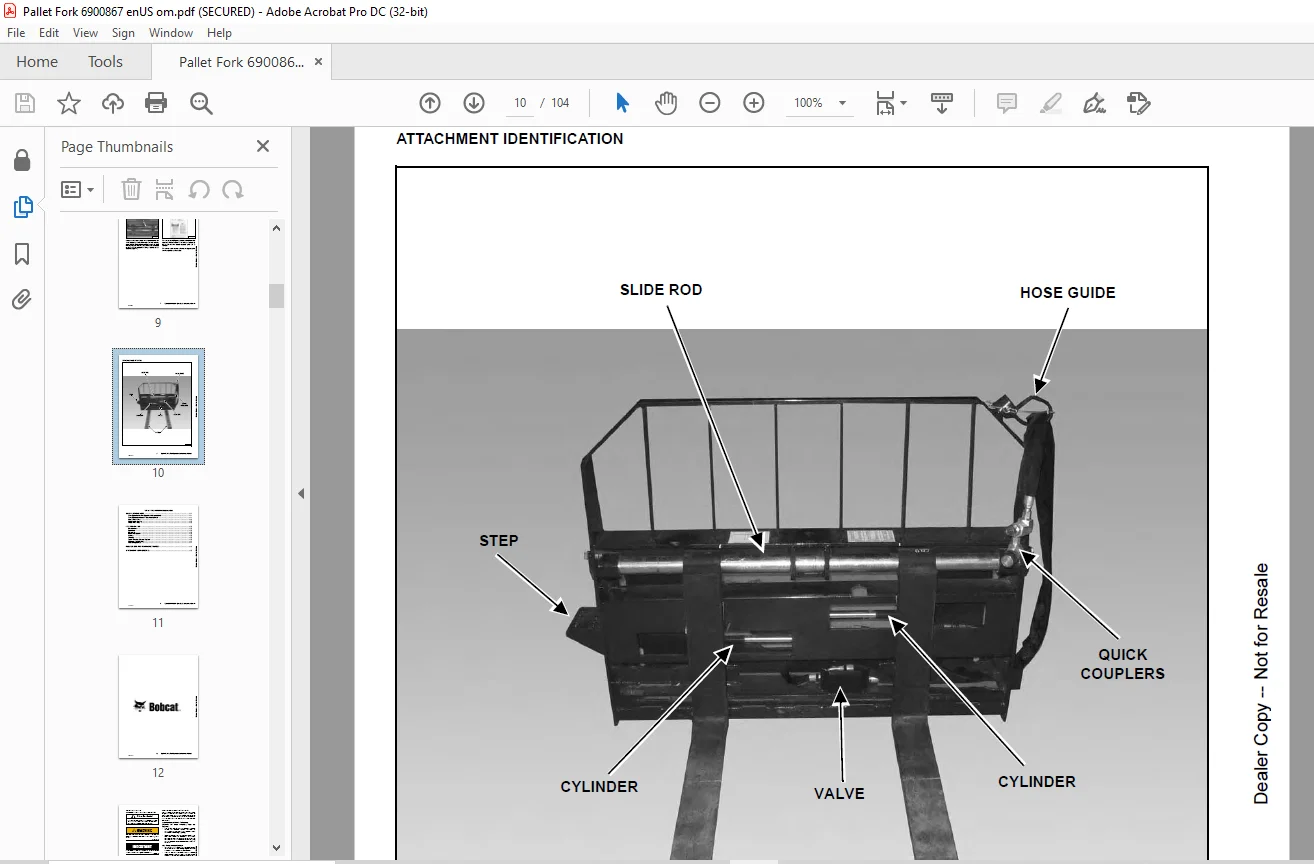

ATTACHMENT IDENTIFICATION 10
SAFETY AND TRAINING RESOURCES 11
SAFETY INSTRUCTIONS 13
Safe Operation Is The Operator’s Responsibility 13
Safe Operation Needs A Qualified Operator 13
Use Safety Rules 14
Call Before You Dig 14
Avoid Silica Dust 14
FIRE PREVENTION 15
Maintenance 15
Operation 15
Electrical 15
Hydraulic System 15
Fueling 15
Starting 15
Spark Arrester Exhaust System 15
Welding And Grinding 16
Fire Extinguishers 16
PUBLICATIONS AND TRAINING RESOURCES 17
ATTACHMENT SIGNS (DECALS) 18
OPERATING INSTRUCTIONS 19
DAILY INSPECTION 21
Attachment Mounting Frame 21
Bob-Tach 22
OPERATING PROCEDURE WITH LOADERS 24
Approved Loader Models And Requirements 24
Machine / Attachment Setup 25
Entering And Exiting The Loader 27
Installation 28
Hydraulic Quick Couplers 36
Control Functions 37
Operation With The Loader 38
Removal 40
OPERATING PROCEDURE WITH UTILITY WORK MACHINES 43
Approved Work Machine Models And Requirements 43
Machine / Attachment Setup 44
Entering And Exiting The Work Machine 46
Installation 47
Hydraulic Quick Couplers 56
Control Functions 57
Operation With The Work Machine 58
Removal 60
OPERATING PROCEDURE WITH COMPACT TRACTORS 64
Approved Compact Tractor Models And Requirements 64
Machine / Attachment Setup 65
Entering And Exiting The Compact Tractor 66
Installation 68
Hydraulic Quick Couplers 71
Control Functions 72
Operation With The Compact Tractor 73
Removal 75
LIFTING THE ATTACHMENT 76
Procedure 76
TRANSPORTING THE ATTACHMENT ON A TRAILER 76
Fastening 76
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 77
Loading And Fastening 77
PREVENTIVE MAINTENANCE 79
MAINTENANCE SAFETY 81
TROUBLESHOOTING 83
Chart 83
INSPECTION 84
Step Inspection 84
Fork Inspection, Repair And Testing Standards 85
REMOVAL AND INSTALLATION 86
Forks 86
Replaceable Step 87
ATTACHMENT STORAGE AND RETURN TO SERVICE 88
Storage 88
Return To Service 88
MACHINE SIGN TRANSLATIONS 89
MACHINE SIGN TRANSLATIONS 91
Pallet Fork Load Ratings (6905426) 91
Load Location (6905427) 92
SPECIFICATIONS 93
(42 HYD PALLET FORK AND 48 HYD PALLET FORK) HYDRAULIC PALLET FORK SPECIFICATIONS 95
Dimensions 95
WARRANTY 97
WARRANTY 99
ALPHABETICAL INDEX 101
