BOBCAT LT405 TRENCHER Operation & Maintenance Manual 6722909 PDF DOWNLOAD

Description

BOBCAT LT405 TRENCHER Operation & Maintenance Manual 6722909 PDF DOWNLOAD

FILE DETAILS:

BOBCAT LT405 TRENCHER Operation & Maintenance Manual 6722909 PDF DOWNLOAD

Language : English
Pages : 80
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

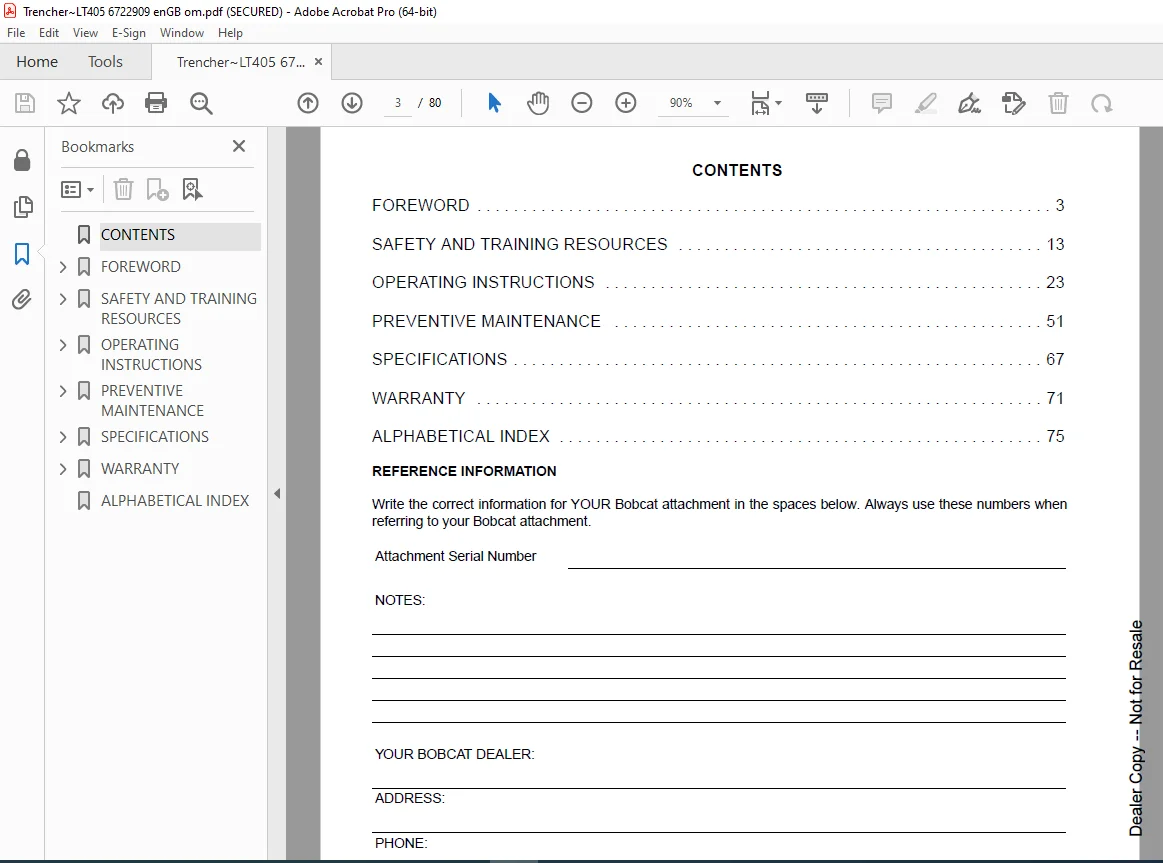

TABLE OF CONTENTS:

BOBCAT LT405 TRENCHER Operation & Maintenance Manual 6722909 PDF DOWNLOAD

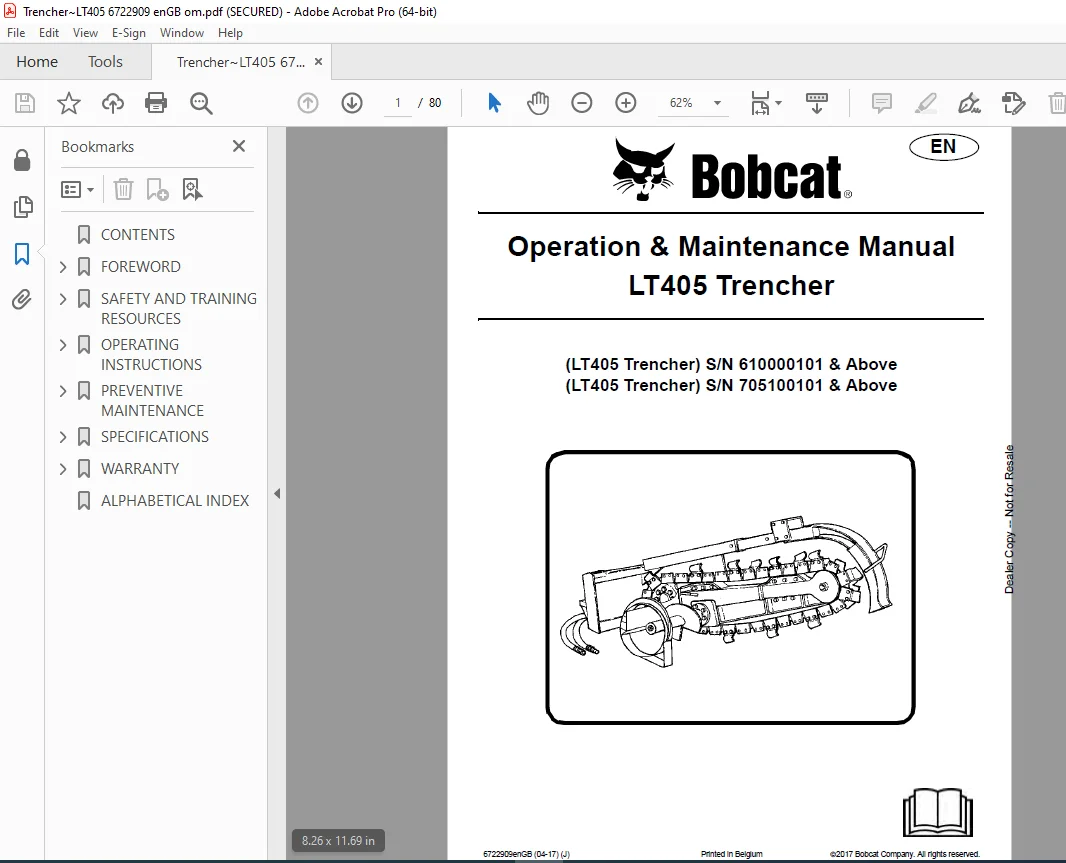

(LT405 Trencher) S/N 610000101 & Above
(LT405 Trencher) S/N 705100101 & Above

CONTENTS 3
FOREWORD 5
DECLARATION OF CONFORMITY 7
BOBCAT COMPANY IS IS0 9001 CERTIFIED 9
SERIAL NUMBER LOCATION 10
Attachment Serial Number 10
DELIVERY REPORT 10
ATTACHMENT IDENTIFICATION 11
LT405 Trencher (S/N 705100101 & Above) 11
LT405 Trencher (S/N 610000101 & Above) 12
FEATURES AND ACCESSORIES 13
Standard Items 13
SAFETY AND TRAINING RESOURCES 15
SAFETY INSTRUCTIONS 17
Safe Operation Is The Operator’s Responsibility 17
Safe Operation Needs A Qualified Operator 17
Use Safety Rules 18
Avoid Silica Dust 18
FIRE PREVENTION 19
Maintenance 19
Operation 19
Electrical 19
Hydraulic System 19
Fueling 19
Starting 19
Spark Arrester Exhaust System 19
Welding And Grinding 20
Fire Extinguishers 20
PUBLICATIONS AND TRAINING RESOURCES 21
ATTACHMENT SIGNS (DECALS) 22
LT405 Trencher (S/N 705100101 & Above) 22
LT405 Trencher (S/N 610000101 & Above) 22
Pictorial Only Safety Signs 23
OPERATING INSTRUCTIONS 25
DAILY INSPECTION 27
Attachment Mounting Frame 27
Bob-Tach 28
OPERATING PROCEDURE WITH LOADERS 30
Approved Loader Models And Requirements 30
Entering And Exiting The Loader 32
Installation 34
Hydraulic Quick Couplers 40
Control Functions 42

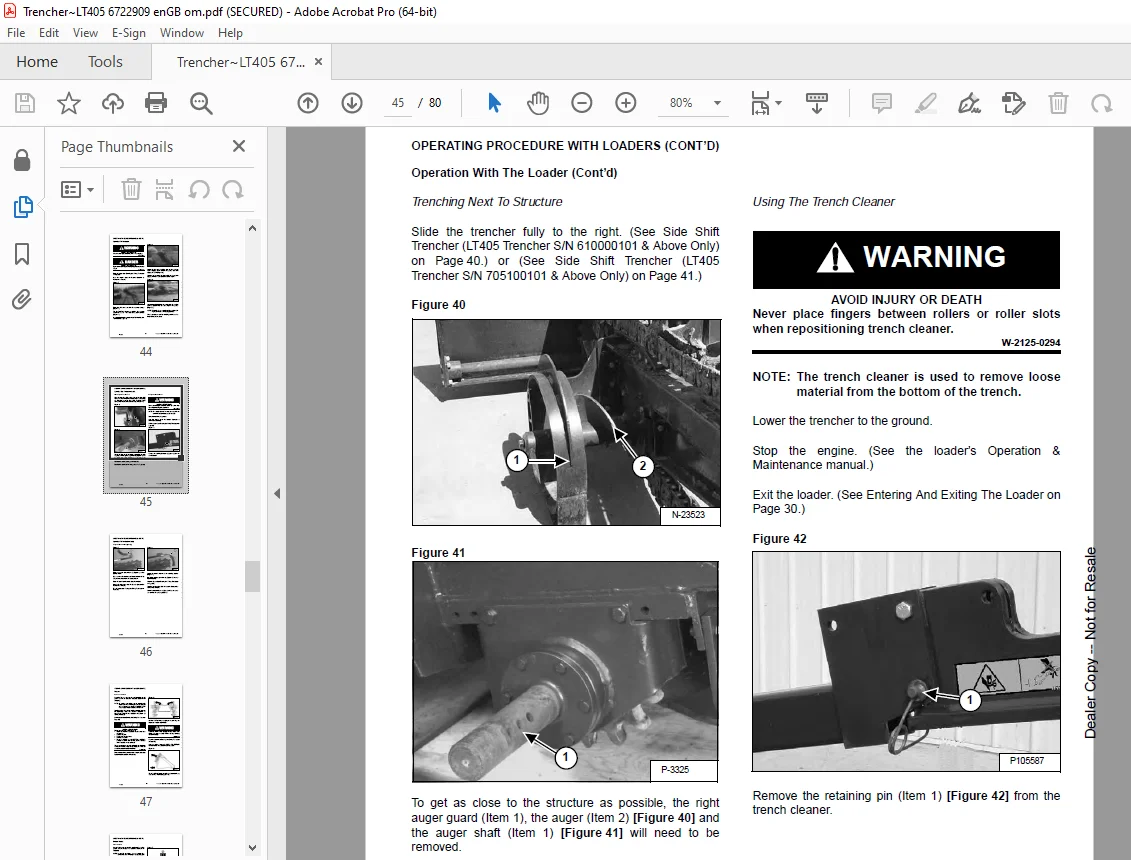

Operation With The Loader 44
Removal 47
LIFTING THE ATTACHMENT 50
Procedure 50
TRANSPORTING THE ATTACHMENT ON A TRAILER 50
Fastening 50
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 51
Loading And Fastening 51
PREVENTIVE MAINTENANCE 53
REGULAR MAINTENANCE ITEMS 57
Digging Chain Adjustment 57
LUBRICATING THE ATTACHMENT 58
Lubrication Locations 58
DRIVE CARRIER 59
Oil Change 59
TELESCOPING BOOM 60
Length Identification 60
DIGGING CHAIN PATTERNS 61
152 mm (6 in) Wide – 51 mm (2 in) Pitch – Single Standard Tooth Pattern – Double Standard Chain 61
203 mm (8 in) Wide – 51 mm (2 in) Pitch – Single Standard Tooth Pattern – Double Standard Chain 61
305 mm (12 in) Wide – 51 mm (2 in) Pitch – Single Standard Tooth Pattern – Double Standard Chain 62
152 mm (6 in) Wide – 51 mm (2 in) Pitch – Carbide Tip Single Standard Tooth Pattern – Double Standard Chain 62
REMOVAL AND INSTALLATION 63
Auger 63
Auger Shaft 64
Digging Chain 64
ATTACHMENT STORAGE AND RETURN TO SERVICE 67
Storage 67
Return To Service 67
SPECIFICATIONS 69
(LT405) TRENCHER SPECIFICATIONS 71
Dimensions 71
Performance 71
WARRANTY 73
WARRANTY 75
ALPHABETICAL INDEX 77

DESCRIPTION:

BOBCAT LT405 TRENCHER Operation & Maintenance Manual 6722909 PDF DOWNLOAD

FOREWORD:

This Operation & Maintenance Manual was written to give the owner/operator instructions on the safe operation and maintenance of the Silage Defacer. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR SILAGE DEFACER. If you have any questions, see your Bobcat dealer

SAFETY INSTRUCTIONS
Use Safety Rules

Avoid Silica

Dust Cutting or drilling concrete containing sand or rock containing quartz may result in exposure to silica dust. Do not exceed Permissible Exposure Limits (PEL) to silica dust as determined by OSHA or other job site Rules and Regulations. Use a respirator, water spray or other means to control dust. Silica dust can cause lung disease
