DESCRIPTION:

Bobcat M-444, M-500, M-600 Gasoline L.P. Gas Electric Diesel Loader Operation & Maintenance Manual – PDF DOWNLOAD

LOADER OPERATION:
Study the first section of this manual before operating your Bobcat.

MOUNTING AND DISMOUNTING:

• When mounting or dismounting your Bobcat Loader, use the two safety steps provided.
  One step is on the crossmember between the boom arms. The other step is located above the
  control pedals.
• When in the seat of your Bobcat Loader, make yourself comfortable; adjust the seat and fasten
  your seat belt.
  THROTTLE CONTROL (On all machines except electric)
• The throttle control is the short lever located to the right of the operator’s seat (Figure 1).
  Moving the throttle control forward will increase engine speed (RPM); moving it back will
  decrease engine RPM.
• The throttle control for the M-444 Bobcat is on the right steering lever.
  While operating your Melroe Bobcat, maintain a 3/4 to full throttle setting. Air cooled engines
  must be run at high RPM for effective cooling. Less than a 3/4.throttle setting for long periods
  may also cause excessivt: carbon deposits in the engine combustion chambers. Be sure that the
  engine RPM at full throttle is not less than manufacturer’s specifications.

VARIABLE SPEED DRIVE CONTROL:
The drive speed control is the short lever located to the left of the operator’s seat (Figure 1).
Moving it forward will increase the ground speed of the Bobcat; moving it back will decrease the
ground speed.
While you are learning to operate your Melroe Bobcat, leave the drive speed control in low
speed position. This will keep ground speed down until you get the feel of the controls.

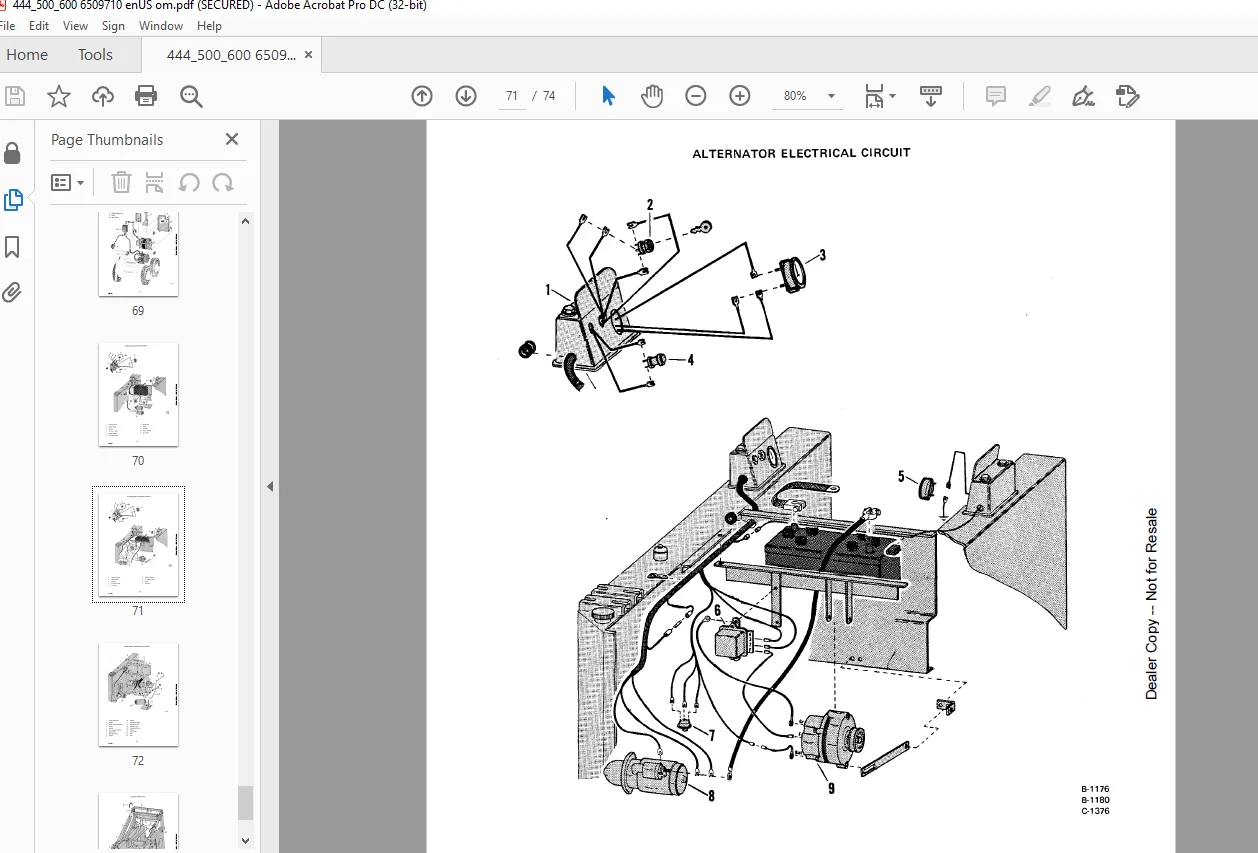

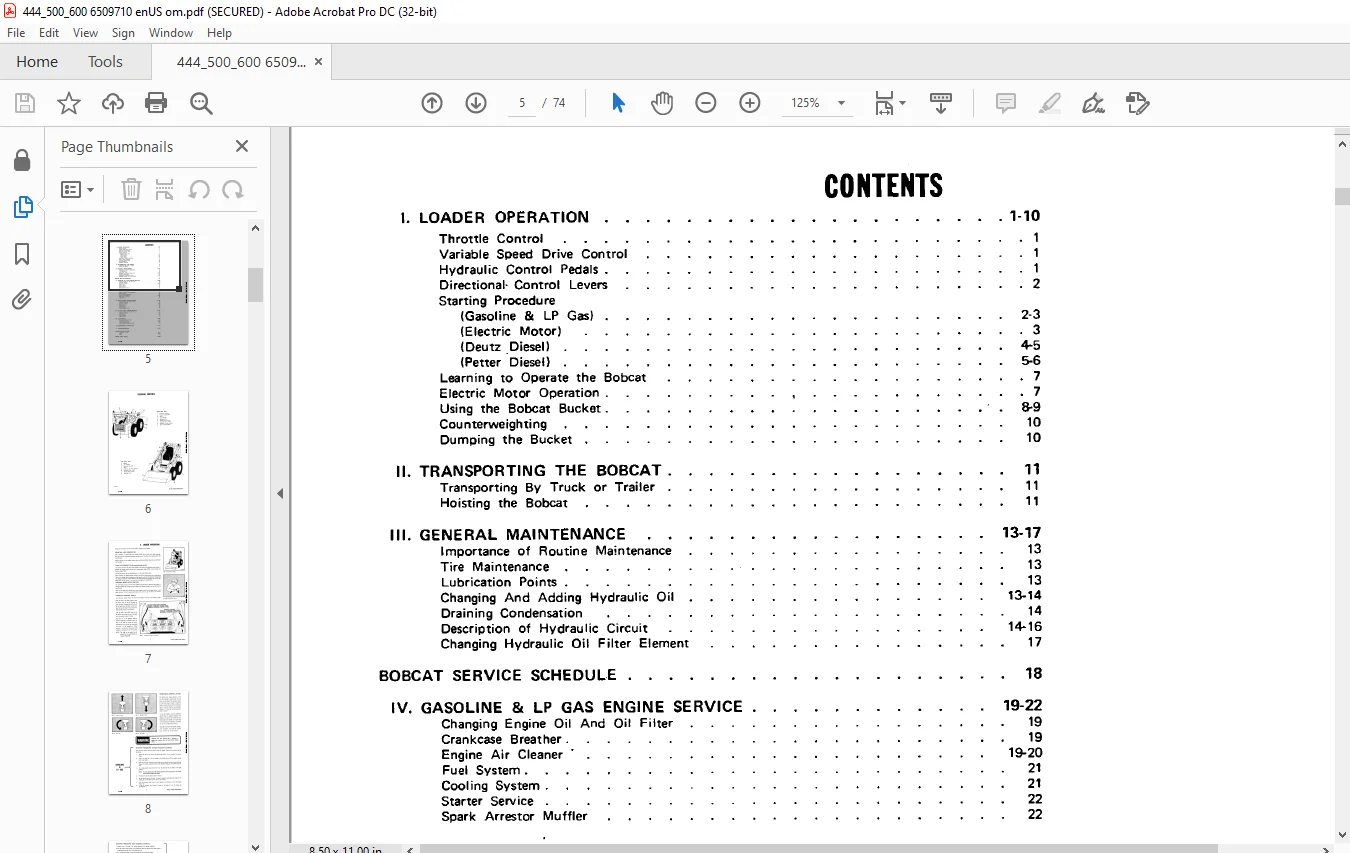

TABLE OF CONTENTS:
