ROUTINE CLUTCH ADJUSTMENT
“‘• The Bobcat has two separate drive trains (one on each side of the machine), each equipped
…, with two clutches. These clutches are engaged and disengaged by the directional control
levers. When lever travel (from neutral) exceeds four inches in either direction, the
clutches need adjustment. This may occur shortly (about 50 hours) after a new machine
is put into service. After the clutch facings are “seated”, lever travel should be checked
every 100 hours and the clutches adjusted only if lever travel is excessive.
On either side of the machine, the clutch toward the front is the reverse travel clutch
and the clutch •toward the rear is the forward travel clutch. Adjust according to the
following procedure:
1. Shut off the engine before attempting to adjust the clutches.
2. With the large clutch cap wrench, remove the protective caps from the four clutch
pins.
3. Remove the cotter pins which hold the castle nuts in place.
4. With the directional control lever in neutral position, tighten the front castle nut
1/2 slot. Move the lever back to check the adjustment. Repeat this until no more
adjustment is needed. When the handle (hand grip) of the lever can be moved 3 to
4 inches (maximum) back from neutral to fully engaged position, adjustment of the
reverse travel clutch is correct for that side. You may need to use the small end of the
clutch wrench to make the adjustment (Figure 14).
5. Tighten the rear castle nut in the same manner, moving the lever forward to check
travel (maximum) from neutral, adjustment of the forward travel clutch is correct
for that side.

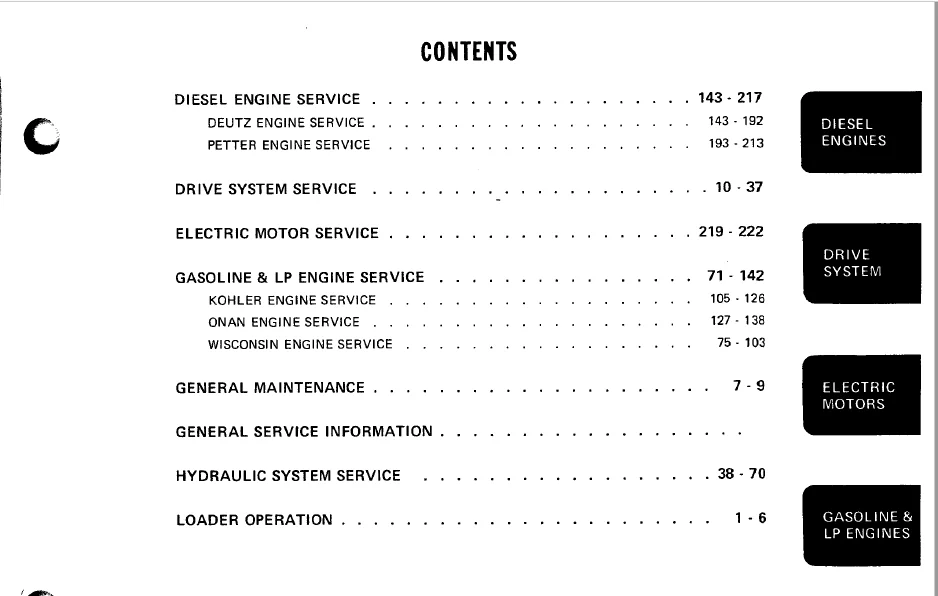

TABLE OF CONTENTS:

Bobcat M444 M500 M600 M610 Service Manual – PDF DOWNLOAD

BobcatM444_500_600_610contents……………. 1
BobcatM444_500_600_610drive_system………… 5
BobcatM444_500_600_610electric_motors……… 35
BobcatM444_500_600_610gasoline-lp_engines….. 41
BobcatM444_500_600_610general_maintenance…..113
BobcatM444_500_600_610general_service_info….119
BobcatM444_500_600_610hydraulic_system……..137
BobcatM444_500_600_610operation……………171
BobcatM444_500_600_610service_supplement……179

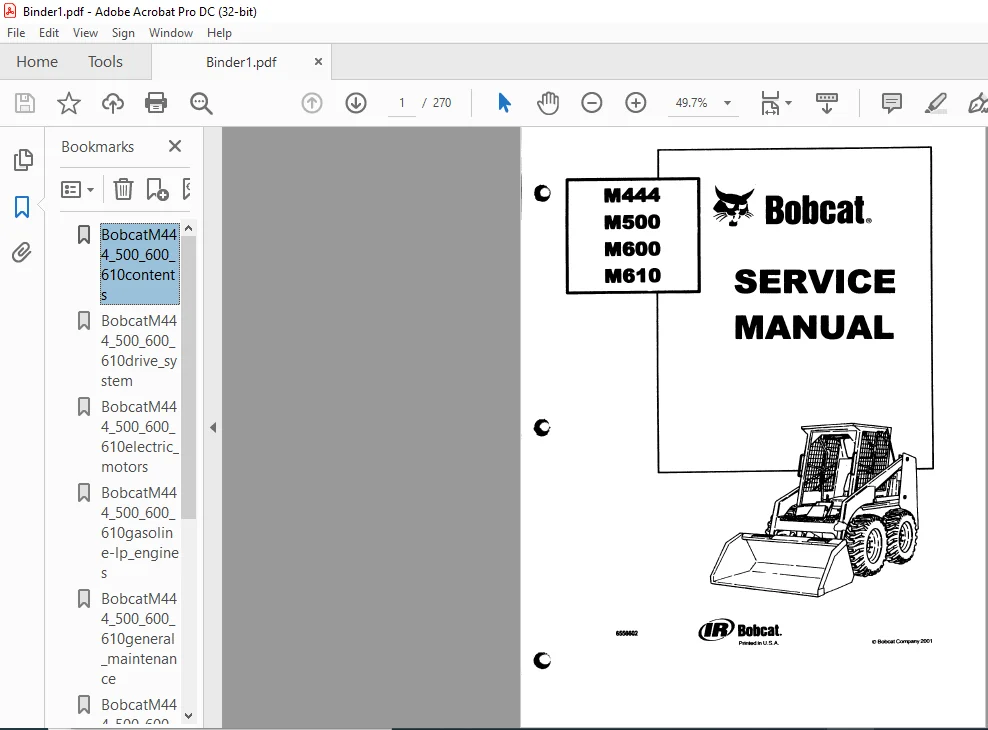

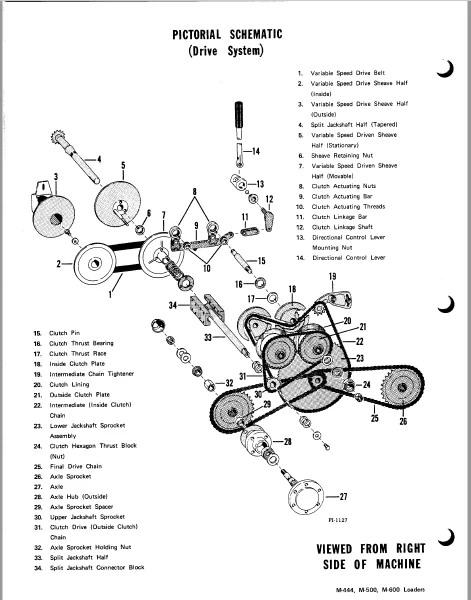

IMAGES PREVIEW OF THE MANUAL:
