Bobcat MB200SD BT MB250SD MB250SD BT MB250SD QT MB600L Mixing Bucket Operation & Maintenance Manual – PDF DOWNLOAD

Description

Bobcat MB200SD BT MB250SD MB250SD BT MB250SD QT MB600L Mixing Bucket Operation & Maintenance Manual – PDF DOWNLOAD

FILE DETAILS:

Bobcat MB200SD BT MB250SD MB250SD BT MB250SD QT MB600L Mixing Bucket Operation & Maintenance Manual – PDF DOWNLOAD

Language : English
Pages :104
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat MB200SD BT MB250SD MB250SD BT MB250SD QT MB600L Mixing Bucket Operation & Maintenance Manual – PDF DOWNLOAD

MB200SD BT: S/N AK1E00101 & Above
MB250SD: S/N AC4800101 & Above
MB250SD BT: S/N AK1C00101 & Above
MB250SD QT: S/N AK1D00101 & Above
MB600L

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer. This manual can illustrate options and accessories not installed on your attachment.

SAFETY INSTRUCTIONS

Operator must have instructions before operating the machine. Untrained operators can cause injury or death.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and Regulations

• The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

•  Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.

Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment / implement (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
• Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
• Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
• Check that the implement is securely fastened to the machine.
• Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
• Operate the attachment / implement according to the Operation & Maintenance Manual.
• When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
• The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
• DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
• DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
• Keep shields and guards in place. Replace if damaged.

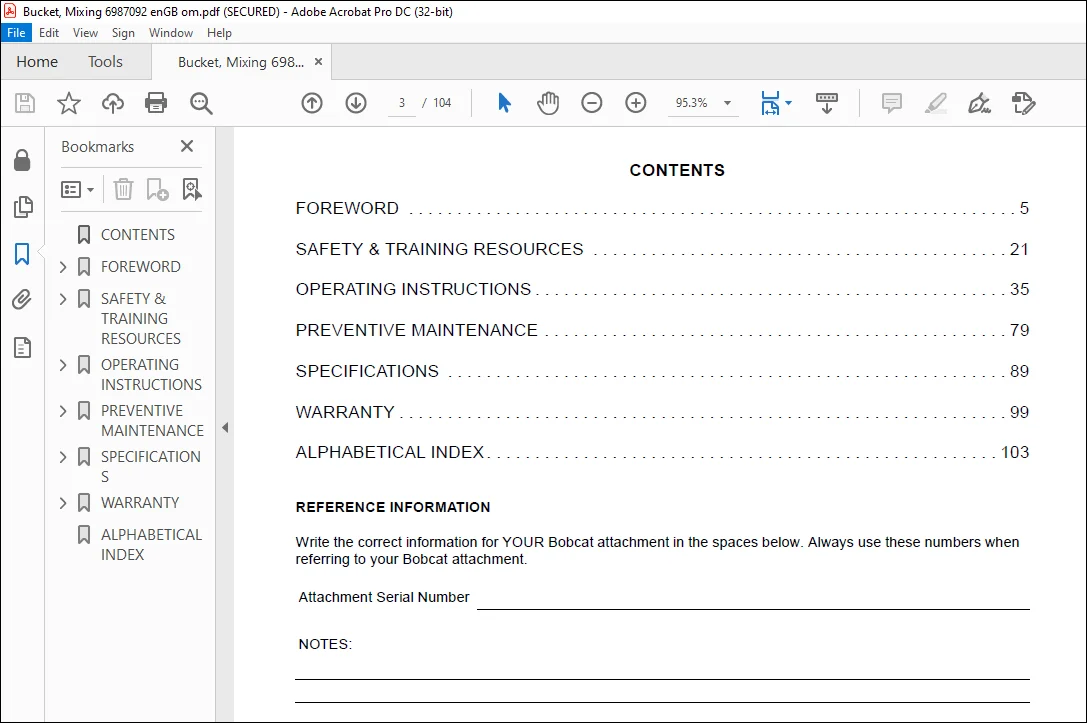

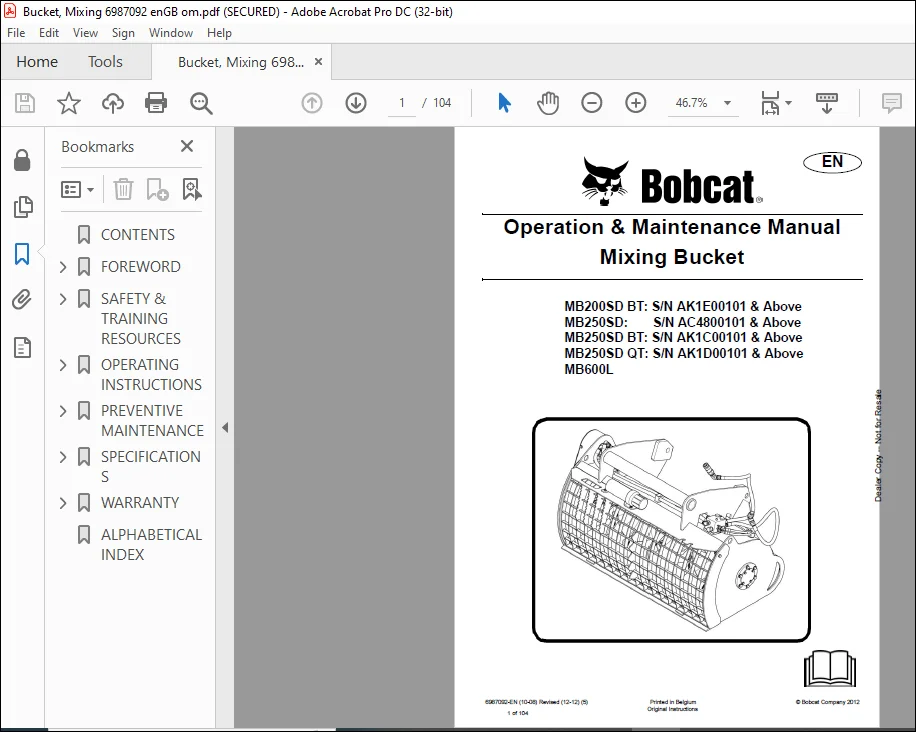

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat MB200SD BT MB250SD MB250SD BT MB250SD QT MB600L Mixing Bucket Operation & Maintenance Manual – PDF DOWNLOAD

CONTENTS 3
FOREWORD 5
DECLARATION OF CONFORMITY 7
BOBCAT COMPANY IS IS0 9001 CERTIFIED 11
SERIAL NUMBER LOCATION 12
Mixing Bucket Serial Number 12
DELIVERY REPORT 13
MANUAL STORAGE LOCATION 13
ATTACHMENT IDENTIFICATION 14
MB200SD BT 14
MB250SD 15
MB250SD BT 16
MB250SD QT 17
MB600L 18
FEATURES AND ACCESSORIES 19
SAFETY & TRAINING RESOURCES 21
SAFETY INSTRUCTIONS 23
Safe Operation Is The Operator’s Responsibility 23
Safe Operation Needs A Qualified Operator 23
Use Safety Rules 24
Avoid Silica Dust 24
FIRE PREVENTION 25
Maintenance 25
Operation 25
Electrical 25
Hydraulic System 25
Fueling 25
Starting 25
Spark Arrester Exhaust System 25
Welding And Grinding 26
Fire Extinguishers 26
MACHINE SIGNS (DECALS) 27
MB200SD BT 27
MB250SD 28
MB250 SD BT 29
MB250SD QT 30
MB600L 31
No-Text Safety Signs 32
OPERATING INSTRUCTIONS 35
DAILY INSPECTION 37
Attachment Mounting Frame 37
Bob-Tach 38
Telescopic Handler Quick-Tach 40
OPERATING PROCEDURE WITH LOADERS 41
Approved Loader Models And Requirements 41
Machine / Attachment Setup 41
Entering And Exiting The Loader 42
Installation 43
Hydraulic Quick Couplers 50
Control Functions 51
Operation With The Loader 53
Removal 55
OPERATING PROCEDURE WITH TELESCOPIC HANDLERS 57
Approved Telescopic Handler Models And Requirements 57
Entering And Exiting The Telescopic Handler 58
Installation 59
Hydraulic Quick Couplers 64
Releasing Auxiliary Hydraulic Pressure 67
Control Functions 69
Operation With The Telescopic Handler 70
Removal 76
LIFTING THE ATTACHMENT 78
Procedure 78
TRANSPORTING THE ATTACHMENT ON A TRAILER 78
Fastening 78
PREVENTIVE MAINTENANCE 79
TROUBLESHOOTING 83
Chart 83
REGULAR MAINTENANCE 84
LUBRICATING THE ATTACHMENT 85
Lubrication Locations 85
REMOVAL AND INSTALLATION 86
Chain Guard 86
Protective Grate 86
ATTACHMENT STORAGE AND RETURN TO SERVICE 87
Storage 87
Return To Service 87
SPECIFICATIONS 89
MIXING BUCKET SPECIFICATIONS 91
Mixing Bucket MB200SD BT Dimensions 91
Mixing Bucket MB200SD BT Specifications 91
Mixing Bucket MB250SD Dimensions 92
Mixing Bucket MB250SD Specifications 92
Mixing Bucket MB250SD BT Dimensions 93
Mixing Bucket MB250SD BT Specifications 93
Mixing Bucket MB250SD QT Dimensions 94
Mixing Bucket MB250SD QT Specifications 94
Mixing Bucket MB600L Dimensions 95
Mixing Bucket MB600L Specifications 95
Hydraulic Schematic Without Reverse Valve 96
Hydraulic Schematic With Reverse Valve (only for MB200SD BT with S/N AK1E00122 & Above And MB250SD BT with S/N AK1C00208 & Above) 97
WARRANTY 99
WARRANTY 101
ALPHABETICAL INDEX 103
