Bobcat MT55 Mini Track Loader Operation & Maintenance Manual 7249523 – PDF DOWNLOAD

Description

Bobcat MT55 Mini Track Loader Operation & Maintenance Manual 7249523 – PDF DOWNLOAD

FILE DETAILS:

Bobcat MT55 Mini Track Loader Operation & Maintenance Manual 7249523 – PDF DOWNLOAD

Language : English
Pages : 102
Downloadable : Yes
File Type : PDF

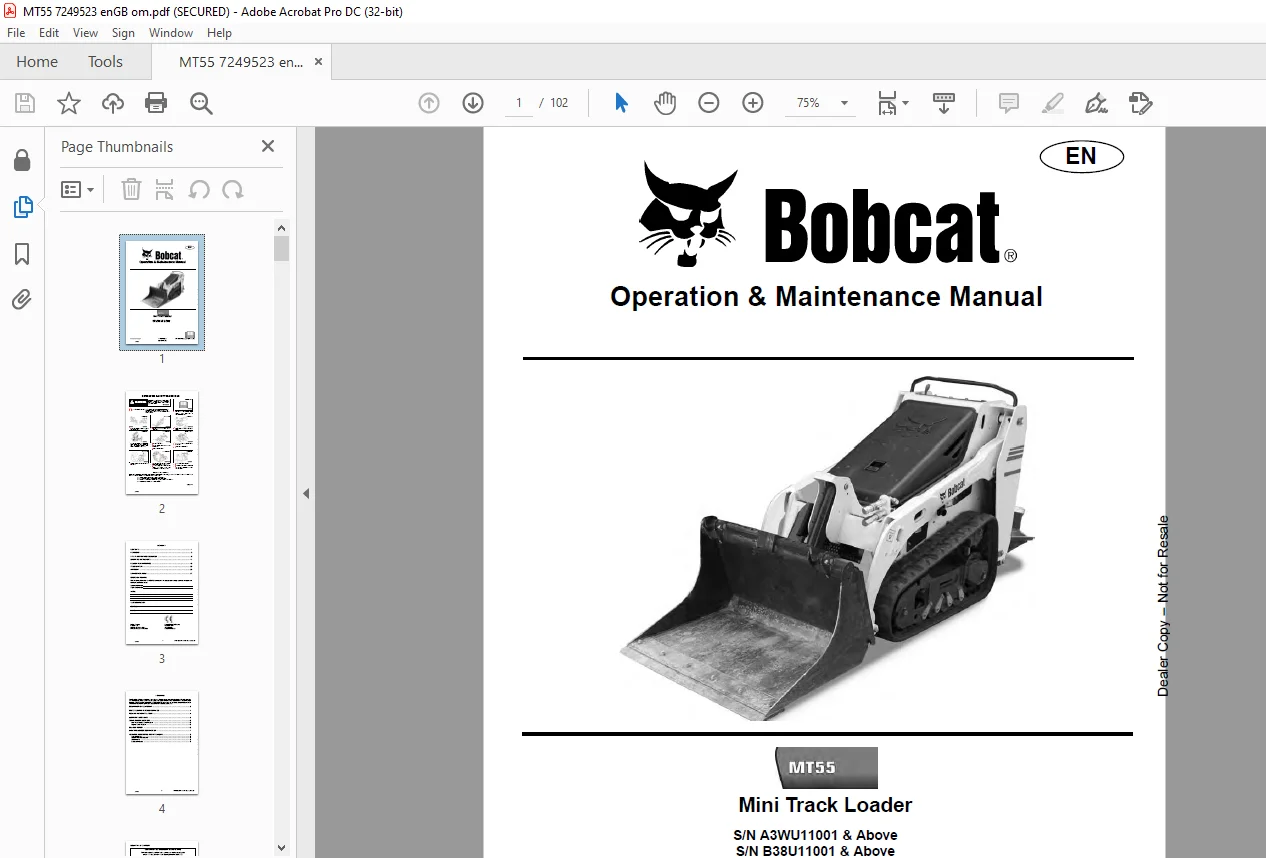

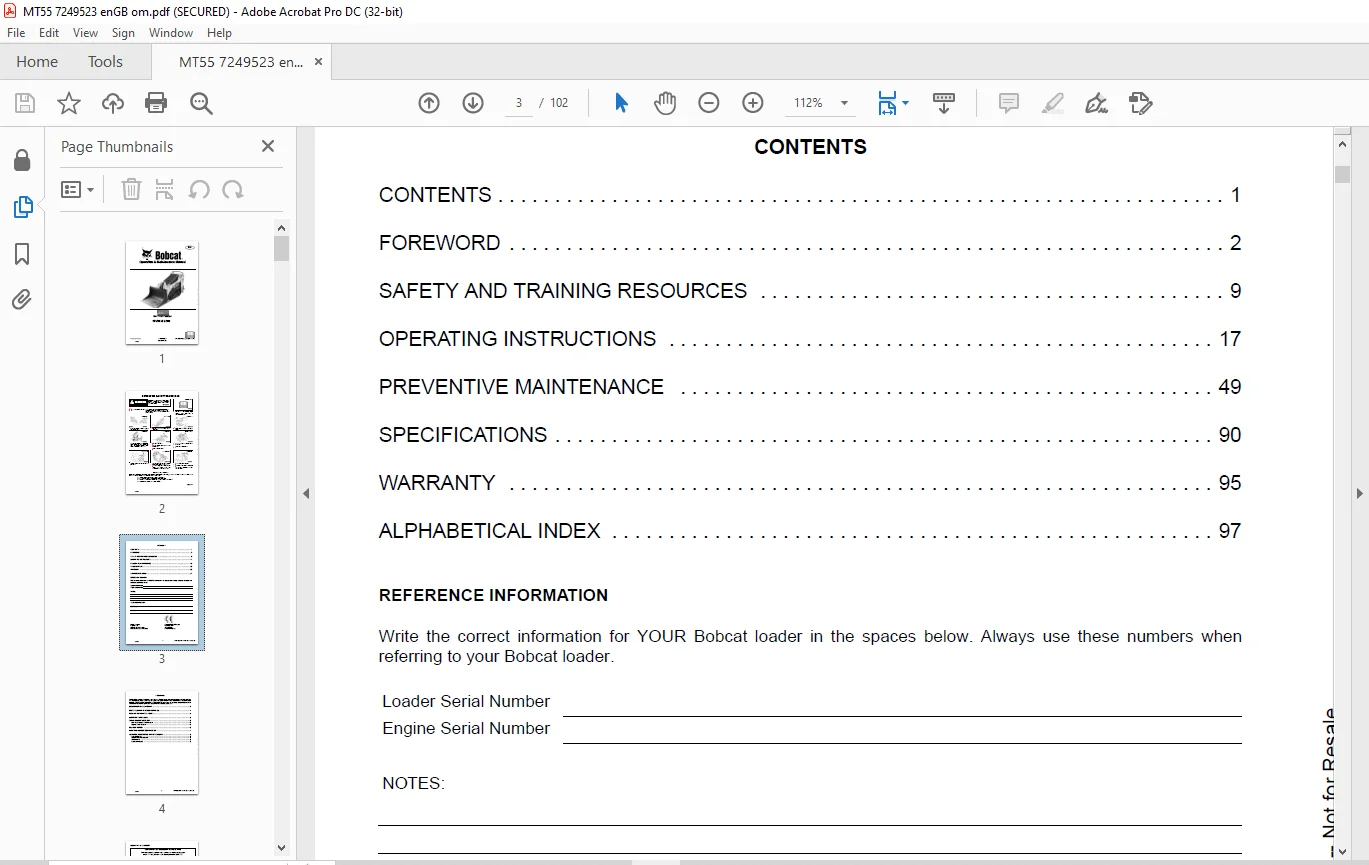

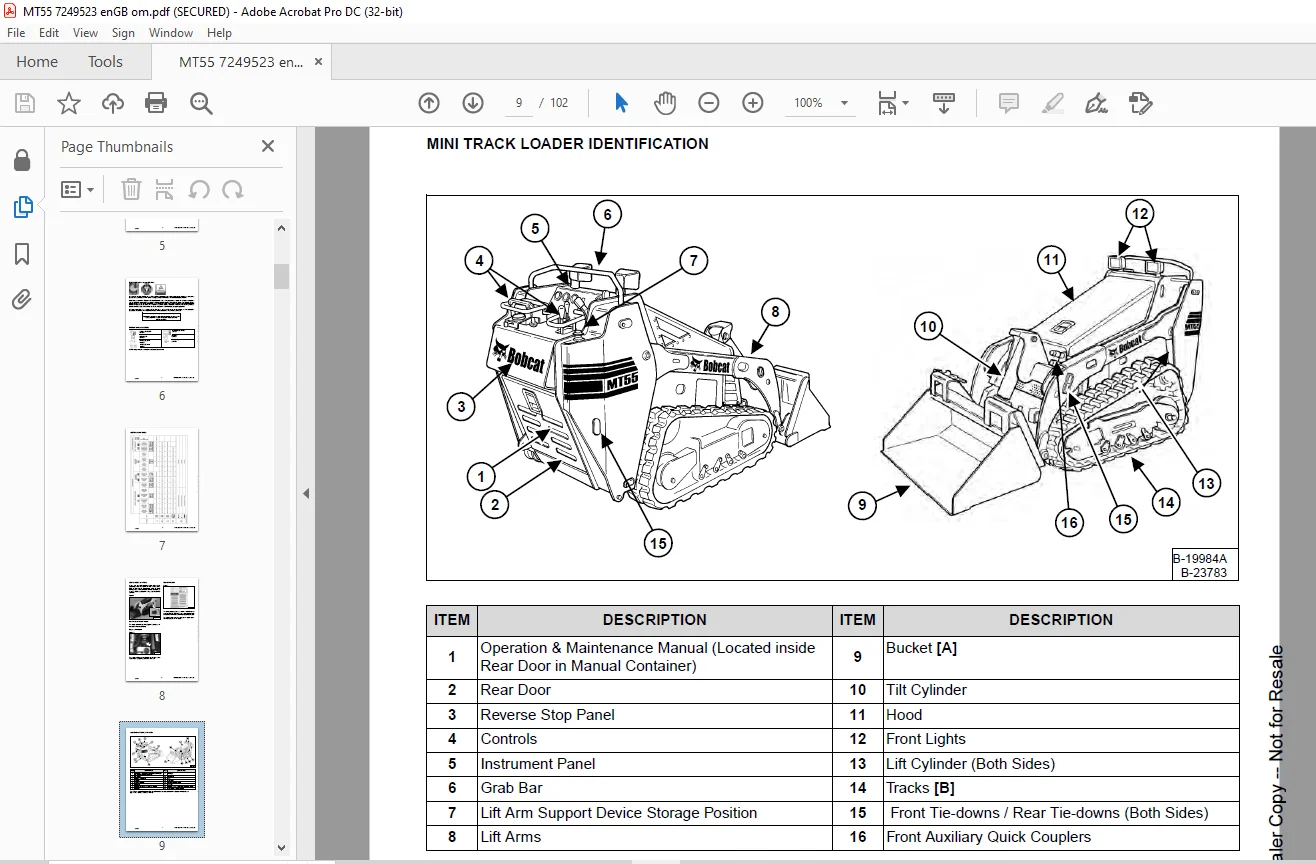

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Bobcat MT55 Mini Track Loader Operation & Maintenance Manual 7249523 – PDF DOWNLOAD

S/N A3WU11001 & Above
S/N B38U11001 & Above

INTRODUCTION :

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat machine. Read and understand this Operation & Maintenance Manual before operating your Bobcat machine. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your machine.

BEFORE OPERATION :

Carefully follow the operating and maintenance instructions in this manual.

• The Bobcat machine is highly maneuverable and compact. It is rugged and useful under a wide variety of conditions. This presents an operator with hazards associated with off highway, rough terrain applications, common with Bobcat machine usage.
• The Bobcat machine has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so use the machine with adequate ventilation. The dealer explains the capabilities and restrictions of the Bobcat machine and attachment for each application.
• The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for a Rated Operating Capacity (some have restricted lift heights). They are designed for secure fastening to the machine. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the machine – attachment combination.

The following publications and training materials provide information on the safe use and maintenance of the Bobcat machine and attachments:

TABLE OF CONTENTS:

Bobcat MT55 Mini Track Loader Operation & Maintenance Manual 7249523 – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 2
CONTENTS 3
FOREWORD 4
DECLARATION OF CONFORMITY 5
BOBCAT COMPANY IS IS0 9001 CERTIFIED 6
REGULAR MAINTENANCE ITEMS 6
LUBRICANTS AND FLUIDS 7
SERIAL NUMBER LOCATIONS 8
Mini Track Loader Serial Number 8
Engine Serial Number 8
DELIVERY REPORT 8
MINI TRACK LOADER IDENTIFICATION 9
FEATURES, ACCESSORIES AND ATTACHMENTS 10
Standard Items 10
Options And Accessories 10
Attachments 10
Buckets Available 10
SAFETY AND TRAINING RESOURCES 11
SAFETY INSTRUCTIONS 12
Before Operation 12
Safe Operation Is The Operator’s Responsibility 13
Safe Operation Needs A Qualified Operator 13
Avoid Silica Dust 14
FIRE PREVENTION 14
Maintenance 14
Operation 14
Electrical 14
Hydraulic System 15
Fueling 15
Starting 15
Spark Arrester Exhaust System 15
Welding And Grinding 15
Fire Extinguishers 15
MACHINE SIGNS (DECALS) 16
PUBLICATIONS AND TRAINING RESOURCES 18
OPERATING INSTRUCTIONS 19
CONTROLS IDENTIFICATION 21
CONTROLS OPERATION 21
Description 21
REVERSE STOP PANEL 22
Operation 22
LIFT ARM BY-PASS CONTROL 22
Operation 22
ENGINE SPEED CONTROL 23
Operation 23
PARKING BRAKE 23
Operation 23
DRIVING AND STEERING THE MINI TRACK LOADER 24
Operation 24
DRIVE / STEERING CONTROL TILT ADJUSTMENT 25
Operation 25
REVERSE TRAVEL SPEED CONTROL LEVER 25
Operation 25
STOPPING THE MINI TRACK LOADER 26
Using The Drive / Steering Control 26
HYDRAULIC CONTROLS 27
Description 27
Lift Arm Operation 27
Lift Arm Float Position 27
Tilt Operation 27
FRONT Auxiliary Hydraulics (CONTINUOUS FLOW) 28
Quick Couplers 29
Relieve Hydraulic Pressure (Mini Track Loader And Attachment) 29
ATTACHMENT CONTROL DEVICE (ACD) 30
Description 30
RIDE-ON PLATFORM (HINGED) (OPTION) 31
Procedure 31
DAILY INSPECTION 32
Daily Inspection And Maintenance 32
PRE-STARTING PROCEDURE 33
Procedure 33
STARTING THE ENGINE 34
Key Switch 34
Cold Temperature Starting 35
Warming The Hydraulic / Hydrostatic System 35
STOPPING THE ENGINE AND LEAVING THE MINI TRACK LOADER 36
Procedure 36
ATTACHMENTS 37
Choosing The Correct Bucket 37
Pallet Forks 37
Installing And Removing The Attachment (Bob-Tach) 38
Installing And Removing The Attachment (Common Industry Interface) 40
OPERATING PROCEDURE 42
Inspect The Work Area 42
Basic Operating Instructions 42
Driving On Rough Terrain And Over Curbs 43
Driving With An Auger Attachment Installed 44
Operating With A Full Bucket 45
Operating With An Empty Bucket 45
Filling The Bucket And Emptying The Bucket 46
Levelling The Ground Using Float 47
Digging And Filling A Hole 47
TOWING THE MINI TRACK LOADER 48
Procedure 48
LIFTING THE MINI TRACK LOADER 49
Four Point Lift 49
TRANSPORTING THE BOBCAT MINI TRACK LOADER 50
Loading And Unloading 50
Fastening 50
PREVENTIVE MAINTENANCE 51
SERVICE SCHEDULE 55
Maintenance Intervals 55
Inspection Checkbook 57
LIFT ARM BY-PASS CONTROL 58
Inspection 58
REVERSE STOP PANEL 58
Inspection 58
LIFT AND TILT FUNCTION LOCKOUTS 59
Inspection 59
NEUTRAL START INTERLOCKS 60
Inspecting Traction Drive Interlock 60
Inspecting The Continuous Flow Shutoff Lever 60
Inspecting Auxiliary Hydraulic Interlock 60
AUXILIARY HYDRAULIC CONTROL SYSTEM 61
Inspecting The Continuous Flow Shutoff Lever 61
Inspecting The Auxiliary Hydraulic Mode Switch (If Equipped) 61
LIFT ARM SUPPORT DEVICE 62
Installing 62
Removing 62
HOOD 63
Operation 63
Striker Adjustment 63
REAR DOOR 64
Opening And Closing 64
Striker Adjustment 64
Bumper Adjustment 64
AIR CLEANER SERVICE 65
Replacing The Filter Elements 65
FUEL SYSTEM 66
Fuel Specifications 66
Biodiesel Blend Fuel 66
Filling The Fuel Tank 67
Fuel Filter 68
Removing Air From The Fuel System 68
ENGINE LUBRICATION SYSTEM 69
Checking And Adding Engine Oil 69
Engine Oil Chart 69
Removing And Replacing Oil And Filter 70
ENGINE COOLING SYSTEM 72
Cleaning 72
Checking Level 72
Removing And Replacing The Coolant 73
ELECTRICAL SYSTEM 74
Description 74
Fuse And Relay Location / Identification 74
Battery Maintenance 75
Maintaining Battery Charge Level 75
Battery Service During Machine Storage 75
Battery Testing 76
Battery Charging 76
Using A Booster Battery (Jump Starting) 77
Removing And Installing The Battery 78
HYDRAULIC / HYDROSTATIC SYSTEM 79
Checking And Adding Fluid 79
Hydraulic / Hydrostatic Fluid Chart 79
Removing And Replacing Hydraulic / Hydrostatic Filter 80
Removing And Replacing Hydraulic Fluid 80
Hydraulic Reservoir Breather 80
SPARK ARRESTER MUFFLER 81
Cleaning Procedure 81
TRACK TENSION 82
Adjustment 82
ALTERNATOR BELT 83
Belt Adjustment 83
Belt Replacement 83
DRIVE BELT 84
Description 84
Adjusting 84
TRACK ROLLER AND IDLER LUBRICATION 85
Procedure 85
LUBRICATING THE MINI TRACK LOADER 86
Lubrication Locations 86
Parking Brake Lubrication 87
PIVOT PINS 88
Inspection And Maintenance 88
BOB-TACH 89
Inspection And Maintenance 89
COMMON INDUSTRY INTERFACE 90
Inspection And Maintenance 90
MINI TRACK LOADER STORAGE AND RETURN TO SERVICE 91
Storage 91
Return To Service 91
SPECIFICATIONS 92
(MT55) MINI TRACK LOADER SPECIFICATIONS 93
Dimensions 93
Performance 94
Controls 94
Engine 94
Hydraulic System 95
Electrical 95
Drive System 95
Capacities 95
Tracks 96
Ground Pressure 96
Fuel Consumption 96
Environmental 96
Temperature Range 96
WARRANTY 97
WARRANTY 98
ALPHABETICAL INDEX 99
