Bobcat Planer 18PLA 24PLA PNSFL Service Manual 6989705 (06-20) – PDF DOWNLOAD

Description

Bobcat Planer 18PLA 24PLA PNSFL Service Manual 6989705 (06-20) – PDF DOWNLOAD

FILE DETAILS:

Bobcat Planer 18PLA 24PLA PNSFL Service Manual 6989705 (06-20) – PDF DOWNLOAD

Language : English
Pages : 164
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat Planer 18PLA 24PLA PNSFL Service Manual 6989705 (06-20) – PDF DOWNLOAD

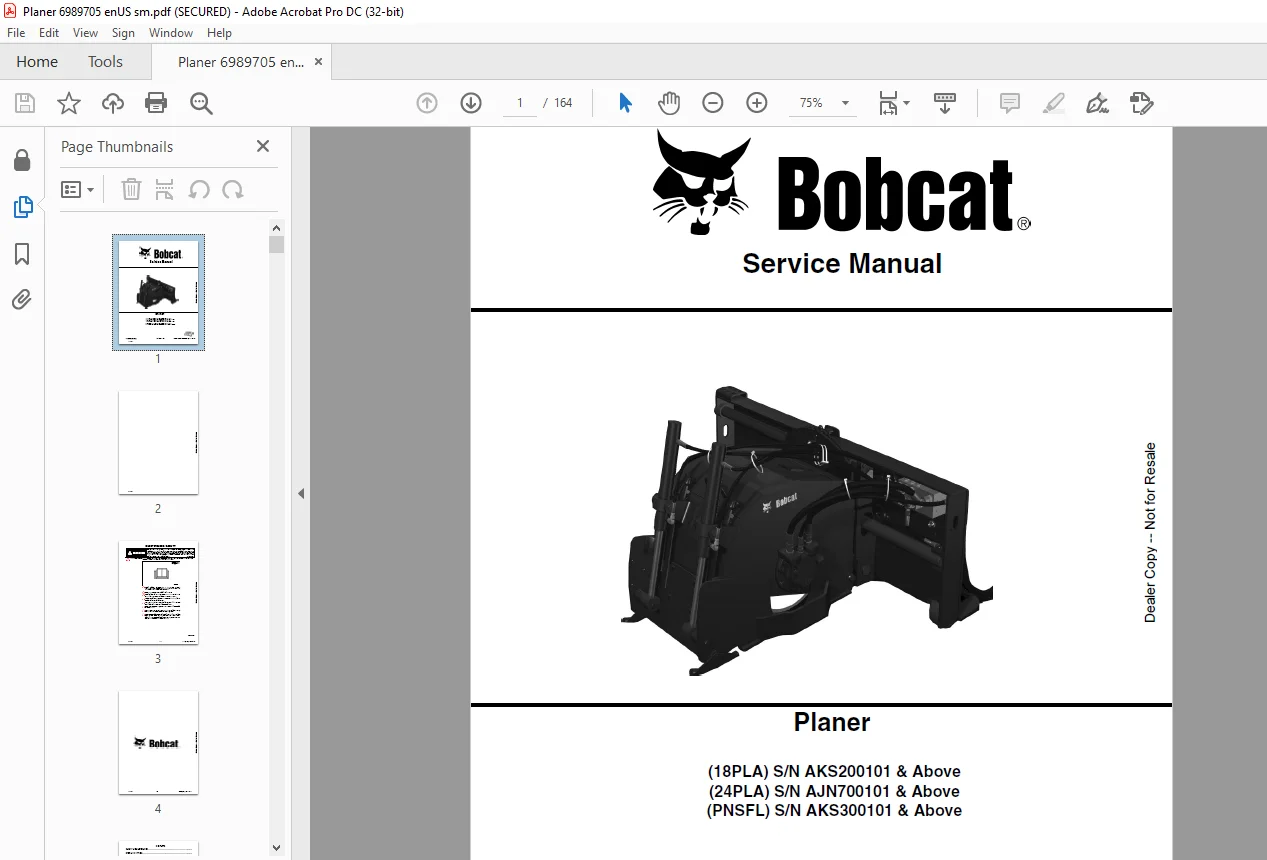

(18PLA) S/N AKS200101 & Above
(24PLA) S/N AJN700101 & Above
(PNSFL) S/N AKS300101 & Above

FOREWORD
TROUBLESHOOTING

If the attachment is not working correctly, check the hydraulic system of the machine thoroughly before making any repairs
on the attachment. Attachment problems can be affected by a hydraulic system that is not operating to specifications.
Connect a flow meter to the machine to check the hydraulic pump output, relief valve setting and tube lines to check flow
and pressure. (See the machine’s Service Manual for the correct procedure to connect the flow meter.)
Use the following troubleshooting chart to locate and correct problems which most often occur with the attachment.

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat Planer 18PLA 24PLA PNSFL Service Manual 6989705 (06-20) – PDF DOWNLOAD

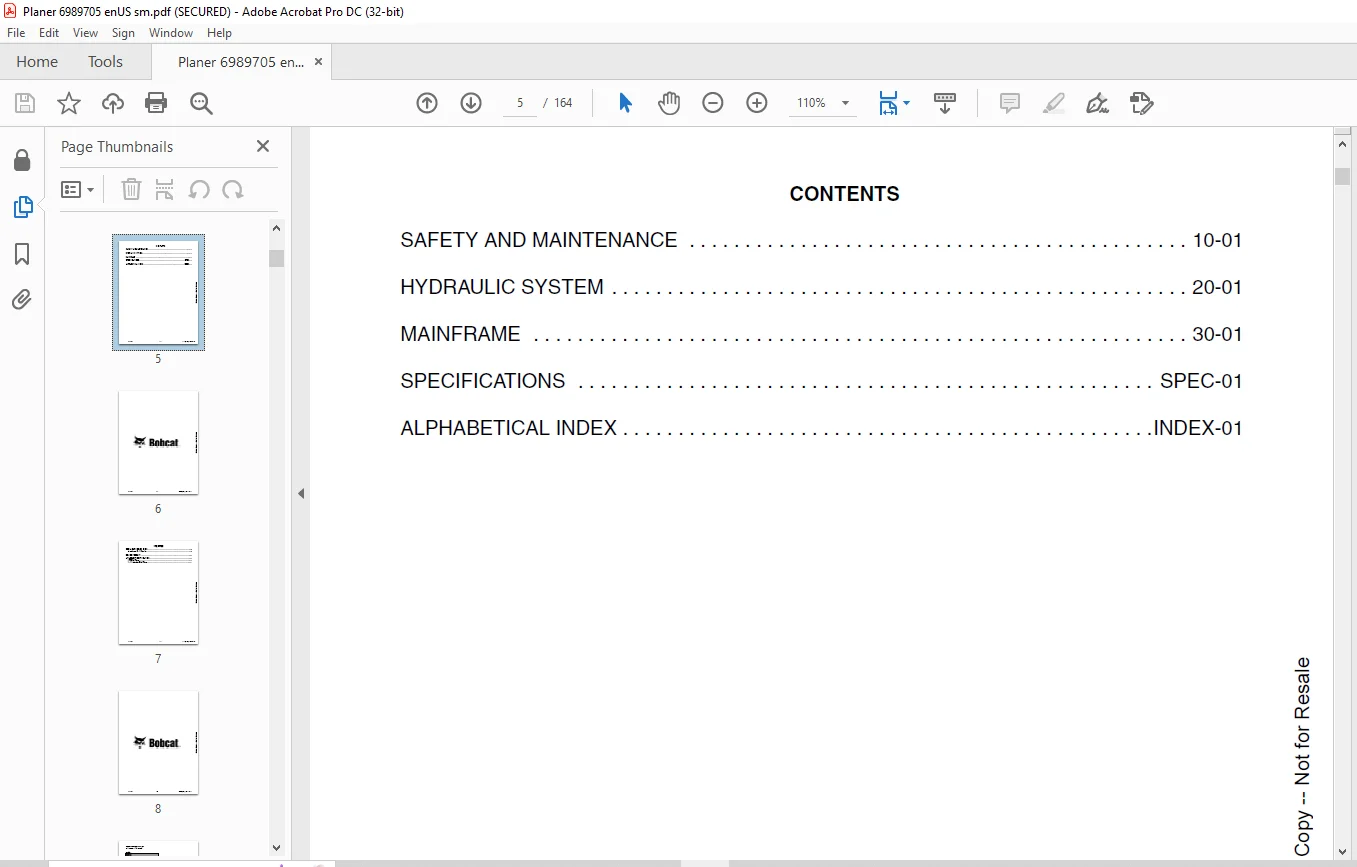

MAINTENANCE SAFETY 3
CONTENTS 5
FOREWORD 7
SERIAL NUMBER LOCATION 9
Attachment Serial Number 9
DELIVERY REPORT 10
ATTACHMENT IDENTIFICATION 11

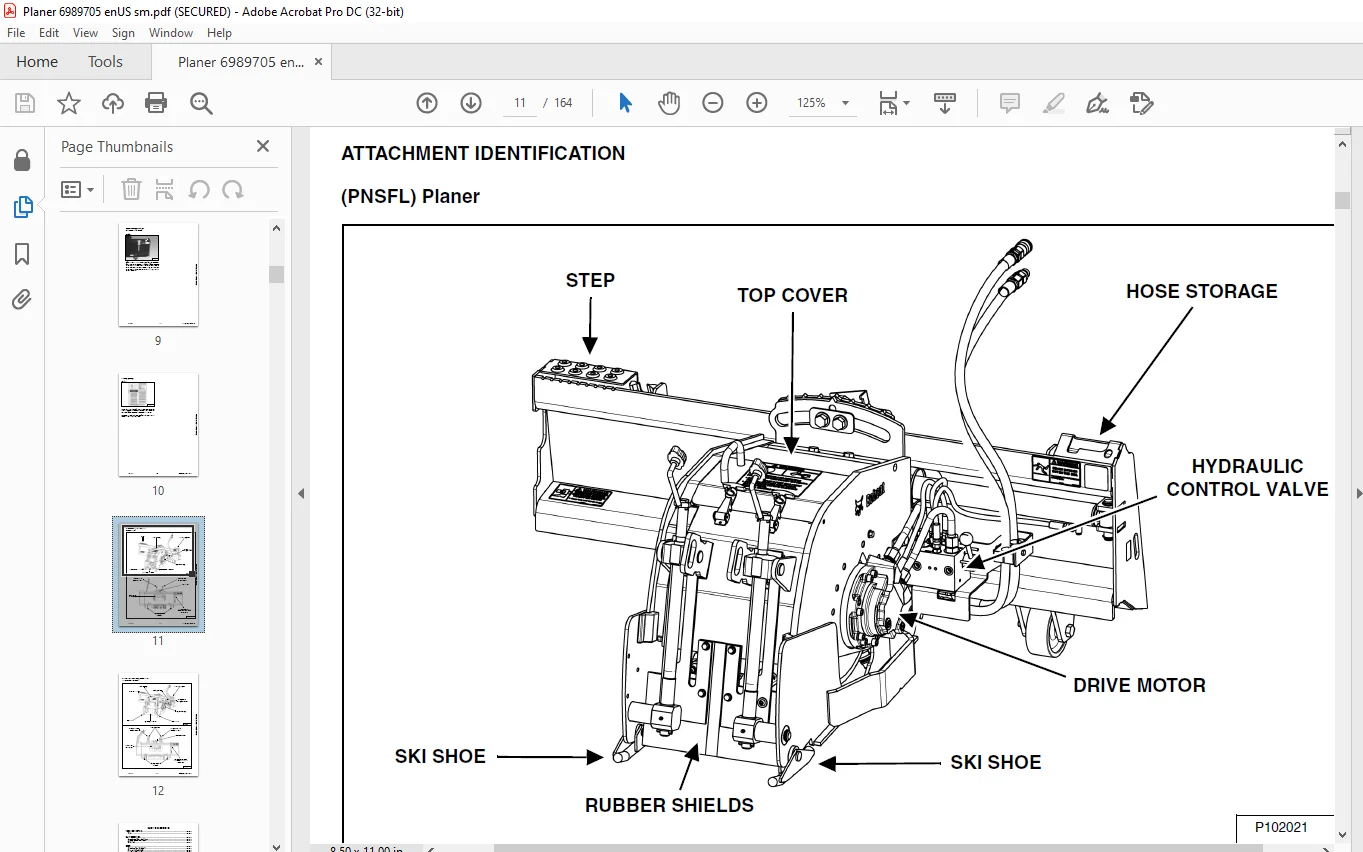

(PNSFL) Planer 11
(18PLA And 24PLA) Planer 12
SAFETY AND MAINTENANCE 13
TROUBLESHOOTING 15
Chart 15
DAILY INSPECTION 17
Attachment Mounting Frame 17
Rubber Shield Inspection 17
Bob-Tach 18
DRUM 21
Checking The Carbide Tips 21
Removing Carbide Bits 21
Installing Carbide Bits 22
RUBBER SHIELDS 23
Removal 23
Installation 23
DRIVE CARRIER 25
Oil Change 25
LUBRICATING THE ATTACHMENT 27
Lubrication Locations (PNSFL) 27
HYDRAULIC SYSTEM 29
HYDRAULIC CONTROL VALVE (PNSFL) 31
Removal 31
Installation 34
Parts Identification 37
Disassembly 39
Assembly 45
HYDRAULIC CONTROL VALVE (18PLA AND 24PLA) 51
Removal And Installation 51
Parts Identification 55
Disassembly 57
Assembly 60
CYLINDER (SIDE SHIFT) 65
Testing 65
Removal And Installation 66
Parts Identification 68
Disassembly 69
Assembly 72
CYLINDER (SKI) 77
Testing 77
Removal And Installation 78
Parts Identification 80
Disassembly 81
Assembly 84
DRIVE CARRIER 91
Removal And Installation 91
Parts Identification 93
Disassembly 94
Assembly 99
HYDRAULIC MOTOR 107
Removal And Installation 107
Parts Identification 109
Disassembly 110
Assembly 118
MAINFRAME 123
ACD (ATTACHMENT CONTROL DEVICE) 125
Removal And Installation 125
DRUM 127
Removal 127
Installation 128
MOUNTING FRAME 129
Removal 129
Installation 131
PIVOT MOUNT 133
Removal 133
Installation 135
SKIS 139
Ski Replacement 139
Ski Bushing Replacement 139
Ski Mount Bushing Replacement 140
WHEELS 141
Removal And Installation 141
Bushing Removal And Installation 141
ADJUSTMENT SCREW 143
Removal And Installation 143
Disassembly And Assembly 143
SPECIFICATIONS 145
(PNSFL) PLANER SPECIFICATIONS 147
Dimensions 147
Performance 148
Hydraulic System 148
(18PLA AND 24PLA) PLANER SPECIFICATIONS 149
Dimensions 149
Performance 150
Hydraulic System 150
HYDRAULIC SCHEMATIC 151
(PNSFL) Planer 151
(18PLA And 24PLA) Planer 152
ELECTRICAL SCHEMATIC 153
(18PLA AND 24PLA) Planer 153
TORQUE SPECIFICATIONS FOR BOLTS 155
Torque For General SAE Bolts 155
Torque For General Metric Bolts 156
HYDRAULIC SYSTEM INFORMATION 157
Glossary Of Hydraulic / Hydrostatic Symbols 157
ALPHABETICAL INDEX 161
