Bobcat Planetary Drive Auger PR3 Auger PS5 Auger PS7 Auger Operation & Maintenance Manual 6990974 (06-15) – PDF DOWNLOAD

Description

Bobcat Planetary Drive Auger PR3 Auger PS5 Auger PS7 Auger Operation & Maintenance Manual 6990974 (06-15) – PDF DOWNLOAD

FILE DETAILS:

Bobcat Planetary Drive Auger PR3 Auger PS5 Auger PS7 Auger Operation & Maintenance Manual 6990974 (06-15) – PDF DOWNLOAD

Language : English
Pages :78
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Bobcat Planetary Drive Auger PR3 Auger PS5 Auger PS7 Auger Operation & Maintenance Manual 6990974 (06-15) – PDF DOWNLOAD

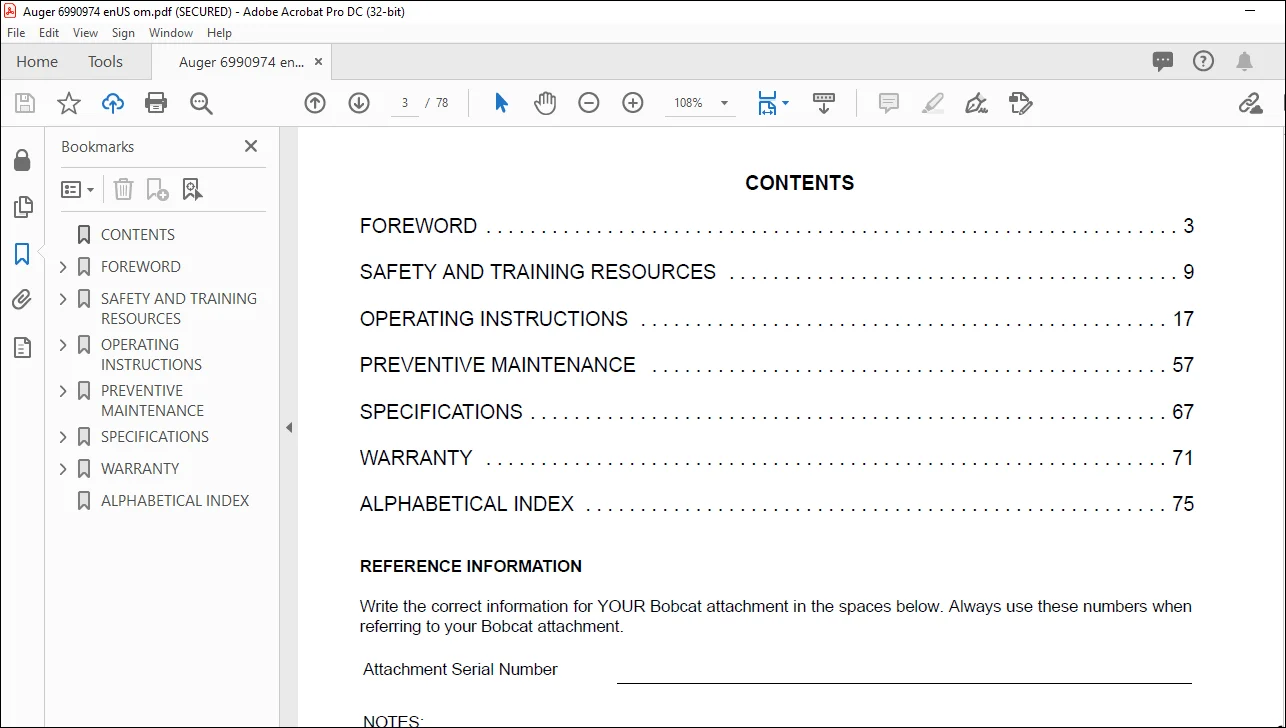

CONTENTS 3
FOREWORD 5
BOBCAT COMPANY IS IS0 9001 CERTIFIED 7
SERIAL NUMBER LOCATION 8
Attachment Serial Number 8
DELIVERY REPORT 8
ATTACHMENT IDENTIFICATION 9
FEATURES AND ACCESSORIES 10
Standard Items 10
Options And Accessories 10
SAFETY AND TRAINING RESOURCES 11
SAFETY INSTRUCTIONS 13
Safe Operation Is The Operator’s Responsibility 13
Safe Operation Needs A Qualified Operator 13
Use Safety Rules 14
Call Before You Dig 14
Avoid Silica Dust 14
FIRE PREVENTION 15
Maintenance 15
Operation 15
Electrical 15
Hydraulic System 15
Fueling 15
Starting 15
Spark Arrester Exhaust System 15
Welding And Grinding 16
Fire Extinguishers 16
PUBLICATIONS AND TRAINING RESOURCES 17
ATTACHMENT SIGNS (DECALS) 18
OPERATING INSTRUCTIONS 19
INITIAL SETUP 21
Assembly 21
DAILY INSPECTION 23
Bob-Tach 23
DAILY INSPECTION 25
Pin Grabber Coupler 25
OPERATING PROCEDURE WITH LOADERS 26
Approved Loader Models And Requirements 26
Machine / Attachment Setup 27
Entering And Exiting The Loader 29
Installation 30
Hydraulic Quick Couplers 37
Control Functions 38
Operation With The Loader 39
Removal 40
OPERATING PROCEDURE WITH EXCAVATORS 44
Approved Excavator Models And Requirements 44
Machine / Attachment Setup 44
Entering And Exiting the Excavator 45
Installation (Pin Grabber Quick Coupler) 46
First Time Installation 49
Hydraulic Quick Couplers 50
Control Functions 51
Operation With The Excavator 54
Removal 55
LIFTING THE ATTACHMENT 57
Procedure 57
TRANSPORTING THE ATTACHMENT ON A TRAILER 58
Fastening 58
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 58
Loading And Fastening 58
PREVENTIVE MAINTENANCE 59
MAINTENANCE SAFETY 61
TROUBLESHOOTING 63
Chart 63
LUBRICATING THE ATTACHMENT 64
Lubrication Locations 64
REGULAR MAINTENANCE ITEMS 65
Planetary Drive 65
Removal And Installation Of Auger Points And Teeth 66
ATTACHMENT STORAGE AND RETURN TO SERVICE 68
Storage 68
Return To Service 68
SPECIFICATIONS 69
AUGER SPECIFICATIONS 71
Dimensions 71
Drive System 71
Lubrication For Planetary Drive 71
Hydraulic System 72
WARRANTY 73
WARRANTY 75
ALPHABETICAL INDEX 77

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Bobcat Planetary Drive Auger PR3 Auger PS5 Auger PS7 Auger Operation & Maintenance Manual 6990974 (06-15) – PDF DOWNLOAD

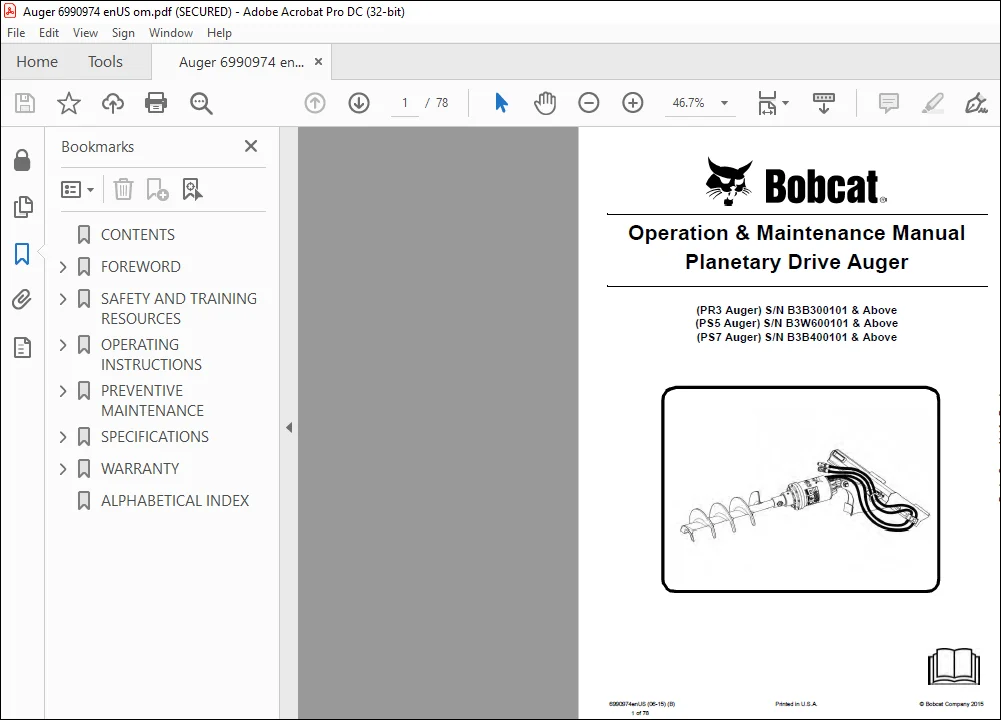

(PR3 Auger) S/N B3B300101 & Above
(PS5 Auger) S/N B3W600101 & Above
(PS7 Auger) S/N B3B400101 & Above

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat attachment. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT ATTACHMENT. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your Bobcat attachment

SAFETY INSTRUCTIONS

Operator must have instructions before operating the machine. Untrained operators can cause injury or death.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and Regulations

• The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

•  Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.

Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment / implement (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
• Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
• Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
• Check that the implement is securely fastened to the machine.
• Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
• Operate the attachment / implement according to the Operation & Maintenance Manual.
• When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
• The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
• DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
• DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
• Keep shields and guards in place. Replace if damaged.

Customer Support: [email protected]

https://vimeo.com/843440998?share=copy

PLEASE NOTE:

• This is the same manual used by the dealers to diagnose and troubleshoot your vehicle
• You will be directed to the download page as soon as the purchase is completed. The whole payment and downloading process will take anywhere between 2-5 minutes
• Need any other service / repair / parts manual, please feel free to contact [email protected] . We still have 50,000 manuals unlisted
