Bobcat S570 Skid-Steer Loader Operation & Maintenance Manual SN A7U711001 & Above Manual PDF Download

Description

Bobcat S570 Skid-Steer Loader Operation & Maintenance Manual SN A7U711001 & Above – PDF DOWNLOAD

FILE DETAILS:

Bobcat S570 Skid-Steer Loader Operation & Maintenance Manual SN A7U711001 & Above – PDF DOWNLOAD

Language : English
Pages : 208
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat S570 Skid-Steer Loader Operation & Maintenance Manual SN A7U711001 & Above – PDF DOWNLOAD

FOREWORD:

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the Bobcat loader. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR BOBCAT LOADER. If you have any questions, see your Bobcat dealer. This manual may illustrate options and accessories not installed on your loader.

SAFETY INSTRUCTIONS:
Before Operation:

• Carefully follow the operating and maintenance instructions in this manual.
• The Bobcat loader is highly maneuverable and compact. It is rugged and useful under a wide variety of conditions.This presents an operator with hazards associated with off highway, rough terrain applications, common with Bobcat loader usage.
• The Bobcat loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so use the loader with adequate ventilation.
• The dealer explains the capabilities and restrictions of the Bobcat loader and attachment for each application. The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for a Rated Operating Capacity (some have restricted lift heights). They are designed for secure fastening to the Bobcat loader. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the machine – attachment combination.

The following publications and training materials provide information on the safe use and maintenance of the Bobcat machine and attachments:

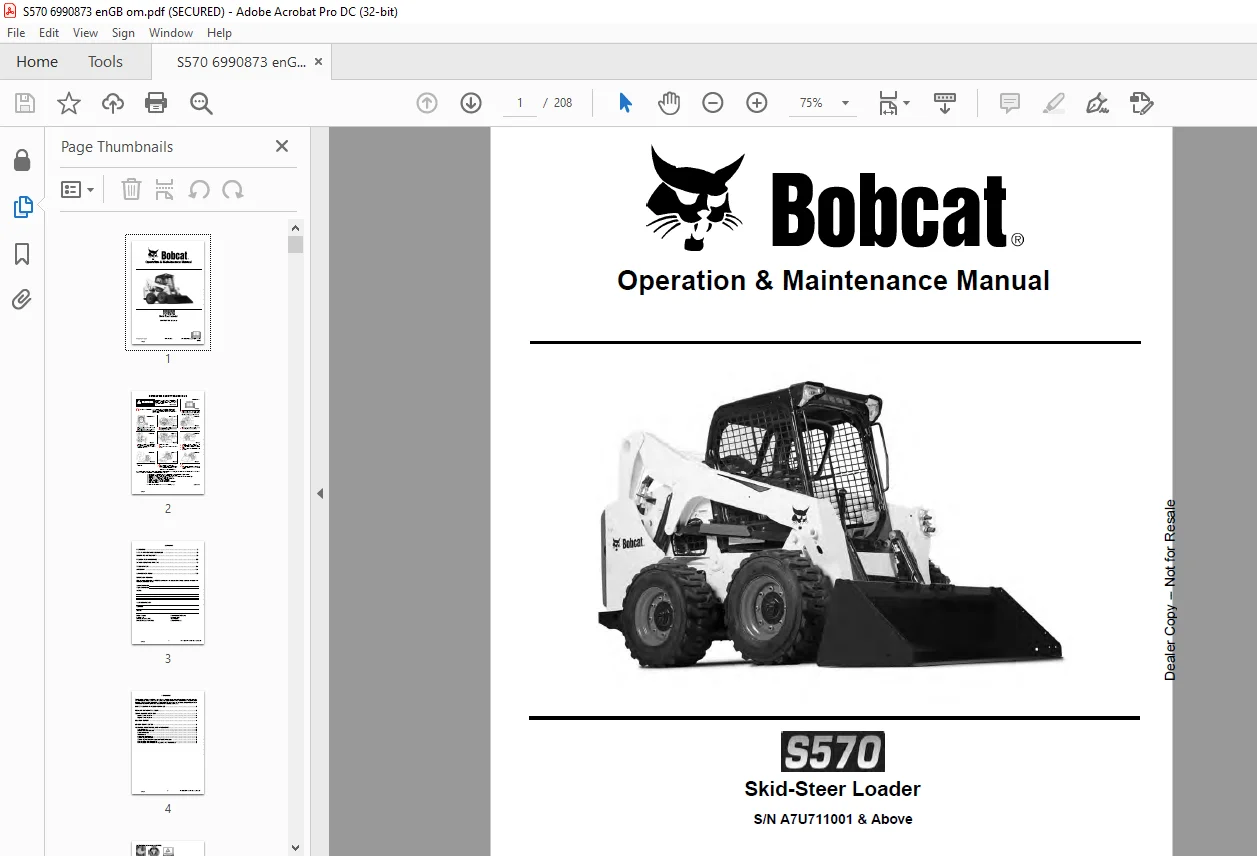

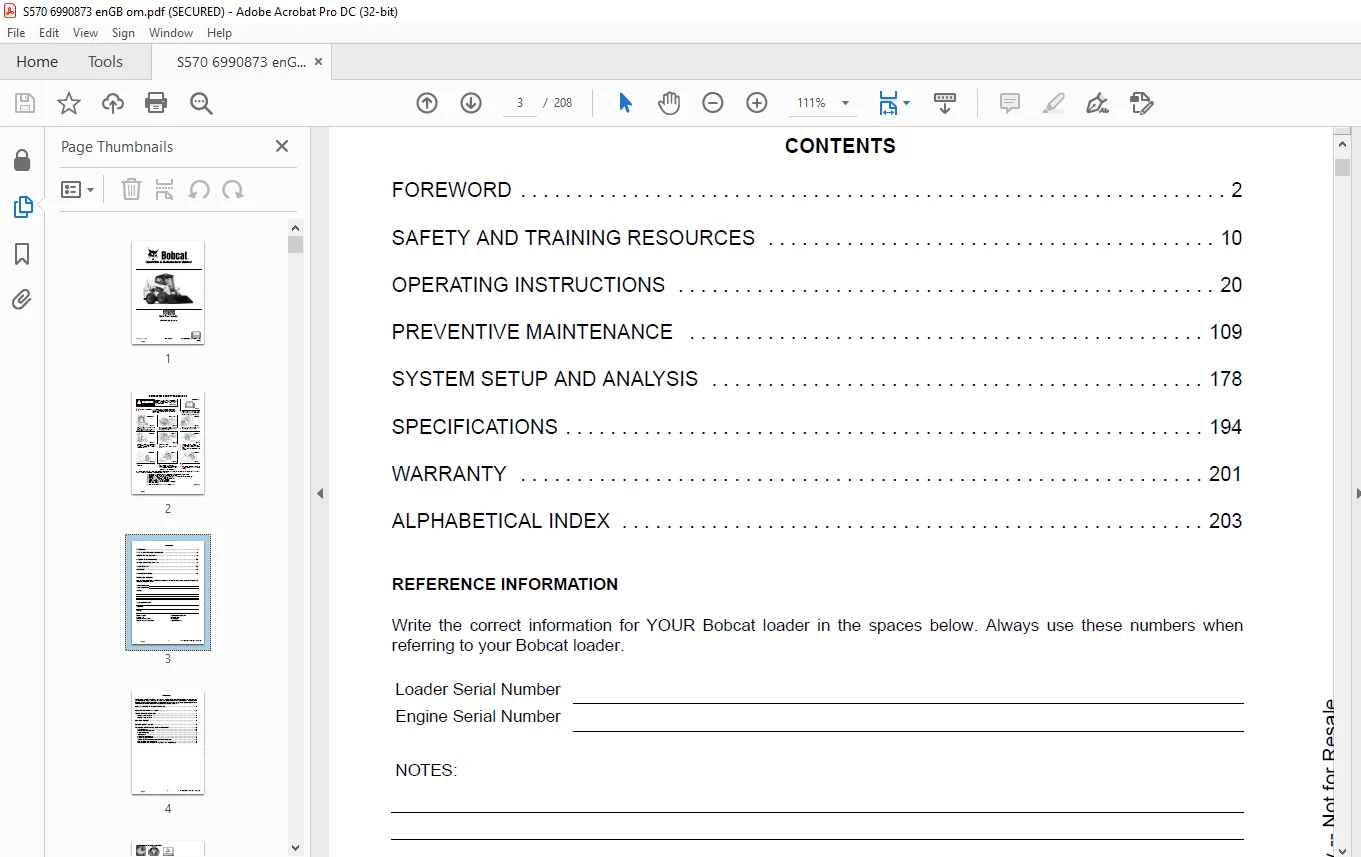

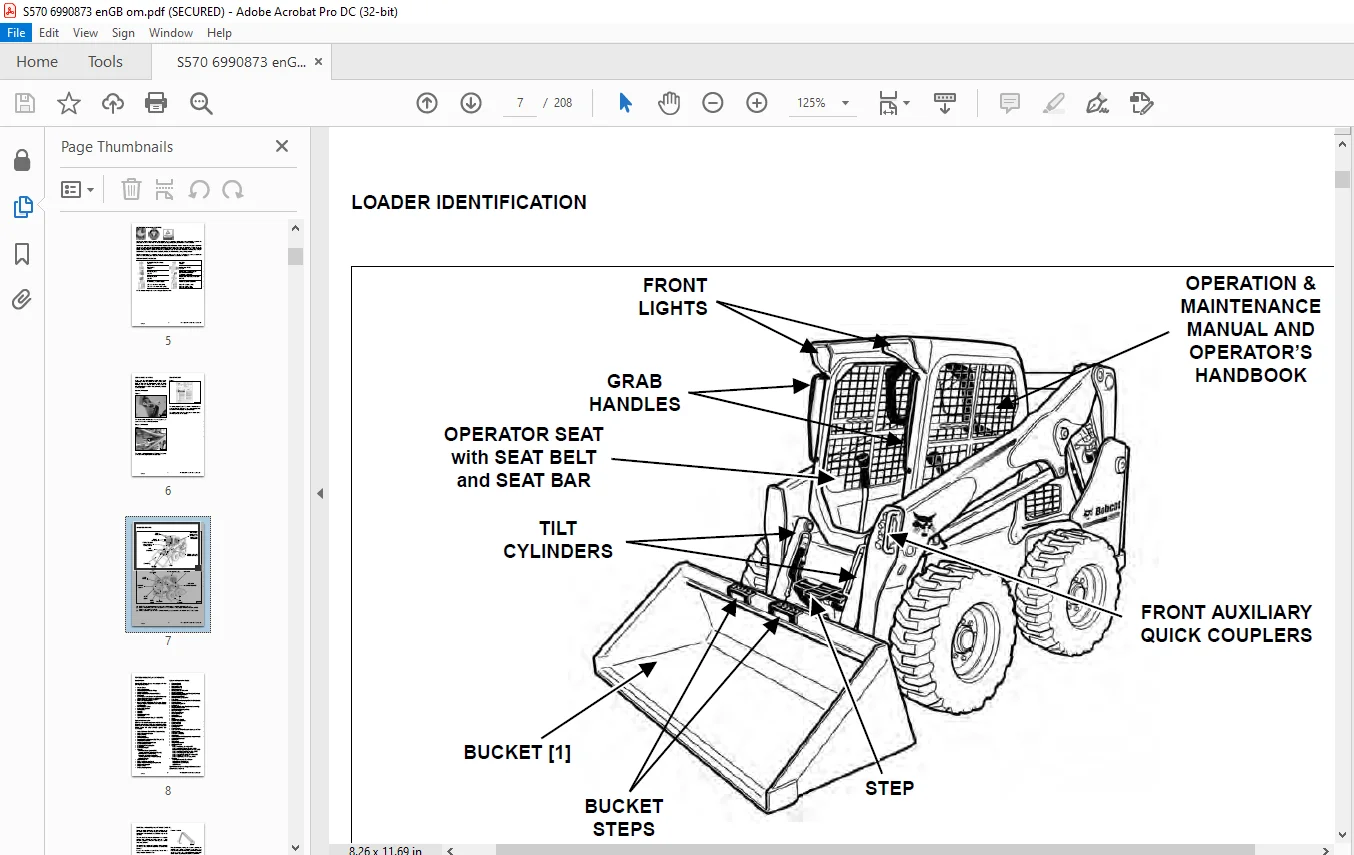

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat S570 Skid-Steer Loader Operation & Maintenance Manual SN A7U711001 & Above – PDF DOWNLOAD

OPERATOR SAFETY WARNING 2
CONTENTS 3
FOREWORD 4
BOBCAT COMPANY IS IS0 9001 CERTIFIED 5
REGULAR MAINTENANCE ITEMS 5
SERIAL NUMBER LOCATIONS 6
Loader Serial Number 6
Engine Serial Number 6
DELIVERY REPORT 6
LOADER IDENTIFICATION 7
FEATURES, ACCESSORIES, AND ATTACHMENTS 8
Standard Items 8
Options And Accessories 8
Buckets Available 9
Attachments 9
High-Flow Attachments 9
Special Applications Kit 10
Special Applications Kit Inspection And Maintenance 10
Forestry Door And Window Kit 11
Forestry Door And Window Kit Inspection And Maintenance 11
SAFETY AND TRAINING RESOURCES 12
SAFETY INSTRUCTIONS 13
Before Operation 13
Safe Operation Is The Operator’s Responsibility 14
Safe Operation Needs A Qualified Operator 14
Avoid Silica Dust 15
FIRE PREVENTION 15
Maintenance 15
Operation 15
Electrical 15
Hydraulic System 16
Fueling 16
Starting 16
Spark Arrester Exhaust System 16
Welding And Grinding 16
Fire Extinguishers 16
PUBLICATIONS AND TRAINING RESOURCES 17
MACHINE SIGNS (DECALS) 18
Pictorial Only Safety Signs 20
OPERATING INSTRUCTIONS 22
INTENDED USE 26
INSTRUMENT PANEL IDENTIFICATION 27
Overview 27
Left Panel 28
Display Screen 30
Right Panel (Standard Key Panel) 31
Right Panel (Keyless Start Panel) 32
Right Panel (Deluxe Instrumentation Panel) 33
Left Switch Panel 35
Right Switch Panel 35
Left Side Lower Panel 36
Right Side Lower Panel 36
Radio 37
Rear View Camera System 39
CONTROL IDENTIFICATION 41
Description 41
Standard Controls 41
Advanced Control System (ACS) 42
Advanced Hand Controls (AHC) 43
Selectable Joystick Controls (SJC) 44
OPERATOR CAB 45
Description 45
Side Windows 45
Door Operation 45
Front Wiper 46
Cab Light 46
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 47
Description 47
Operation 47
SEAT BAR RESTRAINT SYSTEM 48
Description 48
Operation 48
PARKING BRAKE 49
Operation 49
TRACTION LOCK OVERRIDE 49
Description 49
Operation 49
ENGINE SPEED CONTROL 50
Operation 50
LIFT ARM BYPASS CONTROL 50
Description 50
Operation 50
EMERGENCY EXIT 51
Rear Window Identification 51
Rear Window Removal (Latches) 51
Rear Window Removal (Rubber Cord) 51
External Access (Rear Window With Latches) 52
External Access (Rear Window With Rubber Cord) 52
Front Door 52
BACK-UP ALARM SYSTEM 54
Description 54
Operation 54
DRIVING AND STEERING THE LOADER 55
Available Control Configurations 55
Operation (Standard, ACS, and AHC) 55
Operation (SJC) In ‘ISO’ Control Pattern 56
Operation (SJC) In ‘H’ Control Pattern 57
STOPPING THE LOADER 58
Using The Control Levers Or Joysticks 58
TWO-SPEED CONTROL 58
Description 58
Operation (Standard, ACS, and AHC) 59
Operation (SJC) 59
SPEED MANAGEMENT 60
Description 60
Operation 60
Changing The Factory Default Setting 61
DRIVE RESPONSE 62
Description 62
Operation 62
STEERING DRIFT COMPENSATION 64
Description 64
Operation 64
LIFT AND TILT COMPENSATION 66
Description 66
Operation 66
Operation (ACS And AHC) 67
Operation (SJC) 68
HYDRAULIC CONTROLS 69
Description 69
Standard Controls And Advanced Control System (ACS) In FOOT Pedal Mode 69
Advanced Control System (ACS) In HAND Control Mode And Advanced Hand Controls (AHC) 70
Selectable Joystick Controls (SJC) In ‘ISO’ Control Pattern 70
Selectable Joystick Controls (SJC) In ‘H’ Control Pattern 71
Hydraulic Bucket Positioning 71
Automatic Ride Control 72
Reversing Fan 73
FRONT Auxiliary Hydraulics Operation 74
FRONT Auxiliary Hydraulics Operation (CONTINUOUS FLOW) 75
FRONT Auxiliary Hydraulics Operation (REVERSE CONTINUOUS FLOW) 75
REAR Auxiliary Hydraulics Operation 76
High-Flow Auxiliary Hydraulics Operation 77
Quick Couplers 78
Quick Coupler Troubleshooting 78
Relieve Auxiliary Hydraulic Pressure (Loader And Attachment) 79
ATTACHMENT CONTROL DEVICE (ACD) 80
Description 80
DAILY INSPECTION 81
Daily Inspection And Maintenance 81
PRE-STARTING PROCEDURE 83
Entering The Loader 83
Operation & Maintenance Manual And Operator’s Handbook Locations 83
Seat Adjustment 84
Seat Belt Adjustment 87
Seat Bar 88
Joystick Position Adjustment 88
STARTING THE ENGINE 89
Standard Key Panel 89
Keyless Start Panel 91
Deluxe Instrumentation Panel 93
Warming The Hydraulic / Hydrostatic System 95
Cold Temperature Starting 95
MONITORING THE DISPLAY PANELS 96
Left Panel 96
Warning And Shutdown 96
STOPPING THE ENGINE AND LEAVING THE LOADER 97
Procedure 97
COUNTERWEIGHTS 98
Description 98
Effect On The Loader And Loader Operation 98
When To Consider Using Counterweights 98
When To Consider Removing Counterweights 98
Accessories That Affect Machine Weight 98
ATTACHMENTS 99
Choosing The Correct Bucket 99
Pallet Fork 99
Installing And Removing The Attachment (Hand Lever Bob-Tach) 100
Installing And Removing The Attachment (Power Bob-Tach) 103
OPERATING PROCEDURE 106
Inspect The Work Area 106
Basic Operating Instructions 106
Driving On Public Roads 106
Operating With A Full Bucket 107
Operating With An Empty Bucket 107
TOWING THE LOADER 108
Procedure 108
LIFTING THE LOADER 108
Single-Point Lift 108
Four-Point Lift 109
TRANSPORTING THE LOADER ON A TRAILER 110
Loading And Unloading 110
Fastening 110
PREVENTIVE MAINTENANCE 111
SERVICE SCHEDULE 115
Maintenance Intervals 115
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 117
Inspecting The BICS™ (Engine STOPPED – Key ON) 117
Inspecting Deactivation Of The Auxiliary Hydraulics System (Engine STOPPED – Key ON) 117
Inspecting The Seat Bar Sensor (Engine RUNNING) 117
Inspecting The Traction Lock And Parking Brake (Engine RUNNING) 117
Inspecting The Lift Arm Bypass Control 117
Inspecting Deactivation Of Lift And Tilt Functions (ACS, AHC, And SJC) 117
SEAT BAR RESTRAINT SYSTEM 118
Description 118
Inspection And Maintenance 119
SEAT BELT 120
Inspection And Maintenance 120
LIFT ARM SUPPORT DEVICE 121
Description 121
Installing 122
Removing 123
BACK-UP ALARM SYSTEM 124
Description 124
Inspection 124
Adjusting Switch Position 125
OPERATOR CAB 126
Description 126
Cab Door Sensor 126
Raising 127
Lowering 128
REAR DOOR (TAILGATE) 129
Opening And Closing 129
Adjusting Latch 129
REAR GRILLE 130
Removing 130
Installing 130
HEATING, VENTILATION, AND AIR CONDITIONING (HVAC) SYSTEM 131
Filters 131
Air Conditioning Evaporator / Heater Coil 132
Air Conditioning Condenser 133
Air Conditioning Lubrication 133
Troubleshooting 133
ENGINE AIR CLEANER 134
Replacing Filters 134
FUEL SYSTEM 136
Fuel Specifications 136
Biodiesel Blend Fuel 136
Filling The Fuel Tank 137
Fuel Filter 138
Removing Air From The Fuel System 139
ENGINE LUBRICATION SYSTEM 140
Checking And Adding Engine Oil 140
Engine Oil Chart 140
Removing And Replacing Oil And Filter 141
ENGINE COOLING SYSTEM 142
Maintenance Platform 142
Cooling System Identification 142
Cleaning (Earlier Models) 143
Cleaning (Later Models) 145
Checking And Adding Coolant 147
Removing And Replacing Coolant 148
ELECTRICAL SYSTEM 149
Description 149
Fuse And Relay Location / Identification 149
Battery Maintenance 153
Maintaining Battery Charge Level 153
Battery Service During Machine Storage 153
Battery Testing 154
Battery Charging 154
Using A Booster Battery (Jump Starting) 155
Removing And Installing Battery 156
HYDRAULIC / HYDROSTATIC SYSTEM 157
Checking And Adding Fluid 157
Hydraulic / Hydrostatic Fluid Chart 157
Removing And Replacing Hydraulic Fluid 158
Removing And Replacing Hydraulic / Hydrostatic Filter 160
Removing And Replacing Hydraulic Charge Filter 161
Replacing Reservoir Breather Cap 163
SPARK ARRESTER MUFFLER 164
Cleaning Procedure 164
TYRE MAINTENANCE 165
Wheel Nuts 165
Rotating 165
Mounting 165
FINAL DRIVE TRANSMISSION (CHAINCASE) 166
Checking And Adding Fluid 166
Removing And Replacing Fluid 166
ALTERNATOR BELT 167
Belt Adjustment 167
Belt Replacement 167
AIR CONDITIONING BELT 168
Belt Adjustment 168
Belt Replacement 168
DRIVE BELT 169
Belt Adjustment 169
Belt Replacement 170
AUTOMATIC RIDE CONTROL ACCUMULATOR 172
Checking Accumulator Charge 172
LUBRICATING THE LOADER 173
Lubrication Locations 173
PIVOT PINS 176
Inspection And Maintenance 176
BOB-TACH (HAND LEVER) 177
Inspection And Maintenance 177
BOB-TACH (POWER) 178
Inspection And Maintenance 178
LOADER STORAGE AND RETURN TO SERVICE 179
Storage 179
Return To Service 179
SYSTEM SETUP AND ANALYSIS 180
DIAGNOSTIC SERVICE CODES 181
Viewing Service Codes 181
Service Codes List 182
CONTROL PANEL SETUP 188
Right Panel Setup (Deluxe Instrumentation Panel) 188
PASSWORD SETUP (KEYLESS START PANEL) 192
Password Description 192
Changing The Owner Password 192
Password Lockout Feature 192
PASSWORD SETUP (DELUXE INSTRUMENTATION PANEL) 193
Password Description 193
Changing The Owner Password 193
Changing The User Passwords 194
Password Lockout Feature 194
MAINTENANCE CLOCK 195
Description 195
Setup 195
Reset 195
SPECIFICATIONS 196
(S570) LOADER SPECIFICATIONS 197
Machine Dimensions 197
Performance 198
Engine 198
Drive System 199
Controls 199
Hydraulic System 200
Electrical System 201
Capacities 201
Tyres 202
WARRANTY 203
WARRANTY 204
ALPHABETICAL INDEX 205
