Bobcat S850 Skid-Steer Loader Operation & Maintenance Manual SN ACS711001 & Above – PDF DOWNLOAD

Description

Bobcat S850 Skid-Steer Loader Operation & Maintenance Manual SN ACS711001 & Above – PDF DOWNLOAD

FILE DETAILS:

Bobcat S850 Skid-Steer Loader Operation & Maintenance Manual SN ACS711001 & Above – PDF DOWNLOAD

Language : English
Pages : 220
Downloadable : Yes
File Type : PDF

DESCRIPTION:

Bobcat S850 Skid-Steer Loader Operation & Maintenance Manual SN ACS711001 & Above – PDF DOWNLOAD

FOREWORD:

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation
and maintenance of the Bobcat loader. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE
MANUAL BEFORE OPERATING YOUR BOBCAT LOADER. If you have any questions, see your Bobcat dealer.
This manual may illustrate options and accessories not installed on your loader.

SAFETY INSTRUCTIONS:
Before Operation:

• Carefully follow the operating and maintenance instructions in this manual.
• The Bobcat loader is highly maneuverable and compact. It is rugged and useful under a wide variety of conditions.
• This presents an operator with hazards associated with off highway, rough terrain applications, common with Bobcat loader usage.
• The Bobcat loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so use the loader with adequate ventilation.
• The dealer explains the capabilities and restrictions of the Bobcat loader and attachment for each application. The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for a Rated Operating Capacity (some have restricted lift heights). They are designed for secure fastening to the Bobcat loader. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the machine – attachment combination.

The following publications and training materials provide information on the safe use and maintenance of the Bobcat machine and attachments:

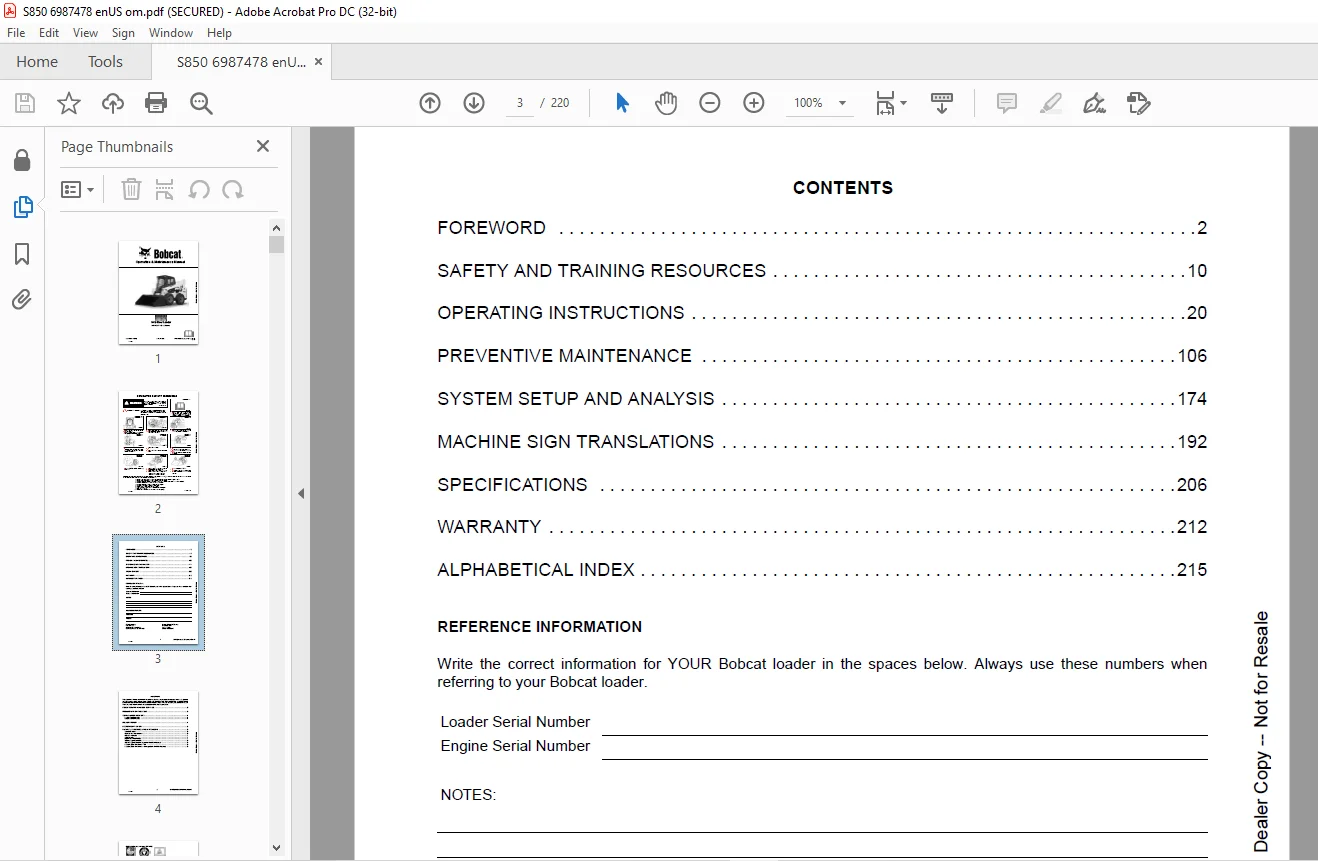

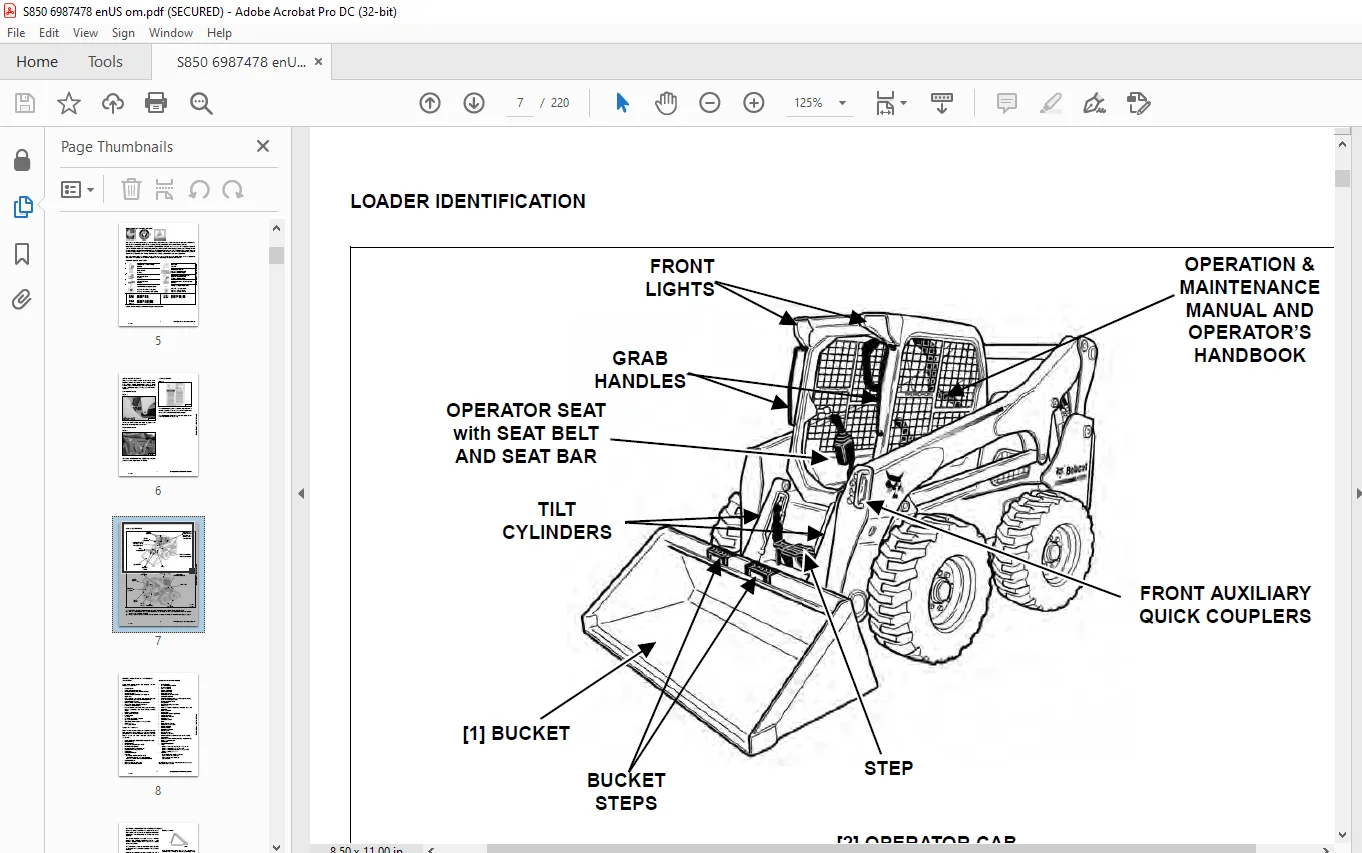

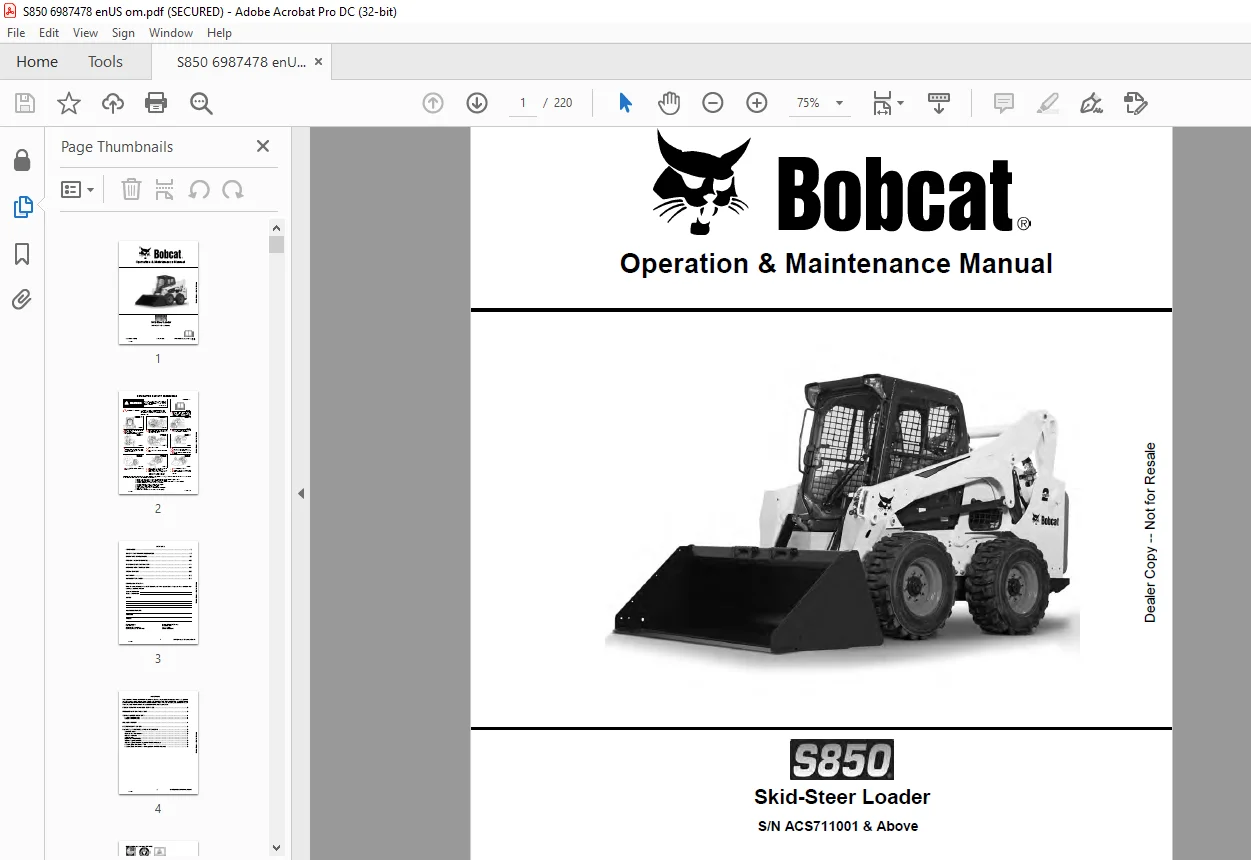

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bobcat S850 Skid-Steer Loader Operation & Maintenance Manual SN ACS711001 & Above – PDF DOWNLOAD

OPERATOR SAFETY WARNINGS 2
CONTENTS 3
FOREWORD 4
BOBCAT COMPANY IS IS0 9001 CERTIFIED 5
REGULAR MAINTENANCE ITEMS 5
SERIAL NUMBER LOCATIONS 6
Loader Serial Number 6
Engine Serial Number 6
DELIVERY REPORT 6
LOADER IDENTIFICATION 7
FEATURES, ACCESSORIES AND ATTACHMENTS 8
Standard Items 8
Options And Accessories 8
Buckets Available 9
Attachments 9
High-Flow Attachments 9
Special Applications Kit 10
Special Applications Kit Inspection And Maintenance 10
Forestry Door And Window Kit 11
Forestry Door And Window Kit Inspection And Maintenance 11
SAFETY AND TRAINING RESOURCES 12
SAFETY INSTRUCTIONS 13
Before Operation 13
Safe Operation Is The Operator’s Responsibility 14
Safe Operation Needs A Qualified Operator 14
Avoid Silica Dust 15
FIRE PREVENTION 15
Maintenance 15
Operation 15
Electrical 15
Hydraulic System 16
Fueling 16
Starting 16
Spark Arrester Exhaust System 16
Welding And Grinding 16
Fire Extinguishers 16
PUBLICATIONS AND TRAINING RESOURCES 17
MACHINE SIGNS (DECALS) 18
Pictorial Only Safety Signs 20
OPERATING INSTRUCTIONS 22
INTENDED USE 26
INSTRUMENT PANEL IDENTIFICATION 27
Overview 27
Left Panel (Earlier Models) 28
Left Panel (Later Models) 30
Display Screen 32
Right Panel (Standard Key Panel) 33
Right Panel (Keyless Start Panel) 34
Right Panel (Deluxe Instrumentation Panel) 35
Left Switch Panel 37
Right Switch Panel 37
Left Side Lower Panel 38
Right Side Lower Panel 38
Radio 39
Rear View Camera System 41
CONTROL IDENTIFICATION 43
Standard Controls With Power Assist (SCPA) 44
Selectable Joystick Controls (SJC) 45
OPERATOR CAB 46
Description 46
Side Windows 46
Door Operation 46
Front Wiper 47
Cab Light 47
SEAT BAR RESTRAINT SYSTEM 48
Operation 48
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 49
Operation 49
LIFT ARM BYPASS CONTROL 50
Operation 50
PARKING BRAKE 50
Operation 50
TRACTION LOCK OVERRIDE 51
Operation 51
ENGINE SPEED CONTROL 51
Operation 51
EMERGENCY EXIT 52
Rear Window Identification 52
Rear Window Removal (Latches) 52
Rear Window Removal (Rubber Cord) 52
External Access (Rear Window With Latches) 53
External Access (Rear Window With Rubber Cord) 53
Front Door 53
BACK-UP ALARM SYSTEM 55
Description 55
Operation 55
DRIVING AND STEERING THE LOADER 56
Available Control Configurations 56
Operation (SCPA) 56
Operation (SJC) In ‘ISO’ Control Pattern 57
Operation (SJC) In ‘H’ Control Pattern 58
STOPPING THE LOADER 58
Using The Steering Handles Or Joysticks 58
TWO-SPEED CONTROL 59
Description 59
Operation 59
SPEED MANAGEMENT 60
Operation 60
Changing The Factory Default Setting 61
DRIVE RESPONSE 62
Description 62
Operation 62
STEERING DRIFT COMPENSATION 64
Description 64
Operation 64
LIFT AND TILT COMPENSATION 66
Description 66
Operation 66
HYDRAULIC CONTROLS 68
Description 68
Standard Controls With Power Assist (SCPA) 68
Selectable Joystick Controls (SJC) In ‘ISO’ Control Pattern 69
Selectable Joystick Controls (SJC) In ‘H’ Control Pattern 69
Hydraulic Bucket Positioning 70
Automatic Ride Control 71
Reversing Fan 72
FRONT Auxiliary Hydraulics Operation 73
FRONT Auxiliary Hydraulics Operation (CONTINUOUS FLOW) 74
FRONT Auxiliary Hydraulics Operation (REVERSE CONTINUOUS FLOW) 74
REAR Auxiliary Hydraulics Operation 75
High-Flow Hydraulics Operation 76
Quick Couplers 77
Quick Coupler Troubleshooting 77
Relieve Auxiliary Hydraulic Pressure (Loader And Attachment) 78
ATTACHMENT CONTROL DEVICE (ACD) 79
Description 79
DAILY INSPECTION 80
Daily Inspection And Maintenance 80
PRE-STARTING PROCEDURE 82
Entering The Loader 82
Operation & Maintenance Manual And Operator’s Handbook Locations 82
Seat Adjustment 83
Steering Handle / Joystick Position Adjustment 85
Seat Belt Adjustment 85
Seat Bar 85
STARTING THE ENGINE 86
Standard Key Panel 86
Keyless Start Panel 88
Deluxe Instrumentation Panel 90
Cold Temperature Starting 92
Warming The Hydraulic / Hydrostatic System 92
MONITORING THE DISPLAY PANELS 93
Left Panel 93
Warning And Shutdown 93
STOPPING THE ENGINE AND LEAVING THE LOADER 94
Procedure 94
COUNTERWEIGHTS 95
Description 95
Effect On The Loader And Loader Operation 95
When To Consider Using Counterweights 95
When To Consider Removing Counterweights 95
Accessories That Affect Machine Weight 95
ATTACHMENTS 96
Choosing The Correct Bucket 96
Pallet Fork 96
Installing And Removing The Attachment (Hand Lever Bob-Tach) 97
Installing And Removing The Attachment (Power Bob-Tach) 99
OPERATING PROCEDURE 103
Inspect The Work Area 103
Basic Operating Instructions 103
Driving On Public Roads 103
Operating With A Full Bucket 104
Operating With An Empty Bucket 104
TOWING THE LOADER 105
Procedure 105
LIFTING THE LOADER 105
Single-Point Lift 105
Four-Point Lift 106
TRANSPORTING THE LOADER ON A TRAILER 107
Loading And Unloading 107
Fastening 107
PREVENTIVE MAINTENANCE 108
MAINTENANCE SAFETY 112
SERVICE SCHEDULE 113
Chart 113
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™) 114
Inspecting The BICS™ (Engine STOPPED – Key ON) 114
Inspecting Deactivation Of The Auxiliary Hydraulics System (Engine STOPPED – Key ON) 114
Inspecting The Seat Bar Sensor (Engine RUNNING) 114
Inspecting The Traction Lock And Parking Brake (Engine RUNNING) 114
Inspecting The Lift Arm Bypass Control 114
Inspecting Deactivation Of Lift And Tilt Functions (SJC) 114
SEAT BAR RESTRAINT SYSTEM 115
Description 115
Inspecting 115
Maintaining 115
SEAT BELT 116
Inspection And Maintenance 116
LIFT ARM SUPPORT DEVICE 117
Installing 117
Removing 118
BACK-UP ALARM SYSTEM 119
Description 119
Inspecting 119
OPERATOR CAB 120
Description 120
Raising 120
Lowering 121
Cab Door Sensor 122
REAR DOOR (TAILGATE) 123
Opening And Closing 123
Adjusting 123
REAR GRILLE 124
Removing 124
Installing 124
HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 125
Cleaning And Maintenance 125
Filters 125
Evaporator / Heater Coil 126
Condenser 128
Air Conditioning Lubrication 128
Troubleshooting 128
AIR CLEANER SERVICE 128
Replacing Filter Elements 128
FUEL SYSTEM 130
Fuel Specifications 130
Biodiesel Blend Fuel 130
Filling The Fuel Tank 131
Fuel Filter 132
Removing Air From The Fuel System 132
ENGINE LUBRICATION SYSTEM 133
Checking And Adding Engine Oil 133
Engine Oil Chart 133
Removing And Replacing Oil And Filter 134
ENGINE COOLING SYSTEM 136
Maintenance Platform 136
Cooling System Identification 136
Cleaning (Earlier Models) 137
Cleaning (Later Models) 139
Checking Level 141
Removing And Replacing Coolant 141
ELECTRICAL SYSTEM 142
Description 142
Fuse And Relay Location / Identification 142
Battery Maintenance 147
Maintaining Battery Charge Level 147
Battery Service During Machine Storage 147
Battery Testing 148
Battery Charging 148
Using A Booster Battery (Jump Starting) 149
Removing And Installing Battery 150
HYDRAULIC / HYDROSTATIC SYSTEM 151
Checking And Adding Fluid 151
Hydraulic / Hydrostatic Fluid Chart 151
Removing And Replacing Hydraulic Fluid 152
Hydraulic / Hydrostatic Filter Identification 154
Removing And Replacing Hydraulic / Hydrostatic Filter (Earlier Models) 155
Removing And Replacing Hydraulic / Hydrostatic Filter (Later Models) 156
Removing And Replacing Hydraulic Charge Filter 157
Breather Cap 159
SPARK ARRESTER MUFFLER 160
Cleaning Procedure 160
TIRE MAINTENANCE 161
Wheel Nuts 161
Rotating 161
Mounting 161
FINAL DRIVE TRANSMISSION (CHAINCASE) 162
Checking And Adding Oil 162
Removing And Replacing Oil 162
ALTERNATOR BELT 163
Belt Adjustment 163
Belt Replacement 163
AIR CONDITIONING BELT 164
Belt Adjustment 164
Belt Replacement 164
DRIVE BELT 165
Belt Adjustment 165
Stop Adjustment 165
Belt Replacement 166
AUTOMATIC RIDE CONTROL ACCUMULATOR 168
Checking Accumulator Charge 168
LUBRICATING THE LOADER 169
Lubrication Locations 169
PIVOT PINS 172
Inspection And Maintenance 172
BOB-TACH (HAND LEVER) 173
Inspection And Maintenance 173
BOB-TACH (POWER) 174
Inspection And Maintenance 174
LOADER STORAGE AND RETURN TO SERVICE 175
Storage 175
Return To Service 175
SYSTEM SETUP AND ANALYSIS 176
DIAGNOSTIC SERVICE CODES 177
Viewing Service Codes 177
Service Codes List 178
CONTROL PANEL SETUP 185
Right Panel Setup (Deluxe Instrumentation Panel) 185
PASSWORD SETUP (KEYLESS START PANEL) 189
Password Description 189
Changing The Owner Password 189
Password Lockout Feature 189
PASSWORD SETUP (DELUXE INSTRUMENTATION PANEL) 190
Password Description 190
Changing The Owner Password 190
Changing The User Passwords 191
Password Lockout Feature 191
MAINTENANCE CLOCK 192
Description 192
Setup 193
Reset 193
MACHINE SIGN TRANSLATIONS 194
MACHINE SIGN TRANSLATIONS 195
Service Schedule (7242070) 195
Warning (7167993) 198
Warning (7169291) 198
Danger (7167989) 198
Danger (7167990) 198
Danger (7167988) 199
Warning (7168114) 199
Warning (7167994) 200
Warning (7167996) 201
Warning (7168142) 201
Warning (7184346) 202
Danger (7170355) 202
Lift Arm Support Device (7177071) 203
Warning (7168024) 204
Warning (7142141) 205
Warning (7168019) 206
Warning (6737189) 207
SPECIFICATIONS 208
(S850) LOADER SPECIFICATIONS 209
Machine Dimensions 209
Performance 210
Engine 210
Drive System 211
Controls 211
Hydraulic System 212
Electrical System 213
Capacities 213
Tires 213
WARRANTY 214
WARRANTY 215
ALPHABETICAL INDEX 217
