BOBCAT Sweeper 36 Inch 44 Inch 48 Inch 54 Inch 84 Inch Service Manual 6904756 PDF DOWNLOAD
$19.95
BOBCAT Sweeper 36 Inch 44 Inch 48 Inch 54 Inch 84 Inch Service Manual 6904756 PDF DOWNLOAD
(36 Inch) S/N A7P200101 & Above
(44 Inch) S/N A7NW00101 & Above
(48 Inch) S/N A9T600101 & Above
(54 Inch) S/N A7NU00101 & Above
(84 Inch) S/N A00A00101 & Above
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description

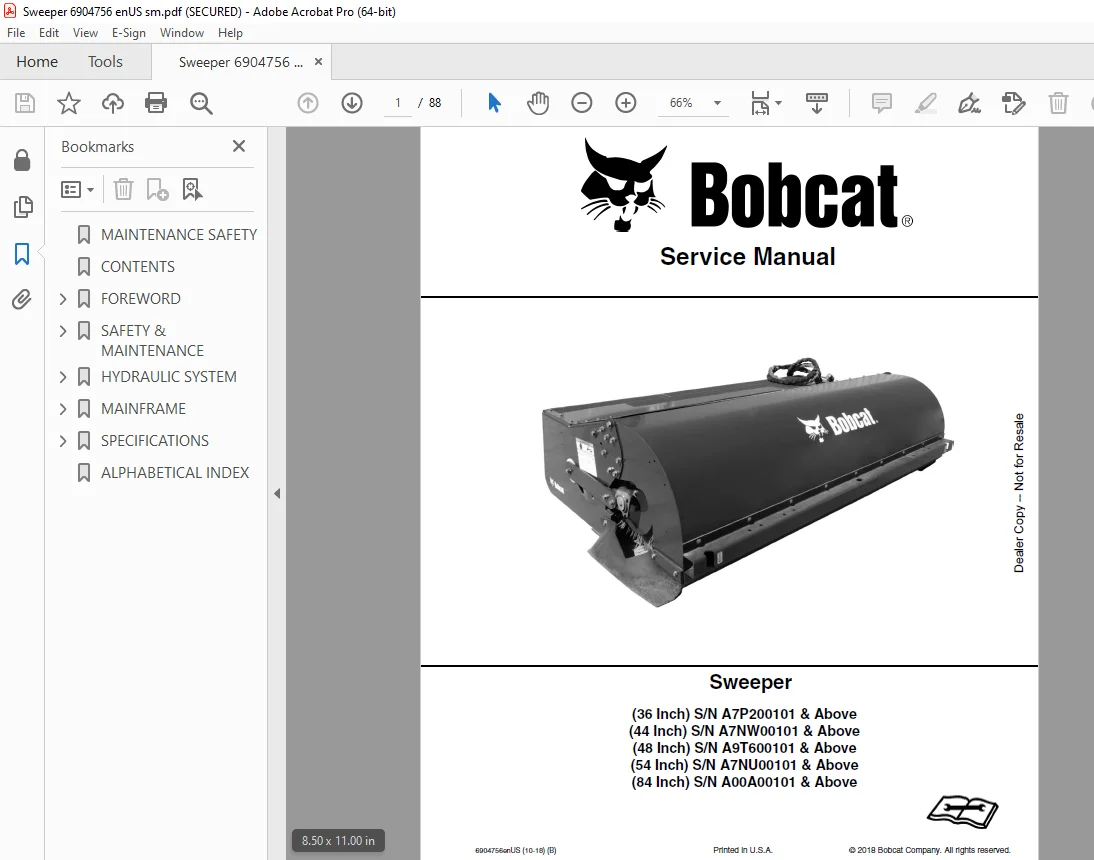

BOBCAT Sweeper 36 Inch 44 Inch 48 Inch 54 Inch 84 Inch Service Manual 6904756 PDF DOWNLOAD
FILE DETAILS:
BOBCAT Sweeper 36 Inch 44 Inch 48 Inch 54 Inch 84 Inch Service Manual 6904756 PDF DOWNLOAD
Language : English
Pages : 88
Downloadable : Yes
File Type : PDF

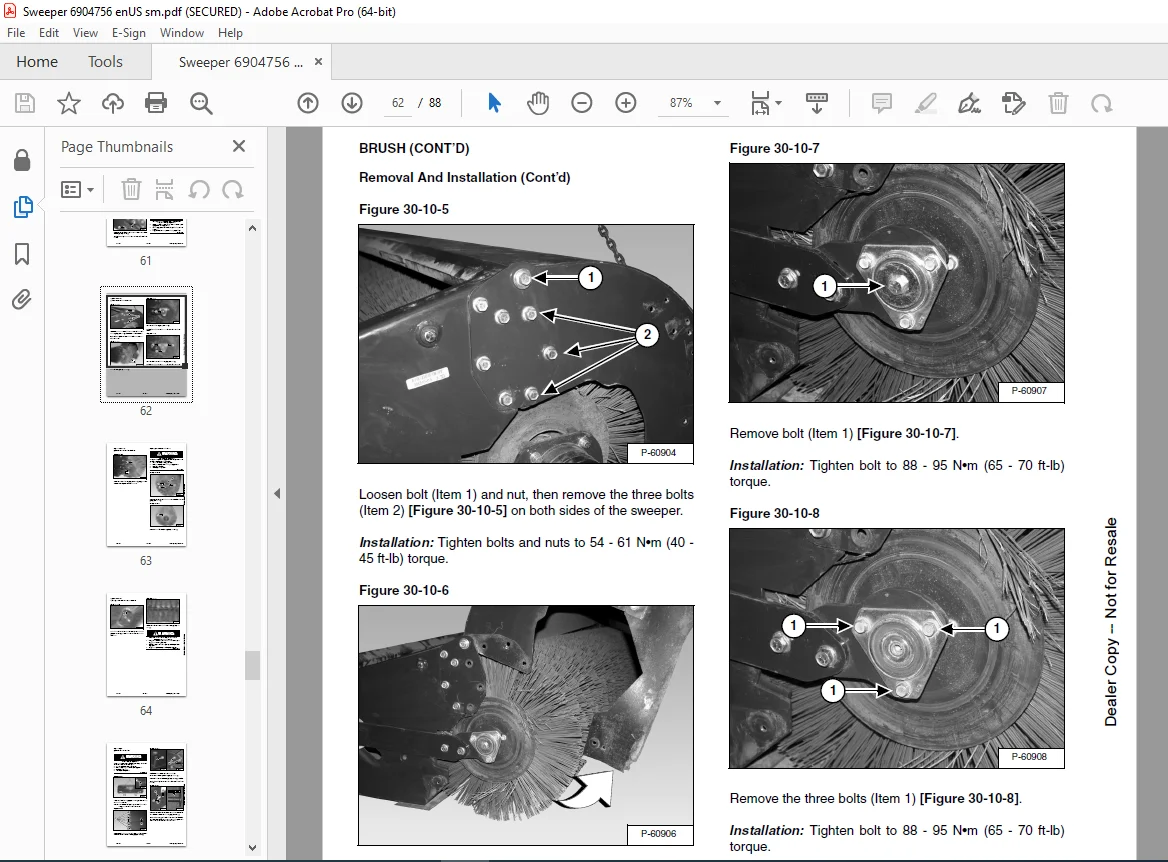

IMAGES PREVIEW OF THE MANUAL:

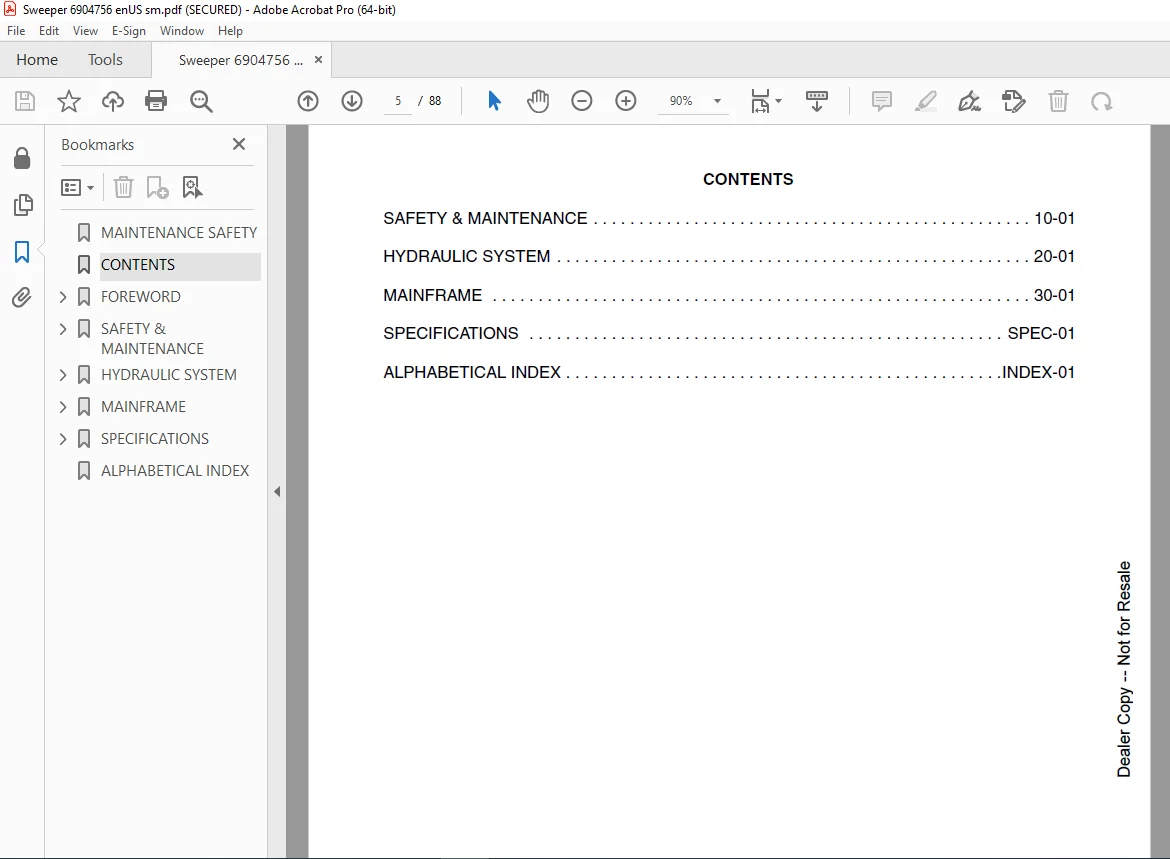

TABLE OF CONTENTS:
BOBCAT Sweeper 36 Inch 44 Inch 48 Inch 54 Inch 84 Inch Service Manual 6904756 PDF DOWNLOAD
(36 Inch) S/N A7P200101 & Above
(44 Inch) S/N A7NW00101 & Above
(48 Inch) S/N A9T600101 & Above
(54 Inch) S/N A7NU00101 & Above
(84 Inch) S/N A00A00101 & Above
MAINTENANCE SAFETY............................... 3 CONTENTS......................................... 5 FOREWORD......................................... 7 SERIAL NUMBER LOCATION....................... 9 ATTACHMENT DELIVERY REPORT...................10 ATTACHMENT IDENTIFICATION....................11 Sweeper..................................11 Gutter Brush And Wheel Kit (Optional)....12 ATTACHMENT SIGNS (DECALS)....................13 Sweeper..................................13 SAFETY & MAINTENANCE.............................15 TROUBLESHOOTING..............................17 DAILY INSPECTION.............................19 Sweeper Inspection.......................19 Bob-Tach.................................20 LUBRICATING THE ATTACHMENT...................23 Lubrication Locations....................23 BRUSH........................................25 Adjusting The Brush......................25 HYDRAULIC SYSTEM.................................27 CONTROL VALVE (GUTTER BRUSH).................29 Removal And Installation.................29 Parts Identification.....................31 SWEEPER HYDRAULIC MOTOR (EARLIER MODEL)......33 Removal And Installation.................33 Parts Identification.....................34 Disassembly..............................35 Inspection...............................36 Assembly.................................37 SWEEPER HYDRAULIC MOTOR (LATER MODEL)........41 Removal And Installation.................41 Parts Identification.....................42 Disassembly..............................43 Inspection...............................44 Assembly.................................45 GUTTER BRUSH HYDRAULIC MOTOR.................51 Removal And Installation.................51 Parts Identification.....................52 Disassembly And Assembly.................53 Inspection...............................57 Timing The Motor.........................58 MAINFRAME........................................59 BRUSH........................................61 Removal And Installation.................61 Bristle Removal And Installation.........63 BRUSH ARM....................................65 Removal And Installation.................65 Arm Mount Removal And Installation.......66 Bushing Replacement......................67 CUTTING EDGE.................................69 Removal And Installation.................69 GUTTER BRUSH.................................71 Removal And Installation.................71 RUBBER SHIELD................................73 Removal And Installation.................73 WHEEL KIT....................................75 Arm Removal And Installation.............75 Arm Mount Removal And Installation.......76 Gas Spring Removal And Installation......77 Caster Removal And Installation..........78 SPECIFICATIONS...................................79 SWEEPER ATTACHMENT SPECIFICATIONS............81 HYDRAULIC SCHEMATIC..........................83 36, 44, 48 And 54 Inch Sweepers..........83 84 Inch Sweeper..........................84 ALPHABETICAL INDEX...............................85
Contact us: [email protected]
https://vimeo.com/845485264?share=copy
DESCRIPTION:
BOBCAT Sweeper 36 Inch 44 Inch 48 Inch 54 Inch 84 Inch Service Manual 6904756 PDF DOWNLOAD
TROUBLE SHOOTING:
If the Sweeper is not working correctly, check the hydraulic system of the machine thoroughly before making any repairs on the Sweeper. Sweeper problems can be affected by a hydraulic system that is not operating to specifications. Connect a flow meter to the loader to check the hydraulic pump output, relief valve setting and tubelines to check flow and pressure. (See the loader Service Manual for the correct procedure to connect the flow meter.)
Use the following troubleshooting chart to locate and correct problems which most often occur with the sweeper.
