Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above - PDF DOWNLOAD

Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above – PDF DOWNLOAD

Name: Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 &amp; Above - PDF DOWNLOAD
SKU: 521489
Availability: InStock

$36.95

Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above – PDF DOWNLOAD

Category: Bobcat Tags: BOBCAT T750 COMPACT TRACK LOADER SERVICE, Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above, Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above - PDF DOWNLOAD Vendor: Fault Code Docs

⚡

Instant PDF Download

Available immediately

💾

Save to Your Device

Download & keep forever

🛡️

Antivirus Scanned

100% virus-free

🌍

Trusted Worldwide

175,000+ customers

Description

Description

Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above – PDF DOWNLOAD

FILE DETAILS:

Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above – PDF DOWNLOAD

Language : English
Pages : 1276
Downloadable : Yes
File Type : PDF

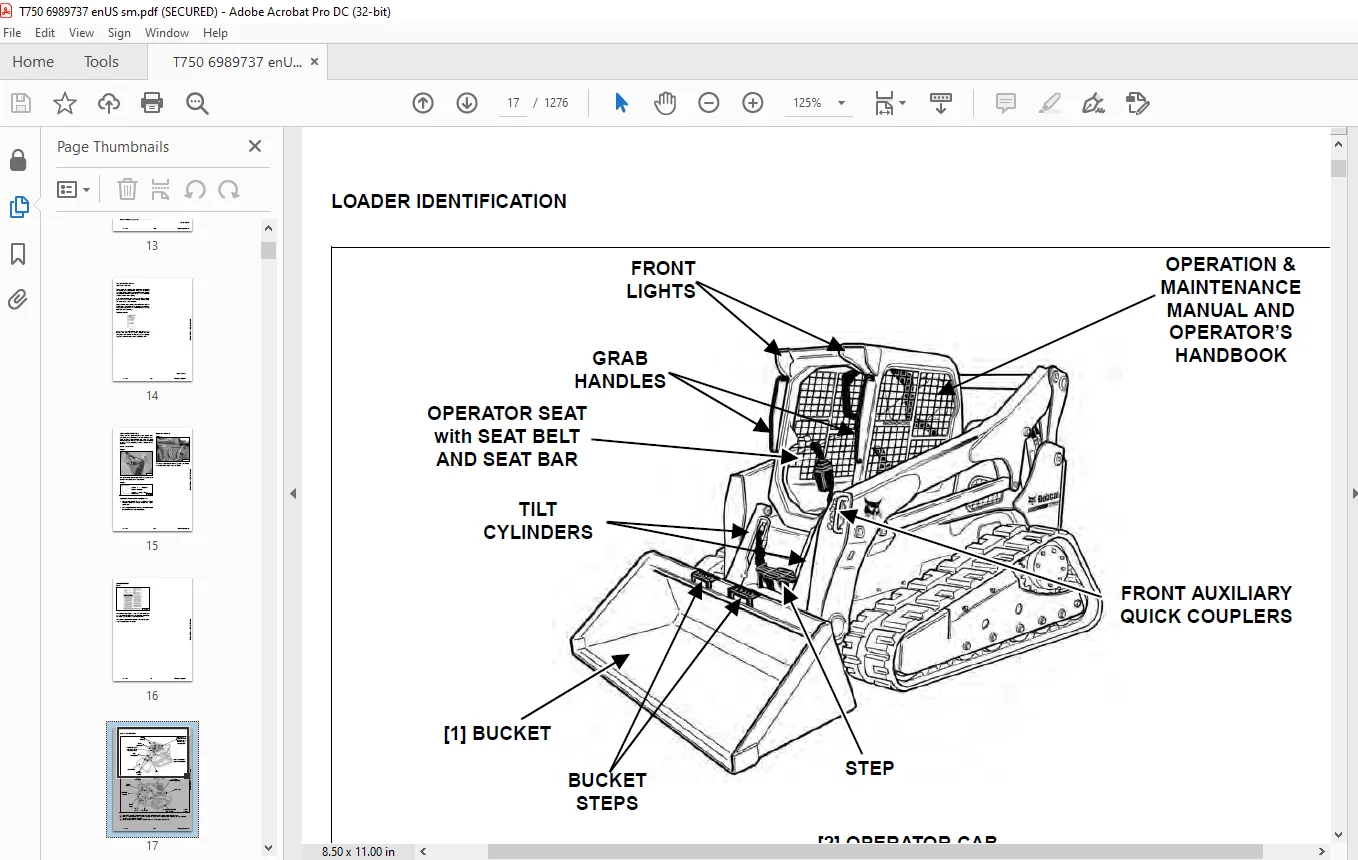

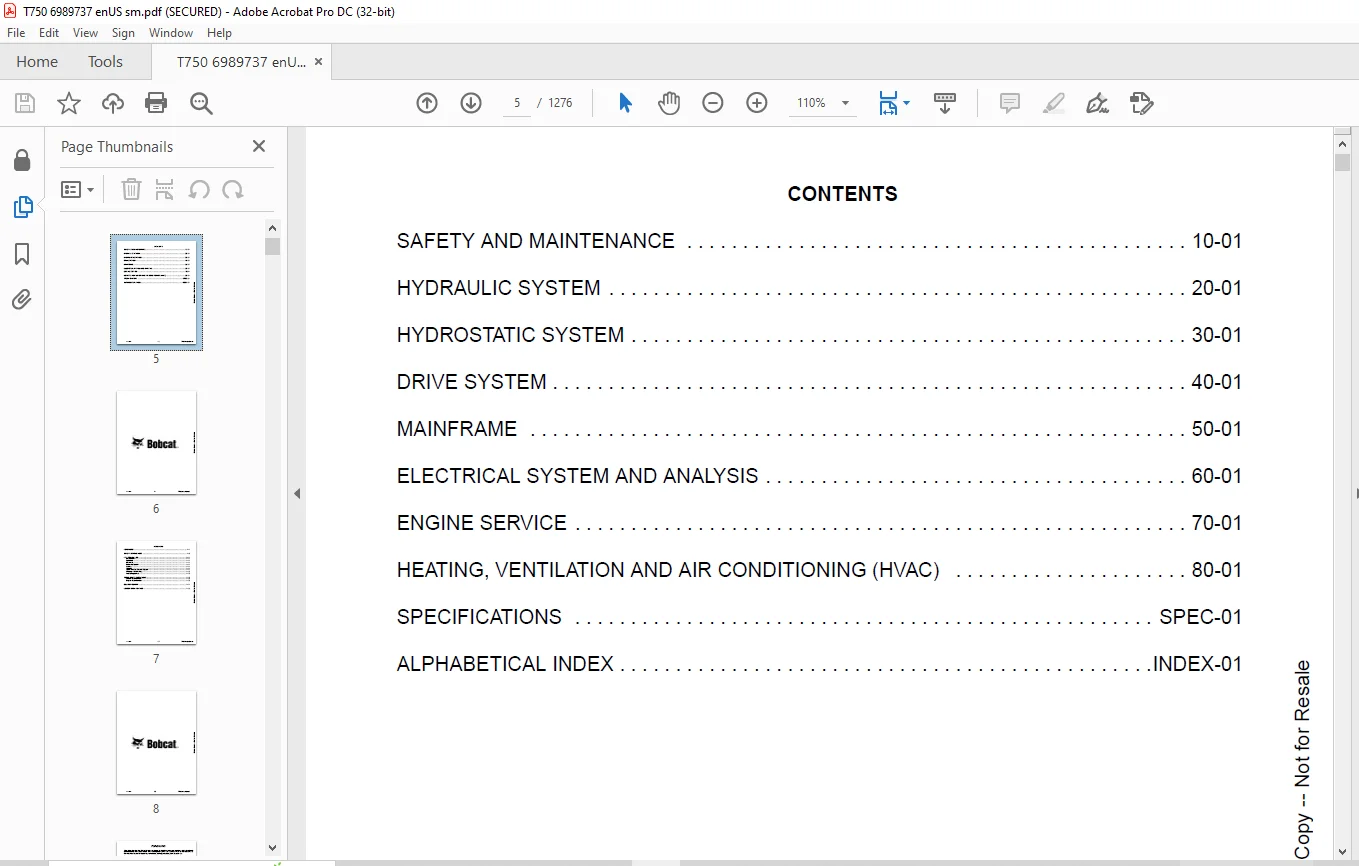

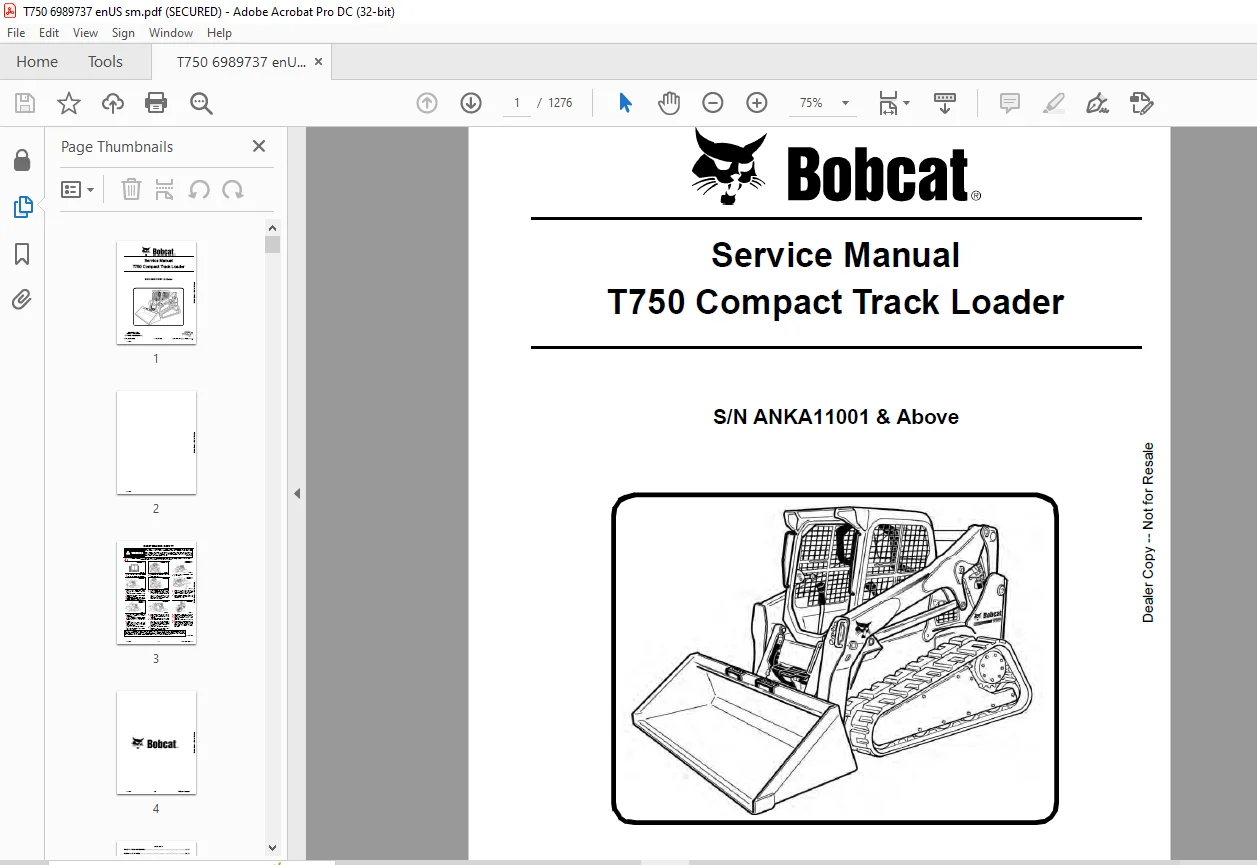

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above – PDF DOWNLOAD

FOREWORD:

This manual is for the Bobcat loader mechanic. It provides necessary servicing and adjustment procedures for the Bobcat loader and its component parts and systems. Refer to the Operation & Maintenance Manual for operating instructions, starting procedure, daily checks, etc.

A general inspection of the following items must be made after the loader has had service or repair:

1. Check that the ROPS / FOPS (Including side screens) is in good condition and is not modified.

2. Check that ROPS mounting hardware is tightened and is Bobcat approved.

3. The seat belt must be correctly installed, functional and in good condition.

4. The seat bar must be correctly adjusted, clean and lubricated.

5. Check lift arm support device, replace if damaged.

6. Machine signs (decals) must be legible and in the correct location.

7. Steering levers, hand controls and foot pedals must return to neutral (as applicable).

8. Check for correct function of the work lights.

9. The parking brake must function correctly.

10. Enclosure door latches must open and close freely.

11. Bob-Tach® attachment mounting system wedges and linkages must function correctly and be in good condition.

12. Safety treads must be in good condition.

13. Check for correct function of indicator lamps.

14. Check all machine fluid levels.

15. Inspect for fuel, oil or hydraulic fluid leaks.

SAFETY INSTRUCTIONS:

The following publications provide information on the safe use and maintenance of the Bobcat machine and attachments:

• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine is in safe operating condition.

• The Operation & Maintenance Manual delivered with the machine or attachment contains operating information as well as routine maintenance and service procedures. It is a part of the machine and can be stored in a container provided on the machine. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat dealer.

• Machine signs (decals) instruct on the safe operation and care of your Bobcat machine or attachment. The signs and their locations are shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat dealer.

• An Operator’s Handbook fastened to the operator cab. It’s brief instructions are convenient to the operator. The handbook is available from your dealer in an English edition or one of many other languages. See your Bobcat dealer for more information on translated versions.

• The AEM Safety Manual delivered with the machine gives general safety information.

• The Service Manual and Parts Manual are available from your dealer for use by mechanics to do shoptype service and repair work.

TABLE OF CONTENTS:

Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above – PDF DOWNLOAD

MAINTENANCE SAFETY...................................................................................... 3
CONTENTS................................................................................................ 5
FOREWORD................................................................................................ 7
FOREWORD............................................................................................ 9
SAFETY INSTRUCTIONS................................................................................. 11
FIRE PREVENTION..................................................................................... 13
Maintenance..................................................................................... 13
Operation....................................................................................... 13
Electrical...................................................................................... 13
Hydraulic System................................................................................ 13
Fueling......................................................................................... 13
Starting........................................................................................ 13
Spark Arrester Exhaust System................................................................... 13
Welding And Grinding............................................................................ 14
Fire Extinguishers.............................................................................. 14
SERIAL NUMBER LOCATIONS............................................................................. 15
Loader Serial Number............................................................................ 15
Engine Serial Number............................................................................ 15
DELIVERY REPORT..................................................................................... 16
LOADER IDENTIFICATION............................................................................... 17
SAFETY AND MAINTENANCE.................................................................................. 19
LIFTING AND BLOCKING THE LOADER..................................................................... 23
Procedure....................................................................................... 23
LIFT ARM SUPPORT DEVICE............................................................................. 25
Installing...................................................................................... 25
Removing........................................................................................ 26
OPERATOR CAB........................................................................................ 27
Description..................................................................................... 27
Raising......................................................................................... 28
Lowering........................................................................................ 29
Cab Door Sensor................................................................................. 30
Special Applications Kit........................................................................ 31
Special Applications Kit Inspection And Maintenance............................................. 31
Forestry Door And Window Kit.................................................................... 32
Forestry Door And Window Kit Inspection And Maintenance......................................... 32
TRANSPORTING THE LOADER ON A TRAILER................................................................ 33
Loading And Unloading........................................................................... 33
Fastening....................................................................................... 33
TOWING THE LOADER................................................................................... 35
Procedure....................................................................................... 35
REMOTE START TOOL KIT-MEL1563....................................................................... 37
Remote Start Tool - MEL1563..................................................................... 37
Service Tool Harness Communicator - MEL1566..................................................... 39
Remote Start Procedure.......................................................................... 39
REMOTE START TOOL (SERVICE TOOL) KIT - 7217666...................................................... 43
Description..................................................................................... 43
Remote Start Tool (Service Tool) - 7022042...................................................... 44
Loader Service Tool Harness - 6689747........................................................... 45
Computer Service Tool Harness - 6689746......................................................... 46
Remote Start Procedure.......................................................................... 47
SERVICE SCHEDULE.................................................................................... 51
Maintenance Intervals........................................................................... 51
AIR CLEANER SERVICE................................................................................. 53
Replacing Filter Elements....................................................................... 53
ENGINE COOLING SYSTEM............................................................................... 55
Maintenance Platform............................................................................ 55
Cooling System Identification................................................................... 55
Cleaning (Earlier Models)....................................................................... 56
Cleaning (Later Models)......................................................................... 58
Checking Level.................................................................................. 60
Removing And Replacing Coolant.................................................................. 60
FUEL SYSTEM......................................................................................... 61
Fuel Specifications............................................................................. 61
Biodiesel Blend Fuel............................................................................ 61
Filling The Fuel Tank........................................................................... 62
Fuel Filter..................................................................................... 63
Removing Air From The Fuel System............................................................... 63
ENGINE LUBRICATION SYSTEM........................................................................... 65
Checking And Adding Engine Oil.................................................................. 65
Engine Oil Chart................................................................................ 65
Removing And Replacing Oil And Filter........................................................... 66
HYDRAULIC / HYDROSTATIC SYSTEM...................................................................... 69
Checking And Adding Fluid....................................................................... 69
Hydraulic / Hydrostatic Fluid Chart............................................................. 69
Removing And Replacing Hydraulic Fluid.......................................................... 70
Hydraulic / Hydrostatic Filter Identification................................................... 72
Removing And Replacing Hydraulic / Hydrostatic Filter (Earlier Models).......................... 73
Removing And Replacing Hydraulic / Hydrostatic Filter (Later Models)............................ 74
Removing And Replacing Hydraulic Charge Filter.................................................. 75
Breather Cap.................................................................................... 77
BOB-TACH (HAND LEVER)............................................................................... 79
Inspection And Maintenance...................................................................... 79
BOB-TACH (POWER).................................................................................... 81
Inspection And Maintenance...................................................................... 81
LUBRICATING THE LOADER.............................................................................. 83
Lubrication Locations........................................................................... 83
Track Roller And Idler Lubrication.............................................................. 85
SPARK ARRESTER MUFFLER.............................................................................. 87
Cleaning Procedure.............................................................................. 87
PIVOT PINS.......................................................................................... 89
Inspection And Maintenance...................................................................... 89
LOADER STORAGE AND RETURN TO SERVICE................................................................ 91
Storage......................................................................................... 91
Return To Service............................................................................... 91
STOPPING THE ENGINE AND LEAVING THE LOADER.......................................................... 93
Procedure....................................................................................... 93
EMERGENCY EXIT...................................................................................... 95
Rear Window Identification...................................................................... 95
Rear Window Removal (Latches)................................................................... 95
Rear Window Removal (Rubber Cord)............................................................... 95
External Access (Rear Window With Latches)...................................................... 96
External Access (Rear Window With Rubber Cord).................................................. 96
Front Door...................................................................................... 96
SEAT BELT........................................................................................... 99
Inspection And Maintenance...................................................................... 99
HYDRAULIC SYSTEM........................................................................................ 101
HYDRAULIC / HYDROSTATIC SCHEMATICS.................................................................. 109
HYDRAULIC SYSTEM INFORMATION........................................................................ 129
Glossary Of Hydraulic / Hydrostatic Symbols..................................................... 129
Troubleshooting................................................................................. 133
CYLINDER (LIFT)..................................................................................... 135
Testing......................................................................................... 135
Removal And Installation........................................................................ 136
Parts Identification............................................................................ 140
Disassembly..................................................................................... 141
Assembly........................................................................................ 143
CYLINDER (TILT)..................................................................................... 145
Testing......................................................................................... 145
Removal And Installation........................................................................ 146
Base End Pivot Pin Removal And Installation..................................................... 148
Parts Identification (Early Models)............................................................. 149
Parts Identification (Later Models)............................................................. 150
Disassembly..................................................................................... 151
Assembly........................................................................................ 154
CYLINDER (BOB-TACH)................................................................................. 159
Testing......................................................................................... 159
Removal And Installation........................................................................ 160
Parts Identification............................................................................ 161
Disassembly..................................................................................... 162
Assembly........................................................................................ 163
MAIN RELIEF VALVE (EARLY MODELS).................................................................... 167
Description..................................................................................... 167
Testing......................................................................................... 168
Adjusting....................................................................................... 170
Removal And Installation........................................................................ 171
MAIN RELIEF VALVE (LATER MODELS).................................................................... 173
Description..................................................................................... 173
Testing......................................................................................... 174
Main Relief Valve Adjustment.................................................................... 176
Main Relief Valve Removal And Installation...................................................... 176
Auxiliary Relief Valve Adjustment............................................................... 177
Auxiliary Relief Valve Removal And Installation................................................. 178
HYDRAULIC CONTROL VALVE (STANDARD) (EARLY MODELS)................................................... 179
Description..................................................................................... 179
Removal And Installation........................................................................ 180
Mount Bracket Removal And Installation.......................................................... 184
Identification Chart............................................................................ 185
Lift Load Check Valve Removal And Installation.................................................. 186
Load Check Valve Removal And Installation (Tilt And Auxiliary).................................. 187
Anti-Cavitation Valve Removal And Installation (Lift, Rod End).................................. 188
Port Relief / Anti-Cavitation Valve Removal And Installation (Lift, Base End)................... 188
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Base End)................... 189
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Rod End).................... 189
Port Relief Valve Removal And Installation...................................................... 190
Plug Removal And Installation................................................................... 191
Rubber Boot Removal And Installation............................................................ 192
End Cap Block Removal And Installation.......................................................... 193
Lift Spool And Detent Removal And Installation.................................................. 194
Lift Spool And Detent Disassembly And Assembly.................................................. 196
Lift Spool And Detent Removal And Installation.................................................. 201
Tilt Spool Removal And Installation............................................................. 204
Auxiliary Spool Removal And Installation........................................................ 206
Auxiliary Solenoid Removal And Installation..................................................... 208
Solenoid Removal And Installation............................................................... 209
Lock Valve Removal And Installation............................................................. 210
Lift Arm Bypass Orifice Removal And Installation................................................ 212
Main Relief Valve Removal And Installation...................................................... 212
Check Valve Removal And Installation............................................................ 213
HYDRAULIC CONTROL VALVE (STANDARD) (LATER MODELS)................................................... 215
Description..................................................................................... 215
Removal And Installation........................................................................ 216
Mount Bracket Removal And Installation.......................................................... 220
Identification Chart............................................................................ 221
Lift Load Check Valve Removal And Installation.................................................. 222
Load Check Valve Removal And Installation (Tilt And Auxiliary).................................. 223
Anti-Cavitation Valve Removal And Installation (Lift, Rod End).................................. 224
Port Relief / Anti-Cavitation Valve Removal And Installation (Lift, Base End)................... 224
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Base End)................... 225
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Rod End).................... 225
Port Relief Valve Removal And Installation...................................................... 226
Plug Removal And Installation................................................................... 228
Rubber Boot Removal And Installation............................................................ 229
End Cap Block Removal And Installation.......................................................... 229
Lift Spool And Detent Removal And Installation.................................................. 230
Lift Spool And Detent Disassembly And Assembly.................................................. 232
Tilt Spool Removal And Installation............................................................. 238
Auxiliary Spool Removal And Installation........................................................ 240
Auxiliary Solenoid Removal And Installation..................................................... 241
Solenoid Removal And Installation............................................................... 242
Lock Valve Removal And Installation............................................................. 243
Lift Arm Bypass Orifice Removal And Installation................................................ 245
Main Relief Valve Removal And Installation...................................................... 245
Auxiliary Relief Valve Removal And Installation................................................. 246
Check Valve Removal And Installation............................................................ 246
HYDRAULIC CONTROL VALVE (ACS) OR (SJC) (EARLY MODELS)............................................... 249
Description..................................................................................... 249
Removal And Installation........................................................................ 249
Actuator Removal And Installation (In Loader)................................................... 254
Actuator Removal And Installation (Out Of Loader)............................................... 256
Identification Chart............................................................................ 259
Mount Bracket Removal And Installation.......................................................... 260
Lift Load Check Valve Removal And Installation.................................................. 260
Load Check Valve Removal And Installation (Tilt And Auxiliary).................................. 261
Anti-Cavitation Valve Removal And Installation (Lift, Rod End).................................. 262
Port Relief / Anti-Cavitation Valve Removal And Installation (Lift, Base End)................... 262
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Base End)................... 263
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Rod End).................... 263
Port Relief Valve Removal And Installation...................................................... 264
Plug Removal And Installation................................................................... 265
End Cap Block Removal And Installation.......................................................... 266
Lift Spool Removal And Installation............................................................. 266
Lift Spool Disassembly And Assembly............................................................. 268
Tilt Spool Removal And Installation............................................................. 270
Auxiliary Spool Removal And Installation........................................................ 272
Auxiliary Solenoid Removal And Installation..................................................... 273
Solenoid Removal And Installation............................................................... 274
Lock Valve Removal And Installation............................................................. 275
Lift Arm Bypass Orifice Removal And Installation................................................ 276
Main Relief Valve Removal And Installation...................................................... 276
Check Valve Removal And Installation............................................................ 277
HYDRAULIC CONTROL VALVE (ACS) OR (SJC) (LATER MODELS)............................................... 279
Description..................................................................................... 279
Removal And Installation........................................................................ 279
Actuator Removal And Installation (In Loader)................................................... 284
Actuator Removal And Installation (Out Of Loader)............................................... 285
Identification Chart............................................................................ 288
Mount Bracket Removal And Installation.......................................................... 289
Lift Load Check Valve Removal And Installation.................................................. 289
Load Check Valve Removal And Installation (Tilt And Auxiliary).................................. 290
Anti-Cavitation Valve Removal And Installation (Lift, Rod End).................................. 291
Port Relief / Anti-Cavitation Valve Removal And Installation (Lift, Base End)................... 291
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Base End)................... 292
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Rod End).................... 292
Port Relief Valve Removal And Installation...................................................... 293
Plug Removal And Installation................................................................... 295
End Cap Block Removal And Installation.......................................................... 296
Lift Spool Removal And Installation............................................................. 296
Lift Spool Disassembly And Assembly............................................................. 298
Tilt Spool Removal And Installation............................................................. 299
Auxiliary Spool Removal And Installation........................................................ 301
Auxiliary Solenoid Removal And Installation..................................................... 302
Solenoid Removal And Installation............................................................... 303
Lock Valve Removal And Installation............................................................. 304
Lift Arm Bypass Orifice Removal And Installation................................................ 306
Main Relief Valve Removal And Installation...................................................... 306
Auxiliary Relief Valve Removal And Installation................................................. 307
Check Valve Removal And Installation............................................................ 307
LIFT ARM BYPASS CONTROL VALVE....................................................................... 309
Description..................................................................................... 309
Testing......................................................................................... 309
Removal And Installation........................................................................ 310
Bracket Removal And Installation................................................................ 311
Disassembly And Assembly........................................................................ 311
HYDRAULIC PUMP...................................................................................... 313
Description..................................................................................... 313
Pump Test At Quick Couplers..................................................................... 313
Direct Pump Test (Standard Section)............................................................. 314
Direct Pump Test (Charge Section)............................................................... 316
Removal And Installation........................................................................ 318
Hydraulic Pump Startup.......................................................................... 320
Parts Identification............................................................................ 321
Disassembly And Assembly........................................................................ 322
HYDRAULIC PUMP (HIGH FLOW).......................................................................... 323
Description..................................................................................... 323
Pump Test At Quick Couplers..................................................................... 323
Direct Pump Test (Standard Section)............................................................. 324
Direct Pump Test (Charge Section)............................................................... 325
Direct Pump Test (High Flow Section)............................................................ 327
High Flow Relief Valve Adjustment............................................................... 329
High Flow Relief Valve Removal And Installation................................................. 330
Solenoid Removal And Installation............................................................... 331
Removal And Installation........................................................................ 332
Hydraulic Pump Startup.......................................................................... 334
Parts Identification............................................................................ 335
Disassembly And Assembly........................................................................ 336
HYDRAULIC / HYDROSTATIC FILTERS..................................................................... 337
Description..................................................................................... 337
Housing Removal And Installation................................................................ 337
HYDRAULIC FLUID RESERVOIR........................................................................... 339
Description..................................................................................... 339
Removal And Installation........................................................................ 339
Hydraulic Fluid Screen.......................................................................... 340
OIL COOLER.......................................................................................... 341
Description..................................................................................... 341
Removal And Installation........................................................................ 341
BUCKET POSITION VALVE............................................................................... 343
Description..................................................................................... 343
Solenoid Removal And Installation............................................................... 343
Solenoid Testing................................................................................ 345
Removal And Installation........................................................................ 345
Disassembly And Assembly........................................................................ 347
REAR AUXILIARY DIVERTER VALVE....................................................................... 349
Description..................................................................................... 349
Solenoid Testing................................................................................ 349
Removal And Installation........................................................................ 350
Disassembly And Assembly........................................................................ 351
BOB-TACH (POWER) BLOCK.............................................................................. 357
Description..................................................................................... 357
Removal And Installation........................................................................ 357
Disassembly And Assembly........................................................................ 359
BOB-TACH (POWER) BLOCK (S/N ANKA13975 AND ABOVE)
................................................... 367
Description..................................................................................... 367
Testing Relief Valve............................................................................ 368
Removal And Installation........................................................................ 370
Disassembly And Assembly........................................................................ 372
FRONT AUXILIARY HYDRAULIC COUPLER BLOCK............................................................. 377
Description..................................................................................... 377
Removal And Installation........................................................................ 378
Disassembly And Assembly (FFI/FI)............................................................... 378
Disassembly And Assembly (FFH/FH)............................................................... 380
HYDROSTATIC SYSTEM...................................................................................... 383
HYDROSTATIC SYSTEM INFORMATION...................................................................... 385
Description..................................................................................... 385
Troubleshooting................................................................................. 386
HYDROSTATIC DRIVE MOTOR............................................................................. 387
Description..................................................................................... 387
Removing And Replacing Fluid.................................................................... 387
Removal And Installation........................................................................ 388
Parts Identification............................................................................ 390
Disassembly And Assembly........................................................................ 392
HYDROSTATIC DRIVE MOTOR (TWO-SPEED) (S/N ANKA11001 - ANKA13449)..................................... 405
Description..................................................................................... 405
Removing And Replacing Fluid.................................................................... 405
Removal And Installation........................................................................ 406
Parts Identification............................................................................ 408
Disassembly And Assembly........................................................................ 410
HYDROSTATIC DRIVE MOTOR (TWO-SPEED) (S/N ANKA13450 & ABOVE)......................................... 423
Description..................................................................................... 423
Removing And Replacing Fluid.................................................................... 423
Removal And Installation........................................................................ 424
Parts Identification............................................................................ 426
Disassembly And Assembly........................................................................ 428
CHARGE PRESSURE..................................................................................... 441
Description..................................................................................... 441
Testing......................................................................................... 441
Sender Removal And Installation................................................................. 443
Adjusting....................................................................................... 444
HYDROSTATIC PUMP.................................................................................... 447
Description..................................................................................... 447
Removal And Installation........................................................................ 448
Hydrostatic Pump Startup........................................................................ 449
Replenishing / High Pressure Relief Valve Removal And Installation.............................. 450
Parts Identification (Left Half)................................................................ 451
Parts Identification (Right Half)............................................................... 452
Disassembly..................................................................................... 453
Assembly........................................................................................ 460
HYDROSTATIC PUMP (SJC).............................................................................. 467
Description..................................................................................... 467
Hydraulic Controller Removal And Installation................................................... 468
Removal And Installation........................................................................ 470
Hydrostatic Pump Startup........................................................................ 472
Parts Identification............................................................................ 473
High Pressure Relief And Bypass Valve........................................................... 474
Charge Relief Valve............................................................................. 475
Disassembly..................................................................................... 476
Inspection...................................................................................... 485
Assembly........................................................................................ 489
Mechanical Neutral Adjustment................................................................... 499
Hydraulic Controller Neutral Adjustment......................................................... 502
DRIVE BELT.......................................................................................... 505
Belt Adjustment................................................................................. 505
Stop Adjustment................................................................................. 505
Belt Replacement................................................................................ 506
Tensioner Pulley Removal And Installation....................................................... 508
Tensioner Pulley Disassembly And Assembly....................................................... 509
TWO-SPEED / BRAKE VALVE (S/N ANKA11001 - ANKA13449)................................................. 511
Description..................................................................................... 511
Valve Block Removal And Installation............................................................ 512
Valve Block Disassembly And Assembly............................................................ 514
TWO-SPEED / BRAKE VALVE (S/N ANKA13450 & ABOVE)..................................................... 517
Description..................................................................................... 517
Valve Block Removal And Installation............................................................ 518
Valve Block Disassembly And Assembly............................................................ 520
DRAIN MANIFOLD...................................................................................... 523
Description..................................................................................... 523
Drain Manifold Removal And Installation......................................................... 523
DRIVE SYSTEM............................................................................................ 525
BRAKE............................................................................................... 527
Description..................................................................................... 527
Block Removal And Installation.................................................................. 527
Block Disassembly And Assembly.................................................................. 528
BRAKE (TWO-SPEED)................................................................................... 531
Description..................................................................................... 531
TRACK UNDERCARRIAGE COMPONENTS (SOLID-MOUNTED)...................................................... 533
Description..................................................................................... 533
Checking Tension................................................................................ 534
Adjusting Tension............................................................................... 535
Track Removal And Installation.................................................................. 536
Idler (Front) Removal And Installation.......................................................... 538
Track Tensioner Disassembly And Assembly........................................................ 541
Idler (Rear) Removal And Installation........................................................... 543
Roller Removal And Installation................................................................. 543
Sprocket Removal And Installation (Single Speed)................................................ 544
Sprocket Removal And Installation (Two-Speed)................................................... 544
Track Housing Removal And Installation.......................................................... 545
TRACK UNDERCARRIAGE COMPONENTS (ROLLER SUSPENSION).................................................. 547
Description..................................................................................... 547
Checking Tension................................................................................ 548
Adjusting Tension............................................................................... 549
Track Removal And Installation.................................................................. 550
Idler (Front) Removal And Installation.......................................................... 552
Track Tensioner Disassembly And Assembly........................................................ 555
Idler (Rear) Removal And Installation........................................................... 557
Roller Removal And Installation................................................................. 557
Leaf Spring Removal And Installation............................................................ 558
Sprocket Removal And Installation (Single Speed)................................................ 559
Sprocket Removal And Installation (Two-Speed)................................................... 559
Track Housing Removal And Installation.......................................................... 560
TRACK UNDERCARRIAGE COMPONENTS (SOLID-MOUNTED) (S/N ANKA15001 AND ABOVE)
........................... 561
Description..................................................................................... 561
Checking (Solid-Mounted Undercarriage).......................................................... 563
Adjusting (Solid-Mounted Undercarriage) (Earlier Models With Two Track Tension Fittings)........ 564
Adjusting (Solid-Mounted Undercarriage) (Later Models With One Track Tension Fitting)........... 565
Track Removal And Installation.................................................................. 566
Idler (Front) Removal And Installation.......................................................... 569
Track Tensioner Removal And Installation........................................................ 570
Track Tensioner Disassembly And Assembly........................................................ 571
Idler (Rear) Removal And Installation........................................................... 573
Roller Removal And Installation................................................................. 573
Sprocket Removal And Installation (Single Speed)................................................ 574
Sprocket Removal And Installation (Two-Speed)................................................... 574
TRACK UNDERCARRIAGE COMPONENTS (ROLLER SUSPENSION) (S/N ANKA15001 AND ABOVE)
....................... 575
Description..................................................................................... 575
Checking (Roller Suspension Undercarriage)...................................................... 577
Adjusting (Roller Suspension Undercarriage) (Earlier Models With Two Track Tension Fittings).... 578
Adjusting (Roller Suspension Undercarriage) (Later Models With One Track Tension Fitting)....... 579
Track Removal And Installation.................................................................. 580
Idler (Front) Removal And Installation.......................................................... 583
Track Tensioner Removal And Installation........................................................ 584
Track Tensioner Disassembly And Assembly........................................................ 585
Idler (Rear) Removal And Installation........................................................... 587
Roller Removal And Installation................................................................. 587
Leaf Spring Removal And Installation............................................................ 588
Sprocket Removal And Installation (Single Speed)................................................ 589
Sprocket Removal And Installation (Two-Speed)................................................... 589
TRACK MAINTENANCE................................................................................... 591
Track Damage Identification..................................................................... 591
MAINFRAME............................................................................................... 603
SEAT BAR............................................................................................ 607
Description..................................................................................... 607
Removal And Installation........................................................................ 607
Disassembly And Assembly........................................................................ 608
Compression Spring Disassembly And Assembly..................................................... 609
OPERATOR CAB........................................................................................ 611
Gas Spring Removal And Installation............................................................. 611
Gas Spring Bracket Disassembly And Assembly..................................................... 612
Removal And Installation........................................................................ 612
OPERATOR SEAT (SUSPENSION).......................................................................... 615
Removal And Installation........................................................................ 615
Slide Rail Removal And Installation............................................................. 615
Seat Belt Removal And Installation.............................................................. 616
Lower Cushion Removal........................................................................... 616
Lower Cushion Installation...................................................................... 617
Back Cushion Removal And Installation........................................................... 617
Shock Removal And Installation.................................................................. 618
3-Point Seat Belt Removal And Installation...................................................... 618
BOB-TACH (HAND LEVER)............................................................................... 621
Description..................................................................................... 621
Removal And Installation........................................................................ 621
Lever And Wedge Disassembly And Assembly........................................................ 623
Pivot Pin Bushing And Seal Removal And Installation............................................. 625
BOB-TACH (POWER).................................................................................... 627
Description..................................................................................... 627
Removal And Installation........................................................................ 627
Lever And Wedge Disassembly And Assembly........................................................ 630
Pivot Pin Bushing And Seal Removal And Installation............................................. 632
LIFT ARMS........................................................................................... 633
Stabilizer Bar Removal And Installation......................................................... 633
Link Removal And Installation................................................................... 634
Removal And Installation........................................................................ 635
REAR GRILLE......................................................................................... 639
Removal And Installation........................................................................ 639
REAR DOOR (TAILGATE)................................................................................ 641
Removal And Installation........................................................................ 641
Striker Removal And Installation................................................................ 642
Striker Disassembly And Assembly................................................................ 642
Striker (Adjusting)............................................................................. 642
Latch Removal And Installation (Early Models)................................................... 643
Latch Removal And Installation (Later Models)................................................... 644
FUEL TANK........................................................................................... 645
Removal And Installation........................................................................ 645
Fuel Level Sender Removal And Installation...................................................... 647
Fuel Fill Screen Removal And Installation....................................................... 647
CONTROL PEDALS AND LINKAGES......................................................................... 649
Description..................................................................................... 649
Pedal Removal And Installation.................................................................. 649
Linkage Removal And Installation................................................................ 650
Pedal (Adjusting)............................................................................... 651
Floor Pan Removal And Installation.............................................................. 652
CONTROL PEDALS AND LINKAGES (ACS)................................................................... 653
Description..................................................................................... 653
Pedal Removal And Installation.................................................................. 653
Linkage Removal And Installation................................................................ 654
Pedal (Adjusting)............................................................................... 654
Floor Pan Removal And Installation.............................................................. 655
CONTROL PANEL....................................................................................... 657
Description..................................................................................... 657
Removal And Installation........................................................................ 658
Disassembly And Assembly........................................................................ 659
Linkage Removal And Installation................................................................ 661
Pintle Arm Disassembly And Assembly............................................................. 665
Linkage Neutral (Adjusting)..................................................................... 666
Linkage Travel (Adjusting)...................................................................... 670
Shock Removal And Installation.................................................................. 674
CONTROL PANEL (SJC)................................................................................. 675
Description..................................................................................... 675
Removal And Installation........................................................................ 675
CONTROL HANDLE / LEVER.............................................................................. 677
Description..................................................................................... 677
Lever Removal And Installation.................................................................. 677
Boot Removal And Installation................................................................... 678
CONTROL HANDLE / LEVER (ACS)........................................................................ 679
Description..................................................................................... 679
Handle Sensor Removal And Installation.......................................................... 679
Handle Removal And Installation................................................................. 682
Handle Disassembly And Assembly................................................................. 683
Lever Removal And Installation.................................................................. 683
Boot Removal And Installation................................................................... 684
CONTROL HANDLE / LEVER (SJC)........................................................................ 685
Description..................................................................................... 685
Joystick Testing................................................................................ 685
Joystick Removal And Installation............................................................... 686
ACCESS PANEL (INSIDE)............................................................................... 687
Removal And Installation (Left)................................................................. 687
Removal And Installation (Right)................................................................ 687
ACCESS PANEL (INSIDE) (SJC)......................................................................... 689
Removal And Installation (Left)................................................................. 689
Removal And Installation (Right)................................................................ 689
WINDOW (REAR)....................................................................................... 691
Rear Window Identification...................................................................... 691
Removal And Installation (Latches).............................................................. 691
Disassembly And Assembly (Latches).............................................................. 692
Removal (Rubber Cord)........................................................................... 693
Installation (Rubber Cord)...................................................................... 694
WINDOW (TOP)........................................................................................ 697
Removal And Installation........................................................................ 697
WINDOW (SIDE)....................................................................................... 699
Removal And Installation........................................................................ 699
CAB DOOR............................................................................................ 701
Description..................................................................................... 701
Removal And Installation........................................................................ 701
Disassembly And Assembly........................................................................ 702
Aligning........................................................................................ 703
Adjusting....................................................................................... 704
Checking Operation.............................................................................. 704
ARMREST............................................................................................. 705
Description..................................................................................... 705
Removal And Installation........................................................................ 705
Disassembly And Assembly........................................................................ 706
LEFT SIDE LOWER PANEL............................................................................... 709
Removal And Installation........................................................................ 709
Disassembly And Assembly........................................................................ 711
RIGHT SIDE LOWER PANEL.............................................................................. 713
Removal And Installation........................................................................ 713
Disassembly And Assembly........................................................................ 714
HEADLINER........................................................................................... 717
Removal And Installation........................................................................ 717
ELECTRICAL SYSTEM AND ANALYSIS.......................................................................... 719
ELECTRICAL SCHEMATICS............................................................................... 725
ELECTRICAL SYSTEM INFORMATION....................................................................... 871
Glossary Of Electrical Symbols.................................................................. 871
Standard Cab Harness Connectors................................................................. 874
Deluxe Cab Harness Connectors................................................................... 875
Mainframe Harness Connectors.................................................................... 876
Description..................................................................................... 877
Troubleshooting................................................................................. 878
Fuse And Relay Location / Identification........................................................ 879
Solenoid Testing................................................................................ 881
BATTERY............................................................................................. 883
Removal And Installation........................................................................ 883
Servicing....................................................................................... 884
Using A Booster Battery (Jump Starting)......................................................... 885
ALTERNATOR.......................................................................................... 887
Belt Adjustment................................................................................. 887
Belt Replacement................................................................................ 887
Charging System Inspection...................................................................... 888
Alternator Voltage Testing...................................................................... 889
Low Voltage Testing............................................................................. 889
High Voltage Testing............................................................................ 890
Removal And Installation........................................................................ 891
Parts Identification............................................................................ 893
STARTER............................................................................................. 895
Testing......................................................................................... 895
Removal And Installation........................................................................ 895
Parts Identification............................................................................ 896
INSTRUMENT PANELS................................................................................... 897
Left Panel (Early Models)....................................................................... 897
Left Panel (Later Models)....................................................................... 899
Display Screen.................................................................................. 901
Right Panel (Standard Key Panel)................................................................ 902
Right Panel (Keyless Start Panel)............................................................... 903
Right Panel (Deluxe Instrumentation Panel)...................................................... 904
Left Switch Panel............................................................................... 906
Right Switch Panel.............................................................................. 906
Left Side Lower Panel........................................................................... 907
Right Side Lower Panel.......................................................................... 907
Left Panel Removal And Installation............................................................. 908
Right Panel (Standard Key Panel) Removal And Installation....................................... 908
Right Panel (Keyless Start Panel) Removal And Installation...................................... 909
Right Panel (Deluxe Instrumentation Panel) Removal And Installation............................. 909
Key Switch Disassembly And Assembly............................................................. 910
Alarm Disassembly And Assembly.................................................................. 910
Left Switch Panel Removal And Installation...................................................... 911
Right Switch Panel Removal And Installation..................................................... 911
LIGHTS.............................................................................................. 913
Front Removal And Installation.................................................................. 913
Rear Removal And Installation................................................................... 914
Cab Light Removal And Installation (Early Models)............................................... 914
Cab Light Removal And Installation (Later Models)............................................... 915
BOBCAT CONTROLLERS (GATEWAY AND AUXILIARY).......................................................... 917
Description..................................................................................... 917
Connector Identification........................................................................ 918
Removal And Installation........................................................................ 924
BOBCAT CONTROLLER (ACS)............................................................................. 925
Description..................................................................................... 925
Connector And Wire Identification............................................................... 926
Removal And Installation........................................................................ 927
BOBCAT CONTROLLER (SJC) (DRIVE)..................................................................... 929
Description..................................................................................... 929
Connector Identification........................................................................ 930
Removal And Installation........................................................................ 932
SPEED SENSORS (SJC)................................................................................. 933
Description..................................................................................... 933
Testing......................................................................................... 933
Removal And Installation........................................................................ 934
DIAGNOSTIC SERVICE CODES............................................................................ 937
Viewing Service Codes........................................................................... 937
Service Codes List.............................................................................. 938
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)............................................................. 945
Description..................................................................................... 945
Inspecting The BICS™ (Engine STOPPED - Key ON).................................................. 946
Inspecting Deactivation Of The Auxiliary Hydraulics System (Engine STOPPED - Key ON)............ 946
Inspecting The Seat Bar Sensor (Engine RUNNING)................................................. 946
Inspecting The Traction Lock And Parking Brake (Engine RUNNING)................................. 946
Inspecting The Lift Arm Bypass Control.......................................................... 946
Inspecting Deactivation Of Lift And Tilt Functions (ACS And SJC)................................ 946
Troubleshooting................................................................................. 947
SEAT BAR SENSOR..................................................................................... 949
Description..................................................................................... 949
Troubleshooting................................................................................. 949
Testing......................................................................................... 950
Removal And Installation........................................................................ 951
Bobcat Interlock Control System (BICS™) Circuit Test............................................ 954
TRACTION LOCK....................................................................................... 957
Description..................................................................................... 957
Troubleshooting................................................................................. 958
Inspecting...................................................................................... 959
CONTROL SYSTEM (ACS)................................................................................ 961
Description..................................................................................... 961
Troubleshooting................................................................................. 962
Handle Sensor Connector Disassembly And Assembly................................................ 963
Switch Handle Removal........................................................................... 964
Switch Handle Installation...................................................................... 966
Actuator Connector Disassembly And Assembly..................................................... 969
Handle Lock Solenoid Removal And Installation................................................... 970
Handle Lock Solenoid Disassembly And Assembly................................................... 970
Foot Sensor Removal And Installation............................................................ 971
Foot Sensor Disassembly And Assembly............................................................ 972
Foot Sensor Lock Solenoid Removal And Installation.............................................. 972
ELECTRICAL / HYDRAULIC CONTROLS..................................................................... 973
Identification Chart............................................................................ 973
Description..................................................................................... 974
Identification Chart ACD Group 0................................................................ 975
Identification Chart ACD Group 1................................................................ 976
Identification Chart ACD Group 2................................................................ 977
Identification Chart ACD Group 3................................................................ 978
ELECTRICAL / HYDRAULIC CONTROLS (ACS)............................................................... 979
Identification Chart............................................................................ 979
Description..................................................................................... 980
Identification Chart ACD Group 0................................................................ 981
Identification Chart ACD Group 1................................................................ 982
Identification Chart ACD Group 2................................................................ 983
Identification Chart ACD Group 3................................................................ 984
ELECTRICAL / HYDRAULIC CONTROLS (SJC)............................................................... 985
Identification Chart............................................................................ 985
Description..................................................................................... 986
Identification Chart ACD Group 0................................................................ 987
Identification Chart ACD Group 1................................................................ 988
Identification Chart ACD Group 2................................................................ 989
Identification Chart ACD Group 3................................................................ 990
SERVICE PC (LAPTOP COMPUTER)........................................................................ 991
Connecting Remote Start Tool.................................................................... 991
Connecting Remote Start Tool (Service Tool)..................................................... 991
CALIBRATION......................................................................................... 993
Description..................................................................................... 993
Actuator Testing................................................................................ 993
Lift And Tilt Calibration (SJC)................................................................. 996
Hydrostatic Pump Calibration (SJC).............................................................. 998
Lift And Tilt Calibration (ACS).................................................................1003
STEERING DRIFT COMPENSATION (OPERATOR MODE).........................................................1005
Description.....................................................................................1005
Operation.......................................................................................1005
STEERING DRIFT COMPENSATION (SERVICE MODE)..........................................................1007
Description.....................................................................................1007
Operation.......................................................................................1007
FLYWHEEL RPM SENSOR.................................................................................1009
Description.....................................................................................1009
Removal.........................................................................................1009
Installation....................................................................................1009
CONTROL PANEL SETUP.................................................................................1011
Right Panel Setup (Deluxe Instrumentation Panel)................................................1011
PASSWORD SETUP (DELUXE INSTRUMENTATION PANEL).......................................................1015
Password Description............................................................................1015
Changing The Owner Password.....................................................................1015
Changing The User Passwords.....................................................................1016
Password Lockout Feature........................................................................1016
PASSWORD SETUP (KEYLESS START PANEL)................................................................1017
Password Description............................................................................1017
Changing The Owner Password.....................................................................1017
Password Lockout Feature........................................................................1017
MAINTENANCE CLOCK...................................................................................1019
Description.....................................................................................1019
Setup...........................................................................................1020
Reset...........................................................................................1023
BACK-UP ALARM SYSTEM................................................................................1025
Description.....................................................................................1025
Inspecting......................................................................................1025
Adjusting Switch Position.......................................................................1026
Troubleshooting (Standard And ACS)..............................................................1027
Troubleshooting (Joystick)......................................................................1028
Alarm Removal And Installation..................................................................1029
Switch Removal And Installation.................................................................1029
FRONT HORN..........................................................................................1031
Removal And Installation........................................................................1031
Troubleshooting.................................................................................1032
Troubleshooting (Joystick)......................................................................1033
ENGINE SERVICE..........................................................................................1035
ENGINE INFORMATION..................................................................................1039
Description.....................................................................................1039
Specifications..................................................................................1040
Torque Values...................................................................................1043
Troubleshooting.................................................................................1043
Engine Removal And Installation.................................................................1045
Engine Mount Replacement........................................................................1052
Compression - Testing...........................................................................1053
ENGINE SPEED CONTROL................................................................................1055
Removal And Installation........................................................................1055
Disassembly And Assembly........................................................................1055
Cable Removal And Installation..................................................................1056
ENGINE SPEED CONTROL (SJC)..........................................................................1057
Removal And Installation........................................................................1057
Disassembly And Assembly........................................................................1058
MUFFLER.............................................................................................1061
Removal And Installation........................................................................1061
AIR CLEANER.........................................................................................1063
Housing Removal And Installation................................................................1063
ENGINE COOLING SYSTEM (EARLY MODELS)................................................................1065
Radiator Removal And Installation...............................................................1065
Hydraulic Fan Description.......................................................................1068
Fan Duct Removal And Installation...............................................................1068
Hydraulic Fan Motor Assembly Removal And Installation...........................................1069
Hydraulic Fan Motor Removal And Installation....................................................1069
Hydraulic Fan Motor Disassembly And Assembly....................................................1071
Blower Housing Removal And Installation.........................................................1073
Water Pump Removal And Installation.............................................................1073
Water Pump Disassembly And Assembly.............................................................1074
Thermostat Housing Removal And Installation.....................................................1074
Thermostat - Testing............................................................................1075
ENGINE COOLING SYSTEM (LATER MODELS)................................................................1077
Radiator Removal And Installation...............................................................1077
Hydraulic Fan Description.......................................................................1080
Fan Duct Removal And Installation...............................................................1080
Hydraulic Fan Motor Assembly Removal And Installation...........................................1081
Hydraulic Fan Motor Removal And Installation....................................................1082
Hydraulic Fan Motor Disassembly And Assembly....................................................1084
Blower Housing Removal And Installation.........................................................1089
Water Pump Removal And Installation.............................................................1090
Water Pump Disassembly And Assembly.............................................................1090
Thermostat Housing Removal And Installation.....................................................1091
Thermostat - Testing............................................................................1091
LUBRICATION SYSTEM..................................................................................1093
Oil Pan Removal And Installation................................................................1093
Oil Pump Removal And Installation...............................................................1094
Oil Pump Inspection.............................................................................1094
Oil Filter Cooler Removal And Installation......................................................1096
Engine Oil Pressure - Testing...................................................................1097
FUEL SYSTEM.........................................................................................1099
Fuel Shutoff Solenoid - Testing.................................................................1099
Fuel Shutoff Solenoid Removal And Installation..................................................1099
Fuel Injection Pump Assembly Removal............................................................1100
Fuel Injection Pump Assembly Installation.......................................................1104
Governor Housing Disassembly And Assembly.......................................................1106
Governor Disassembly And Assembly...............................................................1108
Fuel Camshaft Removal And Installation..........................................................1110
Fuel Injection Pump Removal.....................................................................1112
Fuel Injection Pump Installation................................................................1115
Fuel injection Pump - Timing....................................................................1118
Fuel Injector Removal And Installation..........................................................1122
Fuel Injector Nozzle Pressure - Testing.........................................................1123
Nozzle Spraying Condition.......................................................................1124
Valve Seat Tightness............................................................................1124
CYLINDER HEAD.......................................................................................1125
Intake Air Heater - Testing.....................................................................1125
Intake Air Heater Removal And Installation......................................................1125
Valve Clearance Adjustment......................................................................1126
Valve Timing - Checking.........................................................................1128
Cylinder Head Removal And Installation..........................................................1129
Cylinder Head Disassembly And Assembly..........................................................1131
Cylinder Head - Servicing.......................................................................1132
Cylinder Head Top Clearance.....................................................................1132
Valve Guide - Checking..........................................................................1133
Reconditioning The Valve And Valve Seat.........................................................1135
Valve Spring....................................................................................1137
Valve Tappets...................................................................................1138
Rocker Arm And Shaft - Measuring................................................................1139
Push Rod Alignment - Measuring..................................................................1139
CRANKSHAFT AND PISTONS..............................................................................1141
Piston And Connecting Rod Removal And Installation..............................................1141
Piston And Connecting Rod - Servicing...........................................................1143
Cylinder Bore - Measuring.......................................................................1147
Connecting Rod Alignment........................................................................1148
Crankshaft Gear Removal And Installation........................................................1148
Crankshaft And Bearings Removal.................................................................1149
Crankshaft And Bearings Installation............................................................1151
Crankshaft And Bearings - Servicing.............................................................1153
CAMSHAFT AND TIMING GEARS...........................................................................1159
Timing Gearcase Cover Removal And Installation..................................................1159
Timing Gears Backlash - Measuring...............................................................1160
Idler Gear And Camshaft Removal And Installation................................................1160
Camshaft - Servicing............................................................................1161
Idler Gear And Shaft - Servicing................................................................1163
TURBOCHARGER........................................................................................1165
Description.....................................................................................1165
Testing.........................................................................................1165
Removal And Installation........................................................................1166
FLYWHEEL AND HOUSING................................................................................1169
Flywheel Removal And Installation...............................................................1169
Ring Gear Removal And Installation..............................................................1169
Housing Removal And Installation................................................................1170
EXHAUST GAS RECIRCULATION (EGR) SYSTEM..............................................................1171
Description.....................................................................................1171
Testing.........................................................................................1172
Removal And Installation........................................................................1175
HEATING, VENTILATION AND AIR CONDITIONING (HVAC)........................................................1177
AIR CONDITIONING SYSTEM FLOW........................................................................1179
Description.....................................................................................1179
Chart...........................................................................................1180
Components......................................................................................1181
Safety Equipment................................................................................1184
REGULAR MAINTENANCE.................................................................................1185
Filters.........................................................................................1185
Compressor Drive Belt Adjustment................................................................1186
Compressor Drive Belt Replacement...............................................................1186
Condenser.......................................................................................1186
Air Conditioning Lubrication....................................................................1186
Air Conditioning Service Chart..................................................................1187
Evaporator / Heater Coil........................................................................1188
TROUBLESHOOTING.....................................................................................1191
Blower Motor Does Not Operate...................................................................1191
Blower Motor Operates Normally, But Air Flow Is Insufficient....................................1191
Insufficient Cooling Although Air Flow And Compressor Operation Are Normal......................1191
The Compressor Does Not Operate At All, Or Operates Improperly..................................1191
Gauge Pressure Related Troubleshooting..........................................................1192
Troubleshooting Tree............................................................................1194
Temperature / Pressure Chart....................................................................1197
Poor A/C Performance............................................................................1199
HVAC Repair And Leaks...........................................................................1200
Electrical System...............................................................................1201
Engine Coolant Bypassing The Heater Valve.......................................................1207
Heater Valve Not Opening Or Closing.............................................................1208
SYSTEM CHARGING AND RECLAMATION.....................................................................1211
Refrigerant Identification......................................................................1211
Reclamation And Charging With Recovery / Charging Unit..........................................1212
COMPRESSOR..........................................................................................1215
Removal And Installation........................................................................1215
Oil.............................................................................................1217
Oil Check.......................................................................................1218
CONDENSER...........................................................................................1219
Removal And Installation........................................................................1219
RECEIVER / DRIER....................................................................................1221
Receiver / Drier Removal And Installation.......................................................1221
Pressure Relief Valve Removal And Installation..................................................1222
Pressure Switch Removal And Installation........................................................1223
Schrader® Valve Removal And Installation
.......................................................1224
EVAPORATOR / HEATER UNIT............................................................................1225
Removal And Installation........................................................................1225
THERMOSTAT..........................................................................................1227
Description.....................................................................................1227
Removal And Installation........................................................................1228
EXPANSION VALVE.....................................................................................1229
Removal And Installation........................................................................1229
EVAPORATOR COIL.....................................................................................1231
Removal And Installation........................................................................1231
HEATER COIL.........................................................................................1233
Removal And Installation........................................................................1233
BLOWER FAN..........................................................................................1235
Removal And Installation........................................................................1235
Disassembly And Assembly........................................................................1235
HEATER VALVE........................................................................................1239
Removal And Installation........................................................................1239
EVAPORATOR / HEATER COVER...........................................................................1241
Removal.........................................................................................1241
Installation....................................................................................1241
SPECIFICATIONS..........................................................................................1243
(T750) LOADER SPECIFICATIONS........................................................................1245
Machine Dimensions..............................................................................1245
Performance.....................................................................................1246
Engine..........................................................................................1247
Drive System....................................................................................1247
Controls........................................................................................1248
Hydraulic System................................................................................1248
Electrical System...............................................................................1249
Capacities......................................................................................1249
Tracks..........................................................................................1250
Ground Pressure.................................................................................1250
TORQUE SPECIFICATIONS FOR BOLTS.....................................................................1251
Torque For General SAE Bolts....................................................................1251
Torque For General Metric Bolts.................................................................1252
HYDRAULIC CONNECTION SPECIFICATIONS.................................................................1253
Straight Thread O-ring Fitting..................................................................1253
Flare Fitting...................................................................................1254
Tubelines And Hoses.............................................................................1254
HYDRAULIC / HYDROSTATIC FLUID SPECIFICATIONS........................................................1255
Specifications..................................................................................1255
CONVERSIONS.........................................................................................1257
Decimal And Millimeter Equivalent Chart.........................................................1257
U.S. To Metric Conversion Chart.................................................................1257
SERVICE TOOLS REQUIRED..............................................................................1259
Remote Start Tools..............................................................................1259
Hydraulic Tools.................................................................................1260
Mainframe And Drive Tools.......................................................................1262
Electrical Tools................................................................................1264
Engine Tools....................................................................................1265
HVAC Tools......................................................................................1270
ALPHABETICAL INDEX......................................................................................1271

Need help? Contact: [email protected]

https://vimeo.com/845665463?share=copy

PLEASE NOTE:

This is the same manual used by the DEALERSHIPS to SERVICE your vehicle.
The manual can be all yours – Once payment is complete, you will be taken to the download page from where you can download the manual. All in 2-5 minutes time!!
Need any other service / repair / parts manual, please feel free to contact us at heydownloadss @gmail.com . We may surprise you with a nice offer

S.V

Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above – PDF DOWNLOAD

Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above – PDF DOWNLOAD

Description

Bobcat T750 Compact Track Loader Service Manual SN ANKA11001 & Above – PDF DOWNLOAD

What Our Customers Say

🌟 Related Products

BOBCAT 116 HYDRAULIC EXCAVATOR SERVICE REPAIR WORKSHOP MANUAL DOWNLOAD!!!

BOBCAT 440B FARMBOY SERVICE REPAIR WORKSHOP MANUAL DOWNLOAD

Bobcat 943 Skid Steer Loader Service Repair Workshop Manual Download - PDF

BOBCAT 316 HYDRAULIC EXCAVATOR SERVICE REPAIR WORKSHOP MANUAL SN 522811001 522911001
