Bobcat T870 Compact Track Loader Operation & Maintenance Manual SN B47H11001 – B47H11299 – PDF DOWNLOAD
$28.95
Bobcat T870 Compact Track Loader Operation & Maintenance Manual SN B47H11001 – B47H11299 – PDF DOWNLOAD
Instant PDF Download
Available immediately
Save to Your Device
Download & keep forever
Antivirus Scanned
100% virus-free
Trusted Worldwide
175,000+ customers
Description
Bobcat T870 Compact Track Loader Operation & Maintenance Manual SN B47H11001 – B47H11299 – PDF DOWNLOAD
FILE DETAILS:
Bobcat T870 Compact Track Loader Operation & Maintenance Manual SN B47H11001 – B47H11299 – PDF DOWNLOAD
Language : English
Pages : 220
Downloadable : Yes
File Type : PDF
DESCRIPTION:
Bobcat T870 Compact Track Loader Operation & Maintenance Manual SN B47H11001 – B47H11299 – PDF DOWNLOAD
FOREWORD:
This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation
and maintenance of the Bobcat loader. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE
MANUAL BEFORE OPERATING YOUR BOBCAT LOADER. If you have any questions, see your Bobcat dealer.
This manual may illustrate options and accessories not installed on your loader.
SAFETY INSTRUCTIONS:
Before Operation:
- Carefully follow the operating and maintenance instructions in this manual.
- The Bobcat loader is highly maneuverable and compact. It is rugged and useful under a wide variety of conditions.
- This presents an operator with hazards associated with off highway, rough terrain applications, common with Bobcat loader usage.
- The Bobcat loader has an internal combustion engine with resultant heat and exhaust. All exhaust gases can kill or cause illness so use the loader with adequate ventilation.
- The dealer explains the capabilities and restrictions of the Bobcat loader and attachment for each application. The dealer demonstrates the safe operation according to Bobcat instructional materials, which are also available to operators. The dealer can also identify unsafe modifications or use of unapproved attachments. The attachments and buckets are designed for a Rated Operating Capacity (some have restricted lift heights). They are designed for secure fastening to the Bobcat loader. The user must check with the dealer, or Bobcat literature, to determine safe loads of materials of specified densities for the machine – attachment combination.
The following publications and training materials provide information on the safe use and maintenance of the Bobcat machine and attachments:
• The Delivery Report is used to assure that complete instructions have been given to the new owner and that the machine and attachment is in safe operating condition.
• The Operation & Maintenance Manual delivered with the machine or attachment gives operating information as well as routine maintenance and service procedures. It is a part of the machine and can be stored in a container provided on the machine. Replacement Operation & Maintenance Manuals can be ordered from your Bobcat dealer.
• Machine signs (decals) instruct on the safe operation and care of your Bobcat machine or attachment. The signs and their locations are shown in the Operation & Maintenance Manual. Replacement signs are available from your Bobcat dealer.
• An Operator’s Handbook is fastened to the operator cab of the loader. It’s brief instructions are convenient to the operator. The handbook is available from your dealer in an English edition or one of many other languages. See your Bobcat dealer for more information on translated versions.
• The AEM Safety Manual delivered with the machine gives general safety information.
• The Skid-Steer Loader Operating Training Course is available through your Bobcat dealer. This course is intended to provide rules and practices of correct operation of the Bobcat loader. The course is available in English and Spanish versions.
• Service Safety Training Courses are available from your Bobcat dealer. They provide information for safe and correct service procedures.

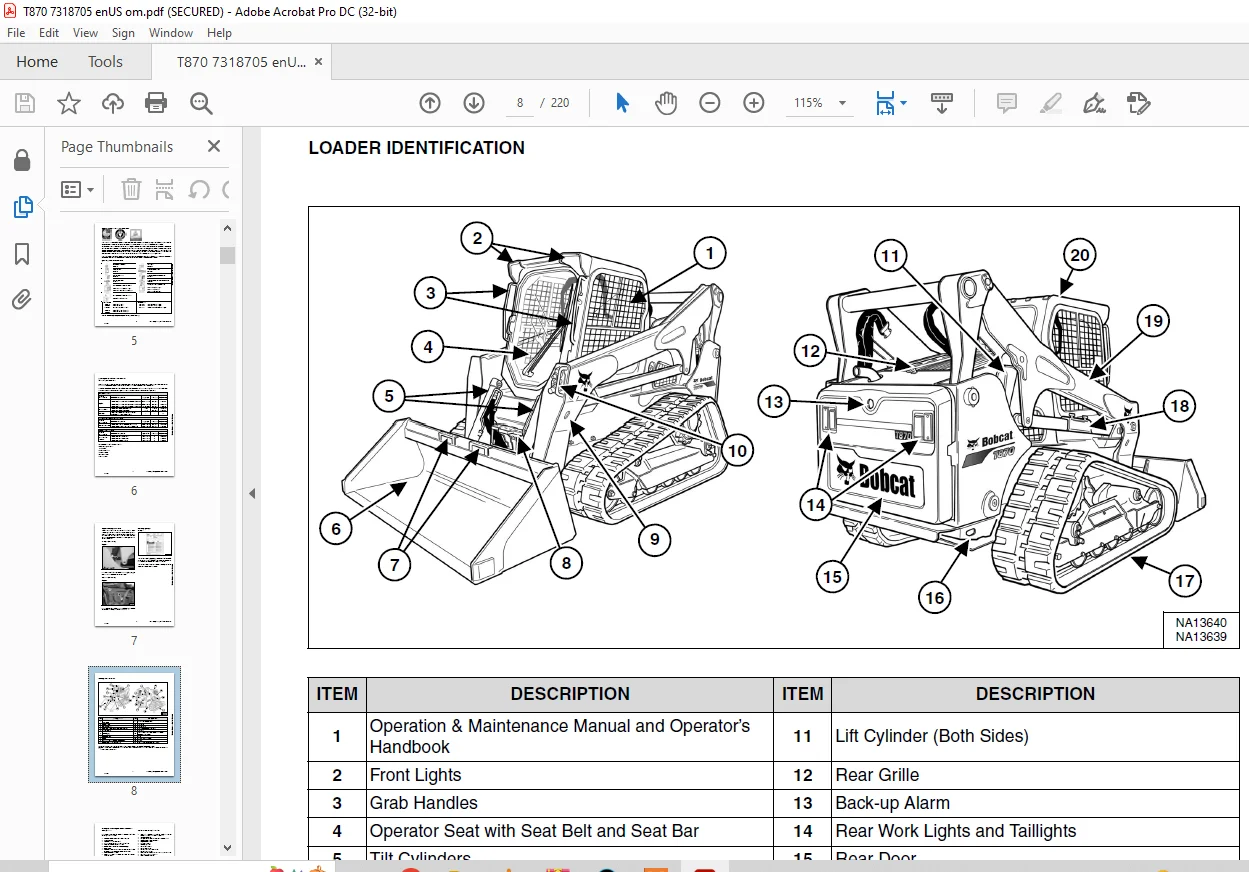

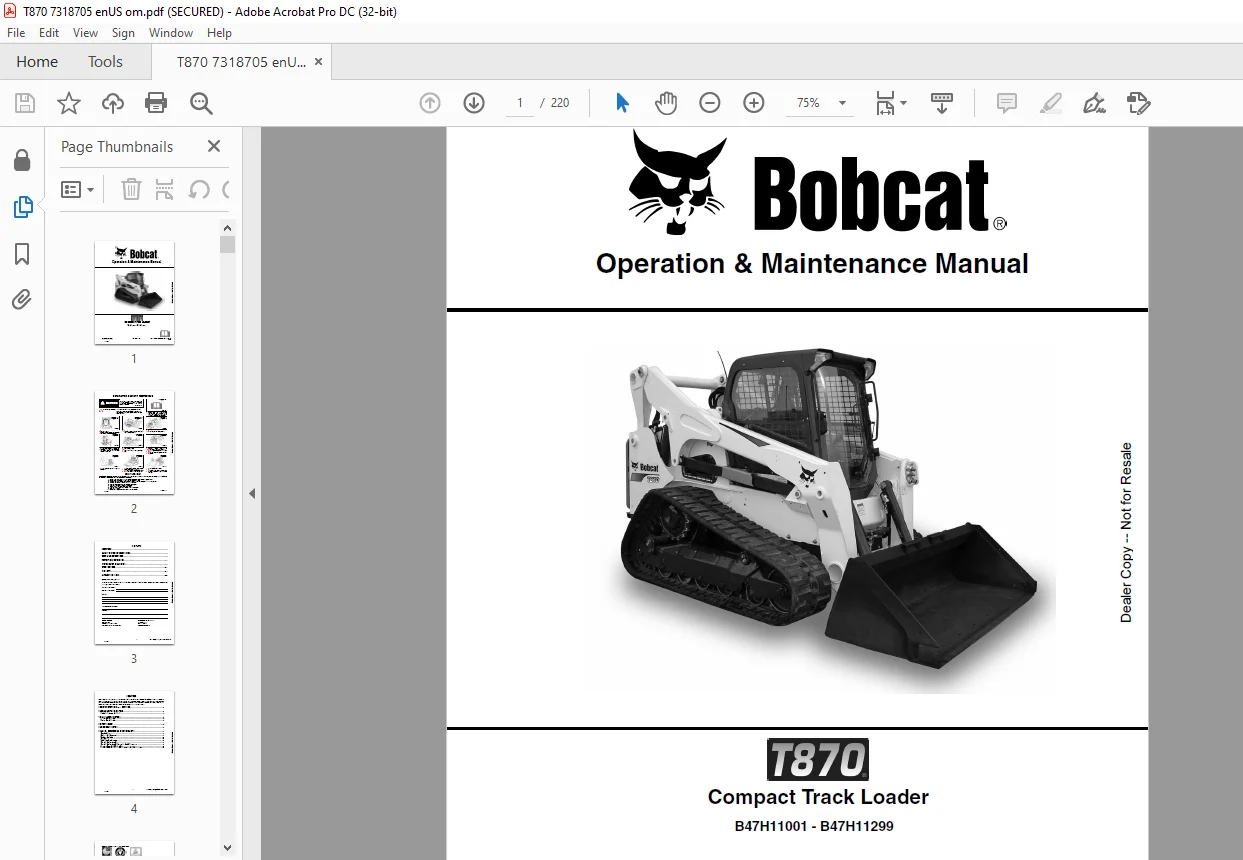

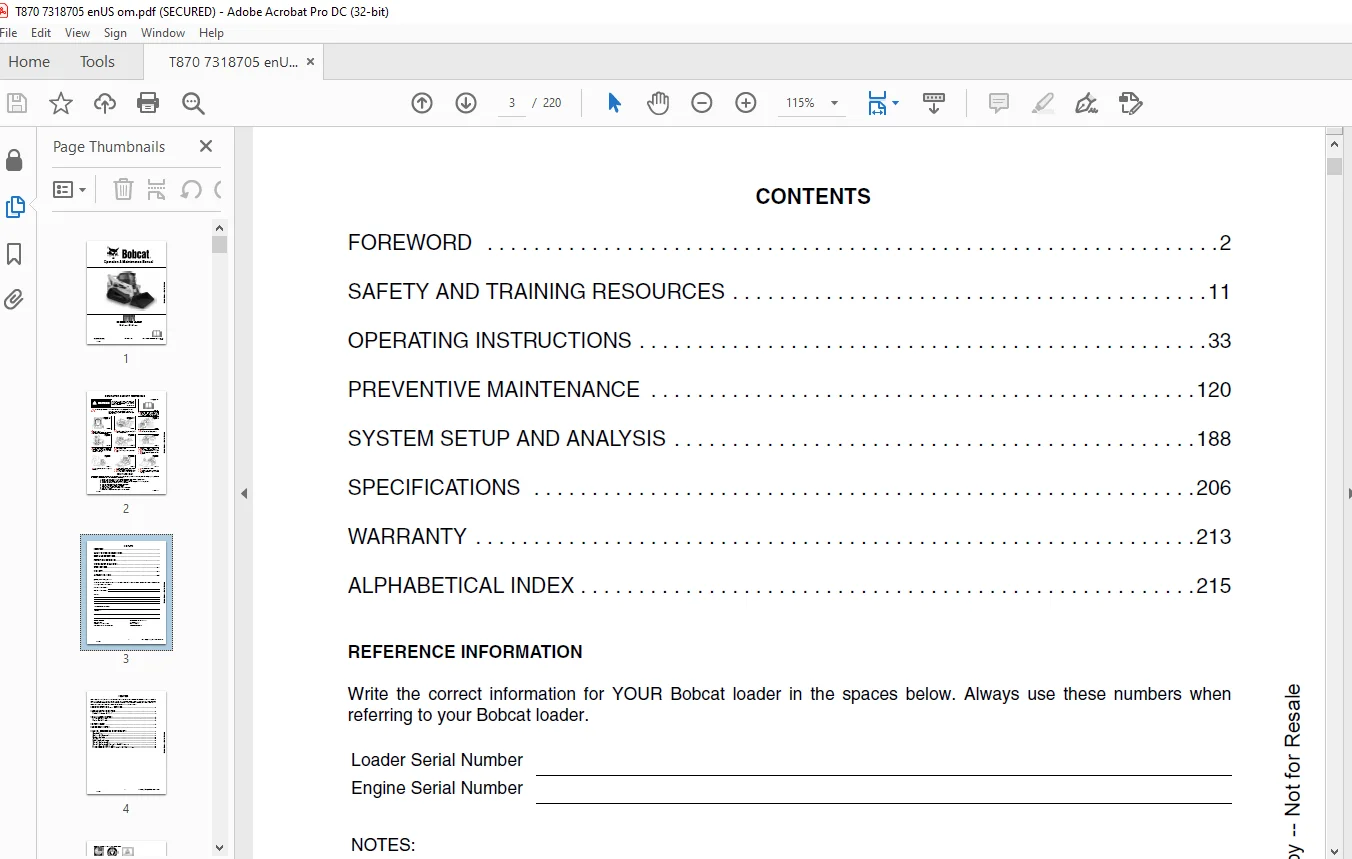

IMAGES PREVIEW OF THE MANUAL:
