Bobcat Three-Point Tiller Service Manual 48 60 74 Inch Models 6987115 PDF

Description

Bobcat Three-Point Tiller Service Manual 48 60 74 Inch Models 6987115 – PDF DOWNLOAD

DESCRIPTION

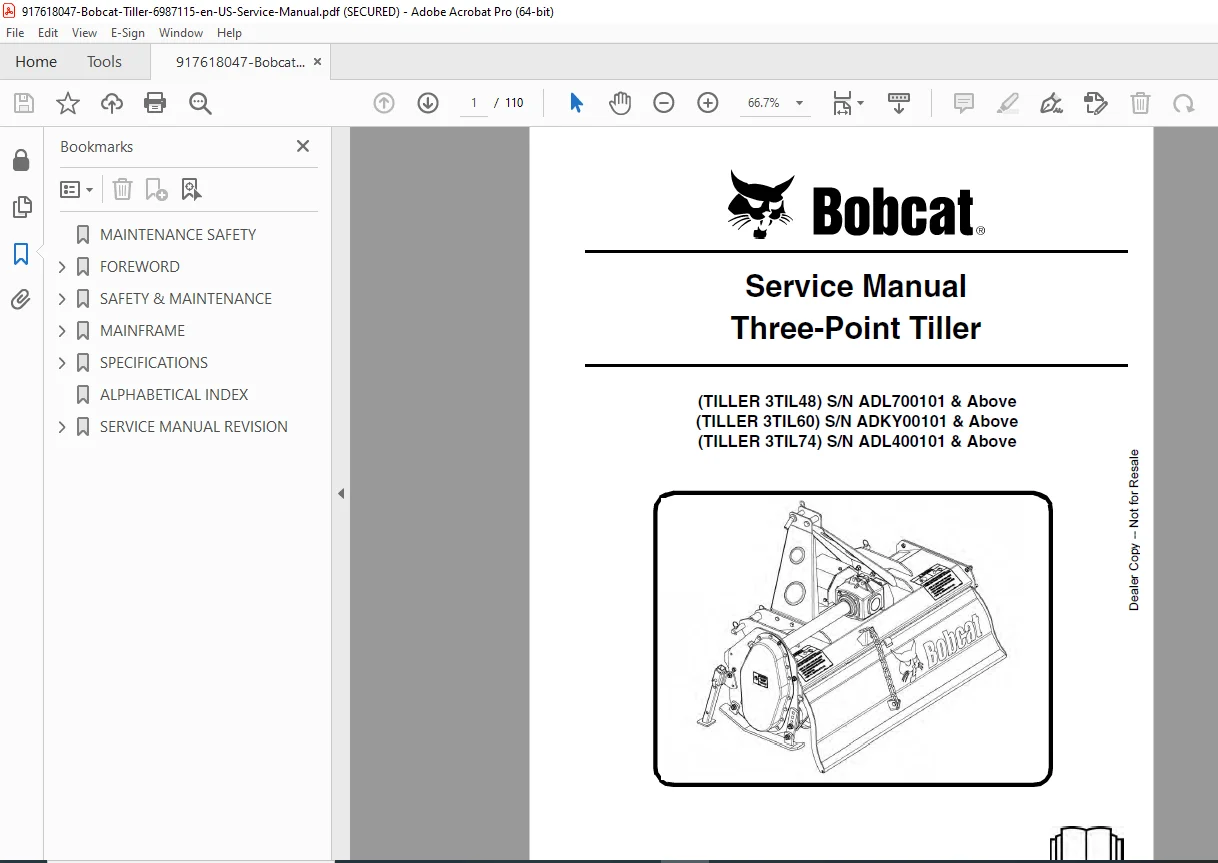

This is the official Bobcat Three-Point Tiller Service Manual (Document 6987115, Revision 5-10, dated May 2010), providing complete service and repair information for three Bobcat tiller attachment models designed for compact tractors.

Models Covered

• 3TIL48 – 48-inch tiller (S/N ADL700101 & Above)
• 3TIL60 – 60-inch tiller (S/N ADKY00101 & Above)
• 3TIL74 – 74-inch tiller (S/N ADL400101 & Above)

Complete Manual Structure (110 Pages)

Section 10 – Safety & Maintenance:

Troubleshooting Chart:

• Will not till deep enough – skid shoe adjustments
• Rotor will not turn – PTO engagement, slip clutch wear, obstruction removal
• Poor tilling quality – worn/damaged tines, ground speed adjustments
• Tillage not smooth – leveling board adjustments, top link settings

Service Schedule:

• Every 8 hours: Grease rotor support bearing, PTO driveline knuckles, check gearbox/transmission oil levels, inspect mounting hardware
• First 50 hours: Change gearbox and side transmission oil (initial service)
• Every 500 hours: Change gearbox and transmission oil

Daily Inspection Procedures:

• Three-point mounting frame inspection (upper/lower pins, welds, hardware)
• Three-point hitch linkage checks
• PTO shaft splines and guards verification
• Safety shield inspection

Lubrication:

• Complete lubrication point diagrams for all three models
• PTO shaft (gearbox side and tractor side) greasing
• PTO driveline shaft maintenance
• Rotary shaft bearing locations (model-specific)
• Lithium base multi-purpose grease specifications

Regular Maintenance Items:

• Skids: Inspection for cracks, damage, excessive wear; replacement procedures; bolt torque 60 ft-lb (81 N•m)
• Tines: Inspection for bent/worn tines; bolt/nut checks; replacement criteria; torque 60 ft-lb (81 N•m)
• Gearbox Fluid: Level checking procedures via dipstick (48″ model) or sight window; SAE EP 80W90 specification
• Transmission Fluid: Level verification for chain drive (48″) and gear drive (60″/74″); fill plug locations
• Cleaning: Debris removal using water/air pressure; obstruction removal from tines and driveline

Gearbox Fluid Change:

• 48″ Tiller: Plug/dipstick removal, drain procedures, refill to proper level marks
• 60″ & 74″ Tiller: Check plug/fill plug locations, level verification, proper positioning for accurate filling

Component Removal and Installation:

• Tine Replacement: Complete removal/installation procedures with torque specifications
• Skid Replacement: Mounting bolt removal, alignment, proper torque application
• Leveling Board Replacement: Adjustment procedures for smooth tillage finish
• Jack Stand Replacement: Support stand service for transport/storage

Storage and Return to Service:

• Long-term storage preparation procedures
• Pre-season inspection checklist
• Fluid level verification before operation
• Component condition assessment

Section 20 – Mainframe:

Gearbox Service (Model-Specific):

3TIL48 Gearbox (Chain Drive):

• Complete disassembly procedures with detailed figures
• Input shaft removal and installation
• Bearing replacement sequences
• Gear inspection criteria
• Seal replacement procedures
• Housing separation techniques
• Assembly lube application points
• Torque specifications for all fasteners

3TIL60 Gearbox (Gear Drive):

• Gearbox cover removal (14 bolt locations)
• Internal gear train access
• Shaft seal replacement
• Bearing race removal/installation
• Snap ring procedures
• Output shaft service
• Fluid capacity specifications

3TIL74 Gearbox (Gear Drive – Heavy Duty):

• Large capacity gearbox servicing
• Multi-shaft gear arrangements
• Heavy-duty bearing procedures
• Specialized tooling requirements
• High torque fastener specifications

Rotor Assembly Service:

3TIL48 Rotor:

• Complete rotor shaft removal from mainframe
• Tine holder bar disassembly
• Individual tine mounting procedures
• Rotor bearing replacement
• Alignment procedures
• Balancing considerations

3TIL60 Rotor:

• Extended rotor shaft service
• Multiple tine holder positioning
• Bearing support removal
• Shaft seal replacement
• Proper tine spacing verification

3TIL74 Rotor:

• Heavy-duty rotor components
• Large diameter shaft procedures
• Multiple bearing support locations
• Tine arrangement patterns
• Load distribution checks

Transmission Service:

3TIL48 Transmission (Chain Drive):

• Chain tensioner removal and installation
• Spring adjustment (under pressure – caution required)
• Chain adjuster components
• Snap ring procedures
• Gear and chain replacement
• Spacer positioning
• Proper chain tension settings
• Torque specifications

3TIL60 Transmission (Gear Drive):

• Transmission cover removal (gasket inspection)
• Gear lube draining procedures
• Internal gear inspection
• Snap ring removal sequence
• Spacer bushing service
• Bearing replacement
• Gear-to-bearing press fit procedures
• Assembly lube application
• Cover bolt torque: 18 ft-lb (24 N•m)

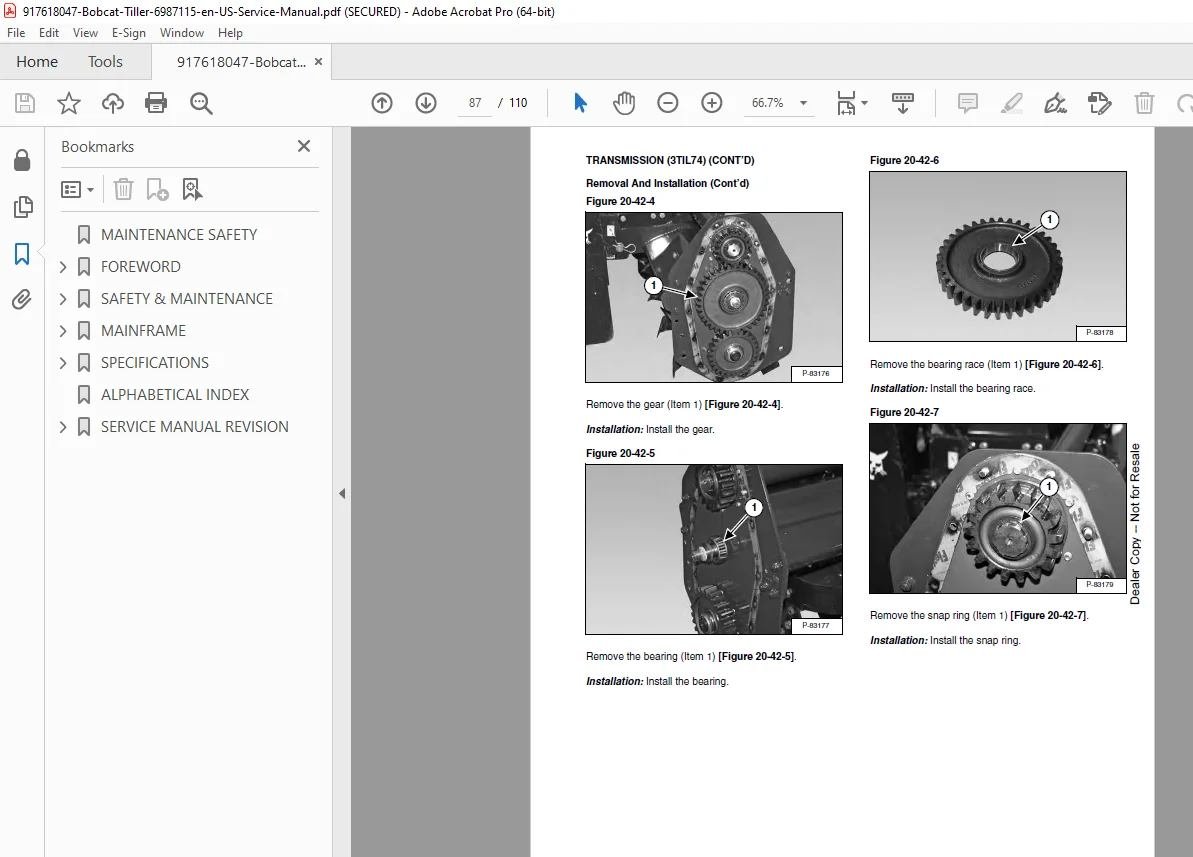

3TIL74 Transmission (Gear Drive – Heavy Duty):

• Large transmission cover service
• MEL1659 Spanner Socket requirement
• Center gear stud with oil-proof sealant
• Multiple gear stages
• Bearing race removal/installation
• Spanner nut procedures
• Heavy-duty component handling
• Proper gear mesh verification

Three-Point Hitch Plates:

3TIL48 Upper Three-Point Assembly:

• Plate removal (3 bolts per side)
• Spacer bushing positioning
• Mounting bolt torque: 35 ft-lb (47 N•m) for lower bolts
• Upper spacer bolt: 60 ft-lb (81 N•m)
• Alignment procedures

3TIL60 Upper Three-Point Assembly:

• Similar procedure to 48″ with 3-bolt pattern
• Category 1 hitch specifications
• Proper plate alignment techniques

3TIL74 Upper Three-Point Assembly:

• Heavy-duty plate service (4 bolts per side)
• Category 1 and 2 hitch compatibility
• All bolts: 60 ft-lb (81 N•m) torque
• Dual spacer bushing arrangement

PTO Driveline:

• U-joint removal and installation
• PTO shield service (3-bolt mounting, torque 18 ft-lb / 24 N•m)
• Driveline separation procedures
• Slip clutch inspection (dealer service item)
• Shaft length adjustment
• Guard replacement procedures
• Safety shield compliance

Technical Specifications

Key Technical Features Covered

✓ Complete exploded-view diagrams for all major assemblies
✓ Comprehensive torque specifications for SAE and metric bolts
✓ Step-by-step disassembly/reassembly procedures
✓ Gear inspection criteria and replacement guidelines
✓ Bearing removal/installation techniques
✓ Seal replacement procedures
✓ Lubrication specifications (SAE EP 80W90 gear oil)
✓ PTO driveline service and safety procedures
✓ Three-point hitch adjustment and maintenance
✓ Tine replacement patterns and spacing
✓ Rotor balancing considerations
✓ Chain tension adjustment (48″ model)
✓ Environmental fluid disposal requirements
✓ Assembly lube application points

Safety Features Emphasized

⚠ Parking brake engagement before leaving operator seat
⚠ PTO disengagement requirements during service
⚠ Secure blocking procedures when working underneath
⚠ Safety glasses required for all service operations
⚠ PTO shields and guards must remain in place
⚠ Spring under pressure warnings for chain adjusters
⚠ Proper support before component removal
⚠ Environmental compliance for fluid disposal

Component Identification

Detailed diagrams showing:

• Main frame assembly
• Upper and lower three-point pins
• PTO driveline with shields
• Transmission housing
• Gearbox mounting
• Tine arrangement patterns
• Leveling board positioning
• Jack stand locations
• Skid mounting points
• Rotor support bearings

Who Should Use This Manual

• Bobcat Authorized Service Technicians – performing warranty and maintenance work
• Compact Tractor Service Centers – repairing three-point implements
• Agricultural Equipment Mechanics – servicing tillage equipment
• Landscaping Company Technicians – maintaining grounds care attachments
• Farm Equipment Repair Shops – working on tractor implements
• Equipment Rental Facilities – servicing tiller attachments
• Municipal Maintenance Departments – grounds maintenance equipment repair
• Golf Course Maintenance Teams – specialized turf equipment service

Specialized Tools Referenced

• MEL1659 Spanner Socket (for 74″ transmission service)
• Torque wrench (various capacities for proper bolt tensioning)
• Standard hand tools (wrenches, sockets, Allen keys)
• Grease gun for lubrication
• Approved drain containers for fluid disposal

File Details

This comprehensive service manual is essential for anyone responsible for maintaining, repairing, or servicing Bobcat three-point tiller attachments. With detailed component breakdowns, complete part identification, step-by-step service procedures, and critical safety information, this manual provides everything needed to keep these tillage implements operating at peak performance in agricultural, landscaping, and grounds maintenance applications.
