Bobcat Tilt Bucket TB48 Operation & Maintenance Manual SN AFVL00101 & Above – PDF DOWNLOAD

Description

Bobcat Tilt Bucket TB48 Operation & Maintenance Manual SN AFVL00101 & Above – PDF DOWNLOAD

FILE DETAILS:

Bobcat Tilt Bucket TB48 Operation & Maintenance Manual SN AFVL00101 & Above – PDF DOWNLOAD

Language : English
Pages :80
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

Bobcat Tilt Bucket TB48 Operation & Maintenance Manual SN AFVL00101 & Above – PDF DOWNLOAD

CONTENTS 3
FOREWORD 5
BOBCAT COMPANY IS ISO 9001:2000 CERTIFIED 7
SERIAL NUMBER LOCATION 8
Attachment Serial Number 8
DELIVERY REPORT 8
IDENTIFICATION AND MACHINE SIGNS (DECALS) 9
FEATURES AND ACCESSORIES 10
Standard Items 10
Falling Object Guard Structure (FOGS) For Excavators 11
Special Applications Kit For Excavators 11
SAFETY 13
SAFETY INSTRUCTIONS 15
Safe Operation Is The Operator’s Responsibility 15
Safe Operation Needs A Qualified Operator 15
Use Safety Rules 16
Call Before You Dig 16
Avoid Silica Dust 16
FIRE PREVENTION 17
Maintenance 17
Operation 17
Electrical 17
Hydraulic System 17
Fueling 17
Starting 17
Spark Arrestor Exhaust System 17
Welding And Grinding 18
Fire Extinguishers 18
PUBLICATIONS AND TRAINING RESOURCES 19
OPERATING INSTRUCTIONS 21
INITIAL SETUP 23
Hose Installation 23
DAILY INSPECTION 24
Attachment Mounting Frame 24
Pin-On Attachment 24
Manual Spring Loaded Coupler 24
OPERATING PROCEDURE WITH EXCAVATORS 25
Approved Excavator Models & Requirements 25
Machine / Attachment Setup 26
Entering And Exiting the Excavator 27
Installation 29
Hydraulic Quick Couplers 34
Control Functions 35
Operation With The Excavator 36
Removal 38
LIFTING THE ATTACHMENT 40
Procedure 40
TRANSPORTING THE ATTACHMENT ON A TRAILER 40
Fastening 40
TRANSPORTING THE ATTACHMENT AND MACHINE ON A TRAILER 41
Loading And Fastening 41
PREVENTIVE MAINTENANCE 43
TROUBLESHOOTING 45
Chart 45
SERVICE SCHEDULE 46
Description 46
REGULAR MAINTENANCE ITEMS 47
Cleaning The Tilt Bucket 47
LUBRICATING THE ATTACHMENT 48
Lubrication Locations 48
REMOVAL AND INSTALLATION OF CUTTING EDGE 49
Procedure 49
REMOVAL AND INSTALLATION OF MOUNTING FRAME 50
Procedure 50
REMOVAL AND INSTALLATION OF CYLINDER 53
Procedure 53
Cylinder Parts Identification 54
Cylinder Disassembly 55
Cylinder Assembly 58
ATTACHMENT STORAGE AND RETURN TO SERVICE 61
Storage 61
Return to Service 61
SPECIFICATIONS 63
SCHEMATIC(S) 65
Hydraulic Schematic (TB48) 65
(TB48) TILT BUCKET SPECIFICATIONS 66
Dimensions 66
Performance 66
Hydraulic System 66
Capacities 66
HYDRAULIC CONNECTION SPECIFICATIONS 67
O-ring Face Seal Connection 67
Straight Thread O-Ring Fitting 67
Tubelines And Hoses 67
Flare Fitting 68
Port Seal Fitting 68
TORQUE SPECIFICATIONS FOR BOLTS 70
Torque For General SAE Bolts 70
Torque For General Metric Bolts 71
WARRANTY 73
WARRANTY 75
ALPHABETICAL INDEX 77

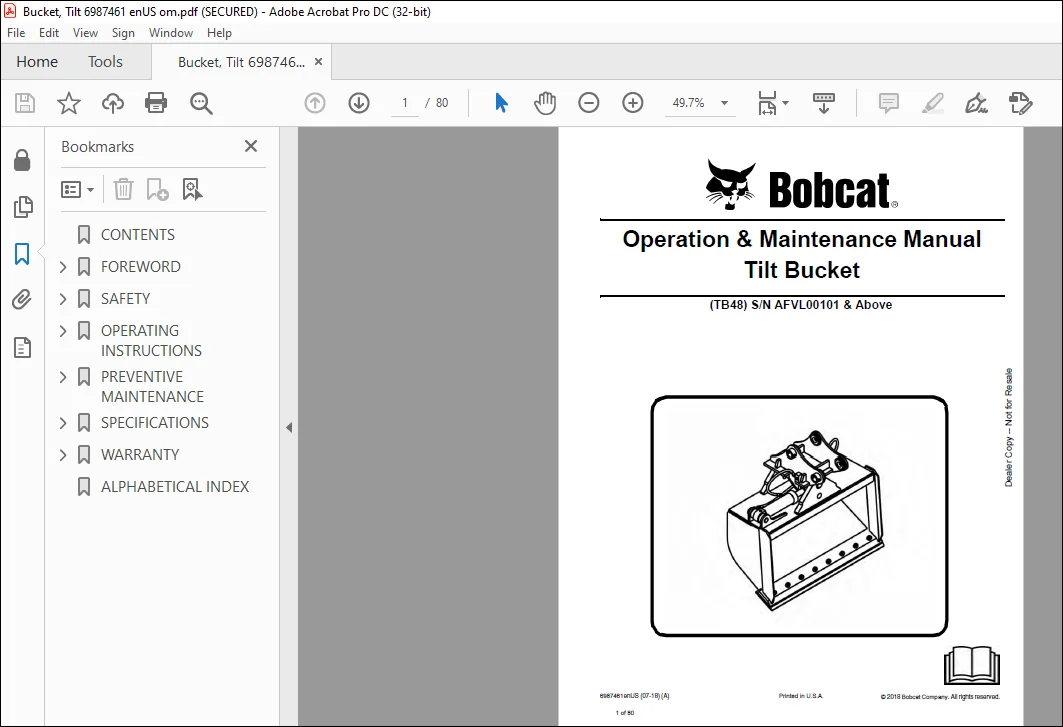

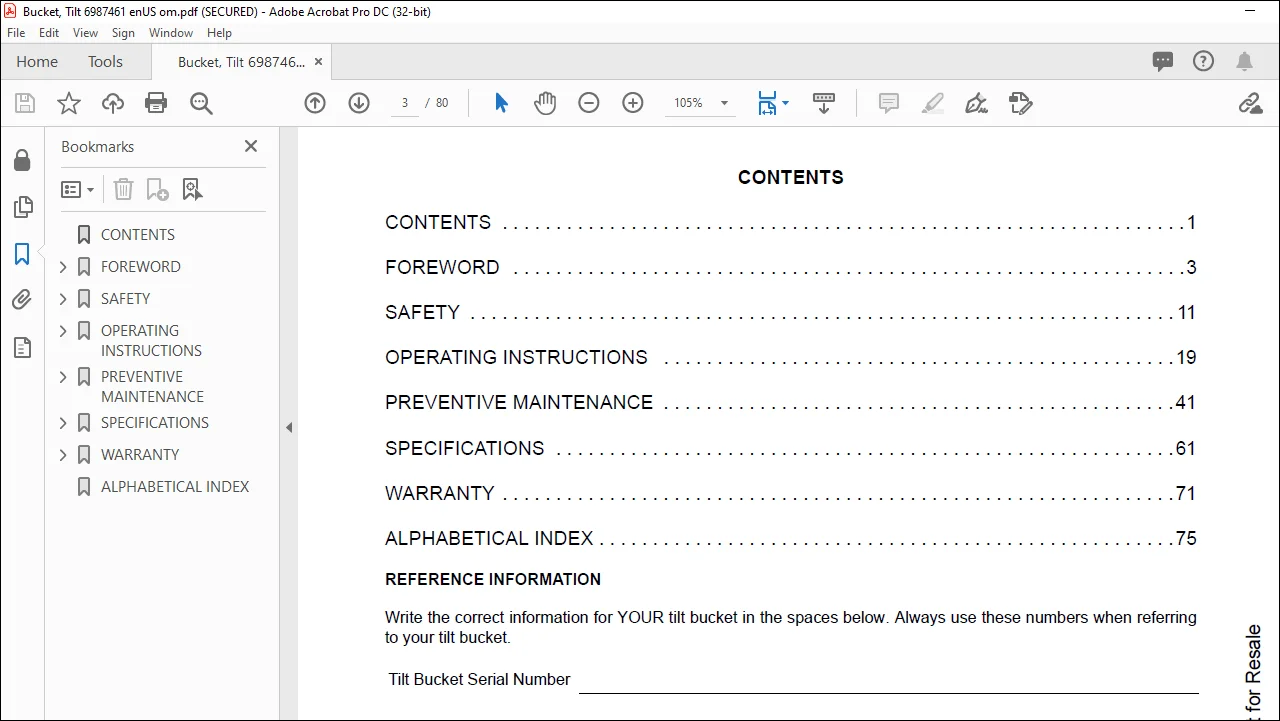

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Bobcat Tilt Bucket TB48 Operation & Maintenance Manual SN AFVL00101 & Above – PDF DOWNLOAD

FOREWORD

This Operation & Maintenance Manual was written to give the owner / operator instructions on the safe operation and maintenance of the tilt bucket. READ AND UNDERSTAND THIS OPERATION & MAINTENANCE MANUAL BEFORE OPERATING YOUR TILT BUCKET. If you have any questions, see your Bobcat dealer.

SAFETY INSTRUCTIONS

Operator must have instructions before operating the machine. Untrained operators can cause injury or death.

Safe Operation Needs A Qualified Operator

For an operator to be qualified, he or she must not use drugs or alcoholic drinks which impair alertness or coordination while working. An operator who is taking prescription drugs must get medical advice to determine if he or she can safely operate a machine and the attachment.

A Qualified Operator Must Do The Following:

Understand the Written Instructions, Rules and Regulations

• The written instructions from Bobcat Company include the Delivery Report, Operation & Maintenance Manual, Operator’s Handbook, Safety Manual and machine signs (decals).
• Check the rules and regulations at your location. The rules may include an employer’s work safety requirements. Regulations may apply to local driving requirements or use of a Slow Moving Vehicle (SMV) emblem. Regulations may identify a hazard such as a utility line.

Have Training with Actual Operation

•  Operator training must consist of a demonstration and verbal instruction. This training is given by your Bobcat dealer before the product is delivered.
• The new operator must start in an area without bystanders and use all the controls until he or she can operate the machine and attachment safely under all conditions of the work area. Always fasten seat belt before operating.

Know the Work Conditions

• Know the weight of the materials being handled. Avoid exceeding the machine load capacities. Material which is very dense will be heavier than the same volume of less dense material. Reduce the size of load if handling dense material.
• The operator must know any prohibited uses or work areas, for example, he or she needs to know about excessive slopes.
• Know the location of any underground lines. Call local utilities or the TOLL FREE phone number found in the Call Before You Dig section of this manual.
• Wear tight fitting clothing. Always wear safety glasses when doing maintenance or service. Safety glasses, respiratory equipment, and hearing protection are required for some work. See your Bobcat dealer about Bobcat safety equipment for your machine.

SAFETY INSTRUCTIONS (CONT’D)
Use Safety Rules

• Read and follow instructions in the machine and the attachment’s / implement’s Operation & Maintenance Manual before operating.
• Check for underground lines before operating attachment / implement (if applicable).
• In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
• Check that the attachment mounting pins and hardware are installed correctly and securely fastened (if equipped).
• Check that the loader is securely installed to the compact tractor using the correct pins and hardware.
• Check that the Bob-Tach® levers are in the locked position and the wedges are fully engaged into the mounting holes of the attachment (if applicable).
• Check that the implement is securely fastened to the machine.
• Depress brake pedals (or make sure parking brake is engaged) and make sure all the machine controls are in the NEUTRAL position before starting the machine. • Always start the machine from the operator’s seat.
• Operate the attachment / implement according to the Operation & Maintenance Manual.
• When learning to operate the attachment / implement, do it at a slow rate in an area clear of bystanders.
• DO NOT permit personnel to be in the work area when operating the machine and attachment / implement.
• The attachment / implement must be used ONLY on approved machines. See your Bobcat dealer for updated list of approved attachments / implements for each machine model.
• DO NOT modify equipment or add attachments / implements that exceed manufacturer’s specifications.
• DO NOT make any adjustments or repairs on the machine or attachment / implement while the engine is running.
• Keep shields and guards in place. Replace if damaged.
