Bobcat Tree Vibrator Service Manual (Single & Double) – Model 30 & 40 PDF
Original price was: $95.00.$18.95Current price is: $18.95.
Official Factory Service Manual for Bobcat Tree Vibrators, covering Models 30 and 40 (Single and Double head). This 110-page technical PDF provides essential maintenance safety protocols, hydraulic motor servicing, and full electrical schematics. Master your attachment service with expert guidance on vibrating head repairs and clamping cylinder checking.
Description
Bobcat Tree Vibrator Service Manual (Single & Double) – Model 30 & 40 PDF DOWNLOAD
DESCRIPTION
Maintain the precision and heavy-duty performance of your equipment with the Official Bobcat Tree Vibrator Service Manual. This manual is the definitive resource for Models 30 and 40, providing the same factory-authorized data used by certified technicians to perform everything from periodic maintenance to complex hydraulic system overhauls.
Whether you are troubleshooting a defective injection system (in the host loader) or performing a precise clamping arm replacement, this manual ensures you have the correct specifications and tightening torque values for a “First Time Right” repair.
Neatly Categorized Technical Content:
Safety & Maintenance:
Comprehensive Maintenance Safety protocols and warning sign identification.
Daily cleaning and lubrication points for head frame and clamping arm pivots.
Tree Vibrator Mount Inspection and Bob-Tach wedge mounting verification.
Hydraulic System Servicing:
Detailed Hydraulic Control Valve removal, disassembly, and assembly.
Hydraulic Cylinder checking and repair for clamping, leveling, and tilt functions.
Hydraulic Motor removal and installation for both Single and Double head configurations.
Accumulator servicing and removal procedures.
Main Frame & Mechanical Components:

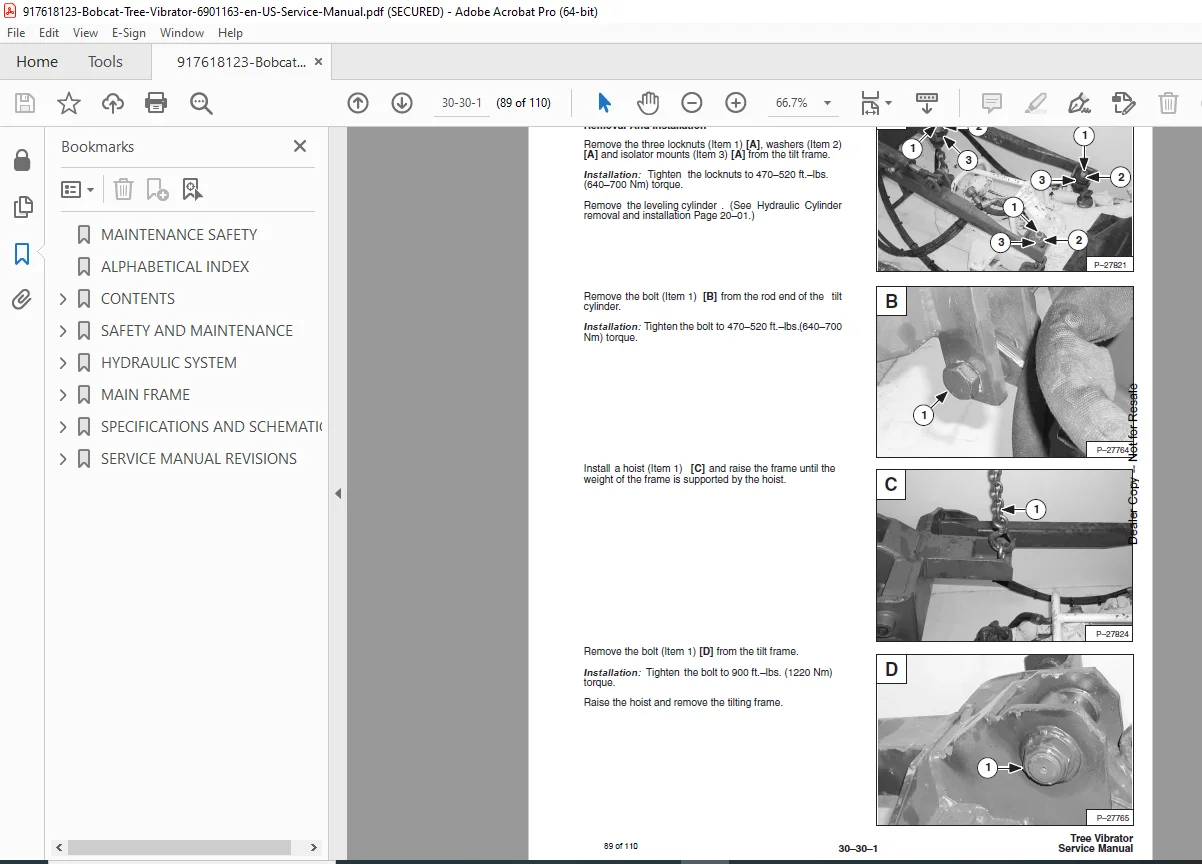

Vibrating Head disassembly and assembly for Model 30 and 40.
Clamping Arm and Tilting Frame removal and installation.
Clamping Pad replacement and plate alignment.
Specifications & Schematics:
Detailed Hydraulic Schematics for Single and Double models.
Electrical Schematics with 7-pin connector wiring data.
Full Glossary of Hydraulic Symbols for professional-level circuit tracing.
Core Technical Specifications:
| Feature | Single Model | Double Model |
| Max Tree Diameter | 2.0″ – 15.75
| 2.0″ – 15.75″
|
| Overall Attachment Width | 45.25″ (1150 mm)
| 45.25″ (1150 mm)
|
| Total Attachment Weight | 1036 lbs (470 kg)
| NA lbs (NA kg)
|
| Overall Length (Open) | 134.0″ (3400 mm)
| 130.0″ (3300 mm)
|
FILE DETAILS

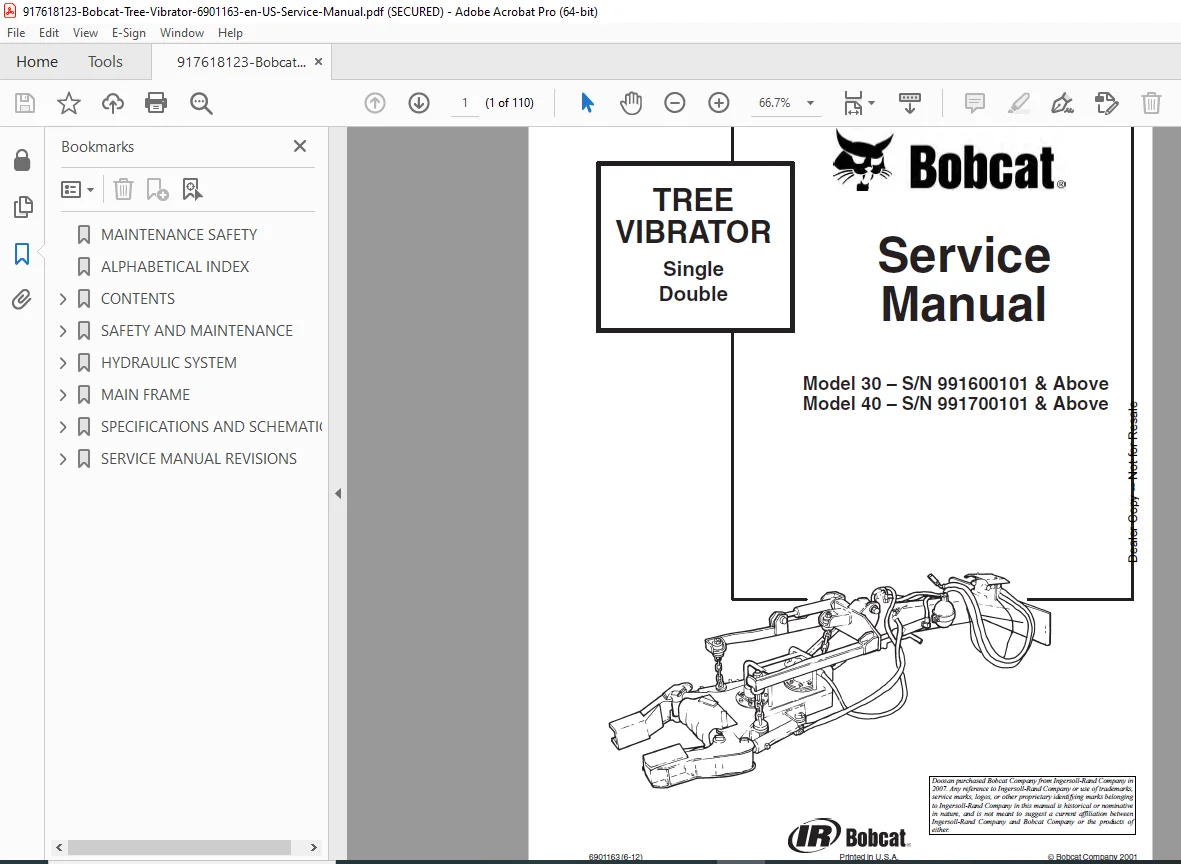

Manual Name: Bobcat Tree Vibrator Service Manual
Models Covered: Model 30 (S/N 991600101 & Above), Model 40 (S/N 991700101 & Above)
Year: June 2012 (Revision 6-12)
Manual PDF Quality: Factory High-Resolution Digital Edition, Searchable & Indexed
No. of Pages: 110 Page
⚡ INSTANT REPAIR ACCESS
Stop guessing on complex hydraulic faults and avoid expensive field service fees. Purchase this manual now to instantly download the factory blueprints and adjustment secrets needed to keep your Bobcat Tree Vibrator in production today!
