Bomag BF600C ACM2.1 Evo, BF700 EDC16 Function.377 Schematic Manual EN_DE PDF

Description

Bomag BF600C ACM2.1 Evo, BF700 EDC16 Function.377 Schematic Manual EN_DE – PDF DOWNLOAD

FILE DETAILS:

Bomag BF600C ACM2.1 Evo, BF700 EDC16 Function.377 Schematic Manual EN_DE – PDF DOWNLOAD

Language : English_German
Pages : 146
Downloadable : Yes
File Type : PDF

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

Bomag BF600C ACM2.1 Evo, BF700 EDC16 Function.377 Schematic Manual EN_DE – PDF DOWNLOAD

Page tree 1
DOC1 Leading documentation 1

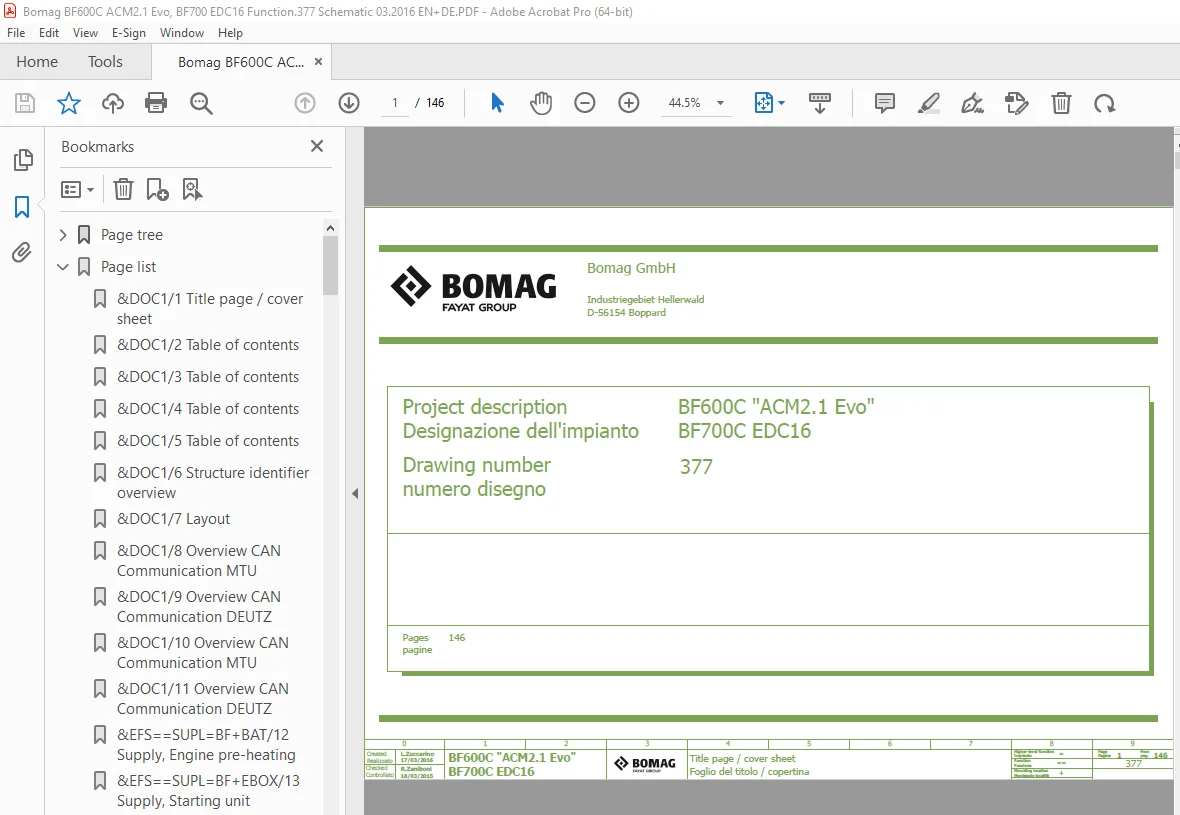

1 Title page / cover sheet 1
2 Table of contents 2
3 Table of contents 3
4 Table of contents 4
5 Table of contents 5
6 Structure identifier overview 6
7 Layout 7
8 Overview CAN Communication MTU 8
9 Overview CAN Communication DEUTZ 9
10 Overview CAN Communication MTU 10
11 Overview CAN Communication DEUTZ 11
EFS Circuit diagram 12
BF Basic machine Paver 12
SUPL Supply 12
BAT Battery-box 12
12 Supply, Engine pre-heating 12
EBOX Central electric 13
13 Supply, Starting unit 13
14 Ignition switch 14
15 Gen-On 15
16 Socket 12V-24V 16
17 Fuse protection potential 30 17
18 Fuse protection potential 15 18
19 Fuse protection potential 15 19
20 Fuse protection Gen-on, Controller 20
21 Supply Driving Controller 21
22 Supply Screed Controller 22
23 Supply Material flow Controller 23
24 Supply 8,5V sensors 24
25 Supply Data Collector 1, I/O Module 25
26 Supply LC-Display, Data Collector 2 26
COM Communication 27
EBOX Central electric 27
27 Communication, Diagnosis 27
28 Communication, Diagnosis 28
29 Communication, Diagnosis 29
30 Communication, Diagnosis 30
SEAT Seat console 31
31 Communication, Diagnosis 31
ENGI Engine 32
EBOX Central electric 32
32 MTU Common power train controller (CPC4) 32
MOT Engine and attachment parts 33
33 MTU Motor control module (MCM2) 33
FRA Frame 34
34 MTU Aftertreatment control module (ACM) 34
35 DEUTZ Engine Controller EMR3 (EDC16) 35
DATA Data collector / signals 36
EBOX Central electric 36
36 Failure indicators, Warning buzzer 36
DRIV Drive functions 37
EBOX Central electric 37
37 Safety device 37
38 Warning horn 38
39 Engine speed, Fan 39
40 Traction 40
41 Traction 41
42 Traction 42
43 Traction 43
44 Traction 44
PAV Paving 45
EBOX Central electric 45
45 Power Sync 45
46 Heating 46
47 Hoppers 47
48 Conveyors 48
49 Conveyors 49
50 Conveyors 50
51 Conveyors 51
52 Conveyors 52
53 Augers 53
54 Augers 54
55 Augers 55
56 Augers 56
57 Auger Box 57
58 Screed extension 58
59 Screed extension 59
60 Screed level 60
61 Screed level 61
62 LCS 62
63 LCS 63
64 LCS 64
65 Tamper, Vibration plates 65
66 Crown 66
67 Push rollers 67
68 Side Plate 68
ILUM Lighting 69
EBOX Central electric 69

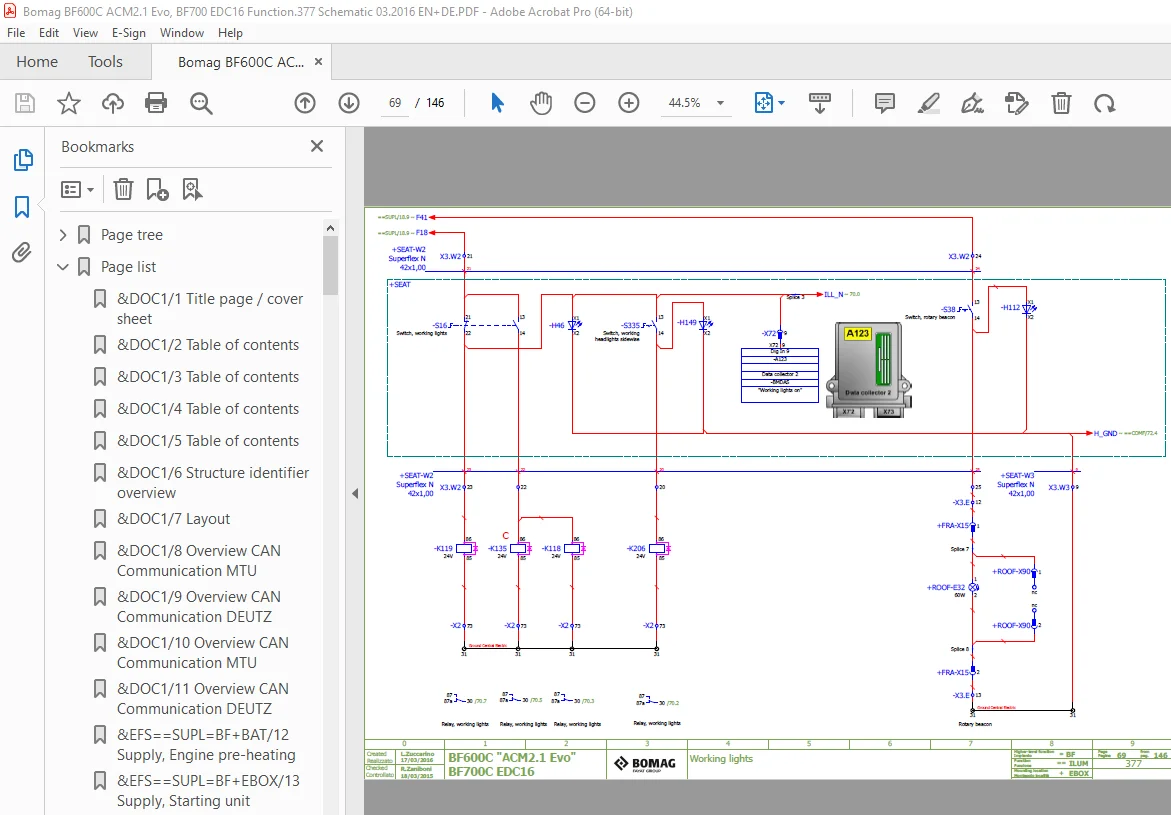

69 Working lights 69
70 Working lights 70
71 Windscreen Wipers 71
COMF Comfort functions 72
EBOX Central electric 72
72 Cleaning 72
73 Fume exhauster, Heating operators seat, Central lubrication, Refrigerator 73
74 Safety lock bolts 74
75 Displacement Drivers Platform and Roof 75
76 Bomag telematics 76
77 Camera system 77
DOC2 Reports and drawings 78
78 Component-Listing 78
79 Component-Listing 79
80 Component-Listing 80
81 Component-Listing 81
82 Component-Listing 82
83 Component-Listing 83
84 Component-Listing 84
85 Component-Listing 85
86 Component-Listing 86
87 Component-Listing 87
88 Component-Listing 88
89 Terminal diagram 89
90 Terminal diagram 90
91 Terminal diagram 91
92 Terminal diagram 92
93 Terminal diagram 93
94 Terminal diagram 94
95 Terminal diagram 95
96 Terminal diagram 96
97 Terminal diagram 97
98 Terminal diagram 98
99 Terminal diagram 99
100 Terminal diagram 100
101 Terminal diagram 101
102 Terminal diagram 102
103 Terminal diagram 103
104 Plug diagram 104
105 Plug diagram 105
106 Plug diagram 106
107 Plug diagram 107
108 Plug diagram 108
109 Plug diagram 109
110 Plug diagram 110
111 Plug diagram 111
112 Plug diagram 112
113 Plug diagram 113
114 Plug diagram 114
115 Plug diagram 115
116 Plug diagram 116
117 Plug diagram 117
118 Plug diagram 118
119 Cable diagram W1 119
120 Cable diagram W1 120
121 Cable diagram W2 121
122 Cable diagram W2 122
123 Cable diagram W3 123
124 Cable diagram W3 124
125 Cable diagram W5 125
126 Cable diagram W5 126
127 Cable diagram W6 127
128 Cable diagram W6 128
129 Pin overview A34 129
130 Pin overview A34 130
131 Pin overview A80 131
132 Pin overview A81 132
133 Pin overview A121 133
134 Pin overview A121 134
135 Pin overview A122 135
136 Pin overview A122 136
137 Pin overview A123 137
138 Pin overview A145 138
139 View Terminal strip X1 139
140 View Terminal strip X2 140
141 View Terminal strip X3 UP 141
142 View Terminal strip X3 UP 142
143 View Terminal strip X3 DOWN 143
144 View Terminal strip X3 DOWN 144
145 Component-Listing 145
146 Plug diagram 146
Page list 1
&DOC1/1 Title page / cover sheet 1
&DOC1/2 Table of contents 2
&DOC1/3 Table of contents 3
&DOC1/4 Table of contents 4
&DOC1/5 Table of contents 5
&DOC1/6 Structure identifier overview 6
&DOC1/7 Layout 7
&DOC1/8 Overview CAN Communication MTU 8
&DOC1/9 Overview CAN Communication DEUTZ 9
&DOC1/10 Overview CAN Communication MTU 10
&DOC1/11 Overview CAN Communication DEUTZ 11
&EFS==SUPL=BF+BAT/12 Supply, Engine pre-heating 12
&EFS==SUPL=BF+EBOX/13 Supply, Starting unit 13
&EFS==SUPL=BF+EBOX/14 Ignition switch 14
&EFS==SUPL=BF+EBOX/15 Gen-On 15
&EFS==SUPL=BF+EBOX/16 Socket 12V-24V 16
&EFS==SUPL=BF+EBOX/17 Fuse protection potential 30 17
&EFS==SUPL=BF+EBOX/18 Fuse protection potential 15 18
&EFS==SUPL=BF+EBOX/19 Fuse protection potential 15 19
&EFS==SUPL=BF+EBOX/20 Fuse protection Gen-on, Controller 20
&EFS==SUPL=BF+EBOX/21 Supply Driving Controller 21
&EFS==SUPL=BF+EBOX/22 Supply Screed Controller 22
&EFS==SUPL=BF+EBOX/23 Supply Material flow Controller 23
&EFS==SUPL=BF+EBOX/24 Supply 8,5V sensors 24
&EFS==SUPL=BF+EBOX/25 Supply Data Collector 1, I/O Module 25
&EFS==SUPL=BF+EBOX/26 Supply LC-Display, Data Collector 2 26
&EFS==COM=BF+EBOX/27 Communication, Diagnosis 27
&EFS==COM=BF+EBOX/28 Communication, Diagnosis 28
&EFS==COM=BF+EBOX/29 Communication, Diagnosis 29
&EFS==COM=BF+EBOX/30 Communication, Diagnosis 30
&EFS==COM=BF+SEAT/31 Communication, Diagnosis 31
&EFS==ENGI=BF+EBOX/32 MTU Common power train controller (CPC4) 32
&EFS==ENGI=BF+MOT/33 MTU Motor control module (MCM2) 33
&EFS==ENGI=BF+FRA/34 MTU Aftertreatment control module (ACM) 34
&EFS==ENGI=BF+FRA/35 DEUTZ Engine Controller EMR3 (EDC16) 35
&EFS==DATA=BF+EBOX/36 Failure indicators, Warning buzzer 36
&EFS==DRIV=BF+EBOX/37 Safety device 37
&EFS==DRIV=BF+EBOX/38 Warning horn 38
&EFS==DRIV=BF+EBOX/39 Engine speed, Fan 39
&EFS==DRIV=BF+EBOX/40 Traction 40
&EFS==DRIV=BF+EBOX/41 Traction 41
&EFS==DRIV=BF+EBOX/42 Traction 42
&EFS==DRIV=BF+EBOX/43 Traction 43
&EFS==DRIV=BF+EBOX/44 Traction 44
&EFS==PAV=BF+EBOX/45 Power Sync 45
&EFS==PAV=BF+EBOX/46 Heating 46
&EFS==PAV=BF+EBOX/47 Hoppers 47
&EFS==PAV=BF+EBOX/48 Conveyors 48
&EFS==PAV=BF+EBOX/49 Conveyors 49
&EFS==PAV=BF+EBOX/50 Conveyors 50
&EFS==PAV=BF+EBOX/51 Conveyors 51
&EFS==PAV=BF+EBOX/52 Conveyors 52
&EFS==PAV=BF+EBOX/53 Augers 53
&EFS==PAV=BF+EBOX/54 Augers 54
&EFS==PAV=BF+EBOX/55 Augers 55
&EFS==PAV=BF+EBOX/56 Augers 56
&EFS==PAV=BF+EBOX/57 Auger Box 57
&EFS==PAV=BF+EBOX/58 Screed extension 58
&EFS==PAV=BF+EBOX/59 Screed extension 59
&EFS==PAV=BF+EBOX/60 Screed level 60
&EFS==PAV=BF+EBOX/61 Screed level 61
&EFS==PAV=BF+EBOX/62 LCS 62
&EFS==PAV=BF+EBOX/63 LCS 63
&EFS==PAV=BF+EBOX/64 LCS 64
&EFS==PAV=BF+EBOX/65 Tamper, Vibration plates 65
&EFS==PAV=BF+EBOX/66 Crown 66
&EFS==PAV=BF+EBOX/67 Push rollers 67
&EFS==PAV=BF+EBOX/68 Side Plate 68
&EFS==ILUM=BF+EBOX/69 Working lights 69
&EFS==ILUM=BF+EBOX/70 Working lights 70
&EFS==ILUM=BF+EBOX/71 Windscreen Wipers 71
&EFS==COMF=BF+EBOX/72 Cleaning 72
&EFS==COMF=BF+EBOX/73 Fume exhauster, Heating operators seat, Central lubrication, Refrigerator 73
&EFS==COMF=BF+EBOX/74 Safety lock bolts 74
&EFS==COMF=BF+EBOX/75 Displacement Drivers Platform and Roof 75
&EFS==COMF=BF+EBOX/76 Bomag telematics 76
&EFS==COMF=BF+EBOX/77 Camera system 77
&DOC2/78 Component-Listing 78
&DOC2/79 Component-Listing 79
&DOC2/80 Component-Listing 80
&DOC2/81 Component-Listing 81
&DOC2/82 Component-Listing 82
&DOC2/83 Component-Listing 83
&DOC2/84 Component-Listing 84
&DOC2/85 Component-Listing 85
&DOC2/86 Component-Listing 86
&DOC2/87 Component-Listing 87
&DOC2/88 Component-Listing 88
&DOC2/89 Terminal diagram 89
&DOC2/90 Terminal diagram 90
&DOC2/91 Terminal diagram 91
&DOC2/92 Terminal diagram 92
&DOC2/93 Terminal diagram 93
&DOC2/94 Terminal diagram 94
&DOC2/95 Terminal diagram 95
&DOC2/96 Terminal diagram 96
&DOC2/97 Terminal diagram 97
&DOC2/98 Terminal diagram 98
&DOC2/99 Terminal diagram 99
&DOC2/100 Terminal diagram 100
&DOC2/101 Terminal diagram 101
&DOC2/102 Terminal diagram 102
&DOC2/103 Terminal diagram 103
&DOC2/104 Plug diagram 104
&DOC2/105 Plug diagram 105
&DOC2/106 Plug diagram 106
&DOC2/107 Plug diagram 107
&DOC2/108 Plug diagram 108
&DOC2/109 Plug diagram 109
&DOC2/110 Plug diagram 110
&DOC2/111 Plug diagram 111
&DOC2/112 Plug diagram 112
&DOC2/113 Plug diagram 113
&DOC2/114 Plug diagram 114
&DOC2/115 Plug diagram 115
&DOC2/116 Plug diagram 116
&DOC2/117 Plug diagram 117
&DOC2/118 Plug diagram 118
&DOC2/119 Cable diagram W1 119
&DOC2/120 Cable diagram W1 120
&DOC2/121 Cable diagram W2 121
&DOC2/122 Cable diagram W2 122
&DOC2/123 Cable diagram W3 123
&DOC2/124 Cable diagram W3 124
&DOC2/125 Cable diagram W5 125
&DOC2/126 Cable diagram W5 126
&DOC2/127 Cable diagram W6 127
&DOC2/128 Cable diagram W6 128
&DOC2/129 Pin overview A34 129
&DOC2/130 Pin overview A34 130
&DOC2/131 Pin overview A80 131
&DOC2/132 Pin overview A81 132
&DOC2/133 Pin overview A121 133
&DOC2/134 Pin overview A121 134
&DOC2/135 Pin overview A122 135
&DOC2/136 Pin overview A122 136
&DOC2/137 Pin overview A123 137
&DOC2/138 Pin overview A145 138
&DOC2/139 View Terminal strip X1 139
&DOC2/140 View Terminal strip X2 140
&DOC2/141 View Terminal strip X3 UP 141
&DOC2/142 View Terminal strip X3 UP 142
&DOC2/143 View Terminal strip X3 DOWN 143
&DOC2/144 View Terminal strip X3 DOWN 144
&DOC2/145 Component-Listing 145
&DOC2/146 Plug diagram 146
