Bomag BW 170, BW 180 Drawing No.87010014 Circuit Diagram Manual EN_DE PDF
$12.95
Bomag BW 170, BW 180 Drawing No.87010014 Circuit Diagram Manual EN_DE – PDF DOWNLOAD
Description
Bomag BW 170, BW 180 Drawing No.87010014 Circuit Diagram Manual EN_DE – PDF DOWNLOAD
FILE DETAILS:
Bomag BW 170, BW 180 Drawing No.87010014 Circuit Diagram Manual EN_DE – PDF DOWNLOAD
Language : English_German
Pages : 33
Downloadable : Yes
File Type : PDF

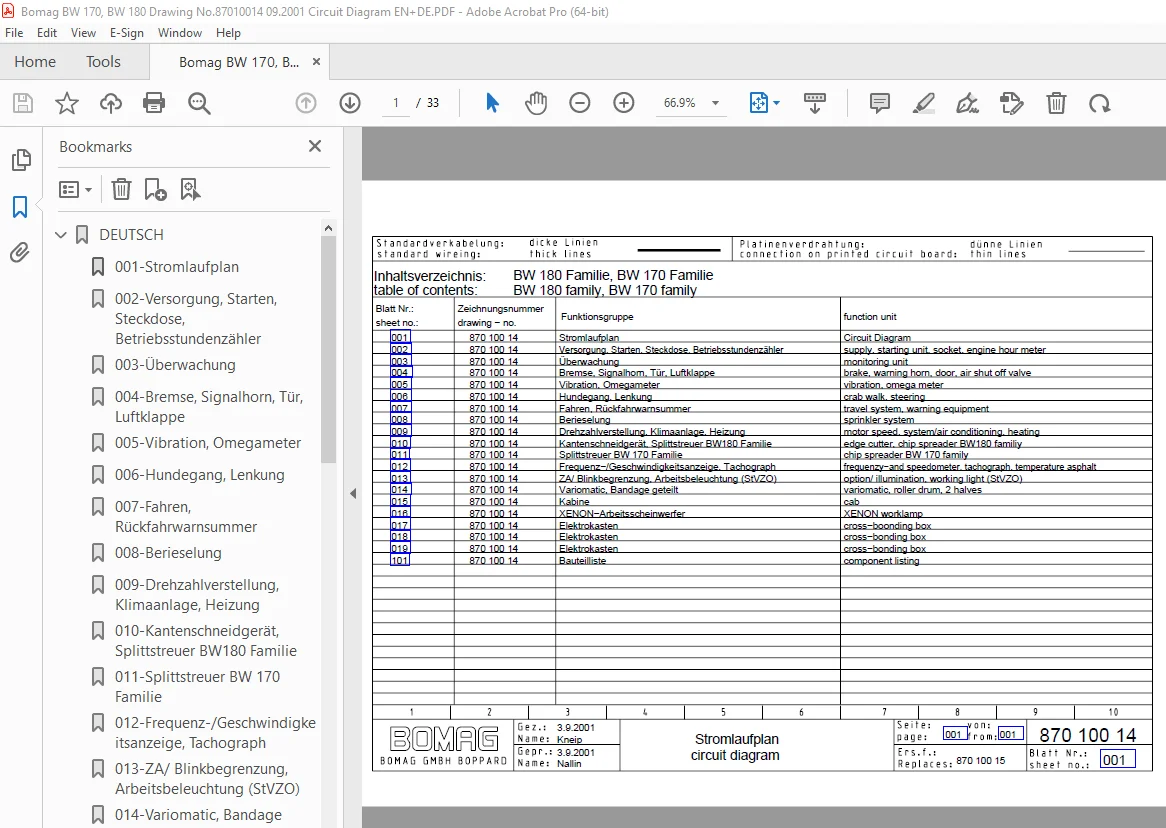

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Bomag BW 170, BW 180 Drawing No.87010014 Circuit Diagram Manual EN_DE – PDF DOWNLOAD
DEUTSCH 33
001-Stromlaufplan 1
002-Versorgung, Starten, Steckdose, Betriebsstundenzähler 2
003-Überwachung 3
004-Bremse, Signalhorn, Tür, Luftklappe 4
005-Vibration, Omegameter 5
006-Hundegang, Lenkung 6
007-Fahren, Rückfahrwarnsummer 7
008-Berieselung 8
009-Drehzahlverstellung, Klimaanlage, Heizung 9
010-Kantenschneidgerät, Splittstreuer BW180 Familie 10
011-Splittstreuer BW 170 Familie 11
012-Frequenz-/Geschwindigkeitsanzeige, Tachograph 12
013-ZA/ Blinkbegrenzung, Arbeitsbeleuchtung (StVZO) 13
014-Variomatic, Bandage geteilt 14
015-Kabine 15
016-XENON-Arbeitsscheinwerfer 16
017-Elektrokasten 17
018-Elektrokasten 18
019-Elektrokasten 19
101-Bauteilliste 20
ENGLISH 33
001-Circuit Diagram 1
002-supply, starting unit, socket, engine hour meter 2
003-monitoring unit 3
004-brake, warning horn, door, air shut off valve 4
005-vibration, omega meter 5
006-crab walk, steering 6
007-travel system, warning equipment 7
008-sprinkler system 8
009-motor speed, system/air conditioning, heating 9
010-edge cutter, chip spreader BW180 familiy 10
011-chip spreader BW 170 family 11
012-frequenzy-and speedometer, tachograph, temperature asphalt 12
013-option/ illumination, working light (StVZO) 13
014-variomatic, roller drum, 2 halves 14
015-cab 15
016-XENON worklamp 16
017-cross-boonding box 17
018-cross-bonding box 18
019-cross-bonding box 19
101-component listing 20
S.V 08/24
