Bomag BW 216…219 D-4 Tier III Drawing-No.58270230 Circuit Diagram Manual EN_DE PDF
$13.95
Bomag BW 216…219 D-4 Tier III Drawing-No.58270230 Circuit Diagram Manual EN_DE – PDF DOWNLOAD
Description
Bomag BW 216…219 D-4 Tier III Drawing-No.58270230 Circuit Diagram Manual EN_DE – PDF DOWNLOAD
FILE DETAILS:
Bomag BW 216…219 D-4 Tier III Drawing-No.58270230 Circuit Diagram Manual EN_DE – PDF DOWNLOAD
Language : English_German
Pages : 34
Downloadable : Yes
File Type : PDF

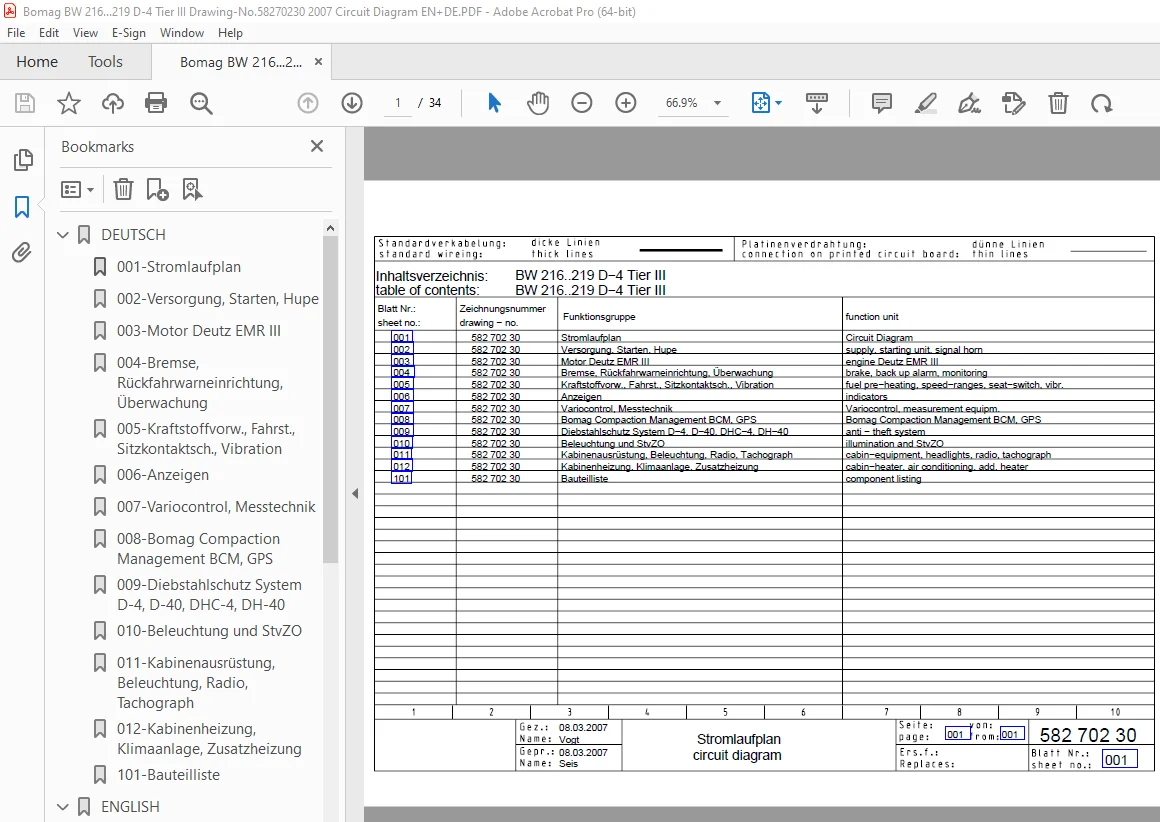

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Bomag BW 216…219 D-4 Tier III Drawing-No.58270230 Circuit Diagram Manual EN_DE – PDF DOWNLOAD
DEUTSCH 21
001-Stromlaufplan 1
002-Versorgung, Starten, Hupe 2
003-Motor Deutz EMR III 3
004-Bremse, Rückfahrwarneinrichtung, Überwachung 4
005-Kraftstoffvorw , Fahrst , Sitzkontaktsch , Vibration 5
006-Anzeigen 6
007-Variocontrol, Messtechnik 7
008-Bomag Compaction Management BCM, GPS 8
009-Diebstahlschutz System D-4, D-40, DHC-4, DH-40 9
010-Beleuchtung und StvZO 10
011-Kabinenausrüstung, Beleuchtung, Radio, Tachograph 11
012-Kabinenheizung, Klimaanlage, Zusatzheizung 12
101-Bauteilliste 13
ENGLISH 21
001-Circuit Diagram 1
002-supply, starting unit, signal horn 2
003-engine Deutz EMR III 3
004-brake, back up alarm, monitoring 4
005-fuel pre-heating, speed-ranges, seat-switch, vibr 5
006-indicators 6
007-Variocontrol, measurement equipm 7
008-Bomag Compaction Management BCM, GPS 8
009-anti – theft system 9
010-illumination and StvZO 10
011-cabin-equipment, headlights, radio, tachograph 11
012-cabin-heater, air conditioning, add heater 12
101-component listing 13
S.V 08/24
