Bomag BW 80-5 BW 90-5 BW 100-5 Function.76 Wiring Diagram Manual EN_DE PDF
$12.95
Bomag BW 80-5 BW 90-5 BW 100-5 Function.76 Wiring Diagram Manual EN_DE – PDF DOWNLOAD
Description
Bomag BW 80-5 BW 90-5 BW 100-5 Function.76 Wiring Diagram Manual EN_DE – PDF DOWNLOAD
FILE DETAILS:
Bomag BW 80-5 BW 90-5 BW 100-5 Function.76 Wiring Diagram Manual EN_DE – PDF DOWNLOAD
Language : English_German
Pages : 26
Downloadable : Yes
File Type : PDF

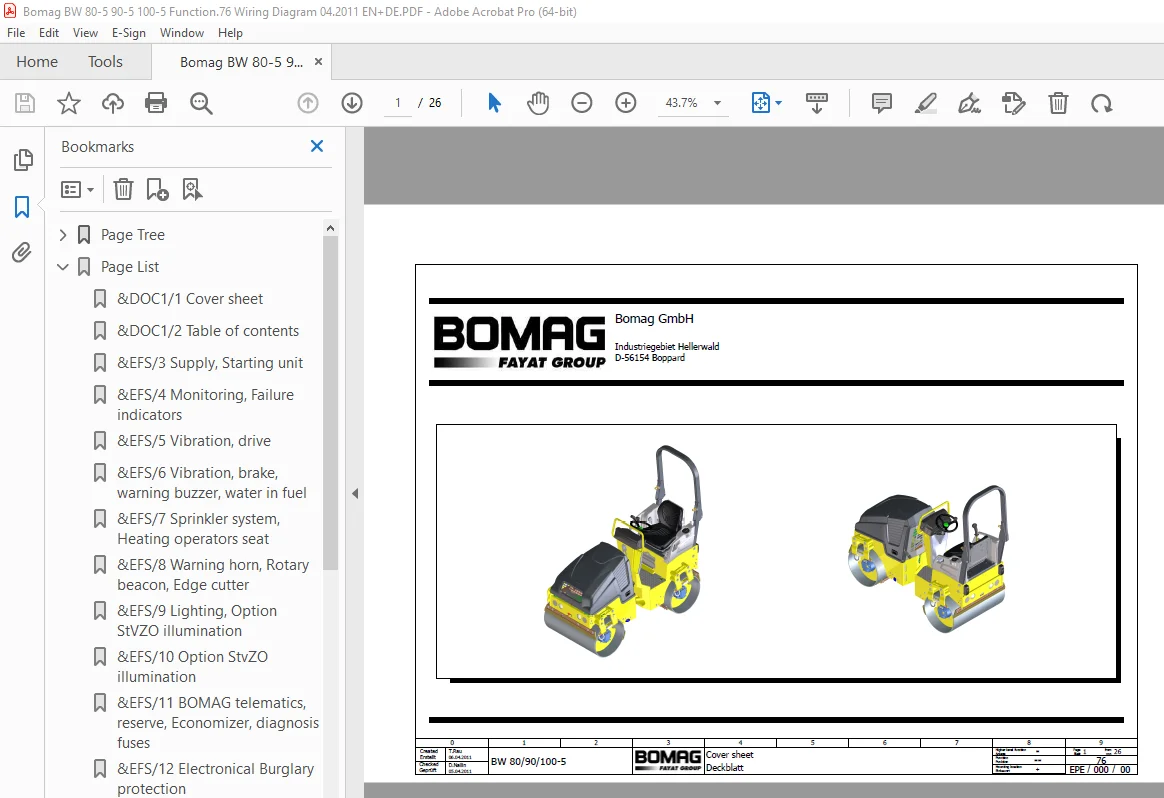

IMAGES PREVIEW OF THE MANUAL:
TABLE OF CONTENTS:
Bomag BW 80-5 BW 90-5 BW 100-5 Function.76 Wiring Diagram Manual EN_DE – PDF DOWNLOAD
Page Tree 1
DOC1 1
1 Cover sheet 1
2 Table of contents 2
EFS 3
3 Supply, Starting unit 3
4 Monitoring, Failure indicators 4
5 Vibration, drive 5
6 Vibration, brake, warning buzzer, water in fuel 6
7 Sprinkler system, Heating operators seat 7
8 Warning horn, Rotary beacon, Edge cutter 8
9 Lighting, Option StVZO illumination 9
10 Option StvZO illumination 10
11 BOMAG telematics, reserve, Economizer, diagnosis fuses 11
12 Electronical Burglary protection 12
13 Bomag telematics 13
DOC2 14
15 Device tag list 14
16 Device tag list 15
17 Device tag list 16
18 Device tag list 17
24 Pin overview A15 18
52 Plug overview 19
53 Plug overview 20
54 Plug overview 21
55 Plug overview 22
56 Plug overview 23
57 Plug overview 24
58 Overview Central Electric 25
59 Overview Instrument board 26
