Briggs & Stratton Vanguard V-Twin Cylinder OHV Engine Manual – PDF DOWNLOAD

Description

Briggs & Stratton Vanguard V-Twin Cylinder OHV Engine Manual – PDF DOWNLOAD

FILE DETAILS:

Briggs & Stratton Vanguard V-Twin Cylinder OHV Engine Manual – PDF DOWNLOAD

Language : English
Pages : 191
Downloadable : Yes
File Type : PDF
Size: 15.8 MB

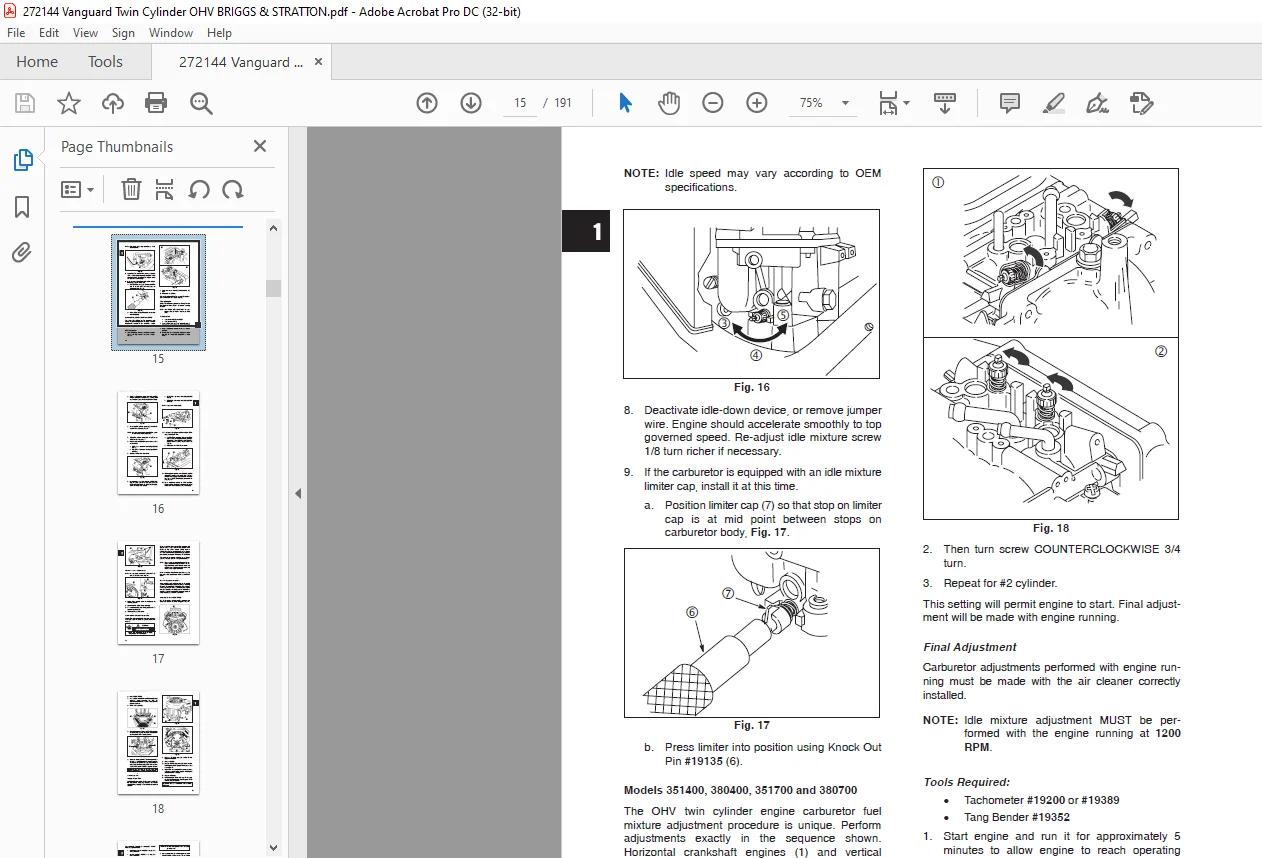

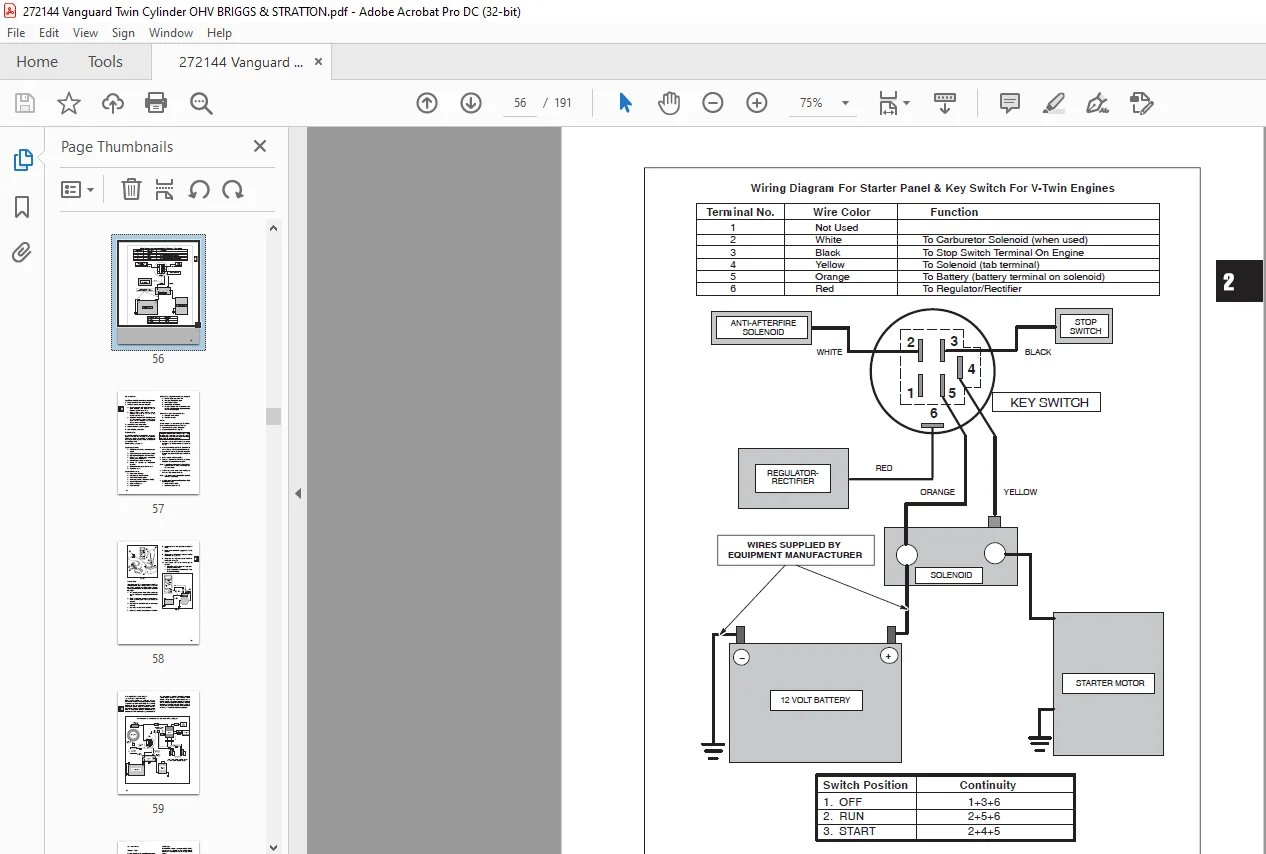

IMAGES PREVIEW OF THE MANUAL:

DESCRIPTION:

Briggs & Stratton Vanguard V-Twin Cylinder OHV Engine Manual – PDF DOWNLOAD

Additional Precautions:

Before working on the engine, read and understand the applicable sections of this manual. Follow all safety warnings. Death, personal injury and/or property damage may occur unless service instructions are followed carefully.

• DO NOT store, spill, or use gasoline near an open flame, or near an appliance like a stove, furnace, or water heater that uses a pilot light or creates a spark.
• DO NOT refuel indoors or in an unventilated area. DO NOT operate or tip engine/equipment at an angle that causes gasoline spillage.
• DO NOT operate engine if gasoline is spilled, when smell of gasoline is present, or when other explosive conditions exist. (Move equipment away from spill. Avoid ignition until gasoline has evaporated.) DO NOT transport engine with fuel in tank or fuel shut-off valve open.
• DO NOT choke carburetor to stop engine, especially in an enclosed vehicle. (Gradually reduce engine speed before stopping.) DO NOT tamper with governor springs, links or other parts to increase engine speed. (Run engine at speed set for equipment manufacturer.)
• DO NOT check for spark with spark plug removed. (Use an approved tester.) DO NOT run engine with blower housing or other safety shields removed.
• DO NOT crank engine with spark plug removed. (If engine is flooded, place throttle in FAST position and crank until engine starts.) DO NOT strike flywheel with a hammer or hard object. This could cause the flywheel to shatter in operation. (Use only Briggs & Stratton approved tools and procedures to remove the flywheel.)
• DO NOT operate engine without a muffler. (Inspect periodically and replace if worn or leaking. If engine is equipped with muffler deflector, inspect periodically and replace if necessary. Replacement parts must be same as on original equipment.)
• DO NOT operate engine with grass, leaves or other combustible material accumulated in the muffler area.
• DO NOT touch hot muffler, cylinder, or fins which can cause burns. DO NOT start engine with air cleaner or air cleaner cover removed.

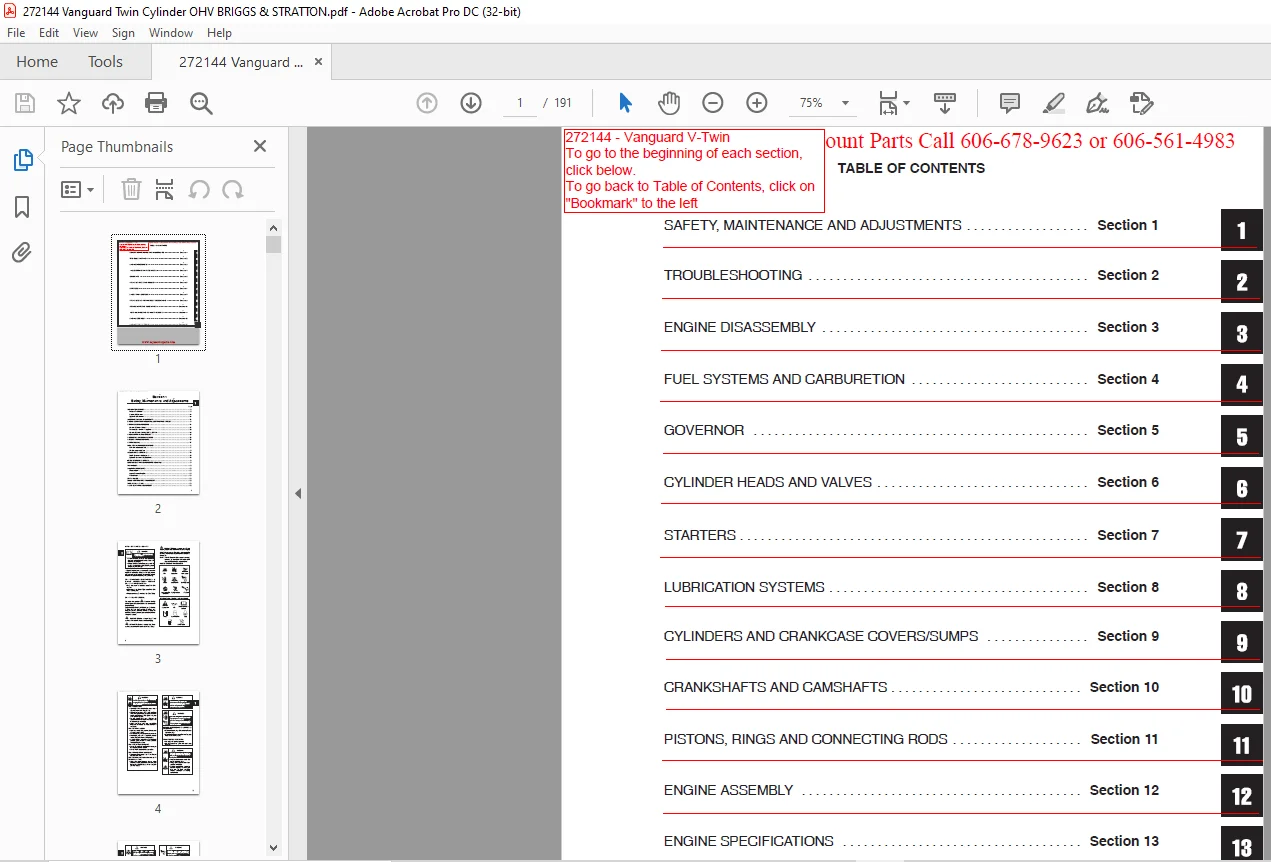

TABLE OF CONTENTS:

Briggs & Stratton Vanguard V-Twin Cylinder OHV Engine Manual – PDF DOWNLOAD

SAFETY, MAINTENANCE AND ADJUSTMENTS Section 1
TROUBLESHOOTING Section 2
ENGINE DISASSEMBLY Section 3
FUEL SYSTEMS AND CARBURETION Section 4
GOVERNOR Section 5
CYLINDER HEADS AND VALVES Section 6
STARTERS Section 7
LUBRICATION SYSTEMS Section 8
CYLINDERS AND CRANKCASE COVERS/SUMPS Section 9
CRANKSHAFTS AND CAMSHAFTS Section 10
PISTONS, RINGS AND CONNECTING RODS Section 11
ENGINE ASSEMBLY Section 12
ENGINE SPECIFICATIONS Section 13

Need help? Contact: [email protected]
