BT Electric Forklift LWE140 / LWE160 / LWE180 Quality Parts Manual 6384405

Description

BT Electric Forklift LWE140 / LWE160 / LWE180 Quality Parts Manual 6384405 –  PDF DOWNLOAD

FILE DETAILS:

BT Electric Forklift LWE140 / LWE160 / LWE180 Quality Parts Manual 6384405 –  PDF DOWNLOAD

Language : English,GERMAN,French,Swedish
Pages :217
Downloadable : Yes
File Type : PDF

Valid for machine number:6384405
Ordering number:7588761
Language:en sv de fr

TABLE OF CONTENTS:

BT Electric Forklift LWE140 / LWE160 / LWE180 Quality Parts Manual 6384405 –  PDF DOWNLOAD

0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Motors 5
Motorer; Motoren; Moteurs 5
2000 Transmission/Drive gear 5
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 5
3000 Brake/Wheel/Caterpillar system 5
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
4000 Steering system 6
Styrsystem; Steuer-/Lenksystem; Système de direction 6
5000 Electrical system 6
Elektriskt system; Elektroanlage; Système électrique 6
6000 Hydraulic/pneumatic system 7
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 7
9000 Options/attachments 8
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 8
0340-01129 P0044948 10
0340-01129 Inspection covers [2016-11-30] 11
0350-00132 P0031192 12
0350-00132 Support arms, stabilizers [2011-03-23] 13
0380-01302 P0044090 14
0380-01302 Fork frame (low lifters) [2018-02-07] 15
0380-01303 P0044091 16
0380-01303 Fork frame (low lifters) [2017-05-29] 17
0380-01785 P0056187 20
0380-01785 Fork frame (low lifters) [2017-06-01] 21
0380-01786 P0056188 22
0380-01786 Fork frame (low lifters) [2017-05-29] 23
0390-00481 P0032344 26
0390-00481 Battery compartment parts [2014-03-13] 27
0390-00483 P0032347 28
0390-00483 Battery compartment parts [2014-03-13] 29
0390-00572 P0034916 30
0390-00572 Battery compartment parts [2013-10-23] 31
0390-00573 P0034917 32
0390-00573 Battery compartment parts [2013-10-31] 33
0390-00574 P0034918 34
0390-00574 Battery compartment parts [2015-03-17] 35
0390-01050 P0043868 36
0390-01050 Battery compartment parts [2018-03-29] 37
0390-01081 P0044952 38
0390-01081 Battery compartment parts [2014-03-13] 39
0390-01095 P0045255 40
0390-01095 Battery compartment parts [2014-03-25] 41
0390-01502 P0059044 42
0390-01502 Battery compartment parts [2018-03-27] 43
0390-01505 P0059067 44
0390-01505 Battery compartment parts [2018-08-29] 45
0390-01508 P0059102 46
0390-01508 Battery compartment parts [2018-08-30] 47
0390-01539 P0059803 48
0390-01539 Battery compartment parts [2018-08-30] 49
0820-00434 P0041443 50
0820-00434 Finger/foot guards [2013-02-04] 51
0850-00493 P0031188 52
0850-00493 Signs, warnings, decals [2018-03-26] 53
0850-00772 P0049214 54
0850-00772 Signs, warnings, decals [2018-08-27] 55
0850-01007 P0058511 56
0850-01007 Signs, warnings, decals [2018-06-01] 57
0850-01028 P0059512 58
0850-01028 Signs, warnings, decals [2018-06-01] 59
1710-00158 P0041438 60
1710-00158 Electric pump motor [2016-09-16] 61
1760-00245 P0049801 62
1760-00245 Electric drive motor [2017-10-26] 63
1760-00269 P0057481 64
1760-00269 Electric drive motor [2017-10-26] 65
2550-00180 P0049806 66
2550-00180 Mechanical drive gear unit [2015-12-03] 67
2550-00181 P0049807 68
2550-00181 Mechanical drive gear unit [2015-12-03] 69
3180-00059 P0049280 70
3180-00059 Electrically controlled travel brake [2015-12-09] 71
3180-00060 P0050655 72
3180-00060 Electrically controlled travel brake [2017-07-05] 73
3180-00068 P0055971 74
3180-00068 Electrically controlled travel brake [2018-01-30] 75
3180-00069 P0058243 76
3180-00069 Electrically controlled travel brake [2018-02-27] 77
3180-00072 P0058847 78
3180-00072 Electrically controlled travel brake [2018-02-27] 79
3530-00184 P0043609 80
3530-00184 Drive wheel [2016-08-22] 81
3540-00145 P0041413 82
3540-00145 Support/castor wheels [2014-01-13] 83
3550-00454 P0031103 84
3550-00454 Fork/support arm wheels [2016-05-30] 85
3550-00741 P0046677 86
3550-00741 Fork/support arm wheels [2017-05-09] 87
3550-00836 P0052617 88
3550-00836 Fork/support arm wheels [2017-05-29] 89
3550-00884 P0055996 90
3550-00884 Fork/support arm wheels [2017-05-09] 91
3550-00894 P0056201 92
3550-00894 Fork/support arm wheels [2017-05-29] 93
3570-00098 P0046125 94
3570-00098 Wheel locating points [2018-07-13] 95
3570-00117 P0058540 96
3570-00117 Wheel locating points [2018-03-27] 97
3580-00063 P0032413 98
3580-00063 Guide rollers/wheels [2013-02-06] 99
4110-00882 P0049293100
4110-00882 Steering arm/wheel/lever [2016-09-22]101
4110-00883 P0049294102
4110-00883 Steering arm/wheel/lever [2016-09-22]103
4110-00899 P0049808104
4110-00899 Steering arm/wheel/lever [2018-09-12]105
4110-00900 P0049812106
4110-00900 Steering arm/wheel/lever [2017-11-21]107
4110-00901 P0049813108
4110-00901 Steering arm/wheel/lever [2018-02-15]109
4110-00972 P0058202110
4110-00972 Steering arm/wheel/lever [2018-01-10]111
4110-00973 P0053686112
4110-00973 Steering arm/wheel/lever [2018-01-10]113
4110-01039 P0057864114
4110-01039 Steering arm/wheel/lever [2017-11-27]115
4110-01040 P0057869116
4110-01040 Steering arm/wheel/lever [2017-11-27]117
4110-01050 P0058205118
4110-01050 Steering arm/wheel/lever [2018-01-11]119
4110-01051 P0058203120
4110-01051 Steering arm/wheel/lever [2018-01-12]121
5160-00190 P0041426122
5160-00190 General alarm signals (audible/visual) [2013-02-05]123
5160-00236 P0050605124
5160-00236 General alarm signals (audible/visual) [2015-12-08]125
5190-00137 P0030586126
5190-00137 Battery cut out connector/contactor [2016-04-28]127
5190-00242 P0052198128
5190-00242 Battery cut out connector/contactor [2016-05-02]129
5390-00413 P0049864130
5390-00413 Driving function harnesses/fuse [2016-09-13]131
5460-00091 P0032391132
5460-00091 Transistor panel [2017-10-26]133
5460-00159 P0057474134
5460-00159 Transistor panel [2018-02-27]135
5590-00575 P0036747136
5590-00575 Work function harnesses/fuse [2015-12-08]137
5590-01023 P0050664138
5590-01023 Work function harnesses/fuse [2015-12-08]139
5610-00033 P0030587140
5610-00033 Pump contactor [2016-04-28]141
5610-00048 P0052206142
5610-00048 Pump contactor [2016-05-02]143
5680-00284 P0047658144
5680-00284 Battery/motor cables, fuse [2015-02-17]145
5680-00385 P0059018146
5680-00385 Battery/motor cables, fuse [2018-04-06]147
5680-00386 P0059042148
5680-00386 Battery/motor cables, fuse [2018-06-21]149
5680-00390 P0059079150
5680-00390 Battery/motor cables, fuse [2018-06-18]151
5680-00391 P0059084154
5680-00391 Battery/motor cables, fuse [2018-04-06]155
5820-00568 P0044643156
5820-00568 Lift/lowering/reach movement probes/sensors [2013-08-29]157
5830-00200 P0030581158
5830-00200 Safety probes/sensors [2013-02-06]159
5830-00211 P0032079160
5830-00211 Safety probes/sensors [2016-06-10]161
6100-00311 P0034014162
6100-00311 Hydraulic unit [2015-10-23]163
6100-00440 P0050276164
6100-00440 Hydraulic unit [2017-09-20]165
6230-00206 P0030601166
6230-00206 Hydraulic lines chassis [2017-09-21]167
6230-00599 P0057116168
6230-00599 Hydraulic lines chassis [2017-10-25]169
6610-00977 P0049767170
6610-00977 Main lift cylinders [2015-09-03]171
9380-00026 P0035819172
9380-00026 Charger attachment [2015-02-13]173
9380-00044 P0047668174
9380-00044 Charger attachment [2015-04-10]175
9380-00063 P0057568176
9380-00063 Charger attachment [2017-10-26]177
9400-00318 P0031243178
9400-00318 Extra electrical equipment [2018-02-09]179
9400-00490 P0038594180
9400-00490 Extra electrical equipment [2018-03-27]181
9400-00557 P0041423182
9400-00557 Extra electrical equipment [2016-01-29]183
9400-00840 P0051019184
9400-00840 Extra electrical equipment [2016-01-29]185
9400-01104 P0058984186
9400-01104 Extra electrical equipment [2018-03-27]187
9420-00015 P0012396188
9420-00015 Truck log device, code locking device [2015-09-01]189
9420-00139 P0033141190
9420-00139 Truck log device, code locking device [2017-08-28]191
9420-00218 P0045190192
9420-00218 Truck log device, code locking device [2013-11-22]193
9420-00384 P0054448194
9420-00384 Truck log device, code locking device [2016-12-02]195
9420-00432 P0056746196
9420-00432 Truck log device, code locking device [2017-08-25]197
9500-01073 P0031109198
9500-01073 Other extra equipment [2017-11-15]199
9500-01412 P0037659200
9500-01412 Other extra equipment [2014-02-18]201
9500-01549 P0040005202
9500-01549 Other extra equipment [2013-04-25]203
9500-01628 P0041417204
9500-01628 Other extra equipment [2017-10-18]205
9500-01629 P0041424208
9500-01629 Other extra equipment [2013-02-07]209
9500-01630 P0041430210
9500-01630 Other extra equipment [2013-02-05]211
9500-01632 P0041448212
9500-01632 Other extra equipment [2014-02-18]213
9500-02105 P0047986214
9500-02105 Other extra equipment [2018-08-28]215
9500-02778 P0057139216
9500-02778 Other extra equipment [2017-09-21]217

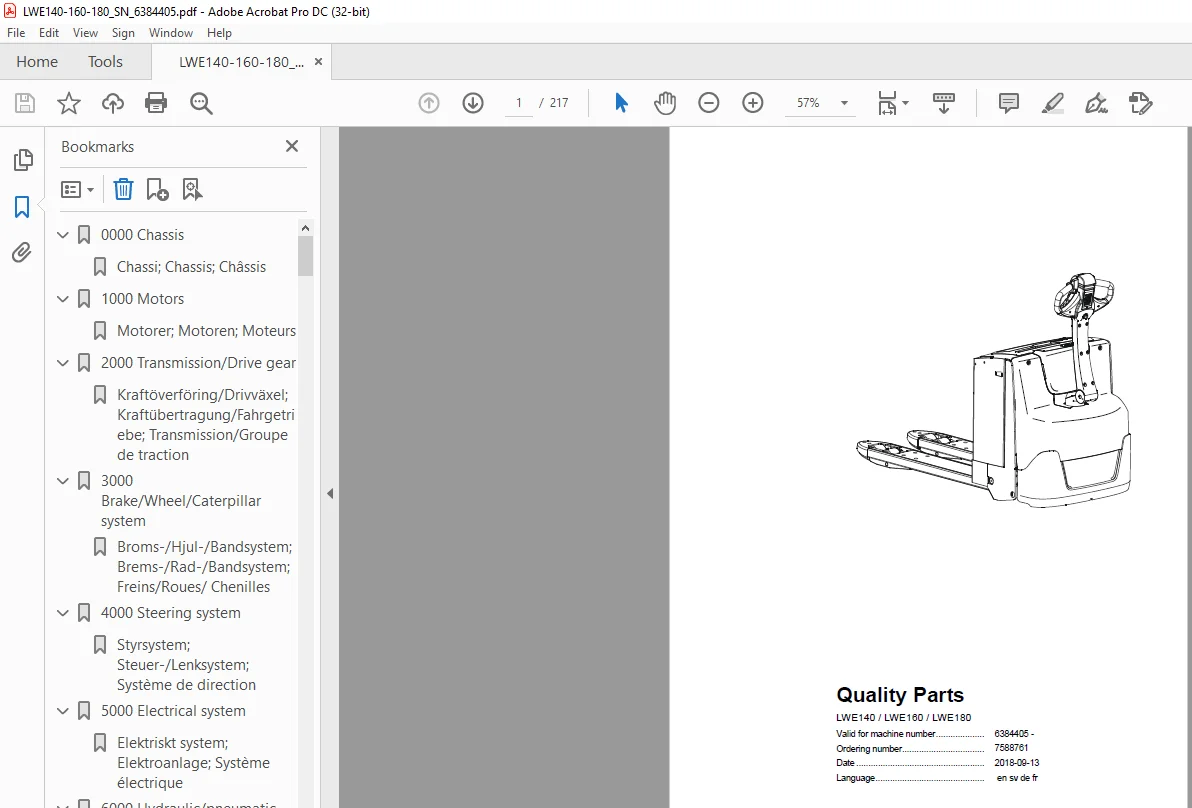

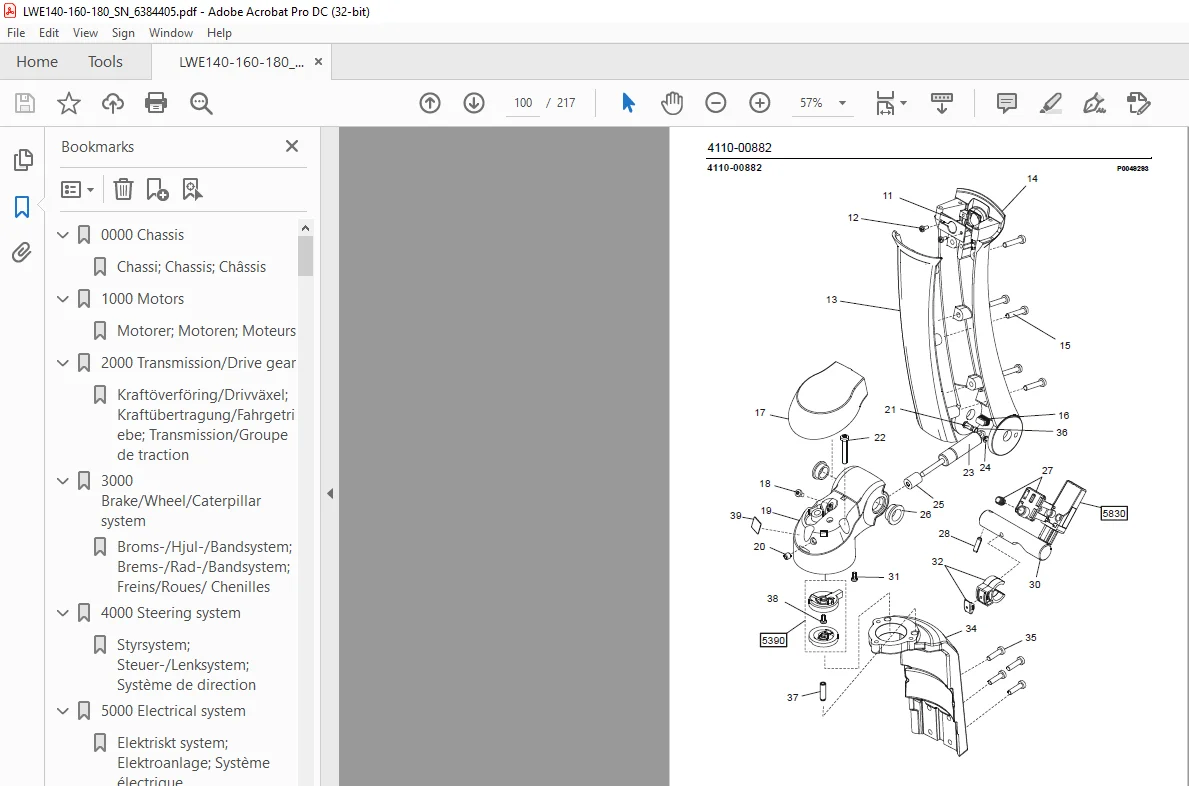

IMAGES PREVIEW OF THE MANUAL:
