BT Electric Forklift LWE200 Quality Parts Manual 6384368 – 7999999

Description

BT Electric Forklift LWE200 Quality Parts Manual 6384368 – 7999999 – PDF DOWNLOAD

FILE DETAILS:

BT Electric Forklift LWE200 Quality Parts Manual 6384368 – 7999999 – PDF DOWNLOAD

Language : English
Pages :217
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

BT Electric Forklift LWE200 Quality Parts Manual 6384368 – 7999999 – PDF DOWNLOAD

0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Motors 5
Motorer; Motoren; Moteurs 5
2000 Transmission/Drive gear 5
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 5
3000 Brake/Wheel/Caterpillar system 5
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
4000 Steering system 6
Styrsystem; Steuer-/Lenksystem; Système de direction 6
5000 Electrical system 6
Elektriskt system; Elektroanlage; Système électrique 6
6000 Hydraulic/pneumatic system 8
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 8
9000 Options/attachments 8
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 8
0340-01241 P0048074 10
0340-01241 Inspection covers [2016-11-30] 11
0340-01242 P0048075 12
0340-01242 Inspection covers [2016-12-06] 13
0380-01302 P0044090 14
0380-01302 Fork frame (low lifters) [2018-02-07] 15
0380-01785 P0056187 16
0380-01785 Fork frame (low lifters) [2017-06-01] 17
0390-00483 P0032347 18
0390-00483 Battery compartment parts [2014-03-13] 19
0390-00574 P0034918 20
0390-00574 Battery compartment parts [2015-03-17] 21
0390-01050 P0043868 22
0390-01050 Battery compartment parts [2018-03-29] 23
0390-01079 P0044937 24
0390-01079 Battery compartment parts [2016-09-05] 25
0390-01095 P0045255 26
0390-01095 Battery compartment parts [2014-03-25] 27
0390-01182 P0048073 28
0390-01182 Battery compartment parts [2015-04-15] 29
0390-01183 P0048076 30
0390-01183 Battery compartment parts [2015-04-15] 31
0390-01505 P0059067 32
0390-01505 Battery compartment parts [2018-08-29] 33
0390-01508 P0059102 34
0390-01508 Battery compartment parts [2018-08-30] 35
0390-01539 P0059803 36
0390-01539 Battery compartment parts [2018-08-30] 37
0560-00244 P0035797 38
0560-00244 Platform incl fixing points [2013-02-06] 39
0820-00374 P0036765 40
0820-00374 Finger/foot guards [2013-02-06] 41
0820-00434 P0041443 42
0820-00434 Finger/foot guards [2013-02-04] 43
0850-00703 P0044944 44
0850-00703 Signs, warnings, decals [2018-03-26] 45
0850-00772 P0049214 46
0850-00772 Signs, warnings, decals [2018-08-27] 47
0850-01008 P0058512 48
0850-01008 Signs, warnings, decals [2018-06-01] 49
0850-01032 P0059516 50
0850-01032 Signs, warnings, decals [2018-06-13] 51
1710-00150 P0034018 52
1710-00150 Electric pump motor [2013-02-06] 53
1760-00246 P0049802 54
1760-00246 Electric drive motor [2017-10-26] 55
1760-00270 P0057492 56
1760-00270 Electric drive motor [2017-10-26] 57
2550-00180 P0049806 58
2550-00180 Mechanical drive gear unit [2015-12-03] 59
2550-00181 P0049807 60
2550-00181 Mechanical drive gear unit [2015-12-03] 61
3180-00059 P0049280 62
3180-00059 Electrically controlled travel brake [2015-12-09] 63
3180-00060 P0050655 64
3180-00060 Electrically controlled travel brake [2017-07-05] 65
3180-00068 P0055971 66
3180-00068 Electrically controlled travel brake [2018-01-30] 67
3180-00069 P0058243 68
3180-00069 Electrically controlled travel brake [2018-02-27] 69
3180-00072 P0058847 70
3180-00072 Electrically controlled travel brake [2018-02-27] 71
3530-00184 P0043609 72
3530-00184 Drive wheel [2016-08-22] 73
3540-00145 P0041413 74
3540-00145 Support/castor wheels [2014-01-13] 75
3550-00741 P0046677 76
3550-00741 Fork/support arm wheels [2017-05-09] 77
3550-00884 P0055996 78
3550-00884 Fork/support arm wheels [2017-05-09] 79
3570-00097 P0046121 80
3570-00097 Wheel locating points [2014-03-27] 81
3570-00098 P0046125 82
3570-00098 Wheel locating points [2018-07-13] 83
3570-00117 P0058540 84
3570-00117 Wheel locating points [2018-03-27] 85
3580-00063 P0032413 86
3580-00063 Guide rollers/wheels [2013-02-06] 87
4110-00882 P0049293 88
4110-00882 Steering arm/wheel/lever [2016-09-22] 89
4110-00883 P0049294 90
4110-00883 Steering arm/wheel/lever [2016-09-22] 91
4110-00884 P0049295 92
4110-00884 Steering arm/wheel/lever [2016-09-22] 93
4110-00900 P0049812 94
4110-00900 Steering arm/wheel/lever [2017-11-21] 95
4110-00901 P0049813 96
4110-00901 Steering arm/wheel/lever [2018-02-15] 97
4110-00972 P0058202 98
4110-00972 Steering arm/wheel/lever [2018-01-10] 99
4110-00973 P0053686100
4110-00973 Steering arm/wheel/lever [2018-01-10]101
4110-00974 P0053691102
4110-00974 Steering arm/wheel/lever [2017-08-17]103
4110-00978 P0054416104
4110-00978 Steering arm/wheel/lever [2018-01-10]105
4110-01039 P0057864106
4110-01039 Steering arm/wheel/lever [2017-11-27]107
4110-01040 P0057869108
4110-01040 Steering arm/wheel/lever [2017-11-27]109
4110-01050 P0058205110
4110-01050 Steering arm/wheel/lever [2018-01-11]111
4110-01051 P0058203112
4110-01051 Steering arm/wheel/lever [2018-01-12]113
4110-01052 P0058210114
4110-01052 Steering arm/wheel/lever [2018-01-10]115
5160-00190 P0041426116
5160-00190 General alarm signals (audible/visual) [2013-02-05]117
5160-00236 P0050605118
5160-00236 General alarm signals (audible/visual) [2015-12-08]119
5190-00137 P0030586120
5190-00137 Battery cut out connector/contactor [2016-04-28]121
5190-00242 P0052198122
5190-00242 Battery cut out connector/contactor [2016-05-02]123
5310-00215 P0044936124
5310-00215 Start/stop switch [2013-11-20]125
5390-00413 P0049864126
5390-00413 Driving function harnesses/fuse [2016-09-13]127
5390-00414 P0049865128
5390-00414 Driving function harnesses/fuse [2016-06-03]129
5460-00091 P0032391130
5460-00091 Transistor panel [2017-10-26]131
5460-00159 P0057474132
5460-00159 Transistor panel [2018-02-27]133
5590-00576 P0036748134
5590-00576 Work function harnesses/fuse [2015-12-08]135
5590-01024 P0050666136
5590-01024 Work function harnesses/fuse [2015-12-08]137
5610-00033 P0030587138
5610-00033 Pump contactor [2016-04-28]139
5610-00048 P0052206140
5610-00048 Pump contactor [2016-05-02]141
5680-00255 P0044933142
5680-00255 Battery/motor cables, fuse [2015-02-19]143
5680-00285 P0047659144
5680-00285 Battery/motor cables, fuse [2015-02-19]145
5680-00390 P0059079146
5680-00390 Battery/motor cables, fuse [2018-06-18]147
5680-00391 P0059084148
5680-00391 Battery/motor cables, fuse [2018-04-06]149
5820-00568 P0044643150
5820-00568 Lift/lowering/reach movement probes/sensors [2013-08-29]151
5830-00200 P0030581152
5830-00200 Safety probes/sensors [2013-02-06]153
5830-00211 P0032079154
5830-00211 Safety probes/sensors [2016-06-10]155
6100-00312 P0034016156
6100-00312 Hydraulic unit [2015-10-22]157
6100-00441 P0050278158
6100-00441 Hydraulic unit [2015-10-29]159
6230-00207 P0030602160
6230-00207 Hydraulic lines chassis [2017-09-21]161
6230-00268 P0034596162
6230-00268 Hydraulic lines chassis [2014-03-13]163
6230-00600 P0057118164
6230-00600 Hydraulic lines chassis [2017-09-21]165
6610-00675 P0041418166
6610-00675 Main lift cylinders [2015-09-17]167
6610-00977 P0049767168
6610-00977 Main lift cylinders [2015-09-03]169
6640-00010 P0045805170
6640-00010 Balance/stabilizer cylinders [2016-10-25]171
9380-00026 P0035819172
9380-00026 Charger attachment [2015-02-13]173
9380-00044 P0047668174
9380-00044 Charger attachment [2015-04-10]175
9380-00063 P0057568176
9380-00063 Charger attachment [2017-10-26]177
9400-00318 P0031243178
9400-00318 Extra electrical equipment [2018-02-09]179
9400-00490 P0038594180
9400-00490 Extra electrical equipment [2018-03-27]181
9400-00557 P0041423182
9400-00557 Extra electrical equipment [2016-01-29]183
9400-00840 P0051019184
9400-00840 Extra electrical equipment [2016-01-29]185
9400-01104 P0058984186
9400-01104 Extra electrical equipment [2018-03-27]187
9420-00015 P0012396188
9420-00015 Truck log device, code locking device [2015-09-01]189
9420-00139 P0033141190
9420-00139 Truck log device, code locking device [2017-08-28]191
9420-00218 P0045190192
9420-00218 Truck log device, code locking device [2013-11-22]193
9420-00384 P0054448194
9420-00384 Truck log device, code locking device [2016-12-02]195
9420-00432 P0056746196
9420-00432 Truck log device, code locking device [2017-08-25]197
9500-01073 P0031109198
9500-01073 Other extra equipment [2017-11-15]199
9500-01412 P0037659200
9500-01412 Other extra equipment [2014-02-18]201
9500-01549 P0040005202
9500-01549 Other extra equipment [2013-04-25]203
9500-01628 P0041417204
9500-01628 Other extra equipment [2017-10-18]205
9500-01629 P0041424208
9500-01629 Other extra equipment [2013-02-07]209
9500-01630 P0041430210
9500-01630 Other extra equipment [2013-02-05]211
9500-01632 P0041448212
9500-01632 Other extra equipment [2014-02-18]213
9500-02105 P0047986214
9500-02105 Other extra equipment [2018-08-28]215
9500-02778 P0057139216
9500-02778 Other extra equipment [2017-09-21]217

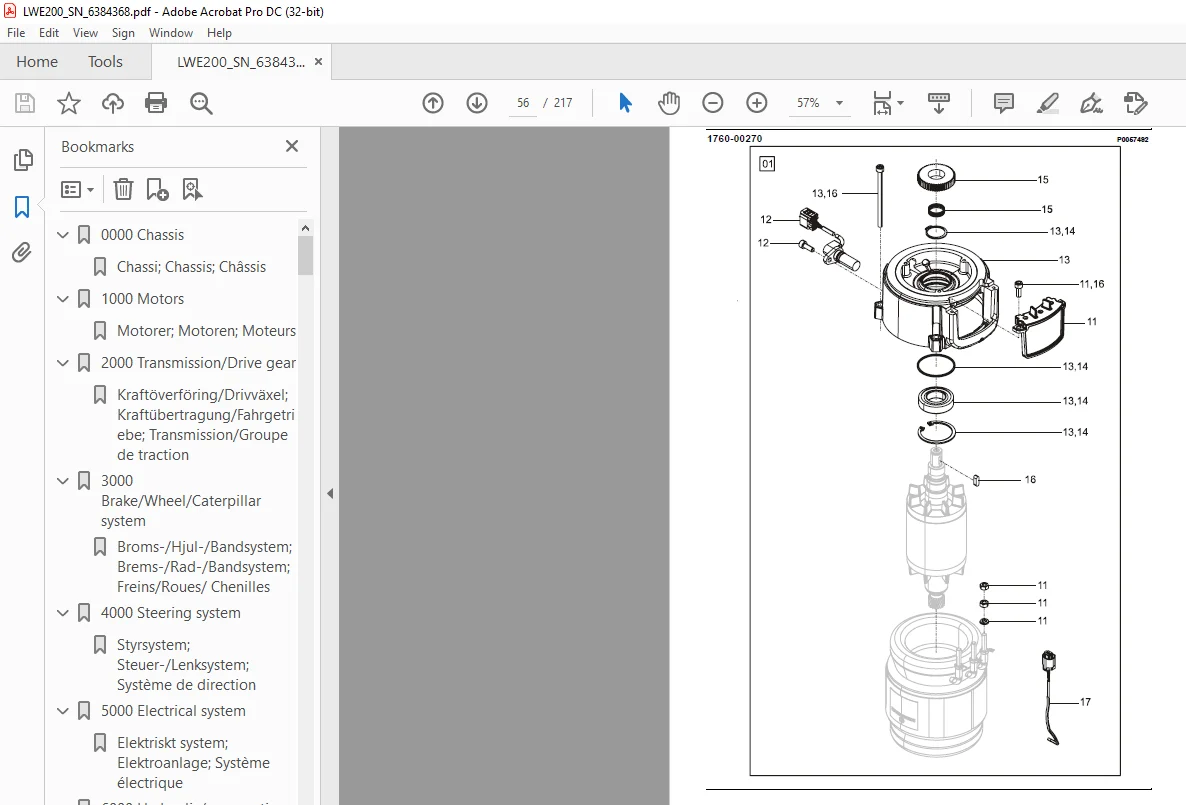

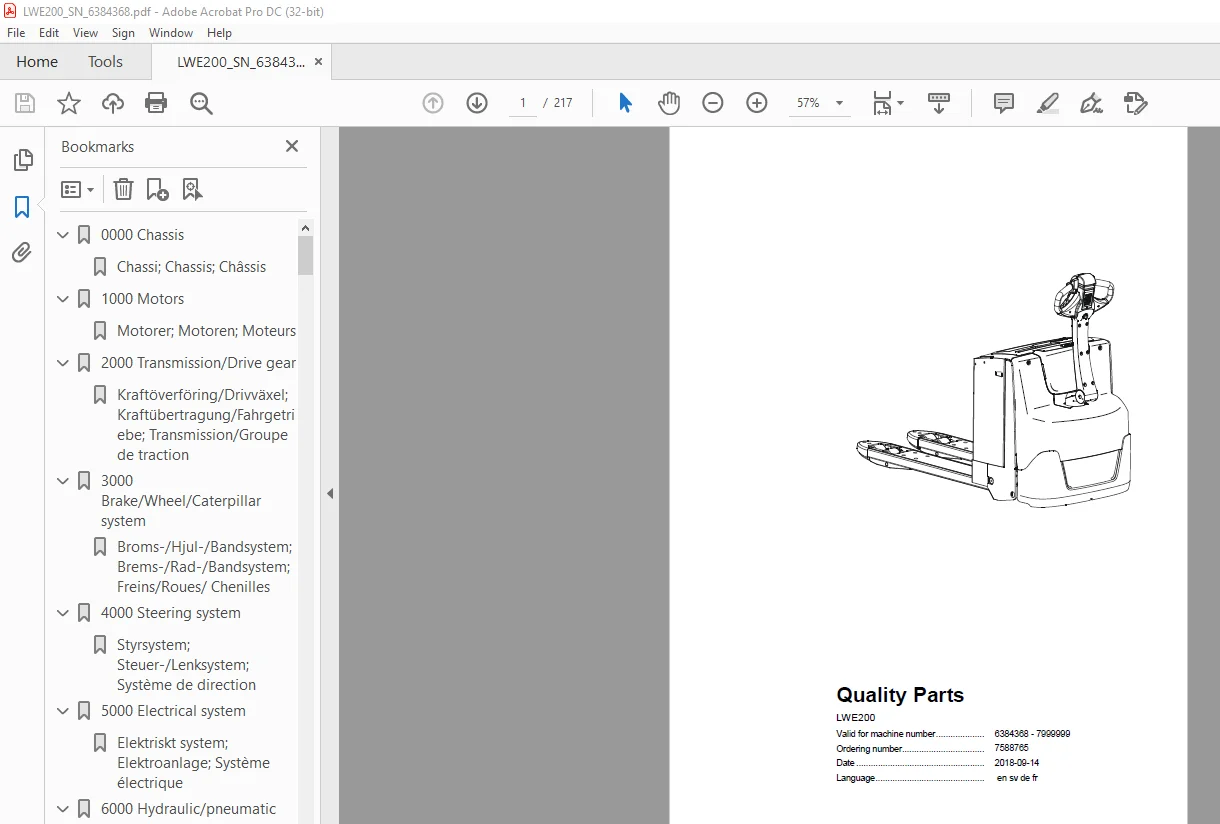

IMAGES PREVIEW OF THE MANUAL:
