BT Forklift CBE 1.2F Cargo Range Parts Manual – PDF DOWNLOAD

Description

BT Forklift CBE 1.2F Cargo Range Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Forklift CBE 1.2F Cargo Range Parts Manual – PDF DOWNLOAD

Language : Italian,English,French,German,Spanish
Pages :252
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

BT Forklift CBE 1.2F Cargo Range Parts Manual – PDF DOWNLOAD

1 – ETICHETTE E CATALOGHI / LABELS AND CATALOGUES / ND / ND / ND Page 10
2 – TELAIO / FREAME / ND / ND / ND Page 12
3 – SEDILE / SEAT / ND / ND / ND Page 16
4 – CRUSCOTTO / DASHBOARD / ND / ND / ND Page 18
5 – PIANTONE STERZO / STEERING COLUMN / ND / ND / ND Page 20
6 – AZIONATORE CLACSON / HORN CONTROL / ND / ND / ND Page 22
8 – ASSALE A BILICO / REAR AXLE / ND / ND / ND Page 24
10 – RUOTE DIRETTRICI / STEER WHEELS / ND / ND / ND Page 28
11 – SCHEMA IMPIANTO GUIDA IDRAULICA (4w) / DIAGRAM OF STEERING ASSISTANCE SYSTEM (4w) / ND / ND / ND Page 30
12 – SCHEMA IDRAULICO DI SOLLEVAMENTO / HOISTING HYDRAULIC SYSTEM / ND / ND / ND Page 32
13 – SERBATOIO E FILTRO OLIO / OIL TANK AND FILTER / ND / ND / ND Page 34
14 – MOTORE E POMPA DI SOLLEVAMENTO / HOISTING MOTOR AND PUMP / ND / ND / ND Page 36
15 – DISTRIBUTORE IDRAULICO / CONTROL VALVE / ND / ND / ND Page 40
16 – MOTORE DI TRAZIONE / DRIVE MOTOR / ND / ND / ND Page 44
17 – RIDUTTORE HFS 502 / REDUCTION GEAR HFS 502 / ND / ND / ND Page 46
17 – RIDUTTORE GP20 / REDUCTION GEAR GP20 / ND / ND / ND Page 50
18 – RUOTE MOTRICI / DRIVE WHEELS / ND / ND / ND Page 52
19 – COMANDO ELETTRONICO / ELETTRONIC CONTROL / ND / ND / ND Page 54
20 – COMPONENTI ELETTRICI / MISCELLANEOUS ELETTRICAL / ND / ND / ND Page 58
21 – PEDALIERA ACCELERATORE / SPEED PEDAL / ND / ND / ND Page 62
22 – PEDALIERA E POMPA FRENO / BRAKE PUMP AND PEDAL / ND / ND / ND Page 64
23 – FRENO DI STAZIONAMENTO / PARKING BRAKE / ND / ND / ND Page 66
24 – MARTINETTO INCLINAZIONE / TILT JACK / ND / ND / ND Page 70
25 – DISPOSITIVI E ACCESSORI / DEVICES AND ACCESSORIESES / ND / ND / ND Page 73
ACCESSORI / ACCESSORIES / ND / ND / ND Page 74
DISPOSITIVI DI SEGNALAZIONE VISIVA E DI ILLUMINAZIONE / LIGHTING EQUIPMENT AND ATTACHMENTS / ND / ND / ND Page 78
IMPIANTO LUCI PER CIRCOLAZIONE SU STRADA TRATTE BREVI (SALTUARIA) / STREET LIGHTING SYSTEM ONLY ITALY / ND / ND / ND Page 82
IMPIANTO LUCI COMPLETO / COMPLETE LIGHTING EQUIPMENT / ND / ND / ND Page 86
CABINA +150mm (VERSIONE SCANDINAVIA ) / CABIN +150mm (SCANDINAVIAN VERSION) / ND / ND / ND Page 88
CABINA fino a N° 209642 / CABIN up to the N° 209642 / ND / ND / ND Page 94
CABINA da N° 209643 / CABIN from N° 209643 / ND / ND / ND Page 98
IMPIANTO RISCALDATORE / HEATER EQUIPMENT / ND / ND / ND Page 104
PEDALIERA BASCULANTE / SWAYING PEDAL SYSTEM / ND / ND / ND Page 106
DISTRIBUTORE CON LEVA MULTIFUNZIONE / DISTRIBUTOR WITH MULTIFUNCTION LEVER / ND / ND / ND Page 110
26 – INVERSORE AL VOLANTE / DIRECTION INVERSOR LEVER / ND / ND / ND Page 115
INVERSORE AL VOLANTE / DIRECTION INVERSOR LEVER / ND / ND / ND Page 116
PEDALIERA ACCELERATORE / SPEED PEDAL / ND / ND / ND Page 118
27 – GRUPPO MONTANTI (nuovi con profilo laminato) / MASTS GROUP (new masts with rolled steel section) / ND / ND / ND Page 121
MONTANTI (2M) VT / MASTS (2M) VT / ND / ND / ND Page 122
MARTINETTO ELEVATORE (2M) VT / LIFT JACK (2M) VT / ND / ND / ND Page 124
CARRELLINO PIASTRA FISSA (2M) FEM A – FEM B / FORK CARRIAGE (2M) FEM A – FEM B / ND / ND / ND Page 126
TRASLATORE LATERALE (2M) FEM A – FEM B / SIDESHIFTING CARRIAGE (2M) FEM A – FEM B / ND / ND / ND Page 128
IMPIANTO SOLLEVAM E DRENAGGIO (2M) VT / LIFTING AND DRAINAGE HYDRAULIC SYSTEM (2M) VT / ND / ND / ND Page 130
IMPIANTO ALIMENTAZIONE TRASLATORE LAT (2M) VT / SIDESHIFTING DEVICE HYDRAULIC INSTALL (2M) VT / ND / ND / ND Page 132
MONTANTI (3M) VT / MASTS (3M) VT / ND / ND / ND Page 134
MARTINETTO ELEVATORE (3M) VT / LIFT JACK (3M) VT / ND / ND / ND Page 138
CARRELLINO PIASTRA FISSA (3M) VT – FEM A – FEM B / FORK CARRIAGE (3M) VT – FEM A – FEM B / ND / ND / ND Page 140
TRASLATORE LATERALE (3M) VT – FEM A – FEM B / SIDESHIFTING CARRIAGE (3M) VT – FEM A – FEM B / ND / ND / ND Page 142
IMPIANTO SOLLEVAMENTO E DRENAGGIO (3M) VT / LIFTING AND DRAINAGE HYDRAULIC SYSTEM (3M) VT / ND / ND / ND Page 144
IMPIANTO ALIMENTAZIONE TRASLATORE LAT (3M) VT / SIDESHIFTING DEVICE HYDRAULIC INSTALL (3M) VT / ND / ND / ND Page 146
MONTANTI (2M) ALT / MASTS (2M) ALT / ND / ND / ND Page 148
MARTINETTO ELEVATORE CENTRALE (2M) ALT / CENTRAL LIFT JACK (2M) ALT / ND / ND / ND Page 152
MARTINETTO ELEVATORE LATERALE (2M) ALT / SIDE LIFT JACK (2M) ALT / ND / ND / ND Page 154
CARRELLINO PIASTRA FISSA (2M) ALT FEM A – FEM B / FORK CARRIAGE (2M) ALT FEM A – FEM B / ND / ND / ND Page 156
TRASLATORE LATERALE (2M) ALT FEM A – FEM B / SIDESHIFTING CARRIAGE (2M) ALT FEM A – FEM B / ND / ND / ND Page 158
IMPIANTO SOLLEVAMENTO E DRENAGGIO (2M) ALT / LIFTING AND DRAINAGE HYDRAULIC SYSTEM (2M) ALT / ND / ND / ND Page 162
IMPIANTO ALIMENTAZIONE TRASLATORE LAT (2M) ALT / SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (2M) ALT / ND / ND / ND Page 164
MONTANTI (3M) ALT / MASTS (3M) ALT / ND / ND / ND Page 166
MARTINETTO ELEVATORE LATERALE (3M) ALT / SIDE LIFT JACK (3M) ALT / ND / ND / ND Page 170
MARTINETTO ELEVATORE CENTRALE (3M) ALT / CENTRAL LIFT JACK (3M) ALT / ND / ND / ND Page 172
CARRELLINO PIASTRA FISSA (3M) ALT FEM A – FEM B / FORK CARRIAGE (3M) ALT FEM A – FEM B / ND / ND / ND Page 174
TRASLATORE LATERALE (3M) ALT FEM A – FEM B / SIDESHIFTING CARRIAGE (3M) ALT FEM A – FEM B / ND / ND / ND Page 176
IMPIANTO SOLLEVAMENTO E DRENAGGIO (3M) ALT / LIFTING AND DRAINAGE SYSTEM (3M) ALT / ND / ND / ND Page 180
IMPIANTO ALIMENTAZIONE TRASLATORE LAT (3M) ALT / SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (3M) ALT / ND / ND / ND Page 182
FORCHE FEM 2A / FORKS FEM 2A / ND / ND / ND Page 184
FORCHE FEM 2B / FORKS FEM 2B / ND / ND / ND Page 186
27 – GRUPPO MONTANTI / MASTS GROUP / ND / ND / ND Page 189
MONTANTI (2M) / MASTS (DUPLEX) / ND / ND / ND Page 190
MARTINETTO ELEVATORE (2M) / LIFT JACK (DUPLEX) / ND / ND / ND Page 192
CARRELLINO PIASTRA FISSA (2M) / FORK CARRIAGE (DUPLEX) / ND / ND / ND Page 194
CARRELLINO TRASLATORE LATERALE (2M) / SIDESHIFTING CARRIAGE (DUPLEX) / ND / ND / ND Page 196
IMPIANTO ALIMENTAZIONE TRASLATORE LATERALE (2M) / SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (DUPLEX) / ND / ND / ND Page 198
FORCHE (2M) / FORKS (DUPLEX) / ND / ND / ND Page 200
MONTANTI (3M) / MASTS (TRIPLEX) / ND / ND / ND Page 202
MARTINETTO ELEVATORE (3M) / LIFT JACK (TRIPLEX) / ND / ND / ND Page 206
CARRELLINO PIASTRA FISSA (3M) / FORK CARRIAGE (TRIPLEX) / ND / ND / ND Page 208
CARRELLINO TRASLATORE LATERALE (3M) / SIDESHIFTING CARRIAGE (TRIPLEX) / ND / ND / ND Page 210
IMPIANTO ALIMENTAZIONE TRASLATORE LATERALE (3M) / SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (TRIPLEX) / ND / ND / ND Page 212
FORCHE (3M) / FORKS (TRIPLEX) / ND / ND / ND Page 214
MONTANTI (2M) ALT / MASTS (DUPLEX) FFL / ND / ND / ND Page 216
MARTINETTO ELEVATORE CENTRALE (2M) ALT / CENTRAL LIFT JACK (DUPLEX) FFL / ND / ND / ND Page 220
MARTINETTO ELEVATORE LATERALE (2M) ALT / SIDE LIFT JACK (DUPLEX) FFL / ND / ND / ND Page 222
CARRELLINO PIASTRA FISSA (2M) ALT / FORK CARRIAGE (DUPLEX) FFL / ND / ND / ND Page 224
CARRELLINO TRASLATORE LATERALE (2M) ALT / SIDESHIFTING CARRIAGE (DUPLEX) FFL / ND / ND / ND Page 226
IMPIANTO ALIMENTAZIONE TRASLATORE LATERALE (2M) ALT / SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (DUPLEX) FFL / ND / ND / ND Page 228
FORCHE (2M) ALT / FORKS (DUPLEX) FFL / ND / ND / ND Page 232
MONTANTI (3M) ALT / MASTS (TRIPLEX) FFL / ND / ND / ND Page 234
MARTINETTO ELEVATORE CENTRALE (3M) ALT / CENTRAL LIFT JACK (TRIPLEX) FFL / ND / ND / ND Page 238
MARTINETTO ELEVATORE LATERALE (3M) ALT / SIDE LIFT JACK(TRIPLEX) FFL / ND / ND / ND Page 240
CARRELLINO PIASTRA FISSA (3M) ALT / FORK CARRIAGE (TRIPLEX) FFL / ND / ND / ND Page 242
CARRELLINO TRASLATORE LATERALE (3M) ALT / SIDESHIFTING CARRIAGE (TRIPLEX) FFL / ND / ND / ND Page 244
IMPIANTO ALIMENTAZIONE TRASLATORE LATERALE (3M) ALT / SIDESHIFTING DEVICE HYDRAULIC INSTALLATION (TRIPLEX) FFL / ND / ND / ND Page 246
FORCHE (3M) ALT / FORKS (TRIPLEX) FFL / ND / ND / ND Page 250

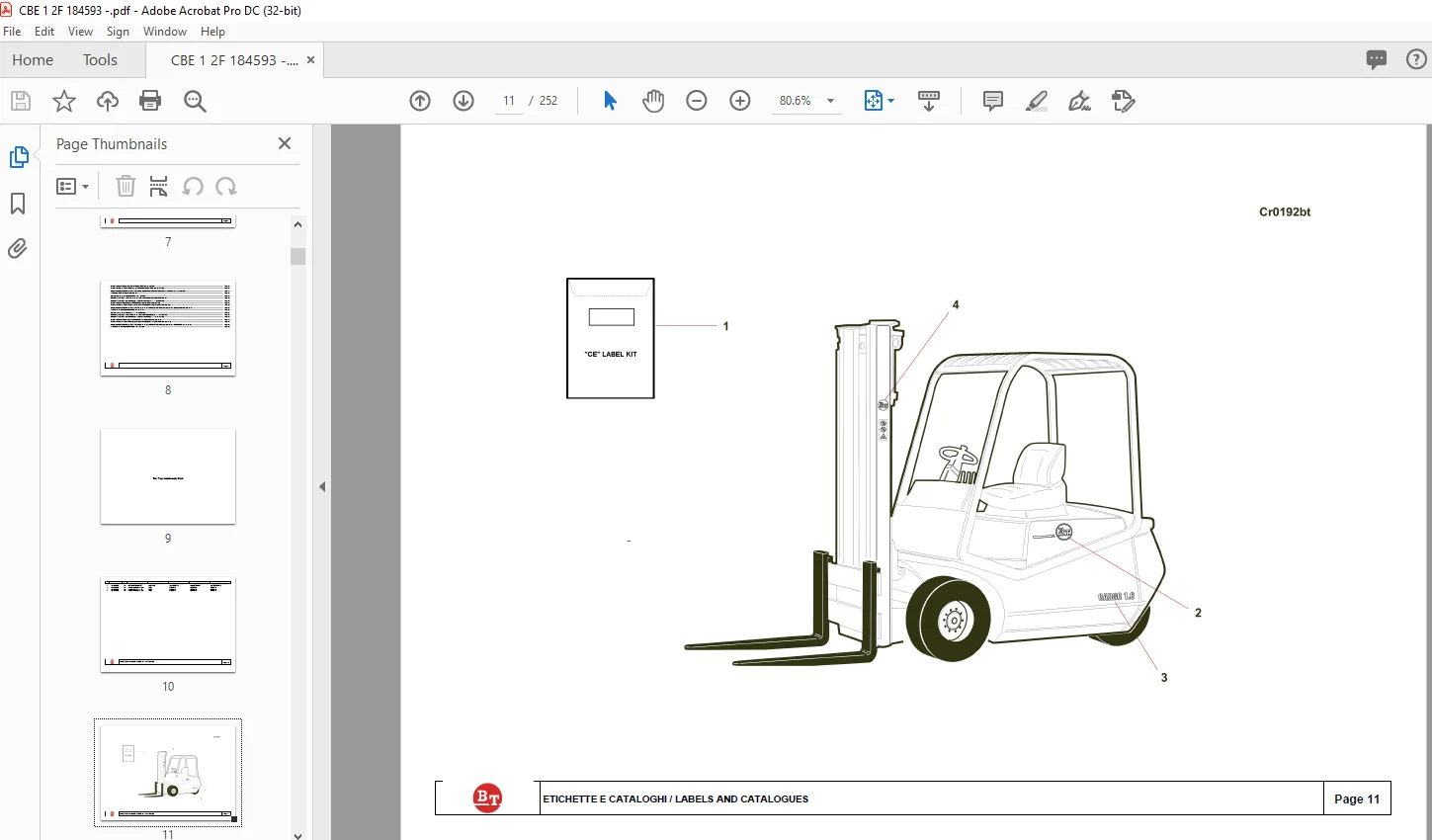

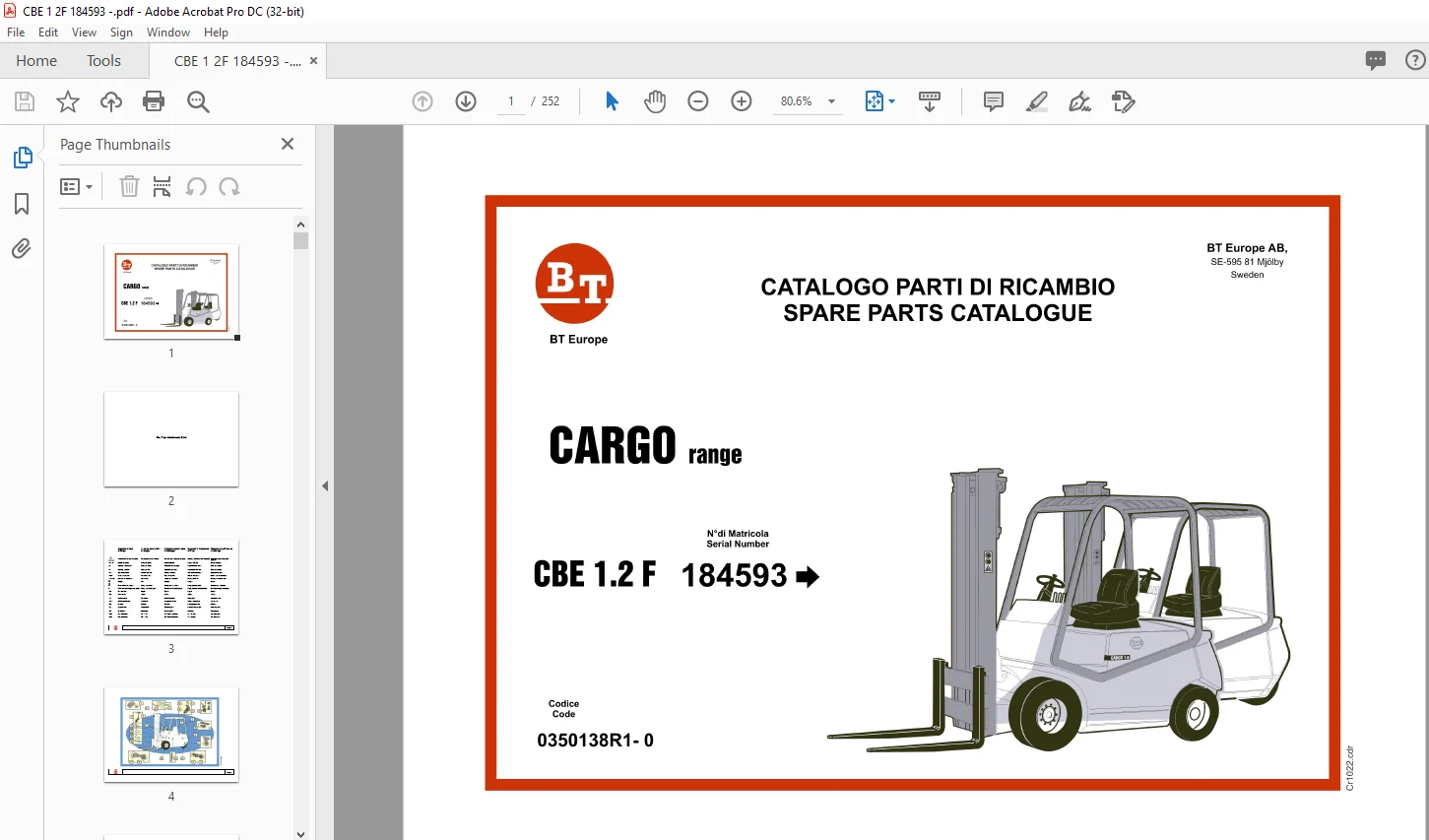

IMAGES PREVIEW OF THE MANUAL:
