BT Forklift E-SERIES C3E120 C3E150 C3E160 C3E160L C3E180 C3E180L C3E200 Parts Manual

Description

BT Forklift E-SERIES C3E120 C3E150 C3E160 C3E160L C3E180 C3E180L C3E200 Parts Manual –  PDF DOWNLOAD

FILE DETAILS:

BT Forklift E-SERIES C3E120 C3E150 C3E160 C3E160L C3E180 C3E180L C3E200 Parts Manual –  PDF DOWNLOAD

Language : Italian,English,French,German,Spanish
Pages :314
Downloadable : Yes
File Type : PDF

Serial N. CE 231471- CE307113
Serial N. CE 234495- CE306660
Serial N. CE 231486- CE306396
Serial N. CE 233889-CE307437
Serial N. CE 231498- CE306546
Serial N. CE 236691-
Serial N. CE 234531- CE307356

TABLE OF CONTENTS:

BT Forklift E-SERIES C3E120 C3E150 C3E160 C3E160L C3E180 C3E180L C3E200 Parts Manual –  PDF DOWNLOAD

1 – ETICHETTE E TARGHETTE / LABELS AND PLATES / ETIQUETTES ET PLAQUES / AUFKLEBER UND TYPENSCHILDER / ETIQUETAS Y PLACAS Page 12
2 – TELAIO / FRAME / CHASSIS / RAHMEN / CHASIS Page 16
3 – SEDILE / SEAT / SIEGE / SITZ / ASIENTO Page 22
4 – POSTO GUIDA / DRIVING POSITION / PLACE DU CONDUCTEUR / FÜHRERSITZ / PUESTO DE CONDUCCION Page 24
5 – ASSALE A BILICO / REAR AXLE / ESSIEU ARRIERE / HINTERE ACHSE / EJE TRASERO Page 30
7 – RUOTE POSTERIORI / REAR WHEELS / ROUES ARRIERE / HINTERRÄDER / RUEDAS TRASERAS Page 32
8 – IMPIANTO GUIDA IDRAULICA / POWER STEERING SYSTEM / INSTALLATION DIRECTION ASSISTEE / HYDROLENKUNGSANLAGE / INSTALACION DIRECCION ASISTIDA Page 34
9 – IMPIANTO IDRAULICO PRINCIPALE / MAIN HYDRAULIC SYSTEM / INSTALLATION HYDRAULIQUE PRINCIPALE / HYDRAULISCHE HAUFTANLAGE / INSTALACION HYDRAULICA PRINCIPALE Page 36
10 – IMPIANTO IDRAULICO PRINCIPALE (con Finger-tip e Joystick) / MAIN HYDRAULIC SYSTEM (with Finger-tip and Joystick) / INSTALLATION HYDRAULIQUE PRINCIPALE (avec Finger-tip et Joystic) / Page 40
11 – DISTRIBUTORE IDRAULICO / CONTROL VALVE / DISTRIBUTEUR HYDRAULIQUE / HYDRAULIK-STEUERBLOCK / DISTRIBUIDOR HIDRAULICO Page 44
11 – DISTRIBUTORE – HAWE / DISTRIBUTOR – HAWE / DISTRIBUTEUR – HAWE / STEUERBLOCK – HAWE / DISTRIBUIDOR – HAWE Page 48
12 – FINGER-TIP E JOYSTICK / FINGER-TIP AND JOYSTICK / FINGER-TIP ET JOYSTICK / FINGER-TIP UND JOYSTICK / FINGER-TIP Y JOYSTICK Page 50
13 – MOTORE E POMPA DI SOLLEVAMENTO / LIFTING MOTOR AND PUMP / MOTEUR ET POMPE DE ELEVATION / MOTOR UND HUBPUMPE / MOTOR Y BOMBA DE ELEVACION Page 54
14 – MOTORE TRAZIONE / DRIVE MOTOR / MOTEUR DE TRACTION / ANTRIEBSMOTOR / MOTOR DE TRACCION Page 56
15 – RIDUTTORE GP 20 / REDUCTION GEAR GP 20 / REDUCTEUR GP 20 / UNTERSETZUNGSGETRIEBE GP 20 / REDUCTOR GP 20 Page 58
15 – RIDUTTORE GP 21 / REDUCTION GEAR GP 21 / REDUCTEUR GP 21 / UNTERSETZUNGSGETRIEBE GP 21 / REDUCTOR GP 21 Page 60
16 – RUOTE ANTERIORI / FRONT WHEELS / ROUES AVANT / VORDERRÄDER / RUEDAS DELANTERAS Page 62
17 – COMPONENTI ELETTRICI / ELECTRICAL COMPONENTS / COMPOSANTES ELECTRIQUES / ELEKTRISCHE KOMPONENTE / COMPONENTES ELECTRICOS Page 66
18 – PEDALIERA ACCELERATORE / SPEED PEDAL / PEDALIER D’ ACCELERATEUR / FAHRPEDAL / PEDALES ACELERADOR Page 70
19 – PEDALIERA ACCELERATORE (INVERSORE AL VOLANTE) / SPEED PEDAL (HAND DIRECTION LEVER) / PEDALIER D’ ACCELERATEUR (INVERSEUR DE DIRECTION) / FAHRPEDAL (HANDUMSCHALTUNG) / Page 72
20 – PEDALIERA E POMPA FRENO / BRAKE PUMP AND PEDAL / POMPE DE FREIN ET PEDALE / HAUPTBREMSZYLINDER UND PEDAL / PEDALES Y BOMBA DE FRENO Page 74
21 – MARTINETTO INCLINAZIONE / TILTING JACK / VERIN D’INCLINAISON / NEIGUNGZYLINDER / CILINDRO DE INCLINACION Page 78
22 – DISPOSITIVI E ACCESSORI / DEVICES AND ACCESSORIES / DISPOSITIFS ET ACCESSOIRES / EINRICHTUNGEN UND ZUBEHÖRTEILE / DISPOSITIVOS Y ACCESSORIOS Page 81
ACCESSORI / ACCESSORIES / ACCESSOIRES / ZUBEHÖRE / ACCESORIOS Page 82
DISPOSITIVI DI SEGNALAZIONE VISIVA E DI ILLUMINAZIONE / LIGHTING EQUIPMENT AND ACCESSORIES / DISPOSITIFS D’ECLAIRAGE ET ACCES / BELEUCHTUNGSEINRUND ZUBEHÖRT / DISPOSITIVOS DE Page 88
IMPIANTO LUCI CIRCOLAZIONE SU STRADA TRATTE BREVI (SALTUARIA) / ROAD CIRCULATION LIGHTING SYSTEM ONLY ITALY / INSTALD’ECLAIRAGE POUR CIRCULATITALIE SEULEMENT / Page 92
IMPIANTO LUCI COMPLETO / COMPLETE LIGHTING EQUIPMENT / INSTALLATION D’ECLAIRAGE COMPLET / KOMPLETTE BELEUCHTUNGSANLAGE / INSTALACION LUMBRADO COMPLETA Page 94
CABINA 16L-18L-20 / CABIN 16L-18L-20 / CABINE 16L-18L-20 / KABINE 16L-18L-20 / CABINA 16L-18L-20 Page 96
CABINA 16-18 / CABIN 16-18 / CABINE 16-18 / KABINE 16-18 / CABINA 16-18 Page 102
CABINA 12-15 / CABIN 12-15 / CABINE 12-15 / KABINE 12-15 / CABINA 12-15 Page 108
CABINA 12-15 DAL CE275877 / CABIN 12-15 FROM CE275877 / CABINE 12-15 FROM CE275877 / KABINE 12-15 FROM CE275877 / CABINA 12-15 FROM CE275877 Page 114
CABINA 16-18 DAL CE275877 / CABIN 16-18 DAL CE275877 / CABINE 16-18 DAL CE275877 / KABINE 16-18 DAL CE275877 / CABINA 16-18 DAL CE275877 Page 120
CABINA 16L-18L-20 DAL CE275877 / CABIN 16L-18L-20 FROM CE275877 / CABINE 16L-18L-20 FROM CE275877 / KABINE 16L-18L-20 FROM CE275877 / CABINA 16L-18L-20 FROM CE275877 Page 126
CABINA 16L-18L-20 (+150) / CABIN 16L-18L-20 (+150) / CABINE 16L-18L-20 (+150) / KABINE 16L-18L-20 (+150) / CABINA 16L-18L-20 (+150) Page 132
CABINA 12-15 (+150) / CABIN 12-15 (+150) / CABINE 12-15 (+150) / KABINE 12-15 (+150) / CABINA 12-15 (+150) Page 138
CABINA 16-18 (+150) / CABIN 16-18 (+150) / CABINE 16-18 (+150) / KABINE 16-18 (+150) / CABINA 16-18 (+150) Page 144
IMPIANTO RISCALDATORE / HEATER SYSTEM / INSTALLATION APPAREIL DE CHAUFFAGE / HEIZUNGANLAGE / INSTALACION CALENTADOR Page 150
PEDALIERA BASCULANTE / SWAYING PEDAL SYSTEM / PEDALIER BASCULANT / SCHWINGENDE PEDALE / PEDALES BASCULANTES Page 152
DISTRIBUTORE CON LEVA MULTIFUNZIONE / DISTRIBUTOR WITH MULTIFUNCTION LEVER / ND / ND / ND Page 156
CANVAS / CANVAS / CANVAS / CANVAS / CANVAS Page 160
IMPIANTO AUTORADIO / RADIO CAR SYSTEM / SYSTEME DE AUTORADIO / AUTORADIOANLAGE / INSTALACION ALTORADDIO Page 162
23 – GRUPPO MONTANTI / MASTS GROUP / GROUPE MATS / MASTGRUPPE / GRUPO MASTIL Page 165
MONTANTI (2M) / MASTS (2M) / MATS (2M) / MASTGRUPPE (2M) / MASTILE (2M) Page 166
MARTINETTO ELEVATORE (2M) / LIFTING JACK (2M) / VERIN D’ELEVATION (2M) / HUBZYLINDER (2M) / CILINDRO DE ELEVACION (2M) Page 170
CARRELLINO PIASTRA FISSA (2M) / FORK CARRIAGE PLATE (2M) / TABLIER (2M) / GABELTRÄGER (2M) / TABLERO (2M) Page 172
CARRELLINO TRASLATORE LATERALE (2M) / SIDESHIFTING CARRIAGE (2M) / TABLIER DEPLACEMENT LAT (2M) / SEITENSCHIEBER-GABELTRÄGER (2M) / DESPLAZADOR LATERAL (2M) Page 174
IMPIANTO IDRAULICO SOLLEVAMENTO (2M) / LIFTING HIDRAULIC SYSTEM (2M) / SYSTEME HIDRAULIQUE DE ELEVATION (2M) / HYDRAULISCHE HUB SYSTEM (2M) / INSTALACION HIDRAULICADE ELEVACION Page 178
IMPIANTI ALIMENTAZIONE (2M) / HYDRAULIC SYSTEM (2M) / INSTALLATION HYDRAULIQUE (2M) / HYDRAULISCHE ANLAGE (2M) / INSTALACION HIDRAULICA (2M) Page 180
MONTANTI (3M) / MASTS (3M) / MATS (3M) / MASTGRUPPE (3M) / MASTILE (3M) Page 188
MARTINETTO ELEVATORE (3M) / LIFTING JACK (3M) / VERIN D’ELEVATION (3M) / HUBZYLINDER (3M) / CILINDRO DE ELEVACION (3M) Page 194
CARRELLINO PIASTRA FISSA (3M) / FORK CARRIAGE (3M) / TABLIER (3M) / GABELTRÄGER (3M) / TABLERO (3M) Page 196
CARRELLINO TRASLATORE LATERALE (3M) / SIDESHIFTING CARRIAGE (3M) / TABLIER DEPLACEMENT LAT (3M) / SEITENSCHIE-GABELTRÄGER (3M) / TABLERO DESPLAZADOR LATERAL (3M) Page 198
IMPIANTO IDRAULICO SOLLEVAMENTO (3M) / LIFT HIDR SYSTEM (3M) / SYSTE HYDR DE ELEVATION (3M) / HYDRAULHUB SYSTEM(3M) / INSTALACION HIDR DE ELEV (3M) Page 202
IMPIANTI ALIMENTAZIONE (3M) / HYDRAULIC SYSTEM (3M) / INSTALLATION HYDRAULIQUE (3M) / HYDRAULISCHE ANLAGE (3M) / INSTALACION HIDRAULICA (3M) Page 204
MONTANTI (2M) ALT / MASTS (2M) ALT / MATS (2M) ALT / MASTGRUPPE (2M) ALT / MASTILE (2M) ALT Page 218
MARTINETTO PRIMARIO E SECONDARIO -2M ALT / PRIMARY AND SECONDARY CYLINDER -2M ALT / VERIN PRIMAIRE ET SECONDAIRE -2M ALT / PRIMÄR-UND NEBENZYLINDER -2M ALT / CILINDRO PRIMARIO Y Page 222
CARRELLINO PIASTRA FISSA (2M) ALT / FORK CARRIAGE PLATE (2M) ALT / TABLIER (2M) ALT / GABELTRÄGER (2M) ALT / TABLERO (2M) ALT Page 226
CARRELLINO TRASLATORE LAT(2M) ALT / SIDESHIFTING CARRIAGE (2M) ALT / TABLIER DEPLACEMENT LAT(2M) ALT / SEITENSCHIEBER-GABELTRÄGER (2M) ALT / DESPLAZADOR LATERAL (2M) ALT Page 228
IMPIANTO IDRAULICO SOLLEVAMENTO (2M) ALT / LIFTHYDRSYSTEM (2M) ALT / SYSTEME HYDRDE ELEVATION (2M) ALT / HYDRAULHUB SYSTEM (2M) ALT / INSTALHIDRDE ELEVACION (2M) ALT Page 232
IMPIANTI ALIMENTAZIONE (2M- ALT) / HYDRAULIC SYSTEM (2M- ALT) / INSTALLATION HYDRALIQUE (2M- ALT) / HYDRAULISCHE ANLAGE (2M- ALT) / INSTALACION HIDRAULICA (2M- ALT) Page 236
MONTANTI (3M) ALT / MASTS (3M) ALT / MATS (3M) ALT / MASTGRUPPE (3M) ALT / MASTILE (3M) ALT Page 248
MARTINETTO – PRIMARIO E SECONDARIO -3M ALT / PRIMARY AND SECONDARY CYLINDER -3M ALT / VERIN PRIMAIRE ET SECONDAIRE -3M ALT / PRIMÄR-UND NEBENZYLINDER -3M ALT / CILINDRO PRIMARIO Page 256
CARRELLINO PIASTRA FISSA (3M) ALT / FORK CARRIAGE (3M) ALT / TABLIER (3M) ALT / GABELTRÄGER (3M) ALT / TABLERO (3M) ALT Page 262
CARRELLINO TRASLATORE LATERALE (3M) ALT / SIDESHIFTING CARRIAGE (3M) ALT / TABLIER DEPLACEMENT LAT(3M) ALT / SEITENSCHIE-GABELTRÄGER (3M) ALT / TABLERO DESPLAZADOR LAT Page 264
IMPIANTO IDRAULICO SOLLEVAMENTO (3M) ALT / LIFTHYDRSYSTEM (3M) ALT / SYSTEME HYDRD’ELEVATION (3M) ALT / HYDRAULHUB SYSTEM (3M) ALT / INSTALACION HIDR DE ELEV (3M) ALT Page 268
IMPIANTI ALIMENTAZIONE (3M-ALT) / HYDRAULIC SYSTEM (3M-ALT) / INSTALLATION HYDRAULIQUE (3M-ALT) / HYDRAULI ANLAGE (3M-ALT) / INSTALACION HIDRAULICA (3M-ALT) Page 276
FORCHE – FEM A (12-15-16) / FORK – FEM A (12-15-16) / FOURCHE – FEM A (12-15-16) / GABEL – FEM A (12-15-16) / HORQUILLA – FEM A (12-15-16) Page 292
FORCHE – FEM B (12-15-16) / FORK – FEM B (12-15-16) / FOURCHE – FEM B (12-15-16) / GABEL – FEM B (12-15-16) / HORQUILLA – FEM B (12-15-16) Page 294
FORCHE – FEM A (18-20) / FORK – FEM A (18-20) / FOURCHE – FEM A (18-20) / GABEL – FEM A (18-20) / HORQUILLA – FEM A (18-20) Page 296
FORCHE – FEM B (18-20) / FORK – FEM B (18-20) / FOURCHE – FEM B (18-20) / GABEL – FEM B (18-20) / HORQUILLA – FEM B (18-20) Page 298
24 – VERSIONE IKEA / IKEA VERSION / VERSION IKEA / IKEA VERSION / VERSION IKEA Page 301
TELAIO / FRAME / CHASSIS / RAHMEN / CHASIS Page 302
IMPIANTO GUIDA IDRAULICA / POWER STEERING SYSTEM / INSTALLATION DIRECTION ASSISTEE / HYDROLENKUNGSANLAGE / INSTALACION DIRECCION ASISTIDA Page 304
IMPIANTO IDRAULICO PRINCIPALE / MAIN HYDRAULIC SYSTEM / INSTALLATION HYDRAULIQUE PRINCIPALE / HYDRAULISCHE HAUFTANLAGE / INSTALACION HYDRAULICA PRINCIPALE Page 306
PEDALIERA FRENO / BRAKE PEDALS / PEDALIER DU FREIN / BREMSPEDAL / PEDALES DE FRENO Page 310
IMPIANTI ALIMENTAZIONE (2M- ALT) / HYDRAULIC SYSTEM (2M- ALT) / INSTALLATION HYDRALIQUE (2M- ALT) / HYDRAULISCHE ANLAGE (2M- ALT) / INSTALACION HIDRAULICA (2M- ALT) Page 312

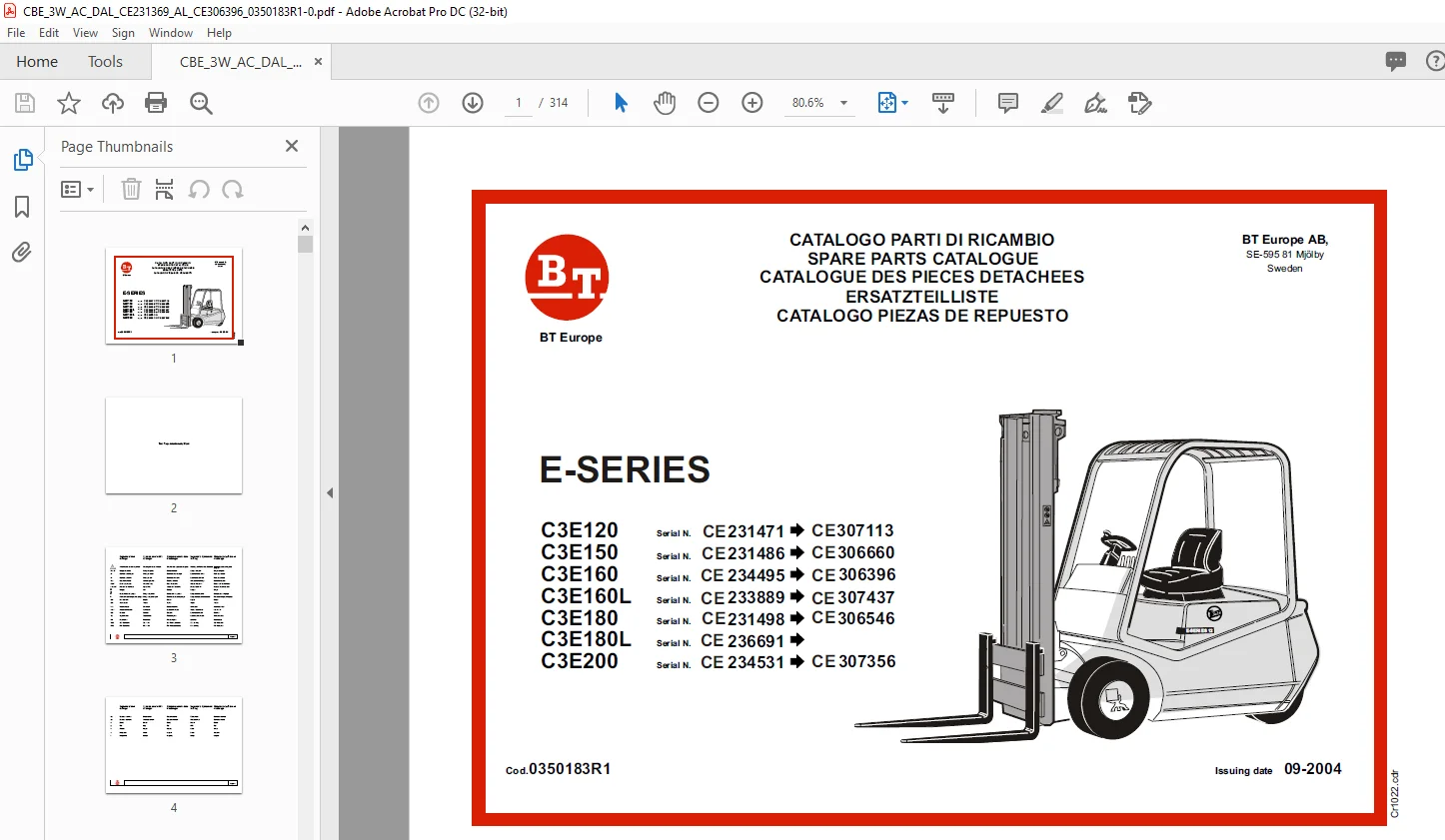

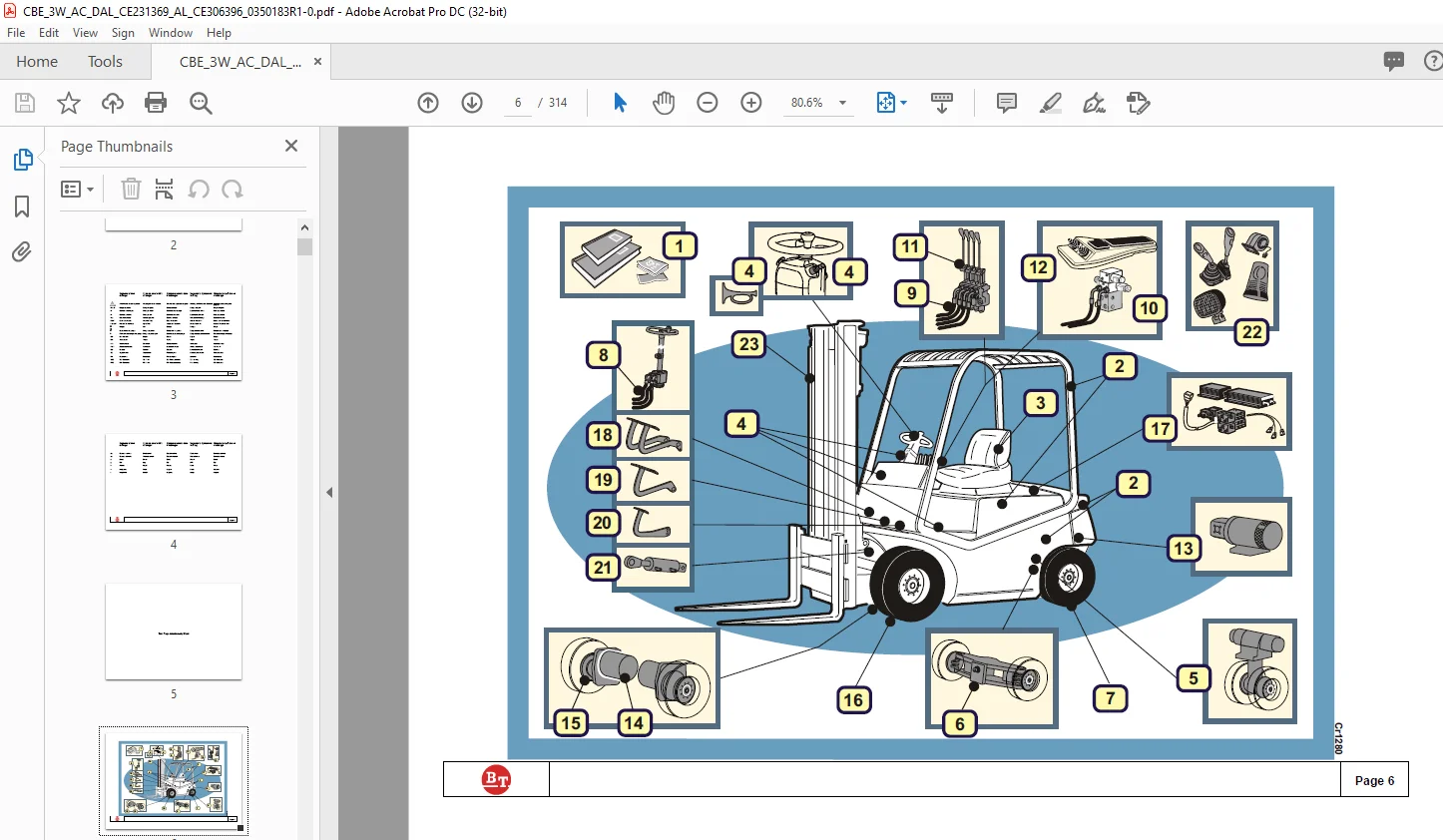

IMAGES PREVIEW OF THE MANUAL:
