BT Forklift LPE200 Quality Parts Manual – PDF DOWNLOAD

Description

BT Forklift LPE200 Quality Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Forklift LPE200 Quality Parts Manual – PDF DOWNLOAD

Language : English,German,French,Swedish
Pages :129
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

BT Forklift LPE200 Quality Parts Manual – PDF DOWNLOAD

0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Motors 4
Motorer; Motoren; Moteurs 4
2000 Transmission/Drive gear 5
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 5
3000 Brake/Wheel/Caterpillar system 5
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
4000 Steering system 5
Styrsystem; Steuer-/Lenksystem; Système de direction 5
5000 Electrical system 6
Elektriskt system; Elektroanlage; Système électrique 6
6000 Hydraulic/pneumatic system 7
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 7
9000 Options/attachments 8
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 8
0340-00762 P0034200 10
0340-00762 Inspection covers [2009-03-05] 11
0380-00497 P0024103 12
0380-00497 Fork frame (low lifters) [2007-10-01] 13
0390-00470 P0031989 16
0390-00470 Battery compartment parts [2008-08-14] 17
0390-00471 P0031990 18
0390-00471 Battery compartment parts [2008-08-14] 19
0390-00472 P0031991 20
0390-00472 Battery compartment parts [2008-08-14] 20
0400-00141 P0028518 22
0400-00141 Frame/chassis components [2007-10-01] 23
0450-00097 P0031773 24
0450-00097 Motor fixing points [2008-08-28] 25
0560-00214 P0031992 26
0560-00214 Platform incl fixing points [2008-08-14] 27
0560-00215 P0032027 28
0560-00215 Platform incl fixing points [2008-08-14] 29
0820-00268 P0028566 30
0820-00268 Finger/foot guards [2008-03-05] 31
0840-00239 P0032036 32
0840-00239 Driver protection [2008-08-14] 33
0840-00240 P0032037 34
0840-00240 Driver protection [2008-08-14] 35
0840-00266 P0034191 36
0840-00266 Driver protection [2009-03-05] 37
0850-00225 P0016904 38
0850-00225 Signs, warnings, decals [2007-10-01] 39
1710-00017 P0011299 40
1710-00017 Electric pump motor [2007-10-01] 41
1760-00147 P0029931 42
1760-00147 Electric drive motor [2007-10-01] 43
1760-00148 P0029932 44
1760-00148 Electric drive motor [2007-10-01] 45
2550-00081 P0027238 46
2550-00081 Mechanical drive gear unit [2007-10-01] 47
3370-00011 P0011271 50
3370-00011 Electromagnetic parking brake [2007-10-01] 51
3370-00027 P0017736 52
3370-00027 Electromagnetic parking brake [2007-10-01] 52
3530-00102 P0021057 53
3530-00102 Drive wheel [2007-10-01] 53
3540-00040 P0012388 54
3540-00040 Support/castor wheels [2007-10-01] 55
3550-00503 P0034187 56
3550-00503 Fork/support arm wheels [2009-04-30] 57
3580-00062 P0032040 58
3580-00062 Guide rollers/wheels [2008-08-25] 59
4110-00523 P0030925 60
4110-00523 Steering arm/wheel/lever [2008-03-05] 61
4180-00019 P0013829 64
4180-00019 Steering bearings, radial bearing [2007-10-01] 65
5160-00079 P0017661 66
5160-00079 General alarm signals (audible/visual) [2007-10-01] 66
5190-00029 P0012438 67
5190-00029 Battery cut out connector/contactor [2007-10-01] 67
5190-00100 P0024053 68
5190-00100 Battery cut out connector/contactor [2007-10-01] 69
5190-00148 P0034194 70
5190-00148 Battery cut out connector/contactor [2009-03-05] 71
5310-00060 P0017055 72
5310-00060 Start/stop switch [2007-10-01] 72
5460-00040 P0013153 73
5460-00040 Transistor panel [2007-10-01] 73
5590-00236 P0024123 74
5590-00236 Work function harnesses/fuse [2007-10-01] 75
5590-00241 P0024301 76
5590-00241 Work function harnesses/fuse [2007-10-01] 77
5610-00032 P0029409 78
5610-00032 Pump contactor [2008-11-04] 78
5820-00181 P0024304 80
5820-00181 Lift/lowering/reach movement probes/sensors [2007-10-01] 81
5830-00148 P0022182 82
5830-00148 Safety probes/sensors [2007-10-01] 82
5830-00170 P0024300 83
5830-00170 Safety probes/sensors [2007-10-01] 83
5830-00171 P0024309 84
5830-00171 Safety probes/sensors [2007-10-01] 85
5830-00172 P0024310 86
5830-00172 Safety probes/sensors [2007-10-01] 86
5830-00229 P0034554 87
5830-00229 Safety probes/sensors [2009-04-30] 87
6100-00286 P0031778 88
6100-00286 Hydraulic unit [2009-03-24] 89
6120-00194 P0016859 90
6120-00194 Hydraulic tank lines [2007-10-01] 90
6610-00221 P0027243 92
6610-00221 Main lift cylinders [2007-10-01] 93
6680-00034 P0018043 94
6680-00034 Powertrak cylinder [2007-10-01] 95
9380-00004 P0017729 96
9380-00004 Charger attachment [2007-10-01] 96
9380-00005 P0017731 97
9380-00005 Charger attachment [2008-11-27] 97
9380-00011 P0020457 97
9380-00011 Charger attachment [2007-10-01] 97
9400-00249 P0028561 98
9400-00249 Extra electrical equipment [2007-10-01] 99
9400-00250 P0028562100
9400-00250 Extra electrical equipment [2007-10-01]101
9400-00251 P0028563102
9400-00251 Extra electrical equipment [2007-10-01]103
9420-00015 P0012396104
9420-00015 Truck log device, code locking device [2009-03-03]104
9420-00092 P0024042106
9420-00092 Truck log device, code locking device [2007-10-01]107
9420-00098 P0026077108
9420-00098 Truck log device, code locking device [2009-03-03]108
9420-00147 P0034158110
9420-00147 Truck log device, code locking device [2009-03-05]111
9500-00208 P0012488112
9500-00208 Other extra equipment [2007-10-01]112
9500-00684 P0023476113
9500-00684 Other extra equipment [2007-10-01]113
9500-00712 P0024329114
9500-00712 Other extra equipment [2007-10-01]114
9500-01052 P0030900115
9500-01052 Other extra equipment [2008-03-05]115
9500-01053 P0030903116
9500-01053 Other extra equipment [2008-03-05]116
9500-01054 P0030907117
9500-01054 Other extra equipment [2008-03-05]117
9500-01055 P0030912118
9500-01055 Other extra equipment [2008-03-05]118
9500-01056 P0030915119
9500-01056 Other extra equipment [2008-03-05]119
9500-01057 P0030916120
9500-01057 Other extra equipment [2008-03-05]121
9500-01058 P0030917122
9500-01058 Other extra equipment [2009-04-15]123
9500-01059 P0030918124
9500-01059 Other extra equipment [2008-03-05]125
9500-01060 P0030919126
9500-01060 Other extra equipment [2008-03-05]127
9550-00013 P0012468128
9550-00013 Battery changing equipment [2008-11-04]129

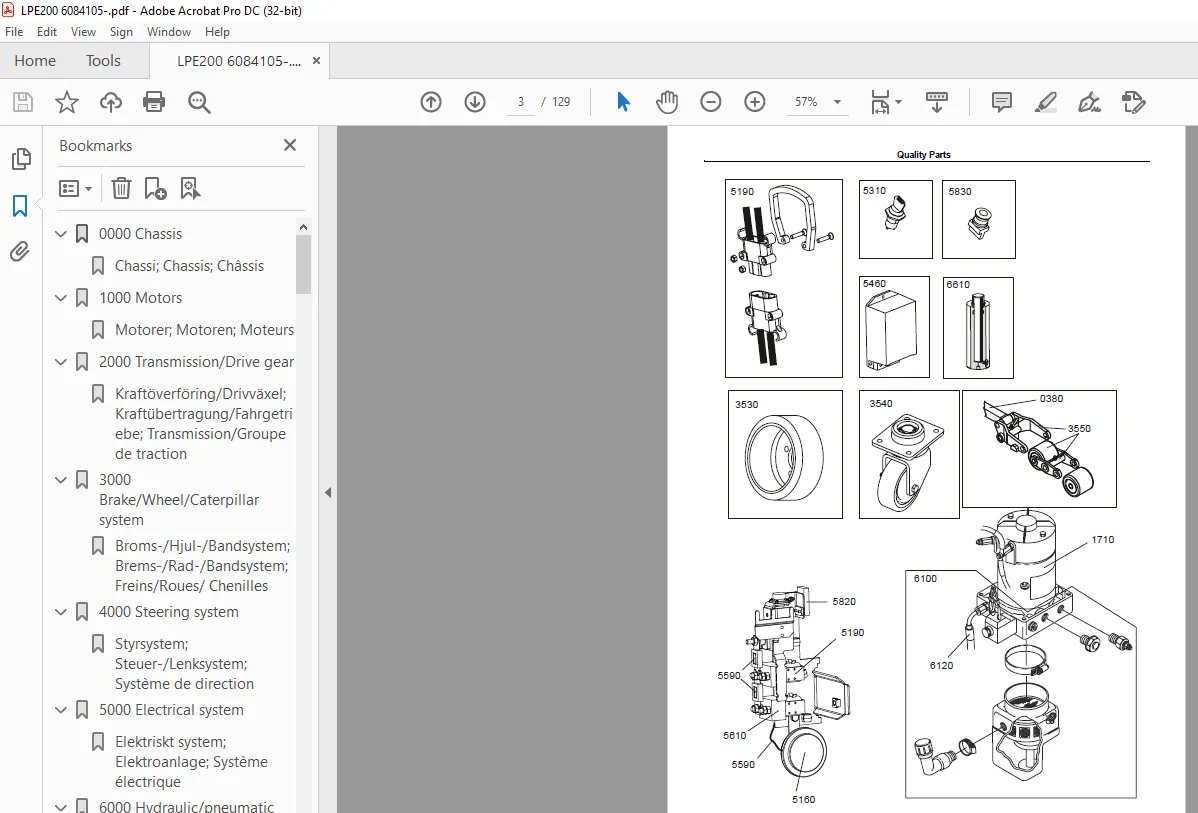

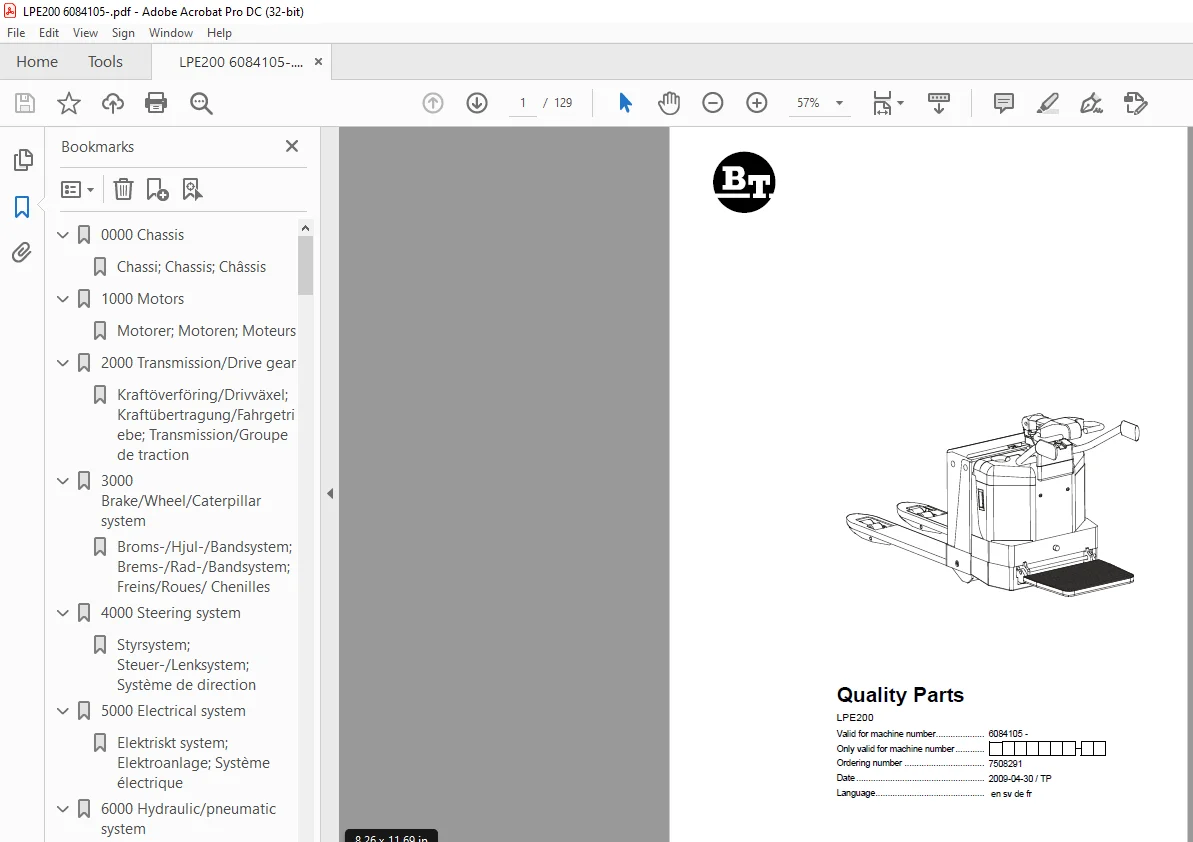

IMAGES PREVIEW OF THE MANUAL:
