BT Forklift OS 2.0 Quality Parts Manual 401250AA – PDF

Description

BT Forklift OS 2.0 Quality Parts Manual 401250AA – PDF DOWNLOAD

FILE DETAILS:

BT Forklift OS 2.0 Quality Parts Manual 401250AA – PDF DOWNLOAD

Language : English
Pages : 144
Downloadable : Yes
File Type : PDF

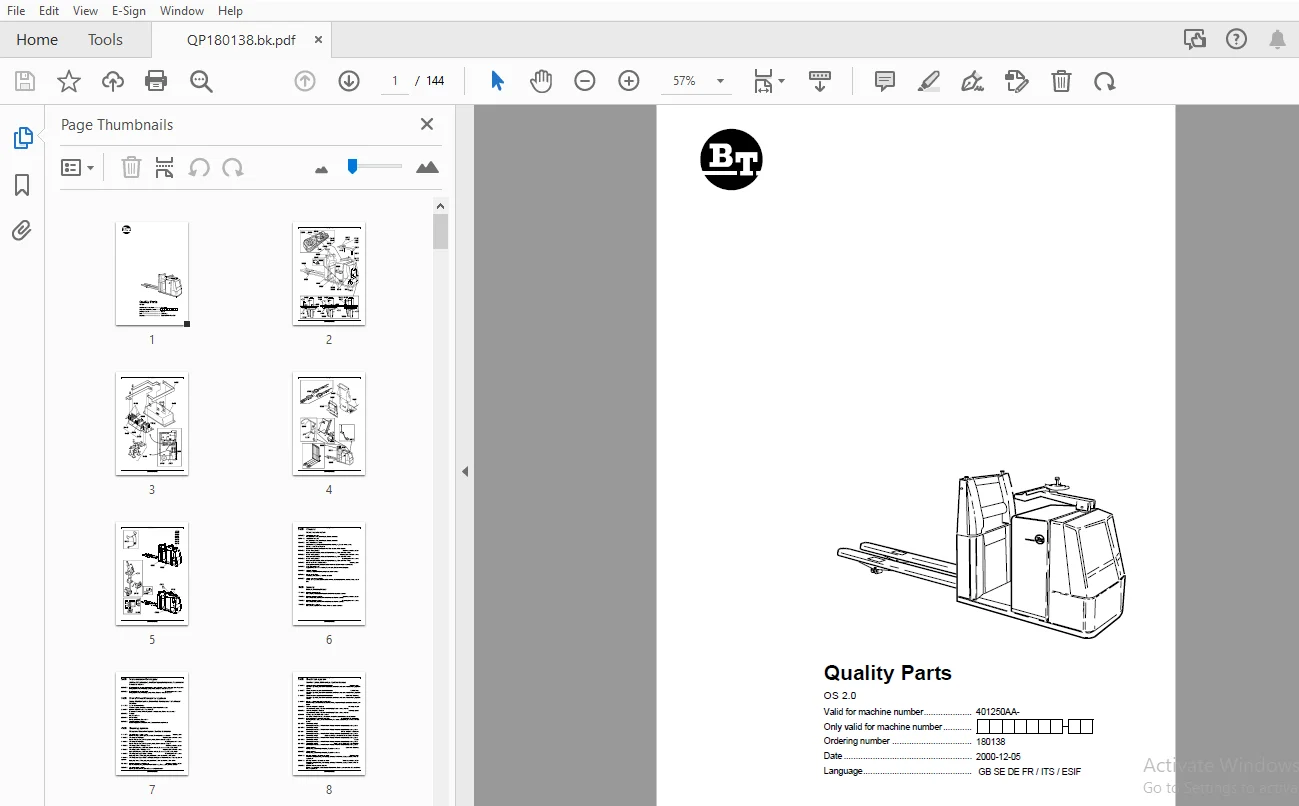

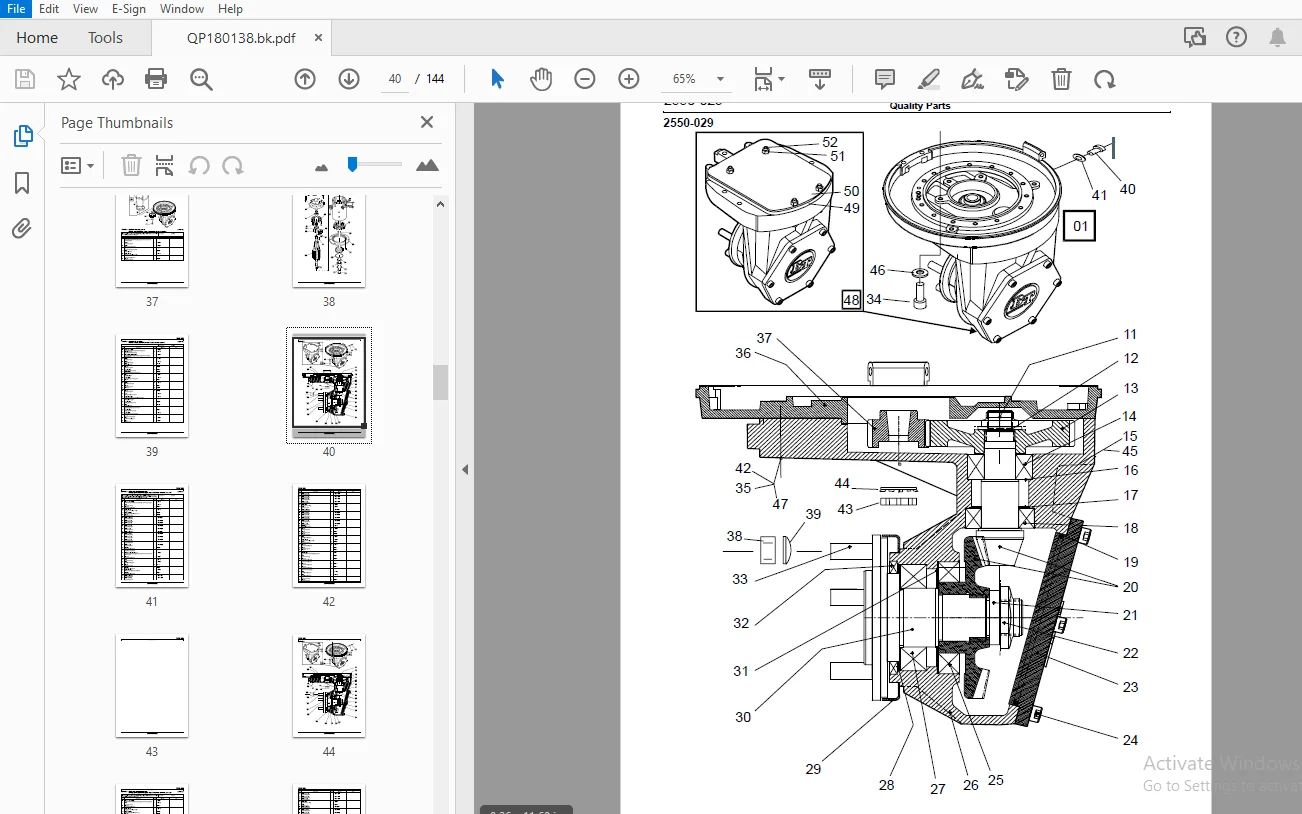

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Forklift OS 2.0 Quality Parts Manual 401250AA – PDF DOWNLOAD

0000 Chassis......................................................................................  6
	Chassi; Chassis; Châssis......................................................................  6
1000 Motors.......................................................................................  6
	Motorer; Motoren; Moteurs.....................................................................  6
2000 Transmission/Drive gear......................................................................  7
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/ Groupe de traction....  7
3000 Brake/Wheel/Caterpillar system...............................................................  7
	Broms-/Hjul/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles.......................  7
4000 Steering system..............................................................................  7
	Styrsystem; Steuer-/Lenksystem; Système de direction..........................................  7
5000 Electrical system............................................................................  8
	Elektriskt system; Elektroanlage; Système électrique..........................................  8
6000 Hydraulic/pneumatic system...................................................................  9
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique...............  9
9000 Options/attachments.......................................................................... 10
	Tillbehör/extrautrustning; Zubehör /Zusatzausrüstung; Equipement supplémentaire/Options....... 10
0340-078.......................................................................................... 12
0340-078 Inspection covers [1998-08-24]........................................................... 12
0340-169.......................................................................................... 14
0340-169 Inspection covers [2000-05-09]........................................................... 15
0380-042.......................................................................................... 18
0380-042 Fork frame (low lifters) [1998-12-09].................................................... 19
0390-085.......................................................................................... 20
0390-085 Battery compartment parts [2000-05-16]................................................... 21
0450-023.......................................................................................... 22
0450-023 Motor fixing points [1999-03-30]......................................................... 22
0450-024.......................................................................................... 23
0450-024 Motor fixing points [1999-03-30]......................................................... 23
0450-025.......................................................................................... 24
0450-025 Motor fixing points [1999-03-30]......................................................... 24
0640-007.......................................................................................... 25
0640-007 Driver controls ( mechanical ) [1996-09-03].............................................. 25
0670-004.......................................................................................... 26
0670-004 Wall/floor covering [1998-08-12]......................................................... 26
0680-023.......................................................................................... 28
0680-023 Internal fittings [1997-08-14]........................................................... 29
0840-013.......................................................................................... 30
0840-013 Driver protection [1996-09-04]........................................................... 30
0850-027.......................................................................................... 32
0850-027 Signs, warnings, decals [1996-09-05]..................................................... 33
1710-013.......................................................................................... 34
1710-013 Electric pump motor [1999-04-07]......................................................... 34
1730-004.......................................................................................... 36
1730-004 Electric steering motor [1999-04-07]..................................................... 36
1730-005.......................................................................................... 37
1730-005 Electric steering motor [1999-04-07]..................................................... 37
1760-009.......................................................................................... 38
1760-009 Electric drive motor [1999-04-07]........................................................ 39
2550-029.......................................................................................... 40
2550-029 Mechanical drive gear unit [1999-08-25].................................................. 41
2550-030.......................................................................................... 44
2550-030 Mechanical drive gear unit [1999-08-25].................................................. 45
3110-005.......................................................................................... 48
3110-005 Travel brake controls [1996-09-05]....................................................... 48
3180-009.......................................................................................... 50
3180-009 Electrically controlled travel brake [2000-05-08]........................................ 51
3500-006.......................................................................................... 52
3500-006 Wheels [1997-01-14]...................................................................... 52
3530-015.......................................................................................... 53
3530-015 Drive wheel [1998-03-24]................................................................. 53
3540-025.......................................................................................... 54
3540-025 Support/castor wheels [2000-05-18]....................................................... 55
4110-044.......................................................................................... 58
4110-044 Steering arm / wheel / lever [1998-09-09]................................................ 59
4120-009.......................................................................................... 62
4120-009 Steering column/gear [1999-03-30]........................................................ 63
4120-010.......................................................................................... 64
4120-010 Steering column/gear [1999-03-31]........................................................ 65
4170-003.......................................................................................... 68
4170-003 Steering Chain / linkage / wire [1998-08-20]............................................. 68
4170-004.......................................................................................... 69
4170-004 Steering Chain / linkage / wire [1998-08-20]............................................. 69
4180-013.......................................................................................... 70
4180-013 Steering bearings, radial bearing [1998-08-25]........................................... 70
4180-014.......................................................................................... 71
4180-014 Steering bearings, radial bearing [2000-05-18]........................................... 71
4310-018.......................................................................................... 72
4310-018 Electric steering wheel/lever [2000-10-16]............................................... 73
4350-003.......................................................................................... 75
4350-003 Steering angle sensor [1999-04-06]....................................................... 75
5160-016.......................................................................................... 76
5160-016 General alarm signals (audible/visual) [1998-09-14]...................................... 76
5160-017.......................................................................................... 76
5160-017 General alarm signals (audible/visual) [1996-09-06]...................................... 76
5160-018.......................................................................................... 77
5160-018 General alarm signals (audible/visual) [1996-09-10]...................................... 77
5190-014.......................................................................................... 78
5190-014 Battery cut out connector/contactor [1997-08-18]......................................... 78
5200-003.......................................................................................... 79
5200-003 Instrument panel, display [1997-01-14]................................................... 79
5200-009.......................................................................................... 80
5200-009 Instrument panel, display [1999-04-07]................................................... 81
5230-001.......................................................................................... 82
5230-001 Voltage/battery indicator/control [1996-06-11]........................................... 82
5280-009.......................................................................................... 82
5280-009 Level/position transducers/lamps [1996-09-05]............................................ 82
5310-003.......................................................................................... 83
5310-003 Start/stop switch [1996-05-21]........................................................... 83
5310-008.......................................................................................... 84
5310-008 Start/stop switch [1996-09-09]........................................................... 84
5310-011.......................................................................................... 85
5310-011 Start/stop switch [1996-09-09]........................................................... 85
5310-012.......................................................................................... 86
5310-012 Start/stop switch [1997-01-09]........................................................... 86
5310-019.......................................................................................... 87
5310-019 Start/stop switch [1996-09-05]........................................................... 87
5310-022.......................................................................................... 88
5310-022 Start/stop switch [1997-01-15]........................................................... 88
5330-017.......................................................................................... 89
5330-017 Speed control [1996-09-10]............................................................... 89
5330-027.......................................................................................... 90
5330-027 Speed control [1998-08-26]............................................................... 91
5390-105.......................................................................................... 92
5390-105 Driving function harnesses/ fuse [2000-05-16]............................................ 93
5390-108.......................................................................................... 94
5390-108 Driving function harnesses/ fuse [2000-05-16]............................................ 95
5400-005.......................................................................................... 96
5400-005 Electrical drive motor system [1997-08-18]............................................... 96
5430-072.......................................................................................... 98
5430-072 Drive motor cables/resistors/fuses [2000-05-09].......................................... 99
5440-009..........................................................................................100
5440-009 Direction contactors [1997-08-18]........................................................100
5460-015..........................................................................................101
5460-015 Transistor panel [1996-08-12]............................................................101
5510-017..........................................................................................101
5510-017 Work function micro switches, potentiometers [1996-09-10]................................101
5510-018..........................................................................................102
5510-018 Work function micro switches, potentiometers [1996-09-10]................................102
5510-022..........................................................................................102
5510-022 Work function micro switches, potentiometers [1997-01-09]................................102
5610-007..........................................................................................103
5610-007 Pump contactor [1997-08-18]..............................................................103
5680-066..........................................................................................104
5680-066 Battery/motor cables, fuse [2000-05-09]..................................................105
5680-067..........................................................................................106
5680-067 Battery/motor cables, fuse [2000-05-09]..................................................107
5710-018..........................................................................................108
5710-018 Drive/multi-function PCBs [2000-05-11]...................................................108
5710-019..........................................................................................108
5710-019 Drive/multi-function PCBs [1999-03-30]...................................................108
5710-036..........................................................................................109
5710-036 Drive/multi-function PCBs [1999-03-30]...................................................109
5810-024..........................................................................................110
5810-024 Drive movement probes/sensors [2000-05-08]...............................................110
5820-011..........................................................................................111
5820-011 Lift/lowering/reach movment probes/sensors [1999-04-06]..................................111
5830-029..........................................................................................112
5830-029 Safety probes/ sensors [1999-04-06]......................................................112
6100-073..........................................................................................114
6100-073 Hydraulic unit [2000-05-10]..............................................................115
6100-074..........................................................................................116
6100-074 Hydraulic unit [2000-06-14]..............................................................116
6230-009..........................................................................................118
6230-009 Hydraulic lines chassis [1999-04-07].....................................................118
6230-010..........................................................................................120
6230-010 Hydraulic lines chassis [1999-04-07].....................................................121
6610-021..........................................................................................122
6610-021 Main lift cylinders [1999-04-07].........................................................122
9130-022..........................................................................................124
9130-022 Working cage [2000-05-16]................................................................125
9420-016..........................................................................................130
9420-016 Truck log device, code locking device [2000-10-03].......................................131
9420-017..........................................................................................134
9420-017 Truck log device, code locking device [2000-10-03].......................................135
9500-038..........................................................................................137
9500-038 Other extra equipment [1998-03-05].......................................................137
9500-062..........................................................................................138
9500-062 Other extra equipment [2000-02-07].......................................................138
9500-093..........................................................................................139
9500-093 Other extra equipment [1999-03-30].......................................................139
9500-229..........................................................................................140
9500-229 Other extra equipment [2000-10-10].......................................................141
9500-238..........................................................................................142
9500-238 Other extra equipment [2000-11-15].......................................................143
9550-003..........................................................................................144
9550-003 Battery changing equipment [1996-09-09]..................................................144

S.S 06/24
