BT Forklift OSE250 / OSE250P Quality Parts Manual 6211550 –

Description

BT Forklift OSE250 / OSE250P Quality Parts Manual 6211550 – PDF DOWNLOAD

FILE DETAILS:

BT Forklift OSE250 / OSE250P Quality Parts Manual 6211550 – PDF DOWNLOAD

Language : English,German,French,Swedish
Pages :393
Downloadable : Yes
File Type : PDF

Valid for machine number 6211550
Ordering number 7543857
Language en sv de fr

TABLE OF CONTENTS:

BT Forklift OSE250 / OSE250P Quality Parts Manual 6211550 – PDF DOWNLOAD

0000 Chassis 6
Chassi; Chassis; Châssis 6
1000 Motors 7
Motorer; Motoren; Moteurs 7
2000 Transmission/Drive gear 8
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 8
3000 Brake/Wheel/Caterpillar system 8
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 8
4000 Steering system 9
Styrsystem; Steuer-/Lenksystem; Système de direction 9
5000 Electrical system 10
Elektriskt system; Elektroanlage; Système électrique 10
6000 Hydraulic/pneumatic system 12
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 12
7000 Work function – lifting masts 12
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 12
9000 Options/attachments 12
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 12
0300-00053 P0039664 16
0300-00053 Frame, chassis [2014-08-20] 17
0300-00074 P0046381 18
0300-00074 Frame, chassis [2014-05-21] 19
0340-00908 P0039218 20
0340-00908 Inspection covers [2014-11-24] 21
0340-00909 P0043963 22
0340-00909 Inspection covers [2017-09-21] 23
0340-00911 P0039294 24
0340-00911 Inspection covers [2017-06-21] 25
0340-01130 P0044958 26
0340-01130 Inspection covers [2017-05-19] 27
0340-01131 P0044959 28
0340-01131 Inspection covers [2017-05-17] 29
0340-01197 P0047032 32
0340-01197 Inspection covers [2016-05-03] 33
0340-01450 P0052242 36
0340-01450 Inspection covers [2016-05-03] 37
0340-01634 P0056086 40
0340-01634 Inspection covers [2017-09-21] 41
0340-01684 P0057125 42
0340-01684 Inspection covers [2017-09-21] 43
0380-00965 P0039437 44
0380-00965 Fork frame (low lifters) [2014-08-21] 45
0380-01426 P0046774 46
0380-01426 Fork frame (low lifters) [2016-08-25] 47
0380-01565 P0050408 48
0380-01565 Fork frame (low lifters) [2016-08-30] 49
0380-01682 P0053338 50
0380-01682 Fork frame (low lifters) [2016-09-22] 51
0380-01686 P0053642 52
0380-01686 Fork frame (low lifters) [2017-05-05] 53
0380-01770 P0055895 54
0380-01770 Fork frame (low lifters) [2017-05-05] 55
0390-00729 P0039224 56
0390-00729 Battery compartment parts [2017-08-29] 57
0390-00734 P0039603 58
0390-00734 Battery compartment parts [2012-02-01] 59
0390-00735 P0039620 60
0390-00735 Battery compartment parts [2017-06-21] 61
0390-00736 P0039759 62
0390-00736 Battery compartment parts [2012-02-01] 63
0390-01390 Battery compartment parts [2017-03-23] 65
0390-01398 P0055537 66
0390-01398 Battery compartment parts [2017-03-28] 67
0390-01446 P0056755 68
0390-01446 Battery compartment parts [2017-08-29] 69
0400-00240 P0047123 70
0400-00240 Frame/chassis components [2017-01-26] 71
0620-00535 P0039281 72
0620-00535 Seat, cushions [2017-06-21] 73
0620-00536 P0039368 74
0620-00536 Seat, cushions [2017-06-21] 75
0620-00596 P0044961 76
0620-00596 Seat, cushions [2017-05-04] 77
0670-00142 P0039805 78
0670-00142 Wall/floor covering [2013-04-25] 79
0670-00171 P0043945 80
0670-00171 Wall/floor covering [2013-04-25] 81
0680-00404 P0039227 82
0680-00404 Internal fittings [2017-06-21] 83
0680-00406 P0039282 84
0680-00406 Internal fittings [2012-07-05] 85
0830-00101 P0040084 86
0830-00101 Collision bumper/guards [2017-06-21] 87
0840-00226 P0030432 88
0840-00226 Driver protection [2012-01-05] 89
0840-00332 P0039370 90
0840-00332 Driver protection [2014-11-10] 91
0840-00418 P0043698 92
0840-00418 Driver protection [2013-03-21] 93
0850-00614 P0039464 94
0850-00614 Signs, warnings, decals [2013-11-01] 95
0850-00704 P0044964 96
0850-00704 Signs, warnings, decals [2016-05-02] 97
0850-00772 P0049214 98
0850-00772 Signs, warnings, decals [2015-12-03] 99
1710-00154 P0039621100
1710-00154 Electric pump motor [2015-10-22]101
1710-00170 P0046560102
1710-00170 Electric pump motor [2016-09-22]103
1710-00178 P0053634104
1710-00178 Electric pump motor [2016-09-26]105
1730-00072 P0039375106
1730-00072 Electric steering motor [2017-06-21]107
1760-00192 P0039249108
1760-00192 Electric drive motor [2016-05-30]109
1760-00256 P0052585110
1760-00256 Electric drive motor [2017-06-21]111
2550-00124 P0039736112
2550-00124 Mechanical drive gear unit [2017-06-22]113
2550-00224 P0056451116
2550-00224 Mechanical drive gear unit [2017-06-30]117
3370-00043 P0039255118
3370-00043 Electromagnetic parking brake [2017-06-22]119
3530-00169 P0039261120
3530-00169 Drive wheel [2017-06-22]121
3530-00221 P0052275122
3530-00221 Drive wheel [2017-06-22]123
3530-00242 P0056433124
3530-00242 Drive wheel [2017-06-22]125
3540-00109 P0030640126
3540-00109 Support/castor wheels [2015-02-18]127
3540-00158 P0043767130
3540-00158 Support/castor wheels [2015-09-24]131
3540-00159 P0043768132
3540-00159 Support/castor wheels [2016-09-22]133
3540-00186 P0050049134
3540-00186 Support/castor wheels [2016-09-19]135
3540-00189 P0051116136
3540-00189 Support/castor wheels [2016-09-22]137
3540-00199 P0053645138
3540-00199 Support/castor wheels [2016-09-26]139
3540-00200 P0053646140
3540-00200 Support/castor wheels [2016-09-26]141
3550-00616 P0035045142
3550-00616 Fork/support arm wheels [2015-03-02]143
3580-00070 P0036982144
3580-00070 Guide rollers/wheels [2012-01-31]145
4110-00357 P0021909146
4110-00357 Steering arm/wheel/lever [2013-11-18]147
4110-00434 P0026636150
4110-00434 Steering arm/wheel/lever [2017-06-22]151
4110-00435 P0026637154
4110-00435 Steering arm/wheel/lever [2017-06-22]155
4110-00506 P0030429158
4110-00506 Steering arm/wheel/lever [2013-09-26]159
4110-00507 P0030430160
4110-00507 Steering arm/wheel/lever [2013-09-26]161
4110-00682 P0032340162
4110-00682 Steering arm/wheel/lever [2015-05-27]163
4110-00683 P0039388164
4110-00683 Steering arm/wheel/lever [2015-05-27]165
4110-00684 P0032357166
4110-00684 Steering arm/wheel/lever [2015-05-27]167
4110-00685 P0039494168
4110-00685 Steering arm/wheel/lever [2015-05-27]169
4110-00686 P0049278170
4110-00686 Steering arm/wheel/lever [2016-03-31]171
4110-00691 P0039604172
4110-00691 Steering arm/wheel/lever [2016-03-31]173
4110-00692 P0039604176
4110-00692 Steering arm/wheel/lever [2016-03-31]177
4110-00693 P0026638180
4110-00693 Steering arm/wheel/lever [2015-05-27]181
4110-00799 P0044767184
4110-00799 Steering arm/wheel/lever [2016-03-31]185
4110-00801 P0044818186
4110-00801 Steering arm/wheel/lever [2016-03-31]187
4110-00878 P0049169188
4110-00878 Steering arm/wheel/lever [2017-06-22]189
4110-00879 P0049176190
4110-00879 Steering arm/wheel/lever [2017-03-28]191
4110-00880 P0049188192
4110-00880 Steering arm/wheel/lever [2017-03-28]193
4110-00885 P0049304194
4110-00885 Steering arm/wheel/lever [2015-06-10]195
4110-00999 P0055531196
4110-00999 Steering arm/wheel/lever [2017-06-22]197
4110-01000 P0055527198
4110-01000 Steering arm/wheel/lever [2017-06-22]199
4350-00022 P0039390200
4350-00022 Steering angle sensor [2017-06-22]201
5160-00186 P0039392202
5160-00186 General alarm signals (audible/visual) [2014-03-27]203
5160-00204 P0046032204
5160-00204 General alarm signals (audible/visual) [2017-06-22]205
5190-00161 P0039237206
5190-00161 Battery cut out connector/contactor [2015-05-26]207
5190-00164 P0039529208
5190-00164 Battery cut out connector/contactor [2014-03-11]209
5190-00170 P0041322210
5190-00170 Battery cut out connector/contactor [2014-03-11]211
5190-00190 P0044981212
5190-00190 Battery cut out connector/contactor [2016-08-29]213
5190-00192 P0044967214
5190-00192 Battery cut out connector/contactor [2014-03-27]215
5190-00200 P0046004216
5190-00200 Battery cut out connector/contactor [2014-03-27]217
5190-00201 P0046006218
5190-00201 Battery cut out connector/contactor [2014-03-27]219
5190-00204 P0046010220
5190-00204 Battery cut out connector/contactor [2015-05-18]221
5190-00205 P0046026222
5190-00205 Battery cut out connector/contactor [2015-05-26]223
5190-00206 P0046027224
5190-00206 Battery cut out connector/contactor [2015-05-26]225
5190-00222 P0049216226
5190-00222 Battery cut out connector/contactor [2017-05-16]227
5190-00225 P0049223228
5190-00225 Battery cut out connector/contactor [2015-05-26]229
5190-00226 P0049224230
5190-00226 Battery cut out connector/contactor [2016-09-22]231
5190-00256 P0053370232
5190-00256 Battery cut out connector/contactor [2017-06-22]233
5190-00257 P0053626234
5190-00257 Battery cut out connector/contactor [2016-09-26]235
5310-00217 P0044968236
5310-00217 Start/stop switch [2017-06-22]237
5460-00110 P0040540238
5460-00110 Transistor panel [2013-05-27]239
5460-00113 P0040540240
5460-00113 Transistor panel [2016-05-03]241
5460-00120 P0044110242
5460-00120 Transistor panel [2016-05-03]243
5460-00121 P0044111244
5460-00121 Transistor panel [2017-06-22]245
5590-00690 P0039630246
5590-00690 Work function harnesses/fuse [2014-03-11]247
5610-00039 P0039606248
5610-00039 Pump contactor [2017-06-22]249
5610-00042 P0043420250
5610-00042 Pump contactor [2013-02-06]251
5680-00212 P0039593252
5680-00212 Battery/motor cables, fuse [2017-06-22]253
5680-00280 P0047354254
5680-00280 Battery/motor cables, fuse [2016-08-31]255
5820-00230 P0027970256
5820-00230 Lift/lowering/reach movement probes/sensors [2012-01-31]257
5820-00449 P0039628258
5820-00449 Lift/lowering/reach movement probes/sensors [2012-02-01]259
5830-00281 P0039755260
5830-00281 Safety probes/sensors [2016-08-25]261
5830-00386 P0053297262
5830-00386 Safety probes/sensors [2017-05-05]263
5830-00409 P0055904264
5830-00409 Safety probes/sensors [2017-05-05]265
6100-00353 P0033993266
6100-00353 Hydraulic unit [2016-02-09]267
6100-00354 P0039650268
6100-00354 Hydraulic unit [2016-09-22]269
6100-00447 P0051115270
6100-00447 Hydraulic unit [2017-08-18]271
6100-00462 P0053632272
6100-00462 Hydraulic unit [2016-09-26]273
6230-00361 P0039267274
6230-00361 Hydraulic lines chassis [2012-04-27]275
6230-00368 P0033208276
6230-00368 Hydraulic lines chassis [2016-09-22]277
6230-00564 P0053637278
6230-00564 Hydraulic lines chassis [2016-09-26]279
6610-00227 P0027986280
6610-00227 Main lift cylinders [2012-03-20]281
6610-00583 P0039126282
6610-00583 Main lift cylinders [2016-08-31]283
7420-01861 P0053340284
7420-01861 Fork carriage unit, integrated sideshift, fork spread [2016-11-30]285
7420-01885 P0054433286
7420-01885 Fork carriage unit, integrated sideshift, fork spread [2016-11-30]287
9130-00122 P0029729288
9130-00122 Working cage [2014-04-23]289
9130-00130 P0041593292
9130-00130 Working cage [2016-03-31]293
9130-00186 P0044600294
9130-00186 Working cage [2016-04-14]295
9130-00250 P0051771298
9130-00250 Working cage [2016-03-31]299
9130-00252 P0051990300
9130-00252 Working cage [2016-10-21]301
9400-00512 P0039485304
9400-00512 Extra electrical equipment [2014-10-20]305
9400-00515 P0039543306
9400-00515 Extra electrical equipment [2014-04-22]307
9400-00671 P0046261308
9400-00671 Extra electrical equipment [2016-02-11]309
9400-00843 P0051057310
9400-00843 Extra electrical equipment [2017-06-22]311
9400-01003 P0056074312
9400-01003 Extra electrical equipment [2017-05-19]313
9420-00038 P0016146314
9420-00038 Truck log device, code locking device [2017-06-22]315
9420-00099 P0026635316
9420-00099 Truck log device, code locking device [2017-06-22]317
9420-00176 P0039571318
9420-00176 Truck log device, code locking device [2013-11-22]319
9420-00177 P0039585320
9420-00177 Truck log device, code locking device [2013-11-22]321
9420-00227 P0045237322
9420-00227 Truck log device, code locking device [2016-04-11]323
9420-00228 P0045236324
9420-00228 Truck log device, code locking device [2016-04-11]325
9420-00336 P0051935326
9420-00336 Truck log device, code locking device [2017-05-19]327
9420-00374 P0054077328
9420-00374 Truck log device, code locking device [2016-11-01]329
9420-00375 P0054078330
9420-00375 Truck log device, code locking device [2016-11-01]331
9420-00376 P0054083332
9420-00376 Truck log device, code locking device [2017-06-22]333
9420-00377 P0054086334
9420-00377 Truck log device, code locking device [2017-01-26]335
9420-00383 P0054457336
9420-00383 Truck log device, code locking device [2017-06-22]337
9420-00398 P0054937338
9420-00398 Truck log device, code locking device [2017-06-22]339
9420-00417 P0056118340
9420-00417 Truck log device, code locking device [2017-08-30]341
9420-00439 P0056769342
9420-00439 Truck log device, code locking device [2017-08-31]343
9500-00532 P0018900344
9500-00532 Other extra equipment [2012-09-18]345
9500-01269 P0034721346
9500-01269 Other extra equipment [2014-11-24]347
9500-01514 P0039545348
9500-01514 Other extra equipment [2017-06-22]349
9500-01515 P0039549350
9500-01515 Other extra equipment [2017-06-22]351
9500-01516 P0039552352
9500-01516 Other extra equipment [2017-06-22]353
9500-01517 P0039553354
9500-01517 Other extra equipment [2017-06-22]355
9500-01518 P0039554356
9500-01518 Other extra equipment [2017-09-26]357
9500-01519 P0039556358
9500-01519 Other extra equipment [2017-06-22]359
9500-01520 P0039558360
9500-01520 Other extra equipment [2017-06-22]361
9500-01521 P0039560362
9500-01521 Other extra equipment [2012-01-31]363
9500-01522 P0039567364
9500-01522 Other extra equipment [2012-01-11]365
9500-01523 P0039568366
9500-01523 Other extra equipment [2015-02-11]367
9500-01530 P0039698368
9500-01530 Other extra equipment [2017-06-22]369
9500-01562 P0041260370
9500-01562 Other extra equipment [2016-08-25]371
9500-01617 P0047357372
9500-01617 Other extra equipment [2017-09-25]373
9500-01895 P0045028376
9500-01895 Other extra equipment [2015-08-26]377
9500-02073 P0047543378
9500-02073 Other extra equipment [2017-06-22]379
9500-02105 P0047986380
9500-02105 Other extra equipment [2017-06-22]381
9500-02512 P0053293382
9500-02512 Other extra equipment [2017-05-05]383
9500-02693 P0055902384
9500-02693 Other extra equipment [2017-05-05]385
9500-02702 P0056483386
9500-02702 Other extra equipment [2017-06-26]387
9500-02704 P0056069388
9500-02704 Other extra equipment [2017-05-19]389
9550-00013 P0039171390
9550-00013 Battery changing equipment [2017-06-22]391
9550-00060 P0046450392
9550-00060 Battery changing equipment [2014-05-22]393

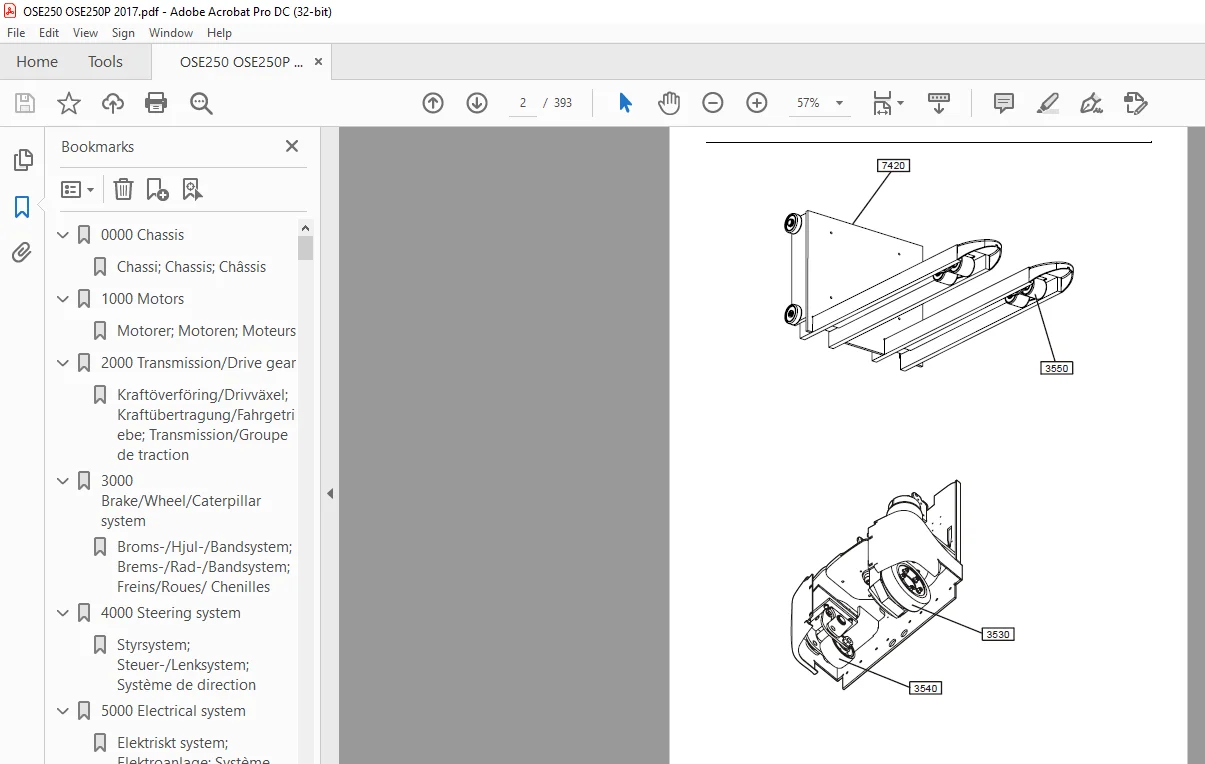

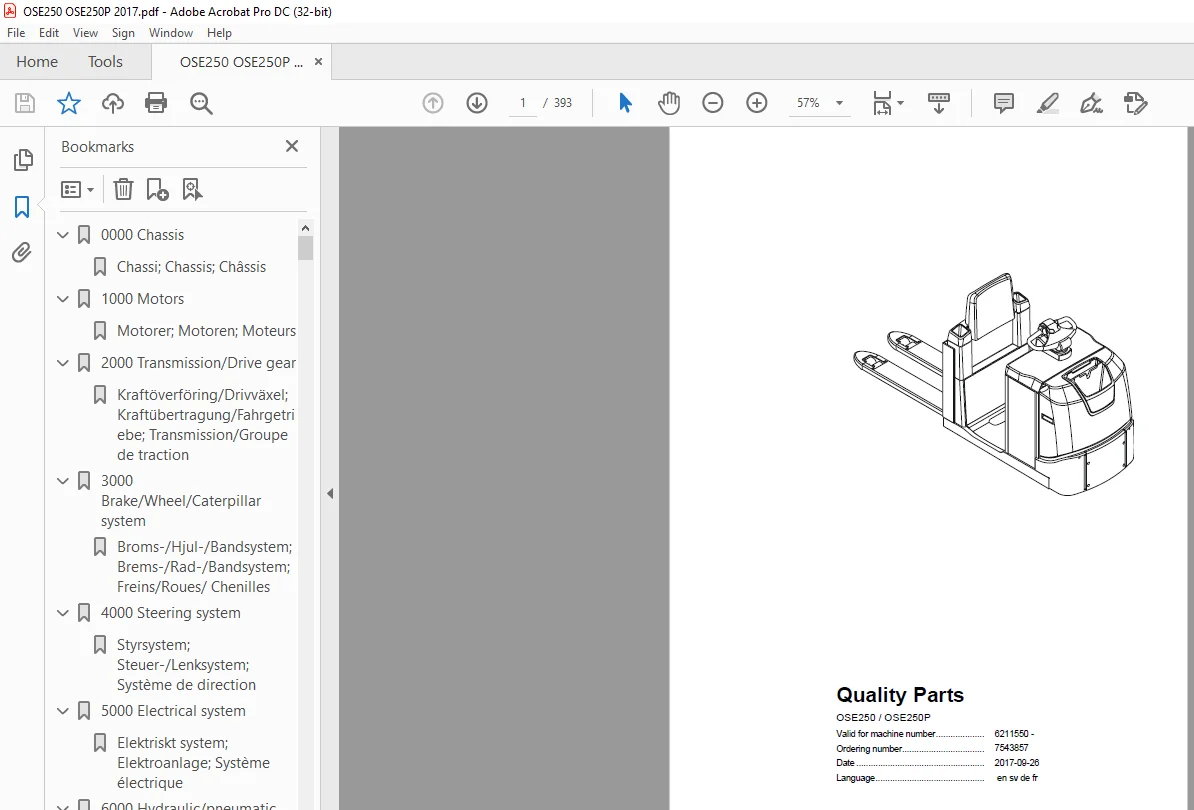

IMAGES PREVIEW OF THE MANUAL:

S.M 6/24
