BT Forklift PPL 2000 MX Quality Parts Manual 401250AA

Description

BT Forklift PPL 2000 MX Quality Parts Manual 401250AA – PDF DOWNLOAD

FILE DETAILS:

BT Forklift PPL 2000 MX Quality Parts Manual 401250AA – PDF DOWNLOAD

Language : English,German,French,Swedish
Pages :85
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

BT Forklift PPL 2000 MX Quality Parts Manual 401250AA – PDF DOWNLOAD

0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Drive motor 4
Motorprimär; Antriebsmotor; Moteur de traction 4
2000 Transmission/Drive gear 4
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/ Groupe de traction 4
3000 Brake/Wheel/Caterpillar system 5
Broms-/Hjul/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
4000 Steering system 5
Styrsystem; Steuer-/Lenksystem; Système de direction 5
5000 Electrical system 6
Elektriskt system; Elektroanlage; Système électrique 6
6000 Hydraulic/pneumatic system 7
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 7
7000 Operating funktion – lifting mast/cylinder 7
Arbetsfunktion – lyftstativ/cylindrar; Arbeitsfunktion – Hubgerüst / zylinder; Fonction de travai 7
9000 Options/attachments 7
Tillbehör/extrautrustning; Zubehör /Zusatzausrüstung; Equipement supplémentaire/Options 7
0340-041 8
0340-041 Inspection covers [1997-10-02] 9
0380-04410
0380-044 Fork frame (low lifters) [1997-11-21]11
0400-01212
0400-012 Frame/chassis components [1997-11-21]13
0450-01614
0450-016 Motor fixing points [1997-11-22]15
0560-00816
0560-008 Platform incl fixing points [1997-11-22]17
0640-01418
0640-014 Driver controls ( mechanical ) [1996-08-08]18
0820-03319
0820-033 Finger/foot guards [1997-10-03]19
0840-01020
0840-010 Driver protection [1996-11-18]20
0850-06022
0850-060 Signs, warnings, decals [1997-11-22]23
1700-02724
1700-027 Electric drive motor [1998-11-19]25
2550-02426
2550-024 Mechanical drive gear unit [1999-03-14]27
3160-01330
3160-013 Parking brake drum/disc assembly [1997-11-22]31
3500-00432
3500-004 Wheels [1996-11-18]33
3530-00134
3530-001 Drive wheel [1996-08-08]34
3540-02036
3540-020 Support/castor wheels [1997-12-01]37
4110-06638
4110-066 Steering arm / wheel / lever [1999-03-23]39
4180-00841
4180-008 Steering bearings, radial bearing [1996-04-02]41
5160-02442
5160-024 General alarm signals (audible/visual) [1997-11-24]42
5190-00343
5190-003 Battery cut out connector/contactor [1996-11-19]43
5290-00244
5290-002 Hour meter, speed recorder [1996-05-20]44
5310-04045
5310-040 Start/stop switch [1999-06-11]45
5330-03046
5330-030 Speed control [1998-11-23]47
5390-09548
5390-095 Driving function harnesses/ fuse [1998-11-23]49
5430-05550
5430-055 Motor cables, resistors [1999-06-12]51
5440-00652
5440-006 Direction contactors [1996-11-20]52
5460-02653
5460-026 Transistor panel [1999-06-10]53
5510-01454
5510-014 Work function micro switches, potentiometers [1996-08-20]54
5510-02755
5510-027 Work function micro switches, potentiometers [1997-10-28]55
5510-02956
5510-029 Work function micro switches, potentiometers [1997-11-24]56
5610-00557
5610-005 Pump contactor [1996-11-20]57
5710-01358
5710-013 PCBs logic card / box [1996-11-20]58
5750-06859
5750-068 Safety/ position probes/ sensors [1997-11-24]59
5790-00160
5790-001 Safely electronics harnesses, fuse [1996-11-20]60
5810-02261
5810-022 Electric pump motor [1998-08-27]61
6100-04762
6100-047 Hydraulic unit [1998-11-24]63
6120-14064
6120-140 Hoses and pipes, connection, fixation [1998-11-24]64
7310-04966
7310-049 Lift cylinders [1997-11-25]67
7390-00668
7390-006 Powertrak cylinder [1997-11-28]69
9400-03370
9400-033 Extra electrical equipment [1999-09-10]71
9400-03472
9400-034 Extra electrical equipment [1999-09-10]73
9500-10274
9500-102 Other extra equipment [1999-06-11]74

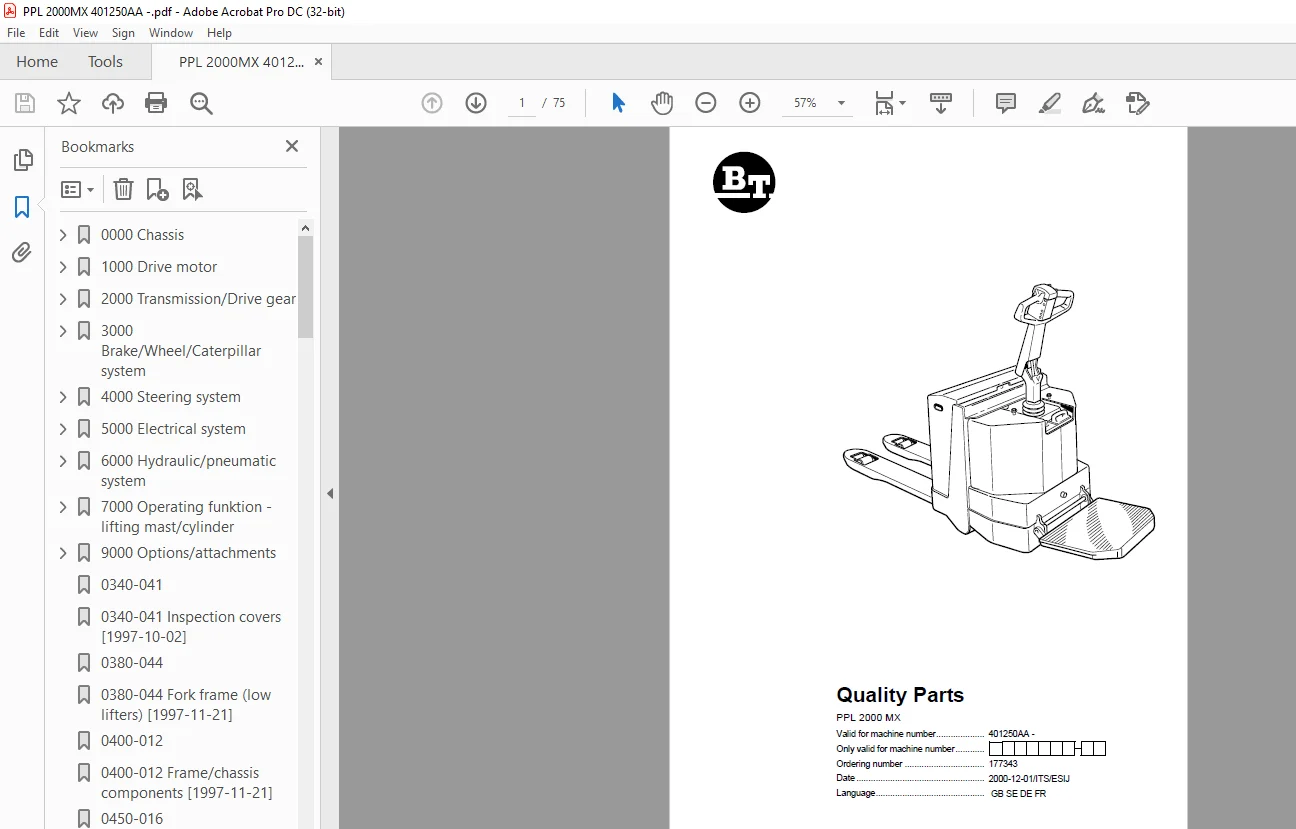

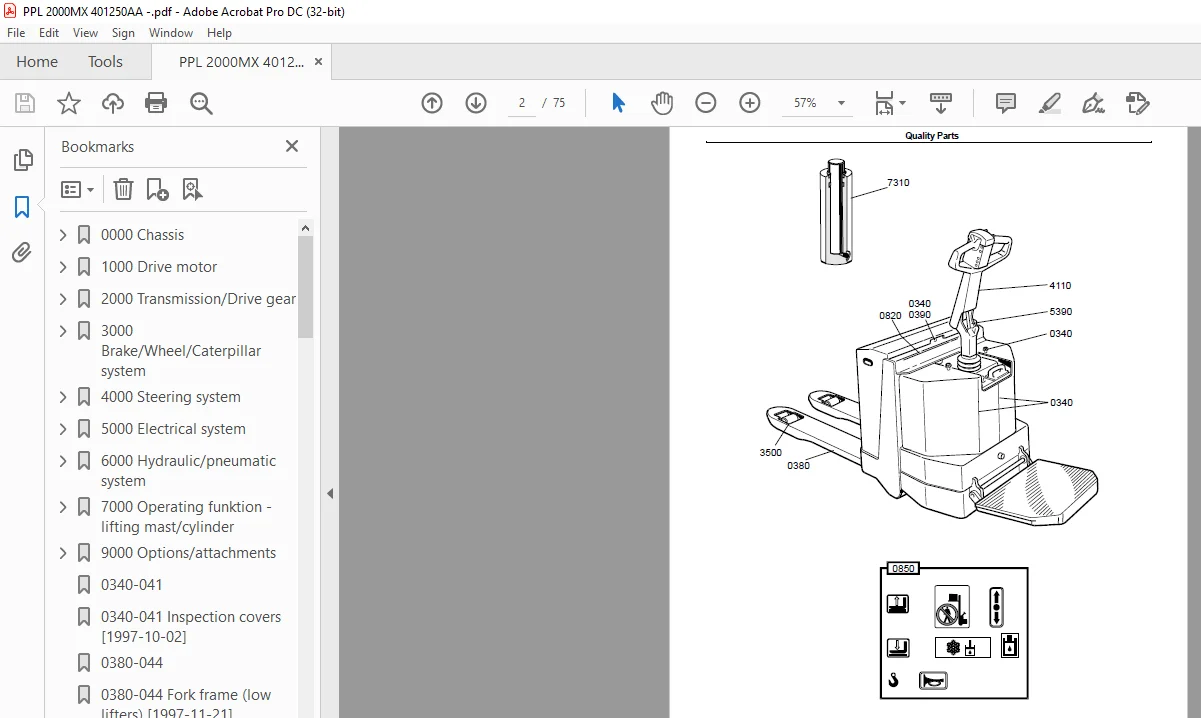

IMAGES PREVIEW OF THE MANUAL:
