BT Forklift PPS 1600MXD Quality Parts Manual 361808AA-PDF DOWNLOAD

Description

BT Forklift PPS 1600MXD Quality Parts Manual 361808AA-PDF DOWNLOAD

FILE DETAILS:

BT Forklift PPS 1600MXD Quality Parts Manual 361808AA-PDF DOWNLOAD

Language : English
Pages :97
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

BT Forklift PPS 1600MXD Quality Parts Manual 361808AA-PDF DOWNLOAD

0000 Chassis 4
Chassi; Chassis; Châssis 4
1000 Drive motor 4
Motorprimär; Antriebsmotor; Moteur de traction 4
2000 Transmission/Drive gear 4
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/ Groupe de traction 4
3000 Brake/Wheel/Caterpillar system 5
Broms-/Hjul/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
4000 Steering system 5
Styrsystem; Steuer-/Lenksystem; Système de direction 5
5000 Electrical system 6
Elektriskt system; Elektroanlage; Système électrique 6
6000 Hydraulic/pneumatic system 7
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 7
7000 Operating funktion – lifting mast/cylinder 7
Arbetsfunktion – lyftstativ/cylindrar; Arbeitsfunktion – Hubgerüst / zylinder; Fonction de travai 7
9000 Options/attachments 8
Tillbehör/extrautrustning; Zubehör /Zusatzausrüstung; Equipement supplémentaire/Options 8
0340-04710
0340-047 Inspection covers [1997-11-11]11
0380-04012
0380-040 Fork frame (low lifters) [1997-03-13]13
0400-00614
0400-006 Frame/chassis components [1995-11-28]15
0450-02116
0450-021 Motor fixing points [1998-04-24]17
0560-00118
0560-001 Platform incl fixing points [1997-05-28]19
0560-01520
0560-015 Platform incl fixing points [1998-11-17]21
0640-03022
0640-030 Driver controls ( mechanical ) [1997-03-19]23
0640-03124
0640-031 Driver controls ( mechanical ) [1997-03-19]24
0820-03425
0820-034 Finger/foot guards [1997-11-12]25
0820-04926
0820-049 Finger/foot guards [1998-11-25]26
0840-01027
0840-010 Driver protection [1996-11-18]27
0850-06928
0850-069 Signs, warnings, decals [1998-04-24]29
1700-02730
1700-027 Electric drive motor [1998-11-19]31
2550-02432
2550-024 Mechanical drive gear unit [1999-03-14]33
3160-02036
3160-020 Parking brake drum/disc assembly [1998-11-20]37
3500-00938
3500-009 Wheels [1997-05-21]38
3500-01039
3500-010 Wheels [1997-05-21]39
3530-01240
3530-012 Drive wheel [1997-03-11]40
3540-01942
3540-019 Support/castor wheels [1997-11-10]43
4110-06444
4110-064 Steering arm / wheel / lever [1998-05-18]44
4110-12346
4110-123 Steering arm / wheel / lever [1999-03-17]47
4180-00849
4180-008 Steering bearings, radial bearing [1996-04-02]49
5160-02150
5160-021 General alarm signals (audible/visual) [1997-03-17]50
5190-01151
5190-011 Battery cut out connector/contactor [1997-03-11]51
5290-00252
5290-002 Hour meter, speed recorder [1996-05-20]52
5310-04153
5310-041 Start/stop switch [1999-06-11]53
5330-02954
5330-029 Speed control [1998-11-20]54
5390-09256
5390-092 Driving function harnesses/ fuse [1998-11-17]57
5390-09358
5390-093 Driving function harnesses/ fuse [1998-11-19]58
5400-00259
5400-002 Electrical drive motor system [1996-05-20]59
5430-02660
5430-026 Motor cables, resistors [1997-03-13]61
5440-00662
5440-006 Direction contactors [1996-11-20]62
5460-02663
5460-026 Transistor panel [1999-06-10]63
5510-02464
5510-024 Work function micro switches, potentiometers [1997-03-19]64
5610-00565
5610-005 Pump contactor [1996-11-20]65
5710-01266
5710-012 PCBs logic card / box [1996-12-12]66
5750-05467
5750-054 Safety/ position probes/ sensors [1997-03-17]67
5750-08368
5750-083 Safety/ position probes/ sensors [1998-11-18]68
5750-09670
5750-096 Safety/ position probes/ sensors [1999-06-11]71
5790-01572
5790-015 Safely electronics harnesses, fuse [1998-04-24]72
5810-02773
5810-027 Electric pump motor [2000-05-18]73
6100-07574
6100-075 Hydraulic unit [2000-05-18]75
6120-08176
6120-081 Hoses and pipes, connection, fixation [1997-03-13]77
7120-03578
7120-035 Chains / yokes / rollers [1997-03-11]78
7150-00280
7150-002 Mast guidance / dampers [1996-08-22]80
7310-03581
7310-035 Lift cylinders [1997-03-13]81
7340-01582
7340-015 Free initial lift cylinder [1997-05-21]82
7420-01783
7420-017 Fork carriage unit [1997-03-14]83
9400-01884
9400-018 Extra electrical equipment [1998-11-13]85
9400-02286
9400-022 Extra electrical equipment [1998-11-23]87
9400-02388
9400-023 Extra electrical equipment [1998-11-23]89
9400-03390
9400-033 Extra electrical equipment [1999-09-10]91
9400-03492
9400-034 Extra electrical equipment [1999-09-10]93
9500-02294
9500-022 Other extra equipment [1997-03-14]94
9500-04795
9500-047 Other extra equipment [1998-04-24]95
9500-07596
9500-075 Other extra equipment [1998-11-26]96

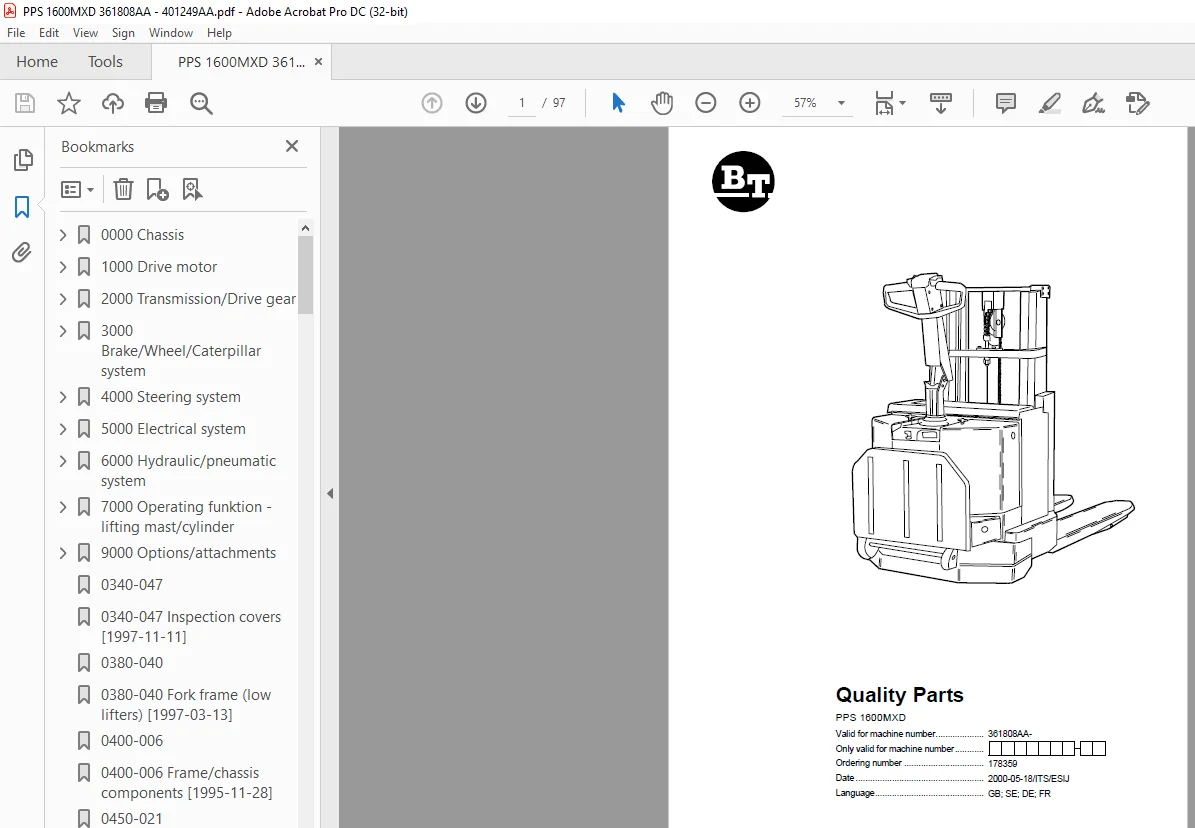

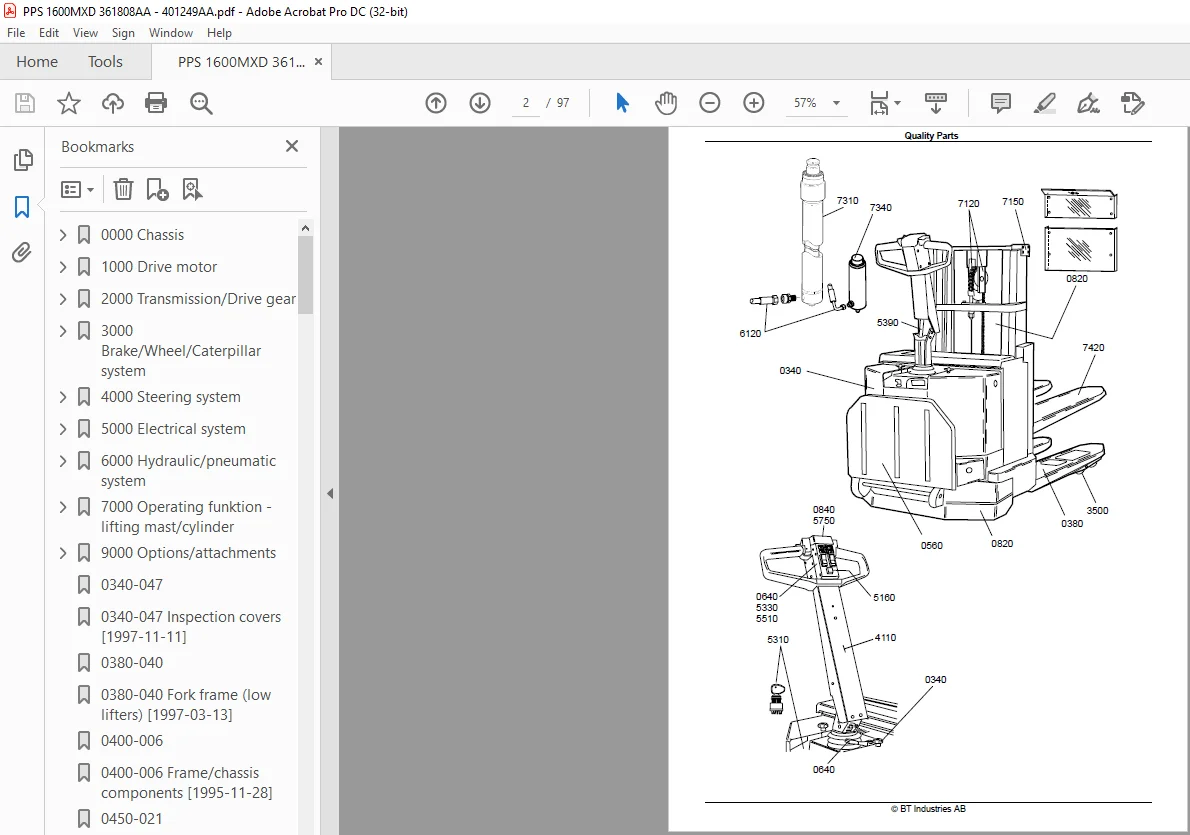

IMAGES PREVIEW OF THE MANUAL:
