BT Forklift RRE160 Quality Parts Manual 7520590 PDF

Description

BT Forklift RRE160 Quality Parts Manual 7520590 – PDF DOWNLOAD

FILE DETAILS:

BT Forklift RRE160 Quality Parts Manual 7520590 – PDF DOWNLOAD

Language : English,German,French,Swedish
Pages :266
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

BT Forklift RRE160 Quality Parts Manual 7520590 – PDF DOWNLOAD

0000 Chassis 6
Chassi; Chassis; Châssis 6
1000 Motors 7
Motorer; Motoren; Moteurs 7
2000 Transmission/Drive gear 7
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 7
3000 Brake/Wheel/Caterpillar system 7
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 7
4000 Steering system 8
Styrsystem; Steuer-/Lenksystem; Système de direction 8
5000 Electrical system 8
Elektriskt system; Elektroanlage; Système électrique 8
6000 Hydraulic/pneumatic system 10
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 10
7000 Work function – lifting masts 11
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 11
9000 Options/attachments 12
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 12
0340-00686 P0032308 14
0340-00686 Inspection covers [2010-03-10] 14
0340-00703 P0033343 16
0340-00703 Inspection covers [2010-05-27] 17
0350-00141 P0032305 18
0350-00141 Support arms, stabilizers [2010-03-10] 18
0390-00519 P0033482 19
0390-00519 Battery compartment parts [2010-05-27] 19
0390-00549 P0034542 20
0390-00549 Battery compartment parts [2010-01-20] 21
0390-00550 P0034550 22
0390-00550 Battery compartment parts [2010-01-20] 23
0390-00559 P0034678 24
0390-00559 Battery compartment parts [2010-05-27] 24
0390-00561 P0034680 25
0390-00561 Battery compartment parts [2010-05-27] 25
0390-00567 P0034825 26
0390-00567 Battery compartment parts [2010-05-27] 27
0390-00586 P0035206 28
0390-00586 Battery compartment parts [2010-03-10] 29
0390-00620 P0036109 30
0390-00620 Battery compartment parts [2010-05-27] 31
0390-00621 P0036110 34
0390-00621 Battery compartment parts [2010-05-27] 35
0450-00098 P0032258 37
0450-00098 Motor fixing points [2010-03-10] 37
0510-00040 P0032690 38
0510-00040 Cabin fixing points [2010-03-10] 38
0620-00504 P0036057 40
0620-00504 Seat, cushions [2010-02-08] 41
0640-00132 P0033453 44
0640-00132 Driver controls ( mechanical ) [2010-03-10] 44
0640-00136 P0034365 45
0640-00136 Driver controls ( mechanical ) [2010-03-10] 45
0680-00368 P0034642 46
0680-00368 Internal fittings [2009-09-09] 47
0680-00370 P0034644 50
0680-00370 Internal fittings [2009-09-09] 51
0740-00023 P0034822 53
0740-00023 Mirrors [2010-03-10] 53
0810-00208 P0032310 54
0810-00208 Overhead guard/roof [2010-03-10] 54
0810-00233 P0034641 56
0810-00233 Overhead guard/roof [2010-01-20] 57
0810-00240 P0035140 60
0810-00240 Overhead guard/roof [2010-03-10] 61
0810-00243 P0035141 62
0810-00243 Overhead guard/roof [2010-03-10] 63
0810-00246 P0035651 64
0810-00246 Overhead guard/roof [2010-01-20] 65
0820-00302 P0032356 67
0820-00302 Finger/foot guards [2010-03-10] 67
0820-00304 P0032418 68
0820-00304 Finger/foot guards [2010-05-27] 69
0840-00227 P0030615 70
0840-00227 Driver protection [2010-03-10] 70
0840-00245 P0032149 71
0840-00245 Driver protection [2010-03-10] 71
0850-00502 P0032594 72
0850-00502 Signs, warnings, decals [2009-09-09] 73
0850-00503 P0032596 74
0850-00503 Signs, warnings, decals [2009-09-09] 74
1710-00140 P0031304 76
1710-00140 Electric pump motor [2010-03-10] 77
1730-00060 P0033336 78
1730-00060 Electric steering motor [2010-03-10] 78
1740-00049 P0034022 79
1740-00049 Electric fan motor, electric fan [2010-03-10] 79
1760-00170 P0032398 80
1760-00170 Electric drive motor [2010-03-10] 81
2550-00094 P0030285 82
2550-00094 Mechanical drive gear unit [2010-03-10] 83
3180-00025 P0032402 84
3180-00025 Electrically controlled travel brake [2010-03-10] 85
3180-00027 P0032955 86
3180-00027 Electrically controlled travel brake [2010-03-10] 86
3530-00138 P0030290 87
3530-00138 Drive wheel [2010-03-10] 87
3550-00478 P0032422 88
3550-00478 Fork/support arm wheels [2010-05-19] 89
3550-00491 P0033139 90
3550-00491 Fork/support arm wheels [2010-03-10] 91
3550-00510 P0034485 92
3550-00510 Fork/support arm wheels [2010-03-10] 92
4310-00078 P0031370 94
4310-00078 Electric steering wheel/lever [2010-03-10] 95
4310-00080 P0032654 97
4310-00080 Electric steering wheel/lever [2009-09-09] 97
4350-00018 P0031638 98
4350-00018 Steering angle sensor [2010-03-10] 98
5160-00146 P0031251100
5160-00146 General alarm signals (audible/visual) [2010-05-27]100
5190-00139 P0031508100
5190-00139 Battery cut out connector/contactor [2010-03-10]100
5190-00142 P0032073101
5190-00142 Battery cut out connector/contactor [2010-03-10]101
5200-00045 P0031314102
5200-00045 Instrument panel, display [2009-09-09]103
5200-00046 P0031398106
5200-00046 Instrument panel, display [2009-09-29]107
5200-00048 P0031624109
5200-00048 Instrument panel, display [2010-03-10]109
5280-00126 P0032634110
5280-00126 Level/position transducers/lamps [2009-09-09]110
5280-00158 P0035149112
5280-00158 Level/position transducers/lamps [2010-02-08]113
5280-00160 P0035151114
5280-00160 Level/position transducers/lamps [2010-02-08]115
5280-00169 P0035574116
5280-00169 Level/position transducers/lamps [2010-02-08]117
5280-00171 P0035578120
5280-00171 Level/position transducers/lamps [2010-02-08]121
5390-00311 P0032660123
5390-00311 Driving function harnesses/fuse [2010-03-10]123
5390-00317 P0033737124
5390-00317 Driving function harnesses/fuse [2010-05-27]125
5390-00319 P0033756126
5390-00319 Driving function harnesses/fuse [2010-03-10]126
5430-00149 P0033457128
5430-00149 Drive motor cables/resistors/fuses [2010-03-10]129
5460-00086 P0031811130
5460-00086 Transistor panel [2010-03-10]131
5590-00382 P0031270132
5590-00382 Work function harnesses/fuse [2010-03-10]132
5590-00398 P0032163133
5590-00398 Work function harnesses/fuse [2010-03-10]133
5590-00409 P0032524134
5590-00409 Work function harnesses/fuse [2010-03-10]135
5590-00413 P0032656136
5590-00413 Work function harnesses/fuse [2010-03-10]137
5590-00429 P0033524138
5590-00429 Work function harnesses/fuse [2010-03-10]138
5590-00430 P0033523139
5590-00430 Work function harnesses/fuse [2010-03-10]139
5590-00438 P0033738140
5590-00438 Work function harnesses/fuse [2010-03-10]141
5590-00536 P0036108142
5590-00536 Work function harnesses/fuse [2010-03-10]143
5590-00571s P0036680144
5590-00571s Work function harnesses/fuse [2010-05-03]144
5680-00196 P0035191146
5680-00196 Battery/motor cables, fuse [2010-03-10]147
5680-00198 P0035629148
5680-00198 Battery/motor cables, fuse [2010-03-10]149
5680-00199 P0035630150
5680-00199 Battery/motor cables, fuse [2010-05-03]151
5710-00140 P0033840153
5710-00140 Drive/multi-function PCBs [2010-03-10]153
5830-00222 P0034077154
5830-00222 Safety probes/sensors [2010-03-10]154
5830-00247 P0035192155
5830-00247 Safety probes/sensors [2009-12-03]155
5850-00017 P0033525156
5850-00017 Positioning probes/sensors [2010-03-10]157
5850-00018 P0033526158
5850-00018 Positioning probes/sensors [2010-03-10]159
5850-00024 P0035579160
5850-00024 Positioning probes/sensors [2010-03-10]161
6110-00026 P0031616162
6110-00026 Hydraulic tank [2010-03-10]162
6120-00267 P0032255163
6120-00267 Hydraulic tank lines [2010-03-10]163
6130-00037 P0032253164
6130-00037 Filters and housing [2010-03-10]164
6140-00038 P0032251165
6140-00038 Hydraulic pump [2010-03-10]165
6210-00078 P0034690166
6210-00078 Main valve unit lift/reach/tilt [2010-03-10]167
6220-00054 P0031703168
6220-00054 Control valve ( Other functions ) [2010-03-10]168
6220-00055 P0032549169
6220-00055 Control valve ( Other functions ) [2010-03-10]169
6220-00059 P0032663170
6220-00059 Control valve ( Other functions ) [2010-03-10]170
6220-00062 P0033047171
6220-00062 Control valve ( Other functions ) [2010-03-10]171
6230-00240 P0032675172
6230-00240 Hydraulic lines chassis [2010-03-10]172
6230-00279 P0035193174
6230-00279 Hydraulic lines chassis [2010-05-03]175
6320-00413 P0031126176
6320-00413 Mast hydraulic lines [2010-05-27]177
6320-00439 P0031705180
6320-00439 Mast hydraulic lines [2010-03-10]180
6320-00486 P0033496182
6320-00486 Mast hydraulic lines [2010-04-28]183
6320-00487 P0033497188
6320-00487 Mast hydraulic lines [2010-04-28]189
6320-00493 P0033680192
6320-00493 Mast hydraulic lines [2010-03-10]192
6320-00542 P0034432194
6320-00542 Mast hydraulic lines [2010-02-08]195
6320-00570 P0034858199
6320-00570 Mast hydraulic lines [2010-03-10]199
6370-00089 P0033381200
6370-00089 Mast hose reel/swivel joint [2010-03-10]201
6370-00090 P0033384204
6370-00090 Mast hose reel/swivel joint [2010-03-10]205
6370-00091 P0033390208
6370-00091 Mast hose reel/swivel joint [2010-03-10]209
6370-00092 P0033517212
6370-00092 Mast hose reel/swivel joint [2010-03-10]213
6610-00412 P0035543214
6610-00412 Main lift cylinders [2010-02-08]214
6610-00413 P0035544216
6610-00413 Main lift cylinders [2010-02-10]216
6620-00168 P0032501218
6620-00168 Free lift cylinders [2010-02-08]219
6650-00010 P0036162220
6650-00010 Reach/telescopic cylinders [2010-03-10]220
6660-00016s P0025167221
6660-00016s Tilt cylinders [2010-05-19]221
7100-00130 P0031143222
7100-00130 Main mast [2010-02-08]222
7120-00537 P0031132224
7120-00537 Main lift chain system [2010-02-08]225
7120-00539 P0031134228
7120-00539 Main lift chain system [2010-02-08]229
7130-00220s P0024083231
7130-00220s Main mast fork carriage [2010-05-05]231
7150-00040 P0032510232
7150-00040 Main mast guidance/dampers [2010-03-10]232
7190-00086 P0033650233
7190-00086 Main mast suspension [2010-03-10]233
7190-00093 P0034674234
7190-00093 Main mast suspension [2010-05-04]235
9170-00393s P0036380238
9170-00393s Separate sideshift/forkspread [2010-04-26]238
9300-00126 P0033340240
9300-00126 Extra electrical equipment [2010-03-10]240
9300-00133 P0035614241
9300-00133 Extra electrical equipment [2009-11-24]241
9330-00058 P0033572242
9330-00058 Radio/recorder [2010-03-10]243
9360-00084 P0032084244
9360-00084 Extra lighting [2010-03-10]245
9370-00122 P0030370246
9370-00122 Extra warning lights/alarm [2010-03-10]246
9370-00134 P0032235247
9370-00134 Extra warning lights/alarm [2010-03-10]247
9370-00140 P0033329248
9370-00140 Extra warning lights/alarm [2010-05-27]248
9380-00021 P0032673248
9380-00021 Charger attachment [2010-03-10]248
9380-00023 P0034661249
9380-00023 Charger attachment [2010-03-10]249
9400-00320 P0031265250
9400-00320 Extra electrical equipment [2010-03-10]250
9400-00419 P0036105251
9400-00419 Extra electrical equipment [2010-03-10]251
9420-00143 P0033808252
9420-00143 Truck log device, code locking device [2009-12-09]253
9420-00148 P0034496254
9420-00148 Truck log device, code locking device [2009-10-08]254
9420-00158 P0035174256
9420-00158 Truck log device, code locking device [2010-05-27]257
9500-01073 P0031109258
9500-01073 Other extra equipment [2010-03-10]258
9500-01169 P0032394259
9500-01169 Other extra equipment [2010-03-10]259
9500-01170 P0032396260
9500-01170 Other extra equipment [2010-03-10]260
9500-01273 P0034821262
9500-01273 Other extra equipment [2010-03-10]263
9500-01337 P0036107265
9500-01337 Other extra equipment [2010-03-10]265
9500-01357s P0036610266
9500-01357s Other extra equipment [2010-04-26]266

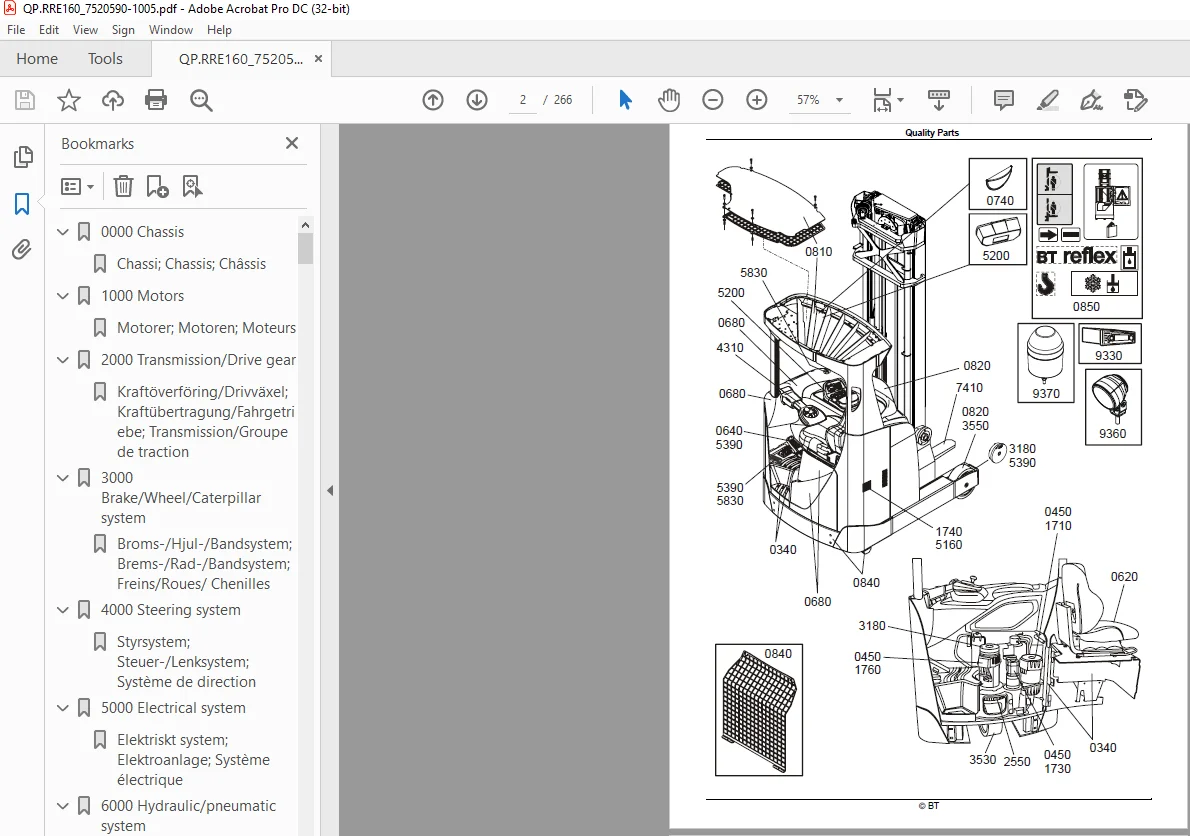

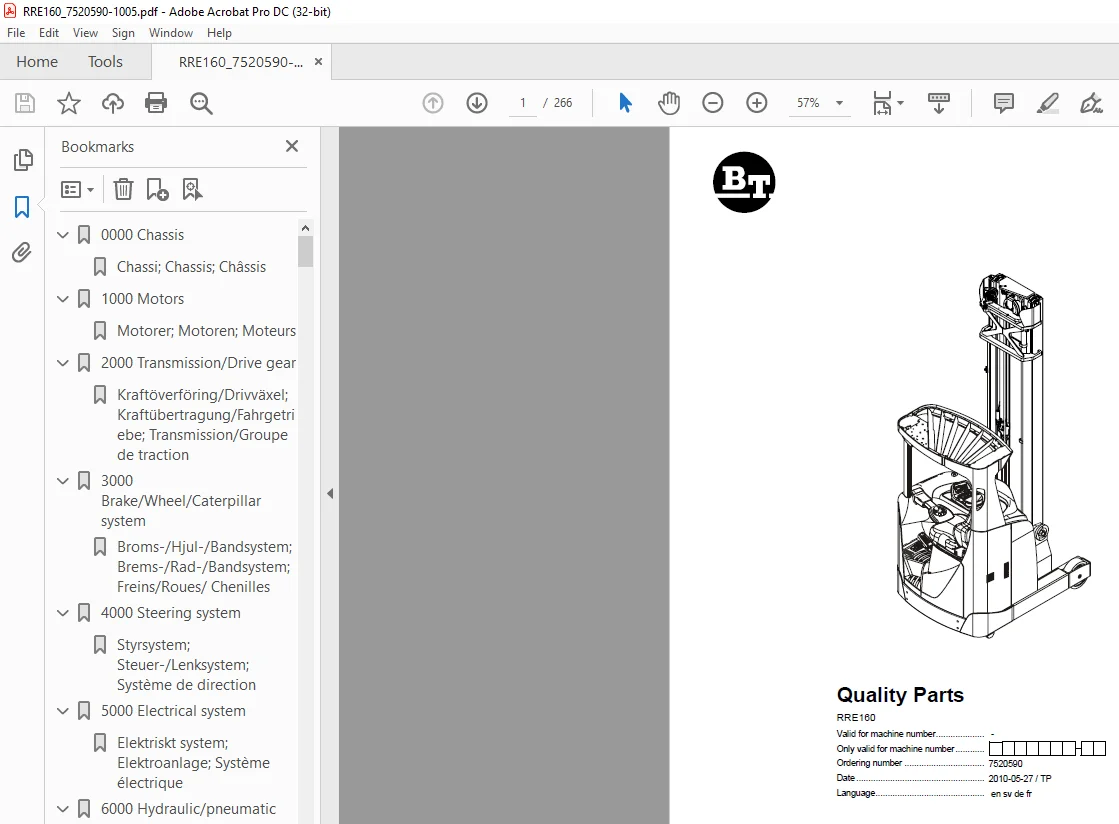

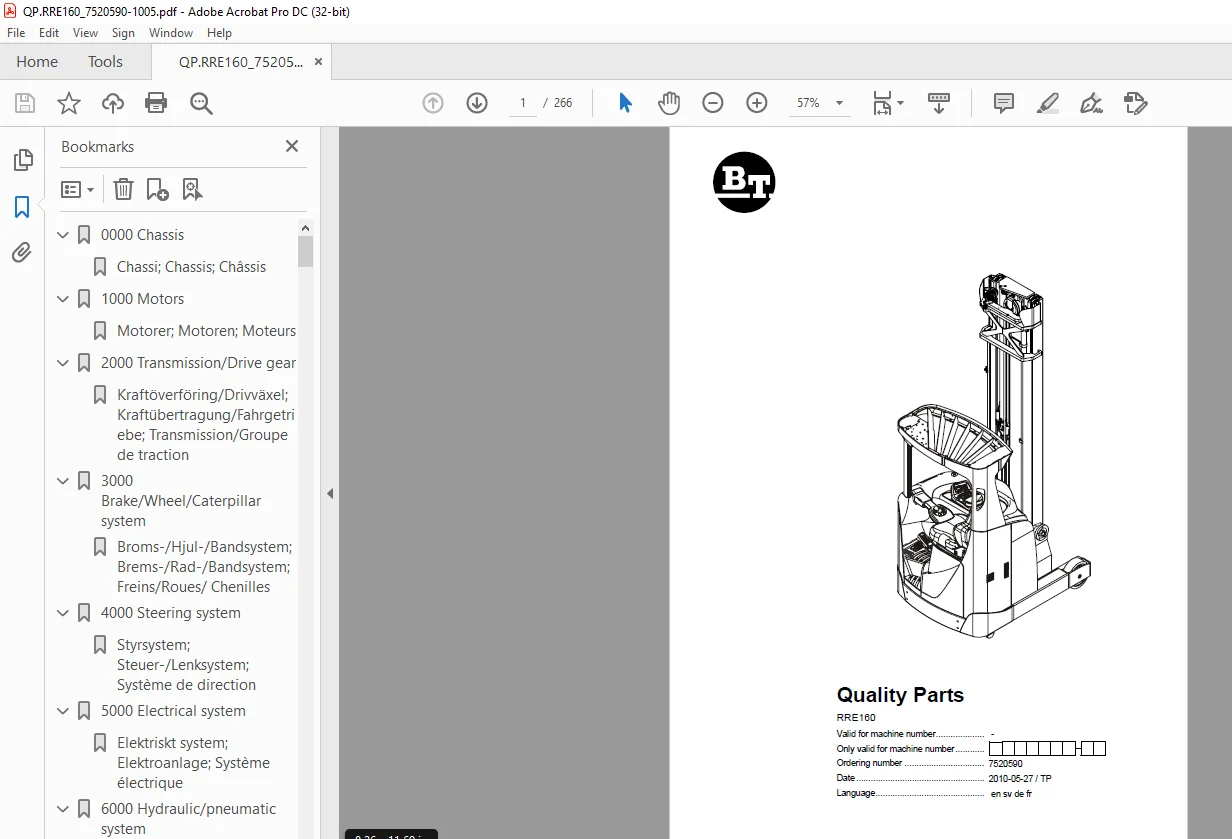

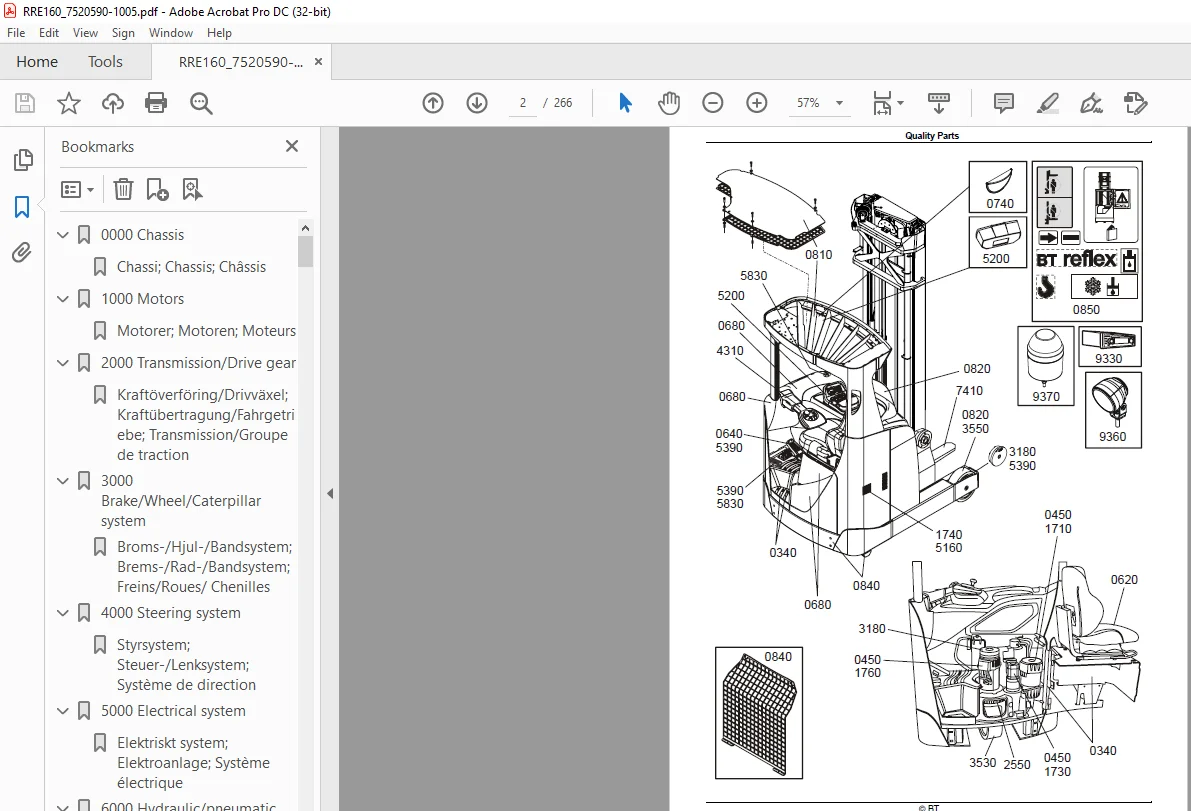

IMAGES PREVIEW OF THE MANUAL:

S.M 6/24
