BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6094001

Description

BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6094001 – PDF DOWNLOAD

FILE DETAILS:

BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6094001 – PDF DOWNLOAD

Language : English,German,French,Swedish
Pages :307
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6094001 – PDF DOWNLOAD

0000 Chassis 6
Chassi; Chassis; Châssis 6
1000 Motors 7
Motorer; Motoren; Moteurs 7
2000 Transmission/Drive gear 7
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 7
3000 Brake/Wheel/Caterpillar system 8
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 8
4000 Steering system 8
Styrsystem; Steuer-/Lenksystem; Système de direction 8
5000 Electrical system 8
Elektriskt system; Elektroanlage; Système électrique 8
6000 Hydraulic/pneumatic system 10
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 10
7000 Work function – lifting masts 12
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 12
9000 Options/attachments 13
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 13
0340-00686 P0032308 16
0340-00686 Inspection covers [2009-08-19] 16
0340-00703 P0033343 18
0340-00703 Inspection covers [2009-06-10] 19
0340-00709 P0033157 20
0340-00709 Inspection covers [2009-06-10] 21
0350-00141 P0032305 22
0350-00141 Support arms, stabilizers [2009-02-11] 22
0390-00435 P0031443 24
0390-00435 Battery compartment parts [2009-06-10] 25
0390-00509 P0033360 28
0390-00509 Battery compartment parts [2009-06-10] 29
0390-00521 P0033481 30
0390-00521 Battery compartment parts [2009-06-10] 30
0390-00548 P0034541 32
0390-00548 Battery compartment parts [2009-06-04] 33
0390-00549 P0034542 34
0390-00549 Battery compartment parts [2009-06-04] 35
0390-00550 P0034550 36
0390-00550 Battery compartment parts [2009-06-04] 37
0390-00560 P0034679 38
0390-00560 Battery compartment parts [2009-06-04] 38
0390-00562 P0034681 39
0390-00562 Battery compartment parts [2009-06-04] 39
0390-00565 P0034797 40
0390-00565 Battery compartment parts [2009-06-04] 41
0390-00586 P0035206 44
0390-00586 Battery compartment parts [2009-09-01] 45
0450-00098 P0032258 46
0450-00098 Motor fixing points [2009-06-10] 46
0510-00040 P0032690 48
0510-00040 Cabin fixing points [2009-06-10] 48
0510-00041 P0033164 50
0510-00041 Cabin fixing points [2009-06-10] 51
0620-00175 P0035145 54
0620-00175 Seat, cushions [2009-09-01] 55
0640-00132 P0033453 58
0640-00132 Driver controls ( mechanical ) [2009-06-10] 58
0640-00136 P0034365 59
0640-00136 Driver controls ( mechanical ) [2009-06-04] 59
0680-00368 P0034642 60
0680-00368 Internal fittings [2009-06-04] 61
0680-00370 P0034644 64
0680-00370 Internal fittings [2009-06-04] 65
0740-00023 P0034822 67
0740-00023 Mirrors [2009-06-04] 67
0810-00208 P0032310 68
0810-00208 Overhead guard/roof [2009-06-10] 68
0810-00217 P0033126 70
0810-00217 Overhead guard/roof [2009-06-10] 71
0810-00233 P0034641 74
0810-00233 Overhead guard/roof [2009-06-04] 75
0810-00240 P0035140 78
0810-00240 Overhead guard/roof [2009-09-01] 79
0810-00243 P0035141 80
0810-00243 Overhead guard/roof [2009-09-01] 81
0820-00302 P0032356 82
0820-00302 Finger/foot guards [2009-06-10] 82
0820-00305 P0032424 83
0820-00305 Finger/foot guards [2009-06-10] 83
0840-00228 P0030616 84
0840-00228 Driver protection [2009-06-10] 84
0840-00245 P0032149 86
0840-00245 Driver protection [2009-06-10] 86
0850-00502 P0032594 88
0850-00502 Signs, warnings, decals [2009-06-10] 89
0850-00503 P0032596 90
0850-00503 Signs, warnings, decals [2009-06-10] 90
1710-00141 P0031307 92
1710-00141 Electric pump motor [2009-06-10] 93
1730-00061 P0033337 94
1730-00061 Electric steering motor [2009-06-10] 94
1740-00049 P0034022 95
1740-00049 Electric fan motor, electric fan [2009-06-10] 95
1760-00171 P0032399 96
1760-00171 Electric drive motor [2009-06-10] 97
2550-00095 P0030289 98
2550-00095 Mechanical drive gear unit [2009-06-10] 99
3180-00026 P0032405100
3180-00026 Electrically controlled travel brake [2009-06-10]101
3180-00027 P0032955102
3180-00027 Electrically controlled travel brake [2009-06-10]102
3530-00143 P0031609103
3530-00143 Drive wheel [2009-06-10]103
3550-00492 P0033138104
3550-00492 Fork/support arm wheels [2009-06-10]105
4310-00078 P0031370106
4310-00078 Electric steering wheel/lever [2009-06-10]107
4310-00080 P0032654109
4310-00080 Electric steering wheel/lever [2009-06-10]109
4350-00018 P0031638110
4350-00018 Steering angle sensor [2009-06-10]110
5160-00146 P0031251112
5160-00146 General alarm signals (audible/visual) [2009-06-10]112
5190-00139 P0031508112
5190-00139 Battery cut out connector/contactor [2009-06-10]112
5190-00142 P0032073113
5190-00142 Battery cut out connector/contactor [2009-06-10]113
5200-00045 P0031314114
5200-00045 Instrument panel, display [2009-06-10]115
5200-00046 P0031398118
5200-00046 Instrument panel, display [2009-06-10]119
5200-00048 P0031624121
5200-00048 Instrument panel, display [2009-07-02]121
5280-00126 P0032634122
5280-00126 Level/position transducers/lamps [2009-06-10]122
5280-00155 P0034814124
5280-00155 Level/position transducers/lamps [2009-09-01]125
5280-00161 P0035152128
5280-00161 Level/position transducers/lamps [2009-09-01]129
5390-00311 P0032660130
5390-00311 Driving function harnesses/fuse [2009-06-10]130
5390-00317 P0033737132
5390-00317 Driving function harnesses/fuse [2009-06-04]133
5390-00318 P0033744134
5390-00318 Driving function harnesses/fuse [2009-06-04]134
5390-00319 P0033756135
5390-00319 Driving function harnesses/fuse [2009-06-04]135
5430-00150 P0033458136
5430-00150 Drive motor cables/resistors/fuses [2009-06-10]137
5460-00096 P0033855138
5460-00096 Transistor panel [2009-06-10]139
5590-00377 P0031120140
5590-00377 Work function harnesses/fuse [2009-02-11]140
5590-00382 P0031270142
5590-00382 Work function harnesses/fuse [2009-06-10]142
5590-00398 P0032163144
5590-00398 Work function harnesses/fuse [2009-06-10]144
5590-00408 P0032380145
5590-00408 Work function harnesses/fuse [2009-06-10]145
5590-00409 P0032524146
5590-00409 Work function harnesses/fuse [2009-03-17]147
5590-00413 P0032656148
5590-00413 Work function harnesses/fuse [2009-06-10]149
5590-00429 P0033524150
5590-00429 Work function harnesses/fuse [2009-06-10]150
5590-00430 P0033523151
5590-00430 Work function harnesses/fuse [2009-06-10]151
5590-00438 P0033738152
5590-00438 Work function harnesses/fuse [2009-06-04]153
5590-00469 P0034350154
5590-00469 Work function harnesses/fuse [2009-06-04]155
5680-00182 P0033449156
5680-00182 Battery/motor cables, fuse [2009-06-10]157
5680-00191 P0034656158
5680-00191 Battery/motor cables, fuse [2009-06-04]159
5680-00192 P0034657160
5680-00192 Battery/motor cables, fuse [2009-06-04]161
5680-00193 P0034659164
5680-00193 Battery/motor cables, fuse [2009-06-04]165
5680-00194 P0034660166
5680-00194 Battery/motor cables, fuse [2009-06-04]167
5680-00196 P0035191168
5680-00196 Battery/motor cables, fuse [2009-09-01]169
5710-00140 P0033840170
5710-00140 Drive/multi-function PCBs [2009-06-10]170
5710-00141 P0033854171
5710-00141 Drive/multi-function PCBs [2009-06-10]171
5820-00289 P0032034172
5820-00289 Lift/lowering/reach movement probes/sensors [2009-06-10]172
5830-00222 P0034077173
5830-00222 Safety probes/sensors [2009-06-10]173
5830-00247 P0035192174
5830-00247 Safety probes/sensors [2009-09-01]174
5850-00017 P0033525176
5850-00017 Positioning probes/sensors [2009-09-01]177
5850-00018 P0033526178
5850-00018 Positioning probes/sensors [2009-06-10]179
5850-00023 P0034540180
5850-00023 Positioning probes/sensors [2009-06-04]181
6110-00026 P0031616182
6110-00026 Hydraulic tank [2009-06-10]182
6120-00267 P0032255183
6120-00267 Hydraulic tank lines [2009-06-10]183
6120-00275 P0033522184
6120-00275 Hydraulic tank lines [2009-06-10]184
6130-00037 P0032253185
6130-00037 Filters and housing [2009-06-10]185
6140-00037 P0032249186
6140-00037 Hydraulic pump [2009-04-14]186
6210-00078 P0034690188
6210-00078 Main valve unit lift/reach/tilt [2009-06-04]189
6210-00079 P0034691190
6210-00079 Main valve unit lift/reach/tilt [2009-08-19]191
6220-00054 P0031703192
6220-00054 Control valve ( Other functions ) [2009-02-12]192
6220-00055 P0032549193
6220-00055 Control valve ( Other functions ) [2009-06-10]193
6220-00059 P0032663194
6220-00059 Control valve ( Other functions ) [2009-06-10]194
6220-00062 P0033047195
6220-00062 Control valve ( Other functions ) [2009-06-10]195
6230-00240 P0032675196
6230-00240 Hydraulic lines chassis [2009-02-12]196
6230-00279 P0035193198
6230-00279 Hydraulic lines chassis [2009-09-01]199
6320-00439 P0031705200
6320-00439 Mast hydraulic lines [2009-02-12]200
6320-00463 P0032553202
6320-00463 Mast hydraulic lines [2009-06-10]202
6320-00486 P0033496204
6320-00486 Mast hydraulic lines [2009-06-10]205
6320-00487 P0033497208
6320-00487 Mast hydraulic lines [2009-06-10]209
6320-00493 P0033680211
6320-00493 Mast hydraulic lines [2009-06-10]211
6320-00543 P0034434212
6320-00543 Mast hydraulic lines [2009-06-04]213
6320-00570 P0034858217
6320-00570 Mast hydraulic lines [2009-06-04]217
6370-00089 P0033381218
6370-00089 Mast hose reel/swivel joint [2009-06-10]219
6370-00090 P0033384222
6370-00090 Mast hose reel/swivel joint [2009-06-10]223
6370-00091 P0033390226
6370-00091 Mast hose reel/swivel joint [2009-06-10]227
6370-00092 P0033517230
6370-00092 Mast hose reel/swivel joint [2009-02-12]231
6610-00363 P0034433232
6610-00363 Main lift cylinders [2009-06-04]232
6620-00170 P0032504234
6620-00170 Free lift cylinders [2009-02-12]235
6650-00007 P0032299236
6650-00007 Reach/telescopic cylinders [2009-06-10]236
6660-00014 P0024167238
6660-00014 Tilt cylinders [2009-06-10]238
6660-00015 P0024168238
6660-00015 Tilt cylinders [2009-02-12]238
6660-00019 P0032555239
6660-00019 Tilt cylinders [2009-06-10]239
6670-00028 P0032554240
6670-00028 Other hydraulic cylinders [2009-06-10]240
7100-00131 P0031145242
7100-00131 Main mast [2009-02-12]242
7120-00540 P0031135244
7120-00540 Main lift chain system [2009-03-18]245
7130-00294 P0031702248
7130-00294 Main mast fork carriage [2009-02-12]248
7130-00296 P0031708250
7130-00296 Main mast fork carriage [2009-02-12]250
7130-00316 P0032843252
7130-00316 Main mast fork carriage [2009-02-12]253
7150-00040 P0032510255
7150-00040 Main mast guidance/dampers [2009-02-12]255
7190-00086 P0033650256
7190-00086 Main mast suspension [2009-02-12]256
7190-00093 P0034674258
7190-00093 Main mast suspension [2009-06-04]259
7410-00025 P0009796262
7410-00025 Fork, carpet boom, lift hook [2009-02-12]262
7410-00425 P0033674264
7410-00425 Fork, carpet boom, lift hook [2009-02-12]265
7410-00450 P0034859266
7410-00450 Fork, carpet boom, lift hook [2009-06-04]266
9170-00378 P0035204268
9170-00378 Separate sideshift/forkspread [2009-09-01]269
9300-00126 P0033340271
9300-00126 Extra electrical equipment [2009-06-10]271
9300-00130 P0034009272
9300-00130 Extra electrical equipment [2009-06-10]272
9330-00058 P0033572274
9330-00058 Radio/recorder [2009-06-10]275
9360-00084 P0032084276
9360-00084 Extra lighting [2009-06-10]277
9370-00122 P0030370278
9370-00122 Extra warning lights/alarm [2009-06-10]278
9370-00134 P0032235279
9370-00134 Extra warning lights/alarm [2009-06-10]279
9370-00140 P0033329280
9370-00140 Extra warning lights/alarm [2009-06-10]280
9380-00021 P0032673280
9380-00021 Charger attachment [2009-06-10]280
9380-00023 P0034661281
9380-00023 Charger attachment [2009-06-04]281
9390-00113 P0034823282
9390-00113 Positioning/TV equip, height preselector [2009-06-04]283
9400-00320 P0031265284
9400-00320 Extra electrical equipment [2009-06-10]284
9400-00352 P0032359286
9400-00352 Extra electrical equipment [2009-06-10]286
9420-00143 P0033808288
9420-00143 Truck log device, code locking device [2009-06-10]289
9420-00148 P0034496290
9420-00148 Truck log device, code locking device [2009-06-04]290
9420-00158 P0035174292
9420-00158 Truck log device, code locking device [2009-09-01]293
9500-00443 P0017242294
9500-00443 Other extra equipment [2009-02-17]294
9500-00868 P0027876296
9500-00868 Other extra equipment [2009-02-17]297
9500-01073 P0031109298
9500-01073 Other extra equipment [2009-06-10]298
9500-01154 P0032188299
9500-01154 Other extra equipment [2009-06-10]299
9500-01169 P0032394300
9500-01169 Other extra equipment [2009-06-10]300
9500-01170 P0032396301
9500-01170 Other extra equipment [2009-06-10]301
9500-01174 P0032556302
9500-01174 Other extra equipment [2009-03-17]302
9500-01273 P0034821304
9500-01273 Other extra equipment [2009-06-04]305
9500-01274 P0034860307
9500-01274 Other extra equipment [2009-06-04]307

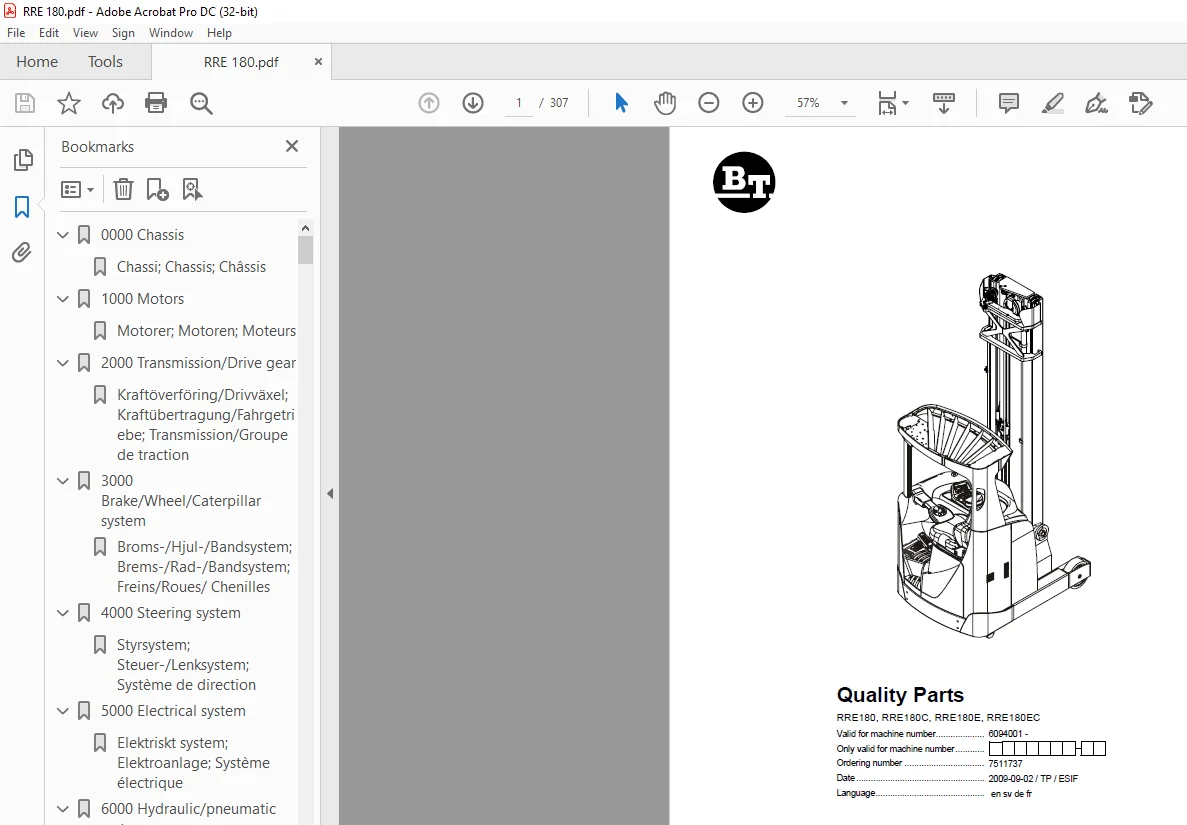

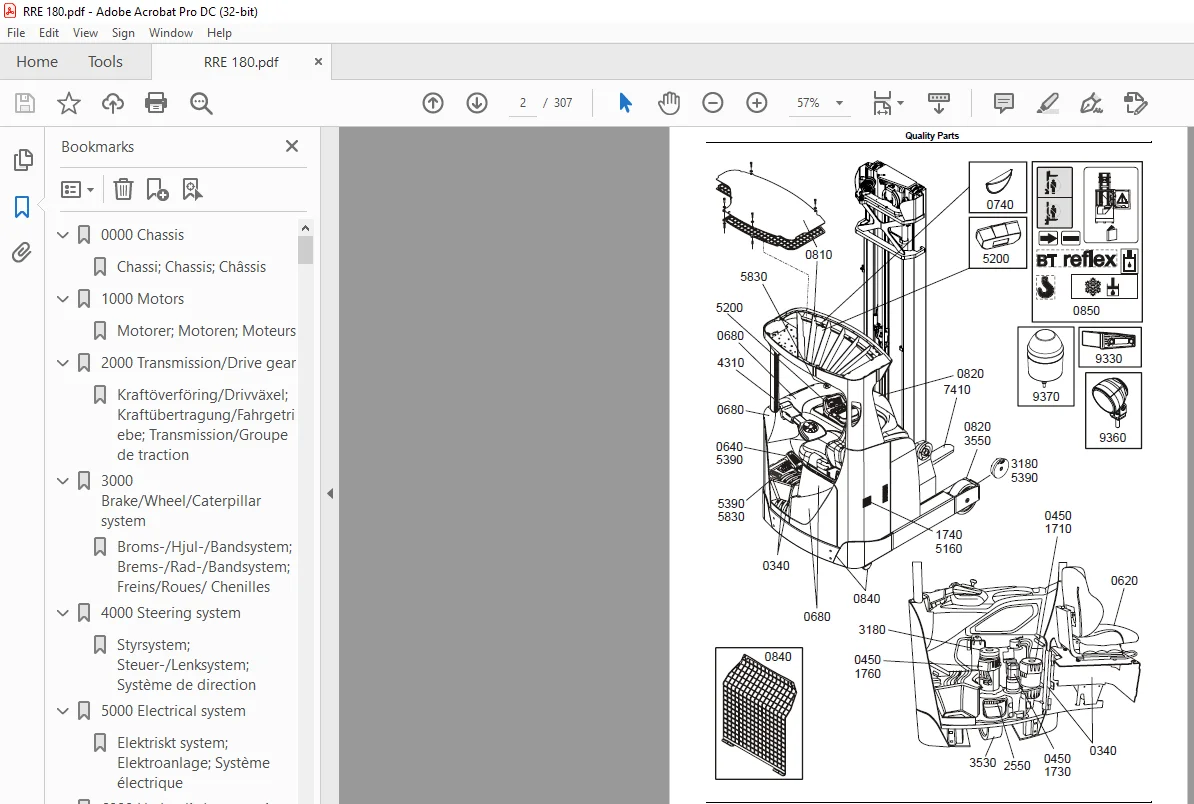

IMAGES PREVIEW OF THE MANUAL:

S.M 6/24
