BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6151932 PDF File Download

Description

BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6151932 – PDF DOWNLOAD

FILE DETAILS:

BT Forklift RRE180, RRE180C, RRE180E, RRE180EC Quality Parts Manual 6151932 – PDF DOWNLOAD

Language : English,German,French,Swedish
Pages :322
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

BT Forklift RRE180  RRE180C RRE180E RRE180EC Quality Parts Manual 6151932 – PDF DOWNLOAD

0000 Chassis 6
Chassi; Chassis; Châssis 6
1000 Motors 7
Motorer; Motoren; Moteurs 7
2000 Transmission/Drive gear 8
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 8
3000 Brake/Wheel/Caterpillar system 8
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 8
4000 Steering system 8
Styrsystem; Steuer-/Lenksystem; Système de direction 8
5000 Electrical system 8
Elektriskt system; Elektroanlage; Système électrique 8
6000 Hydraulic/pneumatic system 10
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 10
7000 Work function – lifting masts 12
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 12
9000 Options/attachments 13
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 13
0340-00686 P0032308 16
0340-00686 Inspection covers [2011-03-08] 16
0340-00819 P0036414 18
0340-00819 Inspection covers [2010-09-21] 19
0340-00850 P0037271 20
0340-00850 Inspection covers [2010-09-14] 21
0350-00141 P0032305 22
0350-00141 Support arms, stabilizers [2011-03-09] 22
0390-00597 P0035633 24
0390-00597 Battery compartment parts [2010-09-08] 25
0390-00652 P0036778 26
0390-00652 Battery compartment parts [2011-03-08] 27
0390-00654 P0036805 30
0390-00654 Battery compartment parts [2011-04-14] 31
0390-00656 P0036807 33
0390-00656 Battery compartment parts [2011-03-08] 33
0390-00658 P0036809 34
0390-00658 Battery compartment parts [2011-03-08] 34
0390-00672 P0037386 36
0390-00672 Battery compartment parts [2011-03-08] 37
0390-00673 P0037387 38
0390-00673 Battery compartment parts [2010-11-08] 39
0390-00674 P0037388 40
0390-00674 Battery compartment parts [2010-09-14] 41
0390-00677 P0037391 42
0390-00677 Battery compartment parts [2010-09-14] 43
0390-00683 P0037567 44
0390-00683 Battery compartment parts [2011-03-08] 45
0450-00098 P0032258 46
0450-00098 Motor fixing points [2011-03-08] 46
0510-00040 P0032690 48
0510-00040 Cabin fixing points [2011-03-08] 48
0510-00051 P0037272 50
0510-00051 Cabin fixing points [2011-04-14] 51
0620-00504 P0036057 54
0620-00504 Seat, cushions [2010-06-29] 55
0640-00132 P0033453 58
0640-00132 Driver controls ( mechanical ) [2011-03-09] 58
0640-00136 P0034365 59
0640-00136 Driver controls ( mechanical ) [2011-03-08] 59
0680-00368 P0034642 60
0680-00368 Internal fittings [2009-09-09] 61
0680-00370 P0034644 64
0680-00370 Internal fittings [2009-09-09] 65
0740-00023 P0034822 67
0740-00023 Mirrors [2011-03-08] 67
0810-00208 P0032310 68
0810-00208 Overhead guard/roof [2011-03-08] 68
0810-00233 P0034641 70
0810-00233 Overhead guard/roof [2011-01-27] 71
0810-00240 P0035140 74
0810-00240 Overhead guard/roof [2011-03-08] 75
0810-00243 P0035141 76
0810-00243 Overhead guard/roof [2011-03-08] 77
0810-00246 P0035651 78
0810-00246 Overhead guard/roof [2010-12-03] 79
0820-00302 P0032356 81
0820-00302 Finger/foot guards [2011-03-08] 81
0820-00373 P0036708 82
0820-00373 Finger/foot guards [2011-03-08] 82
0840-00245 P0032149 83
0840-00245 Driver protection [2011-03-08] 83
0840-00298 P0037238 85
0840-00298 Driver protection [2011-03-08] 85
0850-00502 P0032594 86
0850-00502 Signs, warnings, decals [2009-09-09] 87
0850-00503 P0032596 88
0850-00503 Signs, warnings, decals [2009-09-09] 88
1710-00141 P0031307 90
1710-00141 Electric pump motor [2011-03-08] 91
1730-00069 P0037564 92
1730-00069 Electric steering motor [2011-03-08] 92
1740-00049 P0034022 93
1740-00049 Electric fan motor, electric fan [2011-03-08] 93
1740-00055 P0037263 94
1740-00055 Electric fan motor, electric fan [2010-09-14] 94
1740-00056 P0037264 94
1740-00056 Electric fan motor, electric fan [2011-03-08] 94
1760-00171 P0032399 96
1760-00171 Electric drive motor [2011-04-12] 97
2550-00095 P0030289 98
2550-00095 Mechanical drive gear unit [2011-03-08] 99
3180-00027 P0032955100
3180-00027 Electrically controlled travel brake [2011-03-08]100
3180-00034 P0038685102
3180-00034 Electrically controlled travel brake [2011-03-08]103
3530-00143 P0031609104
3530-00143 Drive wheel [2011-03-08]104
3550-00492 P0033138106
3550-00492 Fork/support arm wheels [2011-03-08]107
4310-00078 P0031370108
4310-00078 Electric steering wheel/lever [2011-03-08]109
4310-00080 P0032654111
4310-00080 Electric steering wheel/lever [2009-09-09]111
4350-00018 P0031638112
4350-00018 Steering angle sensor [2011-03-08]112
5160-00164 P0036566114
5160-00164 General alarm signals (audible/visual) [2011-03-08]114
5190-00139 P0031508114
5190-00139 Battery cut out connector/contactor [2011-03-08]114
5190-00142 P0032073115
5190-00142 Battery cut out connector/contactor [2011-03-08]115
5200-00045 P0031314116
5200-00045 Instrument panel, display [2011-03-08]117
5200-00046 P0031398120
5200-00046 Instrument panel, display [2011-03-08]121
5200-00048 P0031624123
5200-00048 Instrument panel, display [2011-03-08]123
5280-00126 P0032634124
5280-00126 Level/position transducers/lamps [2011-03-08]124
5280-00161 P0035152126
5280-00161 Level/position transducers/lamps [2011-04-20]127
5280-00172 P0035576128
5280-00172 Level/position transducers/lamps [2011-03-08]129
5390-00311 P0032660131
5390-00311 Driving function harnesses/fuse [2011-03-08]131
5390-00318 P0033744132
5390-00318 Driving function harnesses/fuse [2009-09-09]132
5390-00319 P0033756133
5390-00319 Driving function harnesses/fuse [2011-03-08]133
5390-00336 P0036570134
5390-00336 Driving function harnesses/fuse [2011-03-08]135
5430-00154 P0037258136
5430-00154 Drive motor cables/resistors/fuses [2011-03-08]137
5460-00107 P0039383138
5460-00107 Transistor panel [2011-05-09]139
5590-00382 P0031270140
5590-00382 Work function harnesses/fuse [2011-03-08]140
5590-00398 P0032163142
5590-00398 Work function harnesses/fuse [2011-03-08]142
5590-00408 P0032380143
5590-00408 Work function harnesses/fuse [2009-09-09]143
5590-00409 P0032524144
5590-00409 Work function harnesses/fuse [2011-03-08]145
5590-00413 P0032656146
5590-00413 Work function harnesses/fuse [2011-03-08]147
5590-00429 P0033524148
5590-00429 Work function harnesses/fuse [2011-03-08]148
5590-00430 P0033523149
5590-00430 Work function harnesses/fuse [2011-03-08]149
5590-00438 P0033738150
5590-00438 Work function harnesses/fuse [2011-03-08]151
5590-00536 P0036108152
5590-00536 Work function harnesses/fuse [2011-03-08]153
5590-00538 P0036133154
5590-00538 Work function harnesses/fuse [2011-03-08]154
5680-00182 P0033449156
5680-00182 Battery/motor cables, fuse [2009-09-09]157
5680-00196 P0035191158
5680-00196 Battery/motor cables, fuse [2011-03-09]159
5680-00198 P0035629160
5680-00198 Battery/motor cables, fuse [2011-03-08]161
5680-00199 P0035630162
5680-00199 Battery/motor cables, fuse [2011-03-08]163
5680-00200 P0035631166
5680-00200 Battery/motor cables, fuse [2010-12-14]167
5680-00201 P0035632168
5680-00201 Battery/motor cables, fuse [2010-12-14]169
5710-00140 P0033840172
5710-00140 Drive/multi-function PCBs [2011-03-22]172
5710-00141 P0033854173
5710-00141 Drive/multi-function PCBs [2009-09-09]173
5820-00289 P0032034174
5820-00289 Lift/lowering/reach movement probes/sensors [2010-02-08]174
5830-00222 P0034077175
5830-00222 Safety probes/sensors [2011-03-08]175
5830-00247 P0035192176
5830-00247 Safety probes/sensors [2009-12-03]176
5850-00018 P0033526178
5850-00018 Positioning probes/sensors [2011-03-30]179
5850-00024 P0035579180
5850-00024 Positioning probes/sensors [2011-03-08]181
5850-00029 P0037412182
5850-00029 Positioning probes/sensors [2011-03-08]183
6110-00026 P0031616184
6110-00026 Hydraulic tank [2011-03-08]184
6120-00267 P0032255185
6120-00267 Hydraulic tank lines [2011-03-08]185
6120-00275 P0033522186
6120-00275 Hydraulic tank lines [2011-03-08]186
6130-00037 P0032253187
6130-00037 Filters and housing [2011-03-08]187
6140-00037 P0032249188
6140-00037 Hydraulic pump [2011-03-08]188
6210-00085 P0037514190
6210-00085 Main valve unit lift/reach/tilt [2011-03-08]191
6210-00086 P0037515192
6210-00086 Main valve unit lift/reach/tilt [2010-09-14]193
6220-00054 P0031703194
6220-00054 Control valve ( Other functions ) [2011-03-08]194
6220-00055 P0032549195
6220-00055 Control valve ( Other functions ) [2011-03-08]195
6220-00059 P0032663196
6220-00059 Control valve ( Other functions ) [2011-03-08]196
6220-00062 P0033047197
6220-00062 Control valve ( Other functions ) [2011-03-08]197
6230-00240 P0032675198
6230-00240 Hydraulic lines chassis [2011-03-08]198
6230-00279 P0035193200
6230-00279 Hydraulic lines chassis [2011-03-08]201
6320-00439 P0031705202
6320-00439 Mast hydraulic lines [2011-03-08]202
6320-00463 P0032553204
6320-00463 Mast hydraulic lines [2011-03-08]204
6320-00486 P0033496206
6320-00486 Mast hydraulic lines [2011-03-08]207
6320-00487 P0033497212
6320-00487 Mast hydraulic lines [2011-03-08]213
6320-00493 P0033680216
6320-00493 Mast hydraulic lines [2011-03-08]216
6320-00570 P0034858217
6320-00570 Mast hydraulic lines [2011-03-08]217
6320-00687 P0037505218
6320-00687 Mast hydraulic lines [2011-04-20]219
6370-00089 P0033381224
6370-00089 Mast hose reel/swivel joint [2011-03-08]225
6370-00090 P0033384228
6370-00090 Mast hose reel/swivel joint [2011-03-08]229
6370-00091 P0033390232
6370-00091 Mast hose reel/swivel joint [2011-03-08]233
6370-00092 P0033517236
6370-00092 Mast hose reel/swivel joint [2011-03-08]237
6610-00414 P0035545238
6610-00414 Main lift cylinders [2011-03-08]238
6620-00170 P0032504240
6620-00170 Free lift cylinders [2011-03-08]241
6650-00014 P0039382242
6650-00014 Reach/telescopic cylinders [2011-05-09]242
6660-00015 P0024168243
6660-00015 Tilt cylinders [2011-03-08]243
6660-00019 P0032555244
6660-00019 Tilt cylinders [2011-01-18]244
6660-00022 P0036761245
6660-00022 Tilt cylinders [2011-03-08]245
6670-00028 P0032554246
6670-00028 Other hydraulic cylinders [2011-03-08]246
7100-00131 P0031145248
7100-00131 Main mast [2011-03-08]248
7120-00540 P0031135250
7120-00540 Main lift chain system [2011-03-08]251
7130-00294 P0031702254
7130-00294 Main mast fork carriage [2011-03-08]254
7130-00296 P0031708256
7130-00296 Main mast fork carriage [2011-03-08]256
7130-00368 P0036763258
7130-00368 Main mast fork carriage [2011-03-08]259
7150-00040 P0032510261
7150-00040 Main mast guidance/dampers [2011-03-08]261
7190-00086 P0033650262
7190-00086 Main mast suspension [2011-03-08]262
7190-00099 P0036688264
7190-00099 Main mast suspension [2011-03-08]265
7410-00425 P0033674268
7410-00425 Fork, carpet boom, lift hook [2011-03-08]269
7410-00450 P0034859270
7410-00450 Fork, carpet boom, lift hook [2011-03-08]270
7410-00491 P0037526272
7410-00491 Fork, carpet boom, lift hook [2011-03-08]272
9170-00378 P0035204274
9170-00378 Separate sideshift/forkspread [2011-03-09]275
9180-00071 P0036813277
9180-00071 Fork extensions [2011-03-09]277
9300-00126 P0033340278
9300-00126 Extra electrical equipment [2011-03-09]278
9300-00133 P0035614279
9300-00133 Extra electrical equipment [2011-03-09]279
9330-00058 P0033572280
9330-00058 Radio/recorder [2011-03-09]281
9360-00084 P0032084282
9360-00084 Extra lighting [2011-03-09]283
9370-00122 P0030370284
9370-00122 Extra warning lights/alarm [2011-03-09]284
9370-00134 P0032235285
9370-00134 Extra warning lights/alarm [2011-03-09]285
9370-00155 P0036628286
9370-00155 Extra warning lights/alarm [2011-03-09]286
9380-00021 P0032673286
9380-00021 Charger attachment [2011-03-09]286
9380-00023 P0034661287
9380-00023 Charger attachment [2011-03-09]287
9390-00122 P0036637288
9390-00122 Positioning/TV equip, height preselector [2011-03-09]289
9400-00320 P0031265290
9400-00320 Extra electrical equipment [2011-03-09]290
9400-00476 P0037985292
9400-00476 Extra electrical equipment [2011-03-09]292
9420-00143 P0033808294
9420-00143 Truck log device, code locking device [2011-02-16]295
9420-00148 P0034496296
9420-00148 Truck log device, code locking device [2011-03-09]296
9420-00174 P0038854298
9420-00174 Truck log device, code locking device [2011-03-01]299
9500-00443 P0017242300
9500-00443 Other extra equipment [2011-03-09]300
9500-00868 P0027876302
9500-00868 Other extra equipment [2011-03-09]303
9500-01073 P0031109304
9500-01073 Other extra equipment [2011-03-23]304
9500-01174 P0032556305
9500-01174 Other extra equipment [2011-03-09]305
9500-01273 P0034821306
9500-01273 Other extra equipment [2011-03-09]307
9500-01274 P0034860309
9500-01274 Other extra equipment [2011-03-09]309
9500-01337 P0036107310
9500-01337 Other extra equipment [2011-03-09]310
9500-01363 P0036879311
9500-01363 Other extra equipment [2011-03-09]311
9500-01364 P0037269312
9500-01364 Other extra equipment [2011-03-09]312
9500-01380 P0037224313
9500-01380 Other extra equipment [2011-03-09]313
9500-01383 P0037268314
9500-01383 Other extra equipment [2011-03-09]315
9500-01427 P0037922316
9500-01427 Other extra equipment [2011-03-09]317
9550-00045 P0037989318
9550-00045 Battery changing equipment [2011-03-09]318
9550-00046 P0038245320
9550-00046 Battery changing equipment [2011-03-09]321

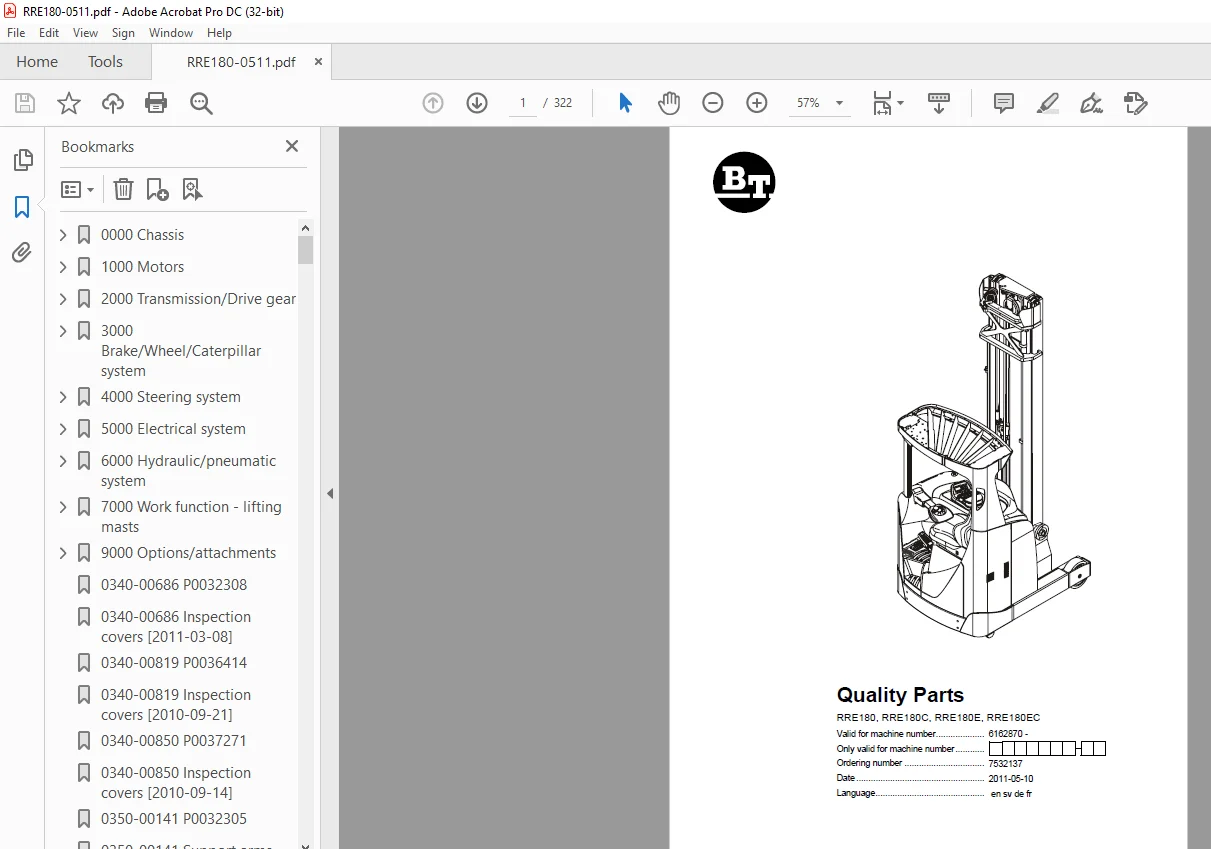

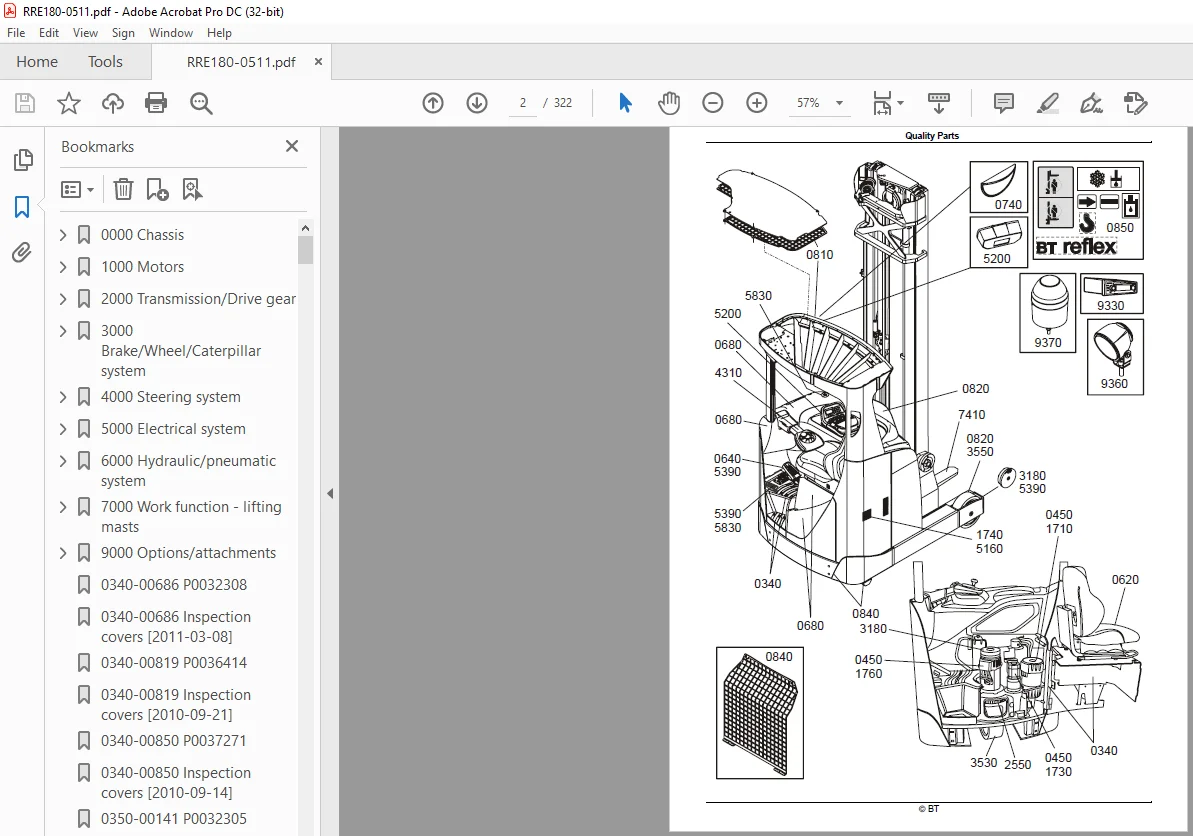

IMAGES PREVIEW OF THE MANUAL:

S.M 6/24
