BT Forklift RRE200, RRE200C, RRE200E, RRE200EC Quality Parts Manual 6239943

Description

BT Forklift RRE200, RRE200C, RRE200E, RRE200EC Quality Parts Manual 6239943 – PDF DOWNLOAD

FILE DETAILS:

BT Forklift RRE200, RRE200C, RRE200E, RRE200EC Quality Parts Manual 6239943 – PDF DOWNLOAD

Language : English,German,French,Swedish
Pages :378
Downloadable : Yes
File Type : PDF

Valid for machine number 6239943
Ordering number 7551042
Language en sv de fr

TABLE OF CONTENTS:

BT Forklift RRE200, RRE200C, RRE200E, RRE200EC Quality Parts Manual 6239943 – PDF DOWNLOAD

0000 Chassis 6
Chassi; Chassis; Châssis 6
1000 Motors 7
Motorer; Motoren; Moteurs 7
2000 Transmission/Drive gear 8
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 8
3000 Brake/Wheel/Caterpillar system 8
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 8
4000 Steering system 8
Styrsystem; Steuer-/Lenksystem; Système de direction 8
5000 Electrical system 8
Elektriskt system; Elektroanlage; Système électrique 8
6000 Hydraulic/pneumatic system 11
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 11
7000 Work function – lifting masts 13
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 13
9000 Options/attachments 14
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 14
0340-00850 P0037271 16
0340-00850 Inspection covers [2010-09-14] 17
0340-00926 P0040050 18
0340-00926 Inspection covers [2012-04-26] 19
0340-00961 P0041050 20
0340-00961 Inspection covers [2012-06-29] 20
0350-00142 P0032306 21
0350-00142 Support arms, stabilizers [2011-03-09] 21
0390-00597 P0035633 22
0390-00597 Battery compartment parts [2010-09-08] 23
0390-00654 P0036805 24
0390-00654 Battery compartment parts [2011-04-14] 25
0390-00656 P0036807 27
0390-00656 Battery compartment parts [2011-03-08] 27
0390-00658 P0036809 28
0390-00658 Battery compartment parts [2011-03-08] 28
0390-00673 P0037387 30
0390-00673 Battery compartment parts [2011-12-20] 31
0390-00674 P0037388 32
0390-00674 Battery compartment parts [2010-09-14] 33
0390-00677 P0037391 34
0390-00677 Battery compartment parts [2010-09-14] 35
0390-00756 P0040249 36
0390-00756 Battery compartment parts [2011-12-15] 37
0390-00757 P0040250 38
0390-00757 Battery compartment parts [2011-11-24] 39
0390-00758 P0040254 40
0390-00758 Battery compartment parts [2011-11-24] 40
0390-00783 P0041194 42
0390-00783 Battery compartment parts [2012-08-16] 43
0450-00098 P0032258 45
0450-00098 Motor fixing points [2012-05-02] 45
0510-00040 P0032690 47
0510-00040 Cabin fixing points [2011-03-08] 47
0510-00055 P0042976 48
0510-00055 Cabin fixing points [2013-01-02] 49
0620-00566 P0042564 52
0620-00566 Seat, cushions [2012-11-07] 53
0620-00567 P0042554 56
0620-00567 Seat, cushions [2012-10-23] 57
0640-00148 P0039594 60
0640-00148 Driver controls ( mechanical ) [2013-01-02] 60
0640-00149 P0039595 61
0640-00149 Driver controls ( mechanical ) [2012-05-02] 61
0680-00368 P0034642 62
0680-00368 Internal fittings [2011-09-26] 63
0680-00370 P0034644 66
0680-00370 Internal fittings [2011-09-26] 67
0740-00023 P0034822 69
0740-00023 Mirrors [2012-06-27] 69
0810-00208 P0032310 70
0810-00208 Overhead guard/roof [2011-03-08] 70
0810-00233 P0034641 72
0810-00233 Overhead guard/roof [2012-04-26] 73
0810-00240 P0035140 76
0810-00240 Overhead guard/roof [2012-04-26] 77
0810-00243 P0035141 78
0810-00243 Overhead guard/roof [2011-03-08] 79
0810-00246 P0035651 80
0810-00246 Overhead guard/roof [2011-11-09] 81
0820-00302 P0032356 83
0820-00302 Finger/foot guards [2012-01-02] 83
0820-00373 P0036708 84
0820-00373 Finger/foot guards [2011-03-08] 84
0840-00245 P0032149 85
0840-00245 Driver protection [2012-06-28] 85
0840-00298 P0037238 87
0840-00298 Driver protection [2012-01-26] 87
0850-00502 P0032594 88
0850-00502 Signs, warnings, decals [2011-09-23] 89
0850-00503 P0032596 90
0850-00503 Signs, warnings, decals [2009-09-09] 90
1710-00141 P0031307 92
1710-00141 Electric pump motor [2011-10-18] 93
1730-00069 P0037564 94
1730-00069 Electric steering motor [2012-05-02] 94
1740-00049 P0034022 95
1740-00049 Electric fan motor, electric fan [2012-05-02] 95
1740-00055 P0037263 96
1740-00055 Electric fan motor, electric fan [2010-09-14] 96
1740-00056 P0037264 97
1740-00056 Electric fan motor, electric fan [2011-03-08] 97
1760-00171 P0032399 98
1760-00171 Electric drive motor [2012-10-30] 99
2550-00135 P0042442100
2550-00135 Mechanical drive gear unit [2012-10-23]101
3180-00044 P0042000102
3180-00044 Electrically controlled travel brake [2012-10-18]102
3370-00050 P0041933103
3370-00050 Electromagnetic parking brake [2012-08-16]103
3530-00143 P0031609104
3530-00143 Drive wheel [2012-05-02]104
3550-00659 P0041999106
3550-00659 Fork/support arm wheels [2012-10-18]107
4310-00080 P0032654108
4310-00080 Electric steering wheel/lever [2009-09-09]108
4310-00112 P0042541110
4310-00112 Electric steering wheel/lever [2012-10-23]111
4350-00018 P0031638113
4350-00018 Steering angle sensor [2011-05-10]113
5160-00164 P0036566114
5160-00164 General alarm signals (audible/visual) [2012-05-02]114
5190-00139 P0031508114
5190-00139 Battery cut out connector/contactor [2012-05-02]114
5190-00142 P0032073115
5190-00142 Battery cut out connector/contactor [2011-03-08]115
5200-00068 P0040082116
5200-00068 Instrument panel, display [2012-04-17]116
5200-00072 P0040701118
5200-00072 Instrument panel, display [2012-04-12]119
5200-00073 P0040702122
5200-00073 Instrument panel, display [2013-01-16]123
5280-00126 P0032634125
5280-00126 Level/position transducers/lamps [2011-10-04]125
5280-00162 P0035153126
5280-00162 Level/position transducers/lamps [2011-04-20]127
5280-00164 P0035190128
5280-00164 Level/position transducers/lamps [2011-03-08]129
5280-00166 P0035571130
5280-00166 Level/position transducers/lamps [2011-03-08]131
5280-00173 P0035577134
5280-00173 Level/position transducers/lamps [2011-03-08]135
5390-00311 P0032660137
5390-00311 Driving function harnesses/fuse [2011-03-08]137
5390-00318 P0033744138
5390-00318 Driving function harnesses/fuse [2009-09-09]138
5390-00319 P0033756139
5390-00319 Driving function harnesses/fuse [2012-05-02]139
5390-00357 P0040892140
5390-00357 Driving function harnesses/fuse [2012-04-12]141
5430-00154 P0037258142
5430-00154 Drive motor cables/resistors/fuses [2011-03-08]143
5460-00111 P0040959144
5460-00111 Transistor panel [2012-11-02]145
5590-00382 P0031270146
5590-00382 Work function harnesses/fuse [2012-05-02]146
5590-00398 P0032163148
5590-00398 Work function harnesses/fuse [2012-06-27]148
5590-00408 P0032380149
5590-00408 Work function harnesses/fuse [2009-09-09]149
5590-00410 P0032527150
5590-00410 Work function harnesses/fuse [2011-03-08]151
5590-00412 P0032534152
5590-00412 Work function harnesses/fuse [2011-03-08]153
5590-00413 P0032656154
5590-00413 Work function harnesses/fuse [2011-03-08]155
5590-00429 P0033524156
5590-00429 Work function harnesses/fuse [2011-03-08]156
5590-00430 P0033523157
5590-00430 Work function harnesses/fuse [2012-02-09]157
5590-00536 P0036108158
5590-00536 Work function harnesses/fuse [2012-06-18]159
5590-00713 P0040246160
5590-00713 Work function harnesses/fuse [2011-11-24]160
5590-00736 P0040893162
5590-00736 Work function harnesses/fuse [2013-01-08]163
5590-00751 P0041299164
5590-00751 Work function harnesses/fuse [2013-02-07]164
5590-00805 P0043360166
5590-00805 Work function harnesses/fuse [2013-02-07]166
5680-00182 P0033449168
5680-00182 Battery/motor cables, fuse [2009-09-09]169
5680-00196 P0035191170
5680-00196 Battery/motor cables, fuse [2011-03-09]171
5680-00216 P0039914172
5680-00216 Battery/motor cables, fuse [2012-11-06]173
5680-00218 P0039916176
5680-00218 Battery/motor cables, fuse [2012-11-06]177
5680-00224 P0040600180
5680-00224 Battery/motor cables, fuse [2012-11-06]181
5680-00225 P0040601184
5680-00225 Battery/motor cables, fuse [2012-11-06]185
5710-00175 P0042409186
5710-00175 Drive/multi-function PCBs [2012-10-18]186
5710-00176 P0042410187
5710-00176 Drive/multi-function PCBs [2012-10-22]187
5820-00498 P0041956188
5820-00498 Lift/lowering/reach movement probes/sensors [2012-08-16]188
5830-00222 P0034077189
5830-00222 Safety probes/sensors [2012-05-02]189
5830-00247 P0035192190
5830-00247 Safety probes/sensors [2013-01-02]190
5850-00018 P0033526192
5850-00018 Positioning probes/sensors [2011-03-30]193
5850-00029 P0037412194
5850-00029 Positioning probes/sensors [2012-12-12]195
5850-00034 P0041060196
5850-00034 Positioning probes/sensors [2012-04-12]197
5850-00038 P0043027198
5850-00038 Positioning probes/sensors [2013-01-02]199
6110-00026 P0031616200
6110-00026 Hydraulic tank [2012-11-06]200
6120-00267 P0032255201
6120-00267 Hydraulic tank lines [2012-05-02]201
6120-00275 P0033522202
6120-00275 Hydraulic tank lines [2012-05-02]202
6130-00037 P0032253203
6130-00037 Filters and housing [2012-05-02]203
6140-00037 P0032249204
6140-00037 Hydraulic pump [2012-05-02]204
6210-00085 P0037514206
6210-00085 Main valve unit lift/reach/tilt [2011-03-08]207
6210-00086 P0037515208
6210-00086 Main valve unit lift/reach/tilt [2010-09-14]209
6220-00055 P0032549210
6220-00055 Control valve ( Other functions ) [2011-03-08]210
6220-00058 P0032546211
6220-00058 Control valve ( Other functions ) [2011-03-08]211
6220-00059 P0032663212
6220-00059 Control valve ( Other functions ) [2011-09-21]212
6220-00062 P0033047213
6220-00062 Control valve ( Other functions ) [2011-09-21]213
6230-00242 P0032682214
6230-00242 Hydraulic lines chassis [2011-03-08]214
6230-00243 P0032683215
6230-00243 Hydraulic lines chassis [2012-10-03]215
6230-00279 P0035193218
6230-00279 Hydraulic lines chassis [2011-03-08]219
6320-00460 P0032543220
6320-00460 Mast hydraulic lines [2011-03-08]220
6320-00462 P0032552222
6320-00462 Mast hydraulic lines [2011-03-08]222
6320-00493 P0033680223
6320-00493 Mast hydraulic lines [2011-03-08]223
6320-00570 P0034858224
6320-00570 Mast hydraulic lines [2011-03-08]224
6320-00676 P0037362226
6320-00676 Mast hydraulic lines [2011-03-08]227
6320-00688 P0037506228
6320-00688 Mast hydraulic lines [2012-10-03]229
6320-00719 P0038002234
6320-00719 Mast hydraulic lines [2012-12-12]235
6320-00832 P0040036238
6320-00832 Mast hydraulic lines [2011-10-06]238
6320-00841 P0040233239
6320-00841 Mast hydraulic lines [2011-10-06]239
6320-00978 P0042045240
6320-00978 Mast hydraulic lines [2012-10-18]241
6320-00979 P0042047244
6320-00979 Mast hydraulic lines [2012-10-18]245
6370-00138 P0039928250
6370-00138 Mast hose reel/swivel joint [2012-08-16]251
6370-00146 P0041096254
6370-00146 Mast hose reel/swivel joint [2012-08-16]255
6370-00147 P0041098258
6370-00147 Mast hose reel/swivel joint [2012-08-16]259
6370-00152 P0041152262
6370-00152 Mast hose reel/swivel joint [2012-08-16]263
6610-00415 P0035546266
6610-00415 Main lift cylinders [2011-03-08]266
6610-00416 P0035547268
6610-00416 Main lift cylinders [2012-12-07]268
6620-00417 P0042996270
6620-00417 Free lift cylinders [2013-01-02]271
6650-00014 P0039382273
6650-00014 Reach/telescopic cylinders [2012-02-27]273
6660-00015 P0024168274
6660-00015 Tilt cylinders [2011-03-08]274
6660-00019 P0032555275
6660-00019 Tilt cylinders [2011-01-18]275
6660-00022 P0036761276
6660-00022 Tilt cylinders [2011-03-08]276
6670-00042 P0040037277
6670-00042 Other hydraulic cylinders [2011-10-06]277
7100-00132 P0031147278
7100-00132 Main mast [2011-03-08]278
7100-00141 P0032536280
7100-00141 Main mast [2012-10-18]281
7120-00725 P0037512282
7120-00725 Main lift chain system [2012-12-07]283
7120-01091 P0042997286
7120-01091 Main lift chain system [2013-01-02]287
7130-00310 P0032539290
7130-00310 Main mast fork carriage [2011-03-08]290
7130-00311 P0032547292
7130-00311 Main mast fork carriage [2011-03-08]293
7130-00426 P0040032294
7130-00426 Main mast fork carriage [2011-11-10]295
7150-00041 P0032511298
7150-00041 Main mast guidance/dampers [2011-03-08]298
7150-00042 P0032512299
7150-00042 Main mast guidance/dampers [2011-03-08]299
7190-00086 P0033650300
7190-00086 Main mast suspension [2011-10-04]300
7190-00088 P0033835301
7190-00088 Main mast suspension [2011-10-04]301
7190-00127 P0041062302
7190-00127 Main mast suspension [2012-04-12]303
7190-00128 P0041063306
7190-00128 Main mast suspension [2012-04-12]307
7410-00425 P0033674308
7410-00425 Fork, carpet boom, lift hook [2011-03-08]309
7410-00462 P0035456310
7410-00462 Fork, carpet boom, lift hook [2011-03-08]310
7410-00466 P0035759312
7410-00466 Fork, carpet boom, lift hook [2011-03-08]313
7410-00491 P0037526314
7410-00491 Fork, carpet boom, lift hook [2012-01-24]314
7410-00537 P0040435316
7410-00537 Fork, carpet boom, lift hook [2012-04-18]316
7410-00547 P0040603317
7410-00547 Fork, carpet boom, lift hook [2011-11-24]317
9170-00486 P0043017318
9170-00486 Separate sideshift/forkspread [2013-01-02]319
9170-00487 P0043018320
9170-00487 Separate sideshift/forkspread [2013-01-02]321
9170-00491 P0043022322
9170-00491 Separate sideshift/forkspread [2013-01-02]323
9170-00492 P0043023326
9170-00492 Separate sideshift/forkspread [2013-01-02]327
9170-00493 P0043024330
9170-00493 Separate sideshift/forkspread [2013-01-02]331
9180-00071 P0036813333
9180-00071 Fork extensions [2011-03-09]333
9300-00126 P0033340334
9300-00126 Extra electrical equipment [2012-05-02]334
9300-00133 P0035614335
9300-00133 Extra electrical equipment [2011-03-09]335
9330-00058 P0033572336
9330-00058 Radio/recorder [2012-06-27]337
9360-00084 P0032084338
9360-00084 Extra lighting [2011-09-29]339
9370-00122 P0030370340
9370-00122 Extra warning lights/alarm [2012-05-02]340
9370-00134 P0032235341
9370-00134 Extra warning lights/alarm [2012-04-26]341
9370-00155 P0036628342
9370-00155 Extra warning lights/alarm [2012-05-02]342
9380-00021 P0032673342
9380-00021 Charger attachment [2012-05-02]342
9380-00030 P0040524343
9380-00030 Charger attachment [2011-11-24]343
9390-00122 P0036637344
9390-00122 Positioning/TV equip, height preselector [2012-12-05]345
9400-00476 P0037985346
9400-00476 Extra electrical equipment [2012-04-26]346
9400-00541 P0040501348
9400-00541 Extra electrical equipment [2012-06-27]348
9420-00143 P0033808350
9420-00143 Truck log device, code locking device [2012-07-05]351
9420-00148 P0034496353
9420-00148 Truck log device, code locking device [2012-10-05]353
9420-00188 P0040894354
9420-00188 Truck log device, code locking device [2012-04-12]355
9500-00443 P0017242356
9500-00443 Other extra equipment [2011-03-09]356
9500-00868 P0027876358
9500-00868 Other extra equipment [2011-03-09]359
9500-01073 P0031109360
9500-01073 Other extra equipment [2012-05-02]360
9500-01174 P0032556361
9500-01174 Other extra equipment [2011-03-09]361
9500-01273 P0034821362
9500-01273 Other extra equipment [2012-04-26]363
9500-01274 P0034860365
9500-01274 Other extra equipment [2011-03-09]365
9500-01337 P0036107366
9500-01337 Other extra equipment [2011-03-09]366
9500-01363 P0036879367
9500-01363 Other extra equipment [2011-11-07]367
9500-01364 P0037269368
9500-01364 Other extra equipment [2011-03-09]368
9500-01380 P0037224369
9500-01380 Other extra equipment [2012-04-24]369
9500-01383 P0037268370
9500-01383 Other extra equipment [2012-05-02]371
9500-01427 P0037922372
9500-01427 Other extra equipment [2012-05-02]373
9500-01569 P0040235374
9500-01569 Other extra equipment [2011-11-24]374
9550-00045 P0037989375
9550-00045 Battery changing equipment [2011-03-09]375
9550-00046 P0038245376
9550-00046 Battery changing equipment [2011-03-09]377

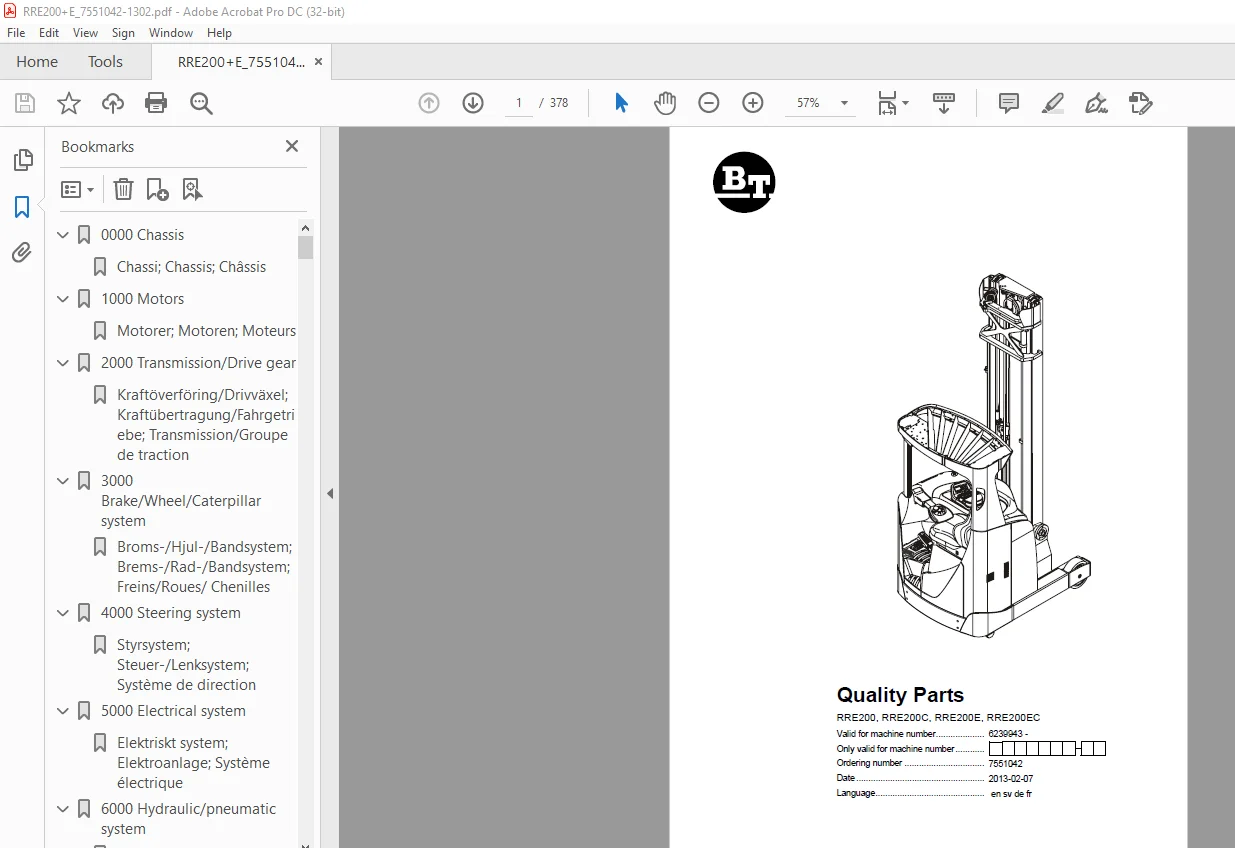

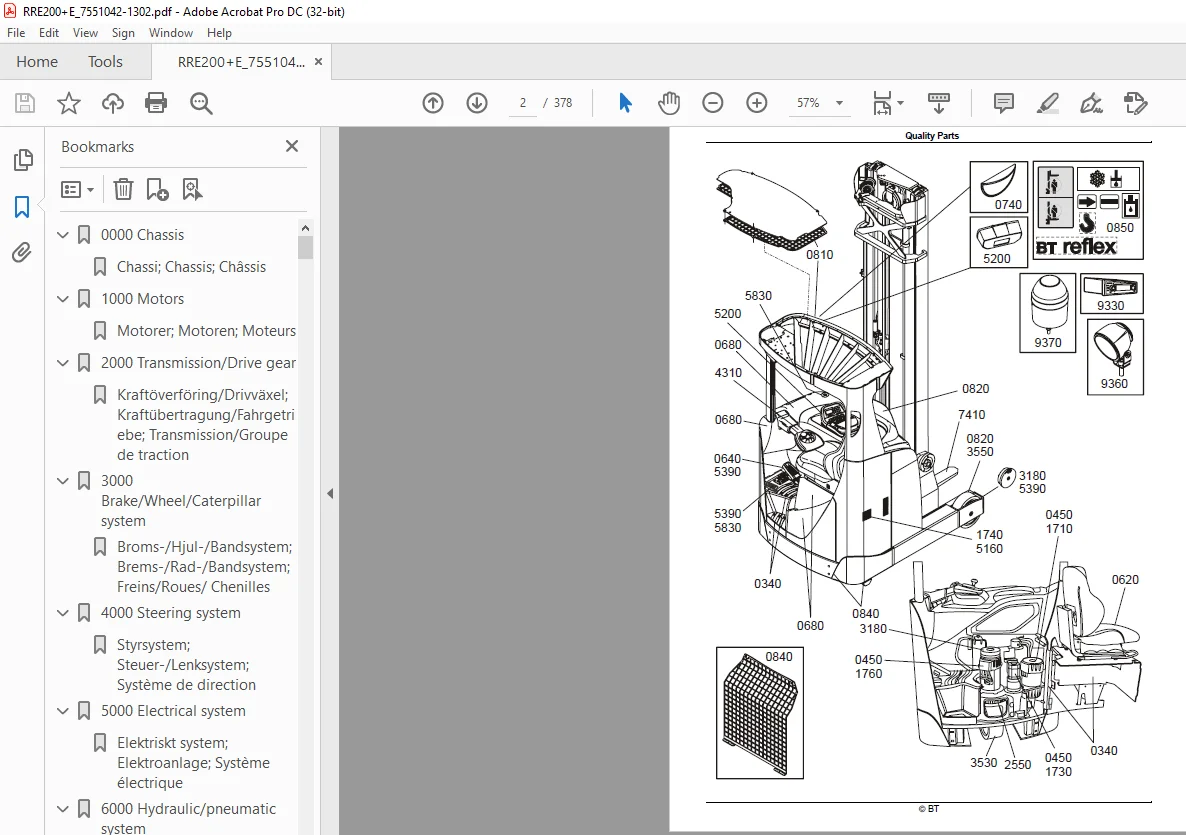

IMAGES PREVIEW OF THE MANUAL:

S.M 6/24
