BT Forklift SPE125/SPE160 Quality Parts Manual 6017989 – PDF

Description

BT Forklift SPE125/SPE160 Quality Parts Manual 6017989 – PDF DOWNLOAD

FILE DETAILS:

BT Forklift SPE125/SPE160 Quality Parts Manual 6017989 – PDF DOWNLOAD

Language : English
Pages : 227
Downloadable : Yes
File Type : PDF

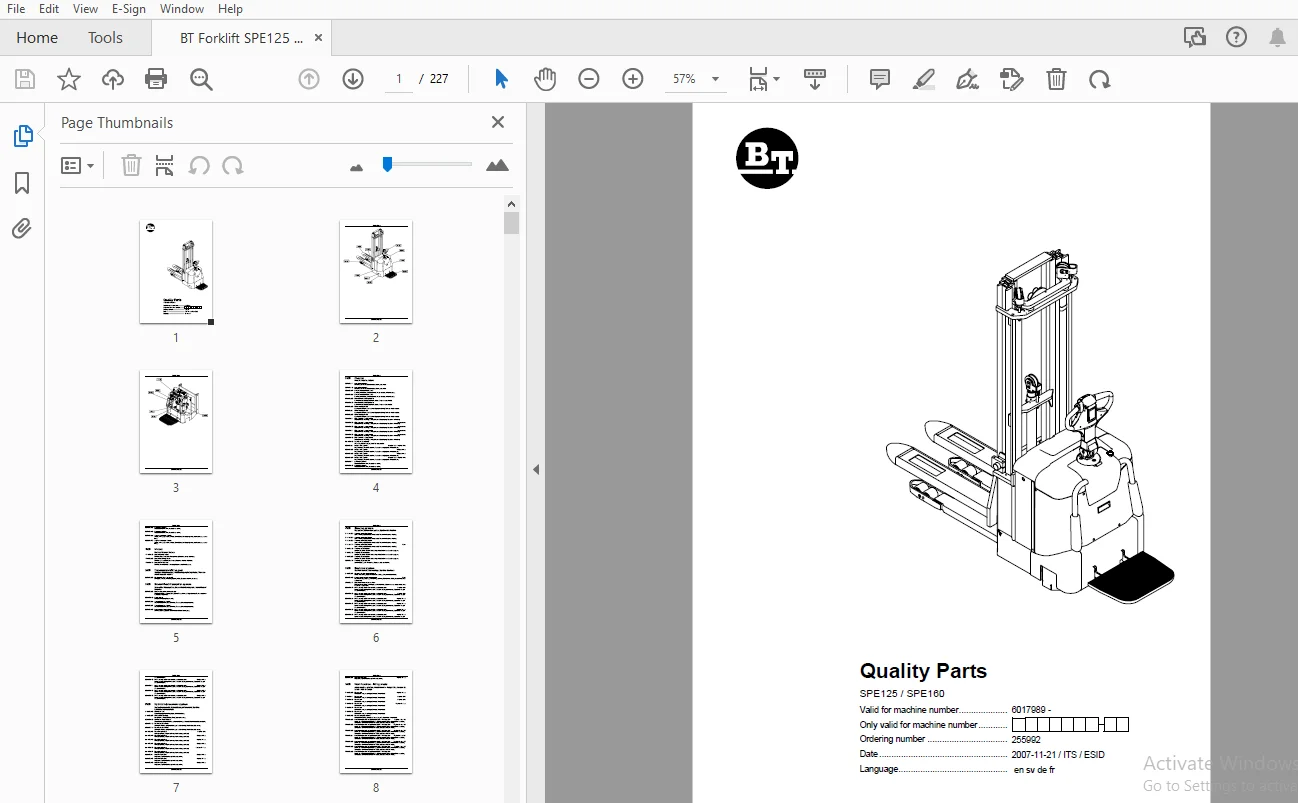

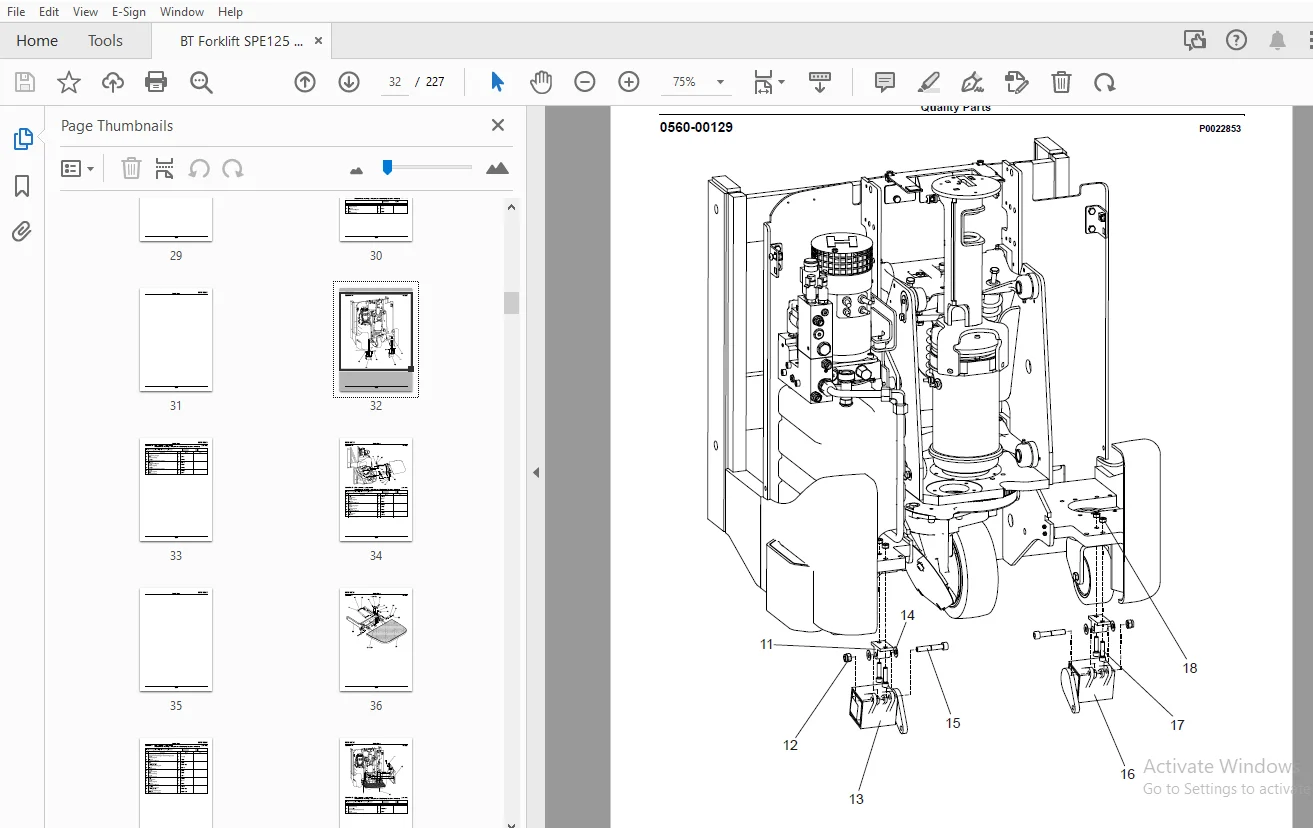

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Forklift SPE125/SPE160 Quality Parts Manual 6017989 – PDF DOWNLOAD

0000 Chassis...........................................................................................  4
	Chassi; Chassis; Châssis...........................................................................  4
1000 Motors............................................................................................  5
	Motorer; Motoren; Moteurs..........................................................................  5
2000 Transmission/Drive gear...........................................................................  5
	Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction..........  5
3000 Brake/Wheel/Caterpillar system....................................................................  5
	Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles...........................  5
4000 Steering system...................................................................................  6
	Styrsystem; Steuer-/Lenksystem; Système de direction...............................................  6
5000 Electrical system.................................................................................  6
	Elektriskt system; Elektroanlage; Système électrique...............................................  6
6000 Hydraulic/pneumatic system........................................................................  7
	Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique....................  7
7000 Work function - lifting masts.....................................................................  8
	Arbetsfunktion - lyftstativ; Arbeitsfunktion - Hubgerüste; Fonction de travail - mâts de levage....  8
9000 Options/attachments...............................................................................  9
	Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options.............  9
0340-00411 P0021055.................................................................................... 10
0340-00411 Inspection covers [2007-11-22].............................................................. 11
0340-00418 P0021670.................................................................................... 14
0340-00418 Inspection covers [2007-11-22].............................................................. 14
0390-00294 P0023896.................................................................................... 16
0390-00294 Battery compartment parts [2007-06-11]...................................................... 17
0390-00326 P0026185.................................................................................... 18
0390-00326 Battery compartment parts [2007-11-22]...................................................... 18
0400-00080 P0022821.................................................................................... 19
0400-00080 Frame/chassis components [2007-11-22]....................................................... 19
0400-00158 P0029223.................................................................................... 20
0400-00158 Frame/chassis components [2007-11-22]....................................................... 21
0450-00080 P0021127.................................................................................... 22
0450-00080 Motor fixing points [2007-11-22]............................................................ 22
0450-00081 P0021139.................................................................................... 24
0450-00081 Motor fixing points [2007-11-22]............................................................ 25
0450-00089 P0030404.................................................................................... 26
0450-00089 Motor fixing points [2007-11-22]............................................................ 27
0560-00121 P0021075.................................................................................... 30
0560-00121 Platform incl. fixing points [2007-11-22]................................................... 30
0560-00129 P0022853.................................................................................... 32
0560-00129 Platform incl. fixing points [2007-11-22]................................................... 33
0560-00130 P0022860.................................................................................... 34
0560-00130 Platform incl. fixing points [2007-11-22]................................................... 34
0560-00131 P0022862.................................................................................... 36
0560-00131 Platform incl. fixing points [2007-11-22]................................................... 37
0560-00132 P0022863.................................................................................... 38
0560-00132 Platform incl. fixing points [2007-11-22]................................................... 38
0560-00143 P0025462.................................................................................... 40
0560-00143 Platform incl. fixing points [2007-11-22]................................................... 41
0810-00108 P0021103.................................................................................... 44
0810-00108 Overhead guard/roof [2007-11-22]............................................................ 44
0820-00221 P0025296.................................................................................... 46
0820-00221 Finger/foot guards [2007-06-11]............................................................. 47
0820-00222 P0025297.................................................................................... 48
0820-00222 Finger/foot guards [2007-06-11]............................................................. 49
0820-00223 P0025301.................................................................................... 50
0820-00223 Finger/foot guards [2007-05-15]............................................................. 51
0820-00224 P0025304.................................................................................... 52
0820-00224 Finger/foot guards [2007-05-15]............................................................. 53
0840-00111 P0021094.................................................................................... 54
0840-00111 Driver protection [2007-11-22].............................................................. 55
0840-00162 P0025457.................................................................................... 56
0840-00162 Driver protection [2008-01-17].............................................................. 56
0840-00202 P0029245.................................................................................... 58
0840-00202 Driver protection [2007-11-22].............................................................. 59
0840-00203 P0029247.................................................................................... 60
0840-00203 Driver protection [2007-11-22].............................................................. 61
0850-00356 P0021165.................................................................................... 62
0850-00356 Signs, warnings, decals [2008-01-17]........................................................ 63
0850-00372 P0022819.................................................................................... 64
0850-00372 Signs, warnings, decals [2007-11-22]........................................................ 65
1710-00138 P0029222.................................................................................... 66
1710-00138 Electric pump motor [2007-06-11]............................................................ 66
1730-00035 P0022155.................................................................................... 67
1730-00035 Electric steering motor [2007-11-12]........................................................ 67
1760-00110 P0030442.................................................................................... 68
1760-00110 Electric drive motor [2007-11-14]........................................................... 69
2550-00082 P0027375.................................................................................... 70
2550-00082 Mechanical drive gear unit [2007-06-11]..................................................... 71
3370-00032 P0021460.................................................................................... 74
3370-00032 Electromagnetic parking brake [2007-06-11].................................................. 74
3530-00103 P0021137.................................................................................... 75
3530-00103 Drive wheel [2007-06-11].................................................................... 75
3540-00086 P0021264.................................................................................... 76
3540-00086 Support/castor wheels [2007-11-13].......................................................... 77
3540-00087 P0021269.................................................................................... 78
3540-00087 Support/castor wheels [2007-06-11].......................................................... 79
3550-00369 P0024593.................................................................................... 80
3550-00369 Fork/support arm wheels [2007-06-11]........................................................ 81
4110-00333 P0021192.................................................................................... 82
4110-00333 Steering arm/wheel/lever [2007-06-11]....................................................... 83
4110-00334 P0021201.................................................................................... 86
4110-00334 Steering arm/wheel/lever [2007-06-11]....................................................... 87
4110-00335 P0021202.................................................................................... 90
4110-00335 Steering arm/wheel/lever [2007-06-11]....................................................... 91
4110-00414 P0024531.................................................................................... 92
4110-00414 Steering arm/wheel/lever [2007-06-11]....................................................... 93
4120-00018 P0021134.................................................................................... 94
4120-00018 Steering column/gear [2007-06-11]........................................................... 94
4120-00019 P0023184.................................................................................... 96
4120-00019 Steering column/gear [2007-06-13]........................................................... 97
4120-00020 P0022157.................................................................................... 98
4120-00020 Steering column/gear [2007-11-12]........................................................... 99
4350-00010 P0022151....................................................................................100
4350-00010 Steering angle sensor [2007-06-13]..........................................................100
5100-00057 P0029250....................................................................................102
5100-00057 General electrical components [2007-06-13]..................................................103
5390-00263 P0024534....................................................................................104
5390-00263 Driving function harnesses/fuse [2007-06-13]................................................104
5400-00017 P0029251....................................................................................106
5400-00017 Electrical drive motor system [2007-11-12]..................................................107
5820-00134 P0021353....................................................................................110
5820-00134 Lift/lowering/reach movement probes/sensors [2007-06-13]....................................111
5820-00135 P0021355....................................................................................112
5820-00135 Lift/lowering/reach movement probes/sensors [2007-11-12]....................................113
5820-00136 P0021359....................................................................................114
5820-00136 Lift/lowering/reach movement probes/sensors [2007-11-12]....................................115
5820-00137 P0021361....................................................................................116
5820-00137 Lift/lowering/reach movement probes/sensors [2007-06-13]....................................117
5820-00138 P0021364....................................................................................118
5820-00138 Lift/lowering/reach movement probes/sensors [2007-11-12]....................................119
5820-00139 P0021365....................................................................................120
5820-00139 Lift/lowering/reach movement probes/sensors [2007-03-21]....................................121
5820-00140 P0021367....................................................................................122
5820-00140 Lift/lowering/reach movement probes/sensors [2007-11-12]....................................123
5820-00141 P0021368....................................................................................124
5820-00141 Lift/lowering/reach movement probes/sensors [2007-06-13]....................................125
5820-00142 P0021369....................................................................................126
5820-00142 Lift/lowering/reach movement probes/sensors [2007-11-12]....................................127
5820-00143 P0021370....................................................................................128
5820-00143 Lift/lowering/reach movement probes/sensors [2007-05-15]....................................129
6100-00263 P0029218....................................................................................130
6100-00263 Hydraulic unit [2007-06-13].................................................................131
6130-00034 P0029254....................................................................................132
6130-00034 Filters and housing [2007-06-13]............................................................133
6230-00180 P0029231....................................................................................134
6230-00180 Hydraulic lines chassis [2007-06-13]........................................................135
6320-00315 P0023906....................................................................................136
6320-00315 Mast hydraulic lines [2007-06-13]...........................................................136
6320-00316 P0023907....................................................................................137
6320-00316 Mast hydraulic lines [2007-06-13]...........................................................137
6610-00002 P0008081....................................................................................138
6610-00002 Main lift cylinders [2007-06-13]............................................................138
6610-00004 P0008281....................................................................................140
6610-00004 Main lift cylinders [2007-06-13]............................................................141
6610-00005 P0008297....................................................................................142
6610-00005 Main lift cylinders [2007-06-13]............................................................143
6610-00007 P0008676....................................................................................146
6610-00007 Main lift cylinders [2007-03-21]............................................................146
6610-00158 P0020971....................................................................................148
6610-00158 Main lift cylinders [2007-03-21]............................................................149
6610-00197 P0023913....................................................................................150
6610-00197 Main lift cylinders [2007-03-21]............................................................151
6620-00001 P0008290....................................................................................152
6620-00001 Free lift cylinders [2007-06-13]............................................................153
6620-00002 P0008664....................................................................................156
6620-00002 Free lift cylinders [2007-06-13]............................................................157
6620-00003 P0008410....................................................................................160
6620-00003 Free lift cylinders [2007-03-21]............................................................161
6620-00027 P0011052....................................................................................162
6620-00027 Free lift cylinders [2007-03-21]............................................................163
7100-00099 P0023063....................................................................................164
7100-00099 Main mast [2007-06-13]......................................................................165
7100-00101 P0023070....................................................................................168
7100-00101 Main mast [2007-05-15]......................................................................169
7100-00102 P0023071....................................................................................172
7100-00102 Main mast [2007-06-13]......................................................................173
7100-00103 P0023075....................................................................................176
7100-00103 Main mast [2007-06-13]......................................................................177
7100-00124 P0030412....................................................................................180
7100-00124 Main mast [2007-11-21]......................................................................181
7100-00125 P0030413....................................................................................184
7100-00125 Main mast [2007-11-21]......................................................................185
7190-00062 P0021340....................................................................................190
7190-00062 Main mast suspension [2007-06-13]...........................................................191
7420-00328 P0021422....................................................................................192
7420-00328 Fork carriage unit, integrated sideshift, fork spread [2007-03-21]..........................192
7420-00329 P0021440....................................................................................196
7420-00329 Fork carriage unit, integrated sideshift, fork spread [2007-03-21]..........................196
7420-00330 P0021441....................................................................................200
7420-00330 Fork carriage unit, integrated sideshift, fork spread [2007-03-21]..........................200
7420-00331 P0021442....................................................................................204
7420-00331 Fork carriage unit, integrated sideshift, fork spread [2007-06-13]..........................204
7420-00332 P0021445....................................................................................208
7420-00332 Fork carriage unit, integrated sideshift, fork spread [2007-06-13]..........................208
7420-00333 P0021447....................................................................................212
7420-00333 Fork carriage unit, integrated sideshift, fork spread [2007-06-13]..........................212
7420-00489 P0026060....................................................................................216
7420-00489 Fork carriage unit, integrated sideshift, fork spread [2007-06-13]..........................217
9420-00015 P0012396....................................................................................218
9420-00015 Truck log device, code locking device [2007-10-01]..........................................218
9420-00098 P0026077....................................................................................219
9420-00098 Truck log device, code locking device [2007-10-01]..........................................219
9500-00056 P0008643....................................................................................220
9500-00056 Other extra equipment [2007-06-13]..........................................................220
9500-00606 P0021174....................................................................................222
9500-00606 Other extra equipment [2007-06-13]..........................................................223
9500-00731 P0025029....................................................................................224
9500-00731 Other extra equipment [2007-06-13]..........................................................224
9550-00028 P0021152....................................................................................226
9550-00028 Battery changing equipment [2007-06-13].....................................................227

S.S 06/24
