BT LPE200 / LPE220 / LPE250 Quality Parts Manual – PDF DOWNLOAD

Description

BT LPE200 / LPE220 / LPE250 Quality Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT LPE200 / LPE220 / LPE250 Quality Parts Manual – PDF DOWNLOAD

Language : English
Pages :461
Downloadable : Yes
File Type : PDF
Size:22.9 MB

TABLE OF CONTENTS:

BT LPE200 / LPE220 / LPE250 Quality Parts Manual – PDF DOWNLOAD

Valid for machine number6316494 –
Ordering number7556563
Date 2017-05-29
Languageen sv de fr

0000 Chassis 6
Chassi; Chassis; Châssis 6
1000 Motors 8
Motorer; Motoren; Moteurs 8
2000 Transmission/Drive gear 9
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 9
3000 Brake/Wheel/Caterpillar system 9
Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 9
4000 Steering system 10
Styrsystem; Steuer-/Lenksystem; Système de direction 10
5000 Electrical system 11
Elektriskt system; Elektroanlage; Système électrique 11
6000 Hydraulic/pneumatic system 12
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 12
7000 Work function – lifting masts 13
Arbetsfunktion – lyftstativ; Arbeitsfunktion – Hubgerüste; Fonction de travail – mâts de levage 13
9000 Options/attachments 13
Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 13
0340-01113 P0046301 16

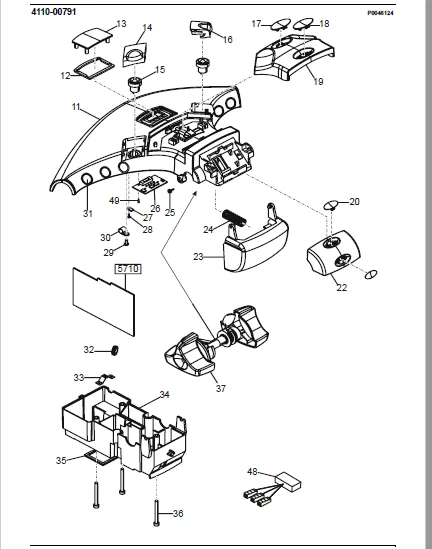

0340-01113 Inspection covers [2017-04-27] 17
0340-01173 P0046232 20
0340-01173 Inspection covers [2017-02-27] 21
0340-01604 P0055289 24
0340-01604 Inspection covers [2017-02-27] 25
0370-00015 P0046156 28
0370-00015 Counterbalance [2015-06-24] 29
0380-01328 P0046195 30
0380-01328 Fork frame (low lifters) [2015-11-25] 31
0380-01429 P0047067 36
0380-01429 Fork frame (low lifters) [2016-04-13] 37
0380-01564 P0050407 38
0380-01564 Fork frame (low lifters) [2017-05-05] 39
0380-01768 P0055871 44
0380-01768 Fork frame (low lifters) [2017-05-29] 45
0380-01784 P0056199 50
0380-01784 Fork frame (low lifters) [2017-05-29] 51
0390-01072 P0046140 56
0390-01072 Battery compartment parts [2015-09-23] 57
0390-01073 P0045847 58
0390-01073 Battery compartment parts [2015-09-23] 59
0390-01078 P0044923 60
0390-01078 Battery compartment parts [2016-06-16] 61
0390-01104 P0045714 62
0390-01104 Battery compartment parts [2017-03-27] 63
0390-01105 P0045935 64
0390-01105 Battery compartment parts [2015-08-24] 65
0390-01106 P0045587 66
0390-01106 Battery compartment parts [2015-08-24] 67
0390-01111 P0045712 68
0390-01111 Battery compartment parts [2015-09-23] 69
0390-01142 P0046685 70
0390-01142 Battery compartment parts [2016-03-10] 71
0390-01223 P0049328 72
0390-01223 Battery compartment parts [2017-04-27] 73
0390-01298 P0051497 74
0390-01298 Battery compartment parts [2017-01-27] 75
0390-01299 P0051501 76
0390-01299 Battery compartment parts [2017-01-27] 77
0390-01324 P0052634 78
0390-01324 Battery compartment parts [2017-04-27] 79
0390-01382 P0054932 80
0390-01382 Battery compartment parts [2017-01-27] 81
0390-01384 P0054936 82
0390-01384 Battery compartment parts [2017-01-27] 83
0390-01396 P0055506 84
0390-01396 Battery compartment parts [2017-03-27] 85
0400-00237 P0047576 86
0400-00237 Frame/chassis components [2016-06-01] 87
0400-00250 P0047517 88
0400-00250 Frame/chassis components [2015-10-09] 89
0400-00280 P0051439 90
0400-00280 Frame/chassis components [2016-06-01] 91
0450-00154 P0047406 92
0450-00154 Motor fixing points [2017-03-27] 93
0450-00155 P0047405 96
0450-00155 Motor fixing points [2016-06-03] 97
0450-00173 P0049445100
0450-00173 Motor fixing points [2017-05-29]101
0450-00175 P0049678102
0450-00175 Motor fixing points [2016-03-15]103
0450-00201 P0052660104
0450-00201 Motor fixing points [2016-06-03]105
0450-00216 P0055528106
0450-00216 Motor fixing points [2017-03-27]107
0560-00310 P0045943110
0560-00310 Platform incl fixing points [2015-06-24]111
0560-00313 P0045050112
0560-00313 Platform incl fixing points [2015-10-14]113
0560-00317 P0045946114
0560-00317 Platform incl fixing points [2016-09-12]115
0560-00331 P0048555116
0560-00331 Platform incl fixing points [2016-06-29]117
0560-00332 P0048558118
0560-00332 Platform incl fixing points [2016-06-29]119
0560-00343 P0049687120
0560-00343 Platform incl fixing points [2015-09-17]121
0560-00353 P0051905122
0560-00353 Platform incl fixing points [2016-09-12]123
0560-00354 P0051911124
0560-00354 Platform incl fixing points [2016-10-27]125
0560-00367 P0053838126
0560-00367 Platform incl fixing points [2016-10-27]127
0840-00430 P0044494128
0840-00430 Driver protection [2015-06-24]129
0840-00432 P0045956132
0840-00432 Driver protection [2017-04-12]133
0840-00458 P0047105136
0840-00458 Driver protection [2015-06-24]137
0840-00463 P0047228138
0840-00463 Driver protection [2015-01-22]139
0840-00464 P0047232140
0840-00464 Driver protection [2015-01-22]141
0840-00484 P0048021142
0840-00484 Driver protection [2016-02-04]143
0840-00486 P0048038144
0840-00486 Driver protection [2016-02-04]145
0840-00487 P0048039146
0840-00487 Driver protection [2015-10-22]147
0840-00511 P0049378148
0840-00511 Driver protection [2017-01-12]149
0840-00512 P0049383150
0840-00512 Driver protection [2017-03-20]151
0840-00535 P0051086152
0840-00535 Driver protection [2017-05-29]153
0840-00556 P0052334154
0840-00556 Driver protection [2017-03-27]155
0840-00577 P0053655156
0840-00577 Driver protection [2016-09-20]157
0840-00605 P0055538158
0840-00605 Driver protection [2017-03-27]159
0840-00614 P0056190160
0840-00614 Driver protection [2017-05-29]161
0840-00616 P0056193164
0840-00616 Driver protection [2017-05-29]165
0850-00728 P0046131166
0850-00728 Signs, warnings, decals [2016-09-22]167
0850-00772 P0049214168
0850-00772 Signs, warnings, decals [2015-12-03]169
0850-00796 P0051127170
0850-00796 Signs, warnings, decals [2016-11-24]171
1710-00049 P0015822172
1710-00049 Electric pump motor [2015-08-24]173
1730-00085 P0046682174
1730-00085 Electric steering motor [2016-05-31]175
1730-00095 P0049937176
1730-00095 Electric steering motor [2016-02-11]177
1730-00096 P0051140178
1730-00096 Electric steering motor [2016-02-11]179
1730-00099 P0052624180
1730-00099 Electric steering motor [2016-06-10]181
1740-00065 P0044710182
1740-00065 Electric fan motor, electric fan [2016-07-13]183
1760-00228 P0046637184
1760-00228 Electric drive motor [2016-09-12]185
1760-00229 P0046641186
1760-00229 Electric drive motor [2016-06-17]187
1760-00230 P0046644188
1760-00230 Electric drive motor [2016-05-26]189
2550-00157 P0046661190
2550-00157 Mechanical drive gear unit [2016-09-20]191
2550-00158 P0046668192
2550-00158 Mechanical drive gear unit [2016-09-20]193
2550-00164 P0046673194
2550-00164 Mechanical drive gear unit [2017-02-01]195
2550-00165 P0046674196
2550-00165 Mechanical drive gear unit [2016-09-20]197
2550-00178 P0049698198
2550-00178 Mechanical drive gear unit [2015-10-09]199
3370-00062 P0045971200
3370-00062 Electromagnetic parking brake [2016-06-10]201
3370-00080 P0051472202
3370-00080 Electromagnetic parking brake [2017-05-05]203
3370-00094 P0055887204
3370-00094 Electromagnetic parking brake [2017-05-05]205
3530-00195 P0044670206
3530-00195 Drive wheel [2016-09-16]207
3530-00213 P0049827208
3530-00213 Drive wheel [2016-08-25]209
3540-00161 P0045388210
3540-00161 Support/castor wheels [2015-10-09]211
3540-00162 P0045392212
3540-00162 Support/castor wheels [2016-09-02]213
3540-00178 P0048160214
3540-00178 Support/castor wheels [2016-09-12]215
3550-00718 P0044669216
3550-00718 Fork/support arm wheels [2017-03-27]217
3550-00730 P0045975218
3550-00730 Fork/support arm wheels [2017-05-05]219
3550-00880 P0055510220
3550-00880 Fork/support arm wheels [2017-05-05]221
3580-00098 P0045977222
3580-00098 Guide rollers/wheels [2015-08-24]223
4110-00791 P0046124224
4110-00791 Steering arm/wheel/lever [2016-05-10]225
4110-00792 P0046255226
4110-00792 Steering arm/wheel/lever [2017-04-27]227
4110-00793 P0046257228
4110-00793 Steering arm/wheel/lever [2017-04-27]229
4110-00794 P0046258230
4110-00794 Steering arm/wheel/lever [2017-04-27]231
4110-00797 P0045709232
4110-00797 Steering arm/wheel/lever [2016-02-08]233
4110-00798 P0045018234
4110-00798 Steering arm/wheel/lever [2016-05-03]235
4110-00833 P0046250236
4110-00833 Steering arm/wheel/lever [2017-03-16]237
4110-00841 P0046630238
4110-00841 Steering arm/wheel/lever [2016-06-29]239
4110-00860 P0048495240
4110-00860 Steering arm/wheel/lever [2016-12-19]241
4110-00901 P0049813242
4110-00901 Steering arm/wheel/lever [2017-01-20]243
4110-00920 P0051125244
4110-00920 Steering arm/wheel/lever [2016-05-03]245
4110-00944 P0052267246
4110-00944 Steering arm/wheel/lever [2016-05-10]247
4110-00945 P0052269248
4110-00945 Steering arm/wheel/lever [2016-09-12]249
4110-00947 P0052291250
4110-00947 Steering arm/wheel/lever [2017-01-19]251
4110-00948 P0052326252
4110-00948 Steering arm/wheel/lever [2017-01-19]253
4110-00969 P0053596254
4110-00969 Steering arm/wheel/lever [2017-03-27]255
4110-00970 P0053600256
4110-00970 Steering arm/wheel/lever [2017-03-27]257
4110-00997 P0055522258
4110-00997 Steering arm/wheel/lever [2017-05-29]259
4110-00998 P0055523260
4110-00998 Steering arm/wheel/lever [2017-05-29]261
4110-01006 P0056197262
4110-01006 Steering arm/wheel/lever [2017-05-29]263
4110-01007 P0056198264
4110-01007 Steering arm/wheel/lever [2017-05-29]265
4350-00030 P0049068266
4350-00030 Steering angle sensor [2017-03-27]267
4350-00031 P0045382268
4350-00031 Steering angle sensor [2017-04-18]269
4350-00033 P0046626270
4350-00033 Steering angle sensor [2016-09-12]271
4350-00049 P0055525272
4350-00049 Steering angle sensor [2017-05-22]273
5160-00199 P0044906274
5160-00199 General alarm signals (audible/visual) [2017-04-24]275
5190-00187 P0044674276
5190-00187 Battery cut out connector/contactor [2016-08-25]277
5190-00255 P0053269278
5190-00255 Battery cut out connector/contactor [2016-08-25]279
5310-00217 P0044968280
5310-00217 Start/stop switch [2016-08-31]281
5460-00122 P0044448282
5460-00122 Transistor panel [2016-05-04]283
5460-00145 P0052284284
5460-00145 Transistor panel [2016-09-22]285
5460-00146 P0053609286
5460-00146 Transistor panel [2016-09-22]287
5590-00860 P0046141288

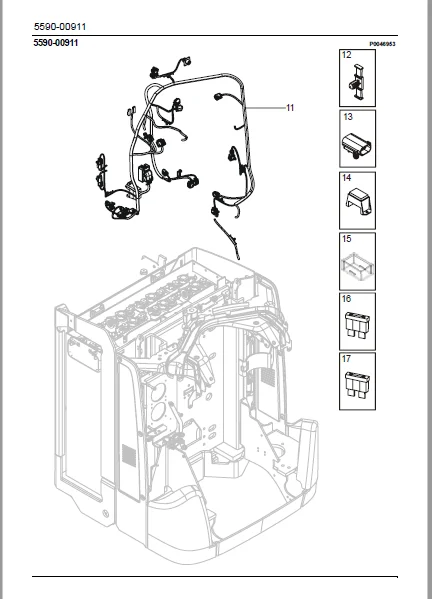

5590-00860 Work function harnesses/fuse [2015-10-09]289
5590-00861 P0045731290
5590-00861 Work function harnesses/fuse [2015-04-22]291
5590-00862 P0045733292
5590-00862 Work function harnesses/fuse [2015-08-25]293
5590-00911 P0046953294
5590-00911 Work function harnesses/fuse [2016-06-01]295
5590-01038 P0051463296
5590-01038 Work function harnesses/fuse [2016-09-09]297
5610-00043 P0044449298
5610-00043 Pump contactor [2016-09-16]299
5680-00254 P0045979300
5680-00254 Battery/motor cables, fuse [2015-08-25]301
5680-00274 P0046151302
5680-00274 Battery/motor cables, fuse [2015-08-25]303
5680-00280 P0047354304
5680-00280 Battery/motor cables, fuse [2016-08-31]305
5710-00182 P0044469306
5710-00182 Drive/multi-function PCBs [2015-08-25]307
5820-00601 P0045629308
5820-00601 Lift/lowering/reach movement probes/sensors [2017-02-23]309
5820-00808 P0055294310
5820-00808 Lift/lowering/reach movement probes/sensors [2017-02-23]311
5830-00292 P0041561312
5830-00292 Safety probes/sensors [2016-07-06]313
5830-00324 P0044484314
5830-00324 Safety probes/sensors [2015-10-22]315
5830-00328 P0045689316
5830-00328 Safety probes/sensors [2016-09-12]317
5830-00330 P0045955318
5830-00330 Safety probes/sensors [2015-09-17]319
5830-00355 P0049387320
5830-00355 Safety probes/sensors [2015-10-22]321
6100-00389 P0045013322
6100-00389 Hydraulic unit [2015-08-25]323
6100-00393 P0045632324
6100-00393 Hydraulic unit [2016-09-22]325
6100-00461 P0053611326
6100-00461 Hydraulic unit [2016-09-22]327
6170-00022 P0044666328
6170-00022 Pressure/flow control valve [2015-08-25]329
6170-00023 P0044667330
6170-00023 Pressure/flow control valve [2015-06-24]331
6230-00460 P0044688332
6230-00460 Hydraulic lines chassis [2015-09-09]333
6610-00808 P0045628334
6610-00808 Main lift cylinders [2016-04-13]335
6680-00057 P0044705336
6680-00057 Powertrak cylinder [2016-05-26]337
7420-01753 P0047297338
7420-01753 Fork carriage unit, integrated sideshift, fork spread [2015-08-25]339
9380-00039 P0046284410
9380-00039 Charger attachment [2017-02-06]411
9380-00041 P0046275412
9380-00041 Charger attachment [2015-09-22]413
9380-00042 P0046278414
9380-00042 Charger attachment [2015-09-22]415
9400-00318 P0031243416
9400-00318 Extra electrical equipment [2015-08-25]417
9400-00643 P0049581418
9400-00643 Extra electrical equipment [2016-06-16]419
9400-00800 P0050176420
9400-00800 Extra electrical equipment [2015-10-09]421
9400-00845 P0051068422
9400-00845 Extra electrical equipment [2016-02-10]423
9420-00038 P0016146424
9420-00038 Truck log device, code locking device [2016-09-12]425
9420-00213 P0044782426
9420-00213 Truck log device, code locking device [2016-04-09]427
9420-00214 P0044825428
9420-00214 Truck log device, code locking device [2016-04-09]429
9420-00334 P0051907430
9420-00334 Truck log device, code locking device [2016-06-17]431
9420-00382 P0054432432
9420-00382 Truck log device, code locking device [2017-03-27]433
9420-00412 P0055524434
9420-00412 Truck log device, code locking device [2017-03-27]435
9500-01390 P0037437436
9500-01390 Other extra equipment [2015-09-22]437
9500-01515 P0039549438
9500-01515 Other extra equipment [2016-09-12]439
9500-01516 P0039552440
9500-01516 Other extra equipment [2016-09-12]441
9500-01617 P0047357442
9500-01617 Other extra equipment [2016-09-12]443
9500-01873 P0044663446
9500-01873 Other extra equipment [2015-08-25]447
9500-01874 P0044664448
9500-01874 Other extra equipment [2015-08-25]449
9500-01881 P0044778452
9500-01881 Other extra equipment [2015-08-25]453
9500-01948 P0045582454
9500-01948 Other extra equipment [2016-09-21]455
9500-02057 P0047337456
9500-02057 Other extra equipment [2015-09-22]457
9500-02105 P0047986458
9500-02105 Other extra equipment [2016-09-12]459
9550-00068 P0053696460
9550-00068 Battery changing equipment [2016-09-23]461

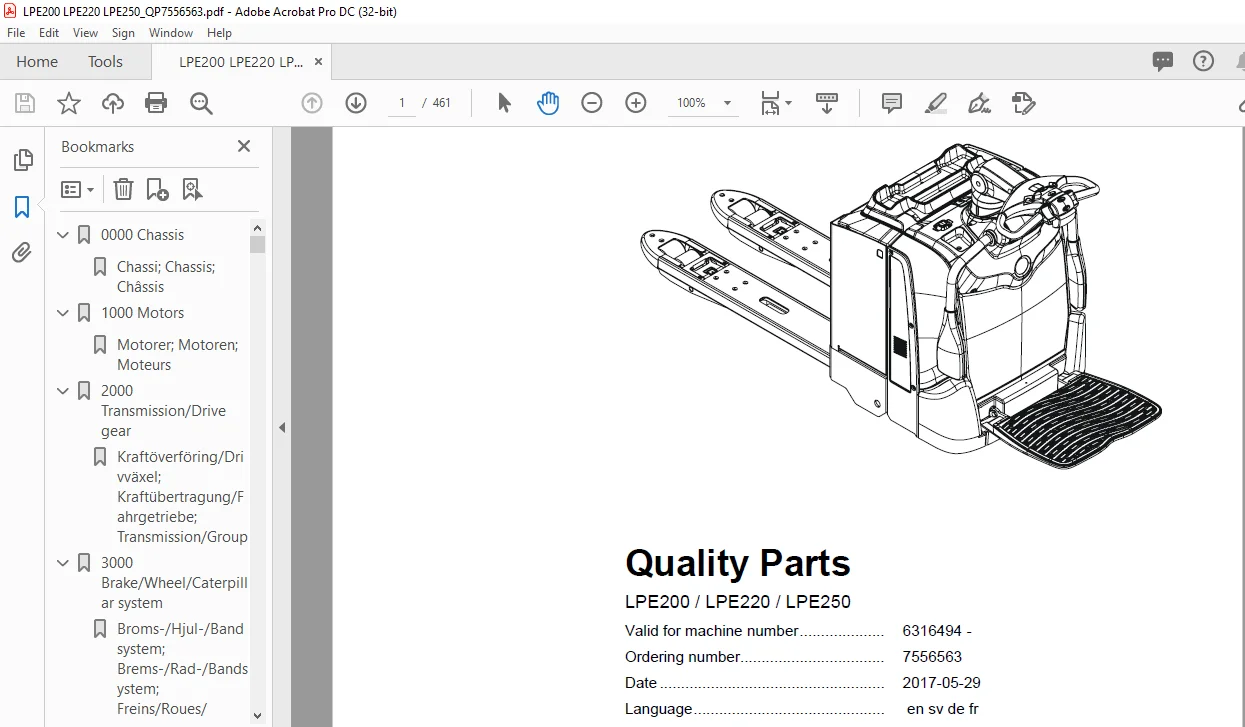

IMAGES PREVIEW OF THE MANUAL:

BT LPE200 / LPE220 / LPE250 QUALITY PARTS MANUAL – PDF DOWNLOAD:

PLEASE NOTE:

• This is the SAME exact manual used by your dealers to fix your vehicle.
• The same can be yours in the next 2-3 mins as you will be directed to the download page immediately after paying for the manual.
• Any queries / doubts regarding your purchase, please feel free to contact [email protected]

S.M
