BT LWE180 / LWE200 / LWE200N Quality Parts Manual – PDF DOWNLOAD

Description

BT LWE180 / LWE200 / LWE200N Quality Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT LWE180 / LWE200 / LWE200N Quality Parts Manual – PDF DOWNLOAD

Language : English
Pages :105
Downloadable : Yes
File Type : PDF
Size:4.55 MB

TABLE OF CONTENTS:

BT LWE180 / LWE200 / LWE200N Quality Parts Manual – PDF DOWNLOAD

Valid for machine number: 6044549 –
Ordering number: 263070
Date : 2008-05-14/ITS/ESIJ
Language: en sv de fr

O Objekt0a – 0000 Chassis 4
O Objekt0b – Chassi; Chassis; Châssis 4
O Objekt0a – 1000 Motors 4
O Objekt0b – Motorer; Motoren; Moteurs 4
O Objekt0a – 2000 Transmission/Drive gear 4
O Objekt0b – Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/Groupe de traction 4
O Objekt0a – 3000 Brake/Wheel/Caterpillar system 5
O Objekt0b – Broms-/Hjul-/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 5
O Objekt0a – 4000 Steering system 5
O Objekt0b – Styrsystem; Steuer-/Lenksystem; Système de direction 5
O Objekt0a – 5000 Electrical system 6
O Objekt0b – Elektriskt system; Elektroanlage; Système électrique 6
O Objekt0a – 6000 Hydraulic/pneumatic system 6
O Objekt0b – Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 6
O Objekt0a – 9000 Options/attachments 7
O Objekt0b – Tillbehör/extrautrustning; Zubehör/Zusatzausrüstung; Equipement supplémentaire/Options 7
O Objekt1 – 0340-00144 P0011416 8
O Objekt1 – 0340-00144 Inspection covers [2005-01-25] 9
O Objekt1 – 0380-00374 P0018565 10
O Objekt1 – 0380-00374 Fork frame (low lifters) [2004-08-26] 10
O Objekt1 – 0380-00558 P0026854 14
O Objekt1 – 0380-00558 Fork frame (low lifters) [2006-11-03] 15
O Objekt1 – 0390-00111 P0013832 18
O Objekt1 – 0390-00111 Battery compartment parts [2007-10-01] 19
O Objekt1 – 0390-00120 P0014195 20
O Objekt1 – 0390-00120 Battery compartment parts [2007-10-01] 21
O Objekt1 – 0390-00297 P0024045 22
O Objekt1 – 0390-00297 Battery compartment parts [2007-10-01] 22
O Objekt1 – 0400-00096 P0024325 23
O Objekt1 – 0400-00096 Frame/chassis components [2005-08-11] 23
O Objekt1 – 0400-00136 P0028513 24
O Objekt1 – 0400-00136 Frame/chassis components [2007-01-04] 25
O Objekt1 – 0820-00193 P0022179 26
O Objekt1 – 0820-00193 Finger/foot guards [2004-10-01] 27
O Objekt1 – 0850-00218 P0016878 28
O Objekt1 – 0850-00218 Signs, warnings, decals [2004-08-26] 29
O Objekt1 – 1710-00016 P0011277 30
O Objekt1 – 1710-00016 Electric pump motor [2004-08-26] 30
O Objekt1 – 1710-00017 P0011299 31
O Objekt1 – 1710-00017 Electric pump motor [2007-10-01] 31
O Objekt1 – 1760-00145 P0029929 32
O Objekt1 – 1760-00145 Electric drive motor [2007-10-01] 33
O Objekt1 – 1760-00146 P0029930 34
O Objekt1 – 1760-00146 Electric drive motor [2007-10-01] 35
O Objekt1 – 2550-00080 P0027237 36

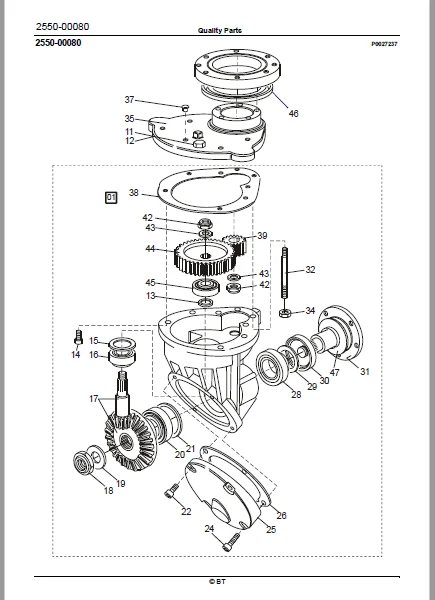

O Objekt1 – 2550-00080 Mechanical drive gear unit [2006-09-21] 37
O Objekt1 – 3370-00026 P0017735 40
O Objekt1 – 3370-00026 Electromagnetic parking brake [2006-04-10] 40
O Objekt1 – 3530-00026 P0011304 41
O Objekt1 – 3530-00026 Drive wheel [2006-08-31] 41
O Objekt1 – 3540-00032 P0011305 42
O Objekt1 – 3540-00032 Support/castor wheels [2004-08-26] 43
O Objekt1 – 3550-00364 P0024114 44
O Objekt1 – 3550-00364 Fork/support arm wheels [2008-02-13] 45
O Objekt1 – 3550-00466 P0031779 46
O Objekt1 – 3550-00466 Fork/support arm wheels [2008-05-14] 47
O Objekt1 – 3570-00061 P0013828 48
O Objekt1 – 3570-00061 Wheel locating points [2007-11-09] 49
O Objekt1 – 3580-00052 P0028573 50
O Objekt1 – 3580-00052 Guide rollers/wheels [2007-10-01] 51
O Objekt1 – 4110-00521 P0030920 52

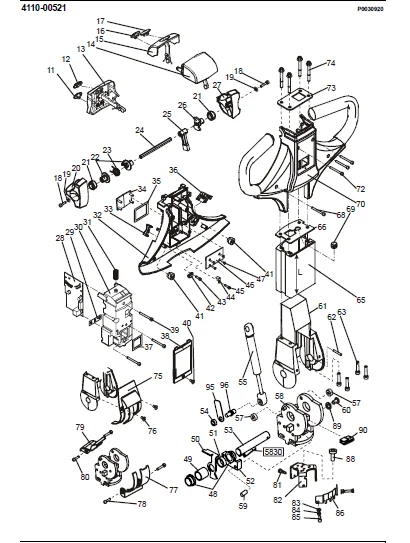

O Objekt1 – 4110-00521 Steering arm/wheel/lever [2008-03-05] 53
O Objekt1 – 4180-00020 P0013830 56
O Objekt1 – 4180-00020 Steering bearings, radial bearing [2004-08-26] 57
O Objekt1 – 5160-00079 P0017661 58
O Objekt1 – 5160-00079 General alarm signals (audible/visual) [2007-10-01] 58
O Objekt1 – 5190-00029 P0012438 59
O Objekt1 – 5190-00029 Battery cut out connector/contactor [2007-10-01] 59
O Objekt1 – 5190-00039 P0012722 60
O Objekt1 – 5190-00039 Battery cut out connector/contactor [2007-10-01] 61
O Objekt1 – 5190-00100 P0024053 62
O Objekt1 – 5190-00100 Battery cut out connector/contactor [2007-10-01] 63
O Objekt1 – 5310-00045 P0014206 64
O Objekt1 – 5310-00045 Start/stop switch [2004-08-26] 64
O Objekt1 – 5460-00032 P0012482 65
O Objekt1 – 5460-00032 Transistor panel [2006-12-18] 65
O Objekt1 – 5590-00237 P0024124 66
O Objekt1 – 5590-00237 Work function harnesses/fuse [2005-08-11] 67
O Objekt1 – 5610-00032 P0029409 68
O Objekt1 – 5610-00032 Pump contactor [2008-01-07] 68
O Objekt1 – 5820-00181 P0024304 70
O Objekt1 – 5820-00181 Lift/lowering/reach movement probes/sensors [2007-10-01] 71
O Objekt1 – 5830-00043 P0011357 72
O Objekt1 – 5830-00043 Safety probes/sensors [2004-08-26] 72
O Objekt1 – 5830-00169 P0024299 73
O Objekt1 – 5830-00169 Safety probes/sensors [2005-08-11] 73
O Objekt1 – 6100-00243 P0028059 74
O Objekt1 – 6100-00243 Hydraulic unit [2008-04-02] 75
O Objekt1 – 6100-00284 P0031776 78
O Objekt1 – 6100-00284 Hydraulic unit [2008-05-14] 79
O Objekt1 – 6120-00165 P0012435 80
O Objekt1 – 6120-00165 Hydraulic tank lines [2004-08-26] 80
O Objekt1 – 6120-00195 P0016861 80
O Objekt1 – 6120-00195 Hydraulic tank lines [2004-08-26] 80
O Objekt1 – 6610-00036 P0011252 81
O Objekt1 – 6610-00036 Main lift cylinders [2006-01-19] 81
O Objekt1 – 9380-00004 P0017729 82
O Objekt1 – 9380-00004 Charger attachment [2007-10-01] 82
O Objekt1 – 9380-00005 P0017731 83
O Objekt1 – 9380-00005 Charger attachment [2007-10-01] 83
O Objekt1 – 9380-00011 P0020457 83
O Objekt1 – 9380-00011 Charger attachment [2007-10-01] 83
O Objekt1 – 9400-00078 P0015420 84
O Objekt1 – 9400-00078 Extra electrical equipment [2006-04-10] 85
O Objekt1 – 9400-00242 P0028552 86
O Objekt1 – 9400-00242 Extra electrical equipment [2008-02-11] 87
O Objekt1 – 9400-00243 P0028554 88
O Objekt1 – 9400-00243 Extra electrical equipment [2008-02-11] 89
O Objekt1 – 9400-00244 P0028555 90
O Objekt1 – 9400-00244 Extra electrical equipment [2007-01-04] 91
O Objekt1 – 9420-00015 P0012396 92
O Objekt1 – 9420-00015 Truck log device, code locking device [2008-04-28] 92
O Objekt1 – 9420-00065 P0022181 94
O Objekt1 – 9420-00065 Truck log device, code locking device [2004-10-01] 95
O Objekt1 – 9420-00098 P0026077 96
O Objekt1 – 9420-00098 Truck log device, code locking device [2008-04-28] 96
O Objekt1 – 9500-00208 P0012488 98
O Objekt1 – 9500-00208 Other extra equipment [2007-10-01] 99
O Objekt1 – 9500-00712 P0024329 100
O Objekt1 – 9500-00712 Other extra equipment [2007-10-01] 100
O Objekt1 – 9500-01052 P0030900 101
O Objekt1 – 9500-01052 Other extra equipment [2008-03-05] 101
O Objekt1 – 9500-01053 P0030903 102
O Objekt1 – 9500-01053 Other extra equipment [2008-03-05] 102
O Objekt1 – 9550-00014 P0012487 104
O Objekt1 – 9550-00014 Battery changing equipment [2004-08-26] 105

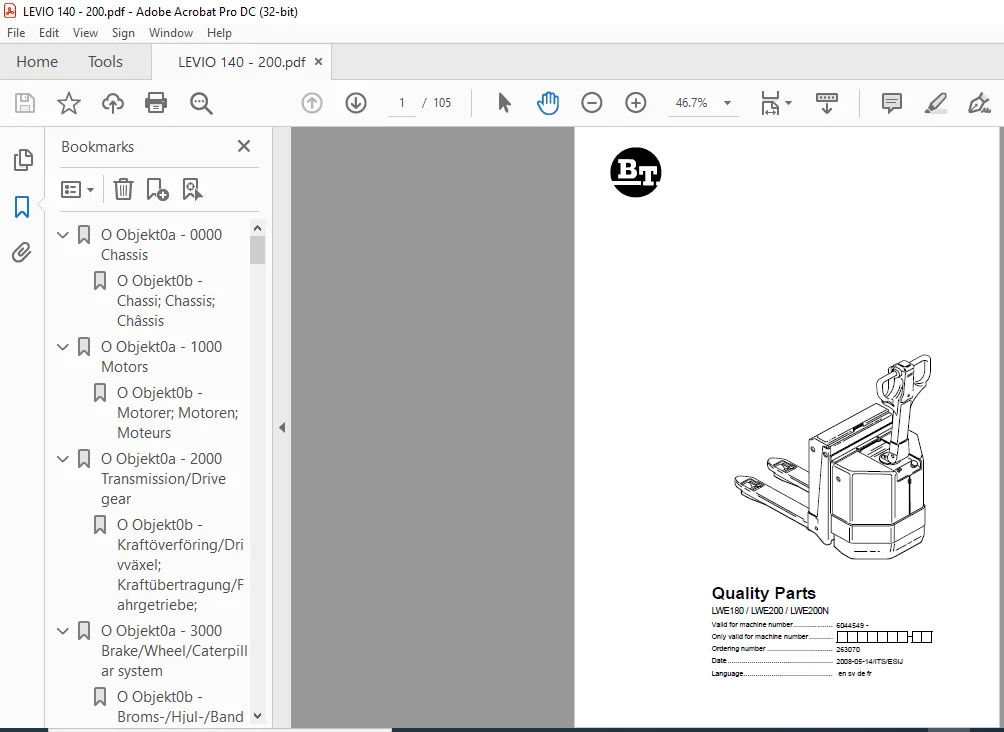

IMAGES PREVIEW OF THE MANUAL:
