BT OS 2.0 Quality Parts Manual – PDF DOWNLOAD

Description

BT OS 2.0 Quality Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT OS 2.0 Quality Parts Manual – PDF DOWNLOAD

Language : English
Pages :142
Downloadable : Yes
File Type : PDF
Size:5.70 MB

TABLE OF CONTENTS:

BT OS 2.0 Quality Parts Manual – PDF DOWNLOAD

Valid for machine number:413179AA –
Ordering number: 182531
Date: 2001-05-02
Language:GB SE DE FR / ITS / ESIF

0000 Chassis 6
Chassi; Chassis; Châssis 6
1000 Motors 6
Motorer; Motoren; Moteurs 6
2000 Transmission/Drive gear 7
Kraftöverföring/Drivväxel; Kraftübertragung/Fahrgetriebe; Transmission/ Groupe de traction 7
3000 Brake/Wheel/Caterpillar system 7
Broms-/Hjul/Bandsystem; Brems-/Rad-/Bandsystem; Freins/Roues/ Chenilles 7
4000 Steering system 7
Styrsystem; Steuer-/Lenksystem; Système de direction 7
5000 Electrical system 8
Elektriskt system; Elektroanlage; Système électrique 8
6000 Hydraulic/pneumatic system 10
Hydraulik/pneumatik; Hydraulikanlage/Pneumatik; Système hydraulique/pneumatique 10
9000 Options/attachments 10
Tillbehör/extrautrustning; Zubehör /Zusatzausrüstung; Equipement supplémentaire/Options 10
0340-219 P0013931 12
0340-219 Inspection covers [2001-05-02] 12
0340-230 P0014173 14
0340-230 Inspection covers [2001-05-02] 15
0380-042 P0006183 18
0380-042 Fork frame (low lifters) [1998-12-09] 19
0390-085 P0012207 20
0390-085 Battery compartment parts [2000-05-16] 21
0450-023 P0008728 22
0450-023 Motor fixing points [1999-03-30] 22
0450-024 P0008727 23
0450-024 Motor fixing points [1999-03-30] 23
0450-025 P0008726 24
0450-025 Motor fixing points [1999-03-30] 24
0640-007 P0000003 25
0640-007 Driver controls ( mechanical ) [1996-09-03] 25
0670-004 P0002413 26
0670-004 Wall/floor covering [1998-08-12] 26
0680-023 P0006207 28
0680-023 Internal fittings [1997-08-14] 29
0840-013 P0003857 30
0840-013 Driver protection [1996-09-04] 30
0850-027 P0004561 32
0850-027 Signs, warnings, decals [1996-09-05] 33
1710-043 P0014212 34
1710-043 Electric pump motor [2001-05-02] 34
1730-004 P0009919 35
1730-004 Electric steering motor [1999-04-07] 35
1730-005 P0009920 36
1730-005 Electric steering motor [1999-04-07] 36
1760-009 P0009940 38
1760-009 Electric drive motor [1999-04-07] 39
2550-029 P0010832 40
2550-029 Mechanical drive gear unit [1999-08-25] 41
2550-030 P0010833 44
2550-030 Mechanical drive gear unit [1999-08-25] 45
3110-005 P0004556 48
3110-005 Travel brake controls [1996-09-05] 48
3180-009 P0012116 50
3180-009 Electrically controlled travel brake [2000-05-08] 51
3500-006 P0005256 52
3500-006 Wheels [1997-01-14] 52
3530-015 P0007922 53
3530-015 Drive wheel [1998-03-24] 53
3540-025 P0009913 54
3540-025 Support/castor wheels [2000-05-18] 55
4110-044 P0004559 58
4110-044 Steering arm / wheel / lever [1998-09-09] 59
4120-009 P0009880 62
4120-009 Steering column/gear [1999-03-30] 63
4120-010 P0009886 64
4120-010 Steering column/gear [1999-03-31] 65
4170-003 P0000085 67
4170-003 Steering Chain / linkage / wire [1998-08-20] 67
4170-004 P0000089 68
4170-004 Steering Chain / linkage / wire [1998-08-20] 68
4180-013 P0008732 69
4180-013 Steering bearings, radial bearing [1998-08-25] 69
4180-014 P0009877 70
4180-014 Steering bearings, radial bearing [2000-05-18] 70
4310-022 P0014042 72
4310-022 Electric steering wheel/lever [2001-05-02] 73
4350-003 P0009917 75
4350-003 Steering angle sensor [1999-04-06] 75
5160-056 P0013939 76
5160-056 General alarm signals (audible/visual) [2001-05-02] 76
5160-057 P0013940 76
5160-057 General alarm signals (audible/visual) [2001-05-02] 76
5160-058 P0013941 77
5160-058 General alarm signals (audible/visual) [2001-05-02] 77
5190-014 P0006286 78
5190-014 Battery cut out connector/contactor [1997-08-18] 78
5200-003 P0005259 79
5200-003 Instrument panel, display [1997-01-14] 79
5200-009 P0009927 80
5200-009 Instrument panel, display [1999-04-07] 81
5230-001 P0000033 82
5230-001 Voltage/battery indicator/control [1996-06-11] 82
5280-009 P0004560 82
5280-009 Level/position transducers/lamps [1996-09-05] 82
5310-003 P0000151 83
5310-003 Start/stop switch [1996-05-21] 83
5310-008 P0000072 84
5310-008 Start/stop switch [1996-09-09] 84
5310-011 P0002126 85
5310-011 Start/stop switch [1996-09-09] 85
5310-012 P0002133 86
5310-012 Start/stop switch [1997-01-09] 86
5310-019 P0004557 87
5310-019 Start/stop switch [1996-09-05] 87
5310-022 P0005261 88
5310-022 Start/stop switch [1997-01-15] 88
5330-017 P0004610 89
5330-017 Speed control [1996-09-10] 89
5330-027 P0008737 90
5330-027 Speed control [1998-08-26] 91
5390-176 P0013935 92
5390-176 Driving function harnesses/ fuse [2001-05-02] 93
5390-177 P0013936 94
5390-177 Driving function harnesses/ fuse [2001-05-02] 95
5400-005 P0006297 96
5400-005 Electrical drive motor system [1997-08-18] 96
5430-072 P0012127 98
5430-072 Drive motor cables/resistors/fuses [2000-05-09] 99
5440-009 P0006287100
5440-009 Direction contactors [1997-08-18]100
5460-015 P0002977101
5460-015 Transistor panel [1996-08-12]101
5510-017 P0004595101
5510-017 Work function micro switches, potentiometers [1996-09-10]101
5510-018 P0004608102
5510-018 Work function micro switches, potentiometers [1996-09-10]102
5510-022 P0005218102
5510-022 Work function micro switches, potentiometers [1997-01-09]102
5610-007 P0006289103
5610-007 Pump contactor [1997-08-18]103
5680-066 P0012117104
5680-066 Battery/motor cables, fuse [2000-05-09]105
5680-067 P0012120106
5680-067 Battery/motor cables, fuse [2000-05-09]107
5710-018 P0005219108
5710-018 Drive/multi-function PCBs [2000-05-11]108
5710-036 P0009878108
5710-036 Drive/multi-function PCBs [1999-03-30]108
5710-069 P0014043109
5710-069 Drive/multi-function PCBs [2001-05-02]109
5810-024 P0009887109
5810-024 Drive movement probes/sensors [2000-05-08]109
5820-011 P0009915110
5820-011 Lift/lowering/reach movment probes/sensors [1999-04-06]110
5830-029 P0009916111
5830-029 Safety probes/ sensors [1999-04-06]111
6100-099 P0014182112
6100-099 Hydraulic unit [2001-05-02]113
6100-100 P0014183114
6100-100 Hydraulic unit [2001-05-02]115
6230-043 P0014172116
6230-043 Hydraulic lines chassis [2001-05-02]116
6230-044 P0014191118
6230-044 Hydraulic lines chassis [2001-05-02]119
6610-021 P0009923120
6610-021 Main lift cylinders [1999-04-07]120
9130-027 P0013942122
9130-027 Working cage [2001-05-02]123
9420-016 P0012865128
9420-016 Truck log device, code locking device [2000-10-03]129
9420-017 P0012864132
9420-017 Truck log device, code locking device [2000-10-03]133
9500-038 P0007921135
9500-038 Other extra equipment [1998-03-05]135
9500-062 P0008681136
9500-062 Other extra equipment [2000-02-07]136
9500-093 P0009876137
9500-093 Other extra equipment [1999-03-30]137
9500-229 P0012906138
9500-229 Other extra equipment [2000-10-10]139
9500-238 P0013206140
9500-238 Other extra equipment [2000-11-15]141
9550-003 P0002974142
9550-003 Battery changing equipment [1996-09-09]142

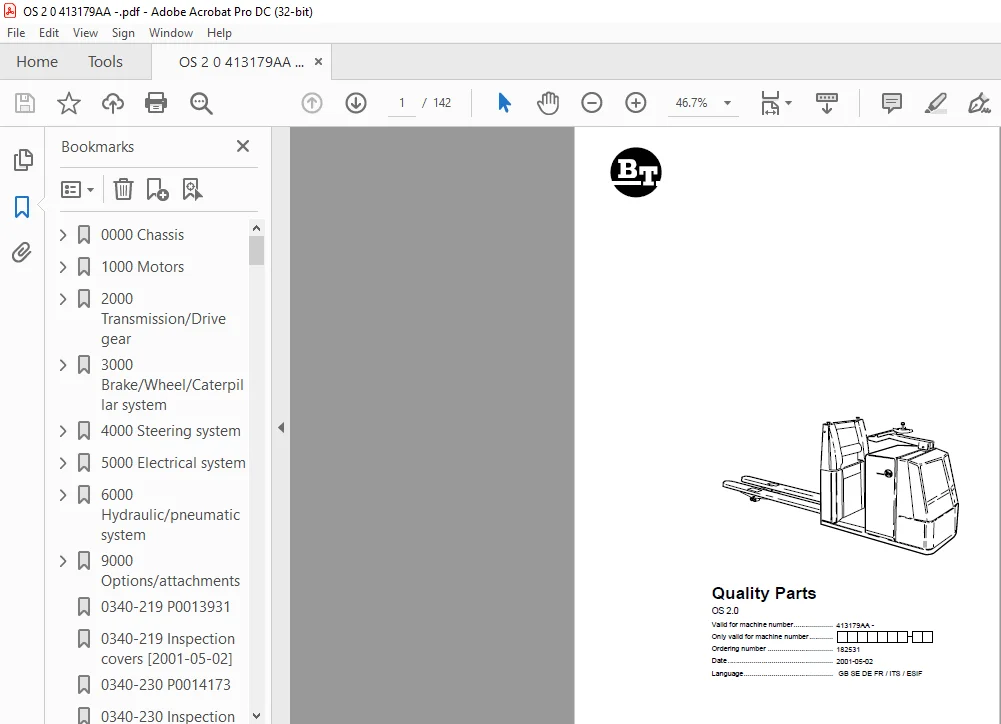

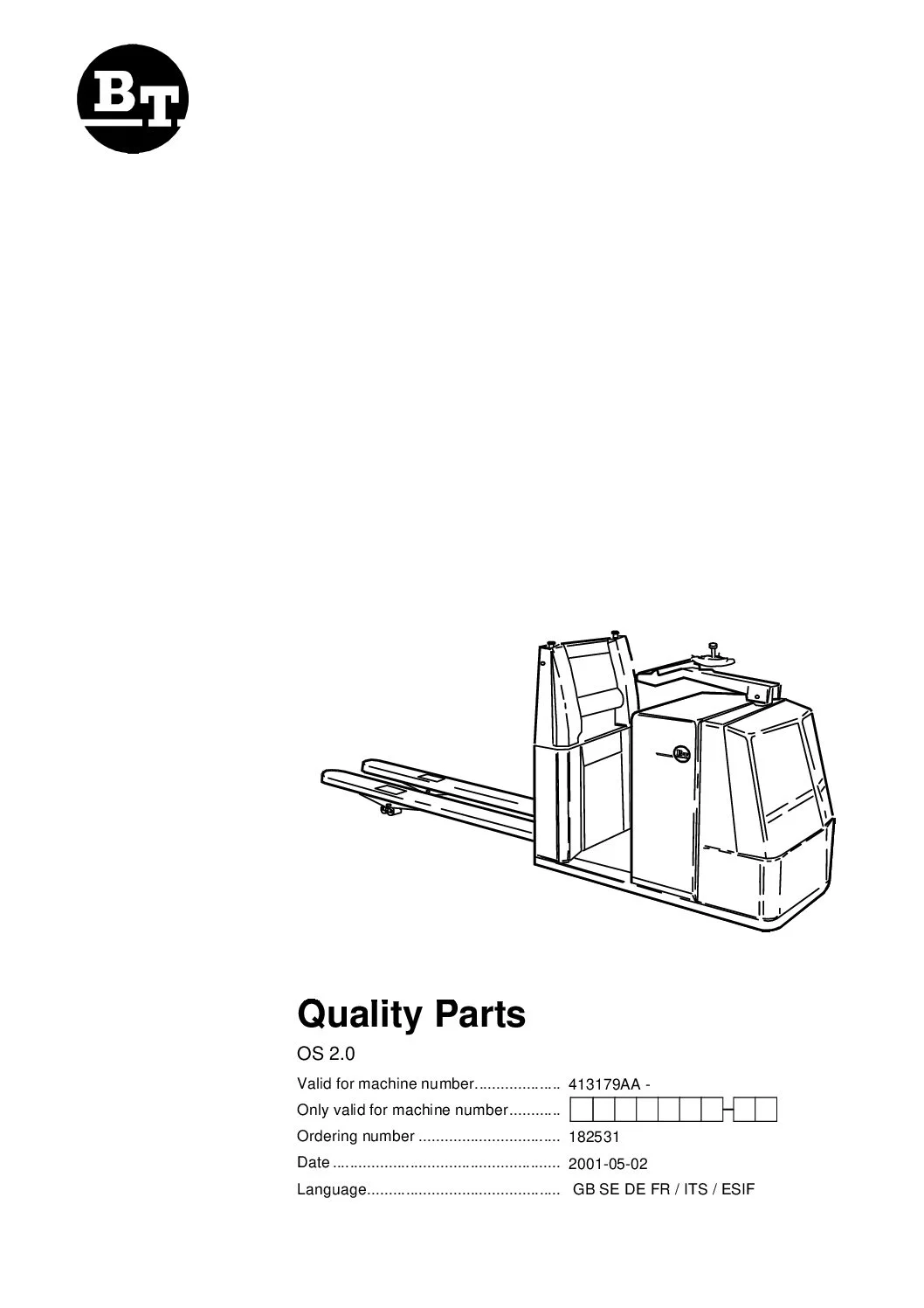

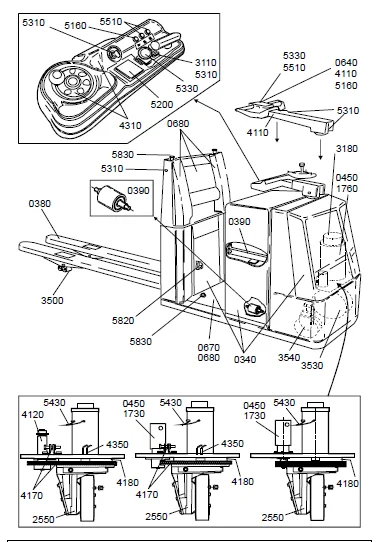

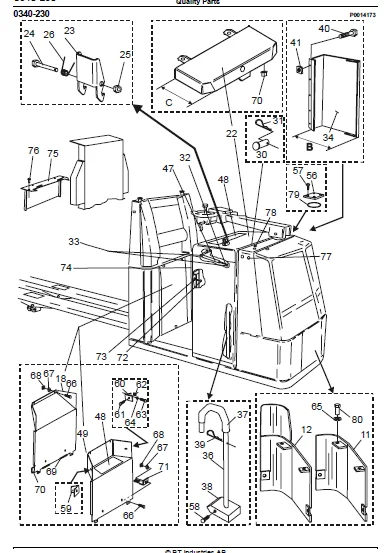

IMAGES PREVIEW OF THE MANUAL:
