 BT Prime-Mover Forklift RR-40 REACH TRUCK Parts Manual – PDF DOWNLOAD

FILE DETAILS:

 BT Prime-Mover Forklift RR-40 REACH TRUCK Parts Manual – PDF DOWNLOAD

Language : English,
Pages :135
Downloadable : Yes
File Type : PDF

TABLE OF CONTENTS:

 BT Prime-Mover Forklift RR-40 REACH TRUCK Parts Manual – PDF DOWNLOAD

Fig. Item Service
# # Part# Name Fig.# Page Reference
2 1 Decal and Parts Assembly 1 6
2 2 Parts List and Service Reference Index 2 8
2 3 Shield assembly 3 11
2 4 Emergency disconnect assembly 4 12
2 5 Auxiliary control assembly 5 13
2 6 Hand lift and speed assembly 6 14
2 6 B-24455-01 Master control switch assembly 7 16
2 7 Steering control and pump assembly 8 17
2 8 D-40099 Auxiliary pump assembly (36 volt) 9 18
2 8 0-40502 Auxiliary pump assembly (24 volt) 9 18
2 9 D-40098 Auxiliary motor assembly (36 volt) 10 19
2 9 D-40504 Auxiliary motor assembly (24 volt) 10 19
2 10 Transmission and steering insulation assembly 11 20
2 11 Brake assembly 12 20
2 11 D-40096 Drive motor assembly (36 volt) 13 24
2 11 D-40506 Drive motor assembly (24 volt) 13 24
2 12 D-40011 Transmission assembly 14 26
2 13 Idler wheel insulation assembly 15 28
2 14 Electrical schematic 16 30
2 14 Electrical schematic symbols 17 31
2 14 Relay wiring harness assembly 18 32
2 14 Switch relay assembly 19 33
2 14 Wiring harness assembly 20 34
2 14 Wiring assembly for cold storage 21 36
2 14 Two stage mast cable assembly 22 37
2 14 Three stage mast cable assembly 23 38
2 14 Reach cable assembly 24 39
2 14 Power component wiring 25 40
2 14 C-40095 SCR and contactor panel assembly 26 41 20650-00
2 14 EV-1 SCR control 27 42 20650-00
2 14 Transformer assembly 28 43 20650-00
2 14 au 136C2312G5 Rectifier heat sink assembly 29 44 20650-00
2 14 G.E. contractor assembly 30 45
2 14 G.E. power steering contactor assembly 31 46
2 14 G.E. contactor assembly 32 47
2 14 C-49855-08 Connector assembly 33 48
2 14 Warning light assembly 34 49
2 15 Hydraulic schematic 35 50
2 15 Hydraulic schematic symbols 36 51
2 15 Brake cylinder hose assembly 37 52
2 16 B-40509-00 Brake solenoid valve (36 volt) 38 53
2 16 B-40509-01 Brake solenoid valve (24 volt) 38 53
2 16 B-40578-00 Brake cylinder assembly (idler wheel) 39 54
2 16 B-40578-02 Brake cylinder assembly (drive wheel) 39 54
2 16 Auxiliary control valve hose assembly 40 55
2 16 D-40101 Auxiliary control valve assembly 41 56
2 17 Hydraulic reservoir assembly 42 57
2 16 Lift valve and pump assembly 43 58
2 16 Lift pump and motor assembly 44 59
2 18 D-40097 Lift motor assembly (36 volt) 45 60
2 18 D-40505 Lift motor assembly (24 volt) 45 60
2 19 D-40503 24 Volt 11ft pump assembly 46 61
2 19 D-40459-07 36 Volt lift pump assembly 47 62
2 16 D-40100 Lift control valve assembly 48 63
2 16 Steering control valve and hose assembly 49 64
2 16 B-40102-01 Steering control valve assembly 50 65
2 16 D-40291 Steering cylinder assembly 51 66
2 22 Two stage cylinder and reservoir assembly 52 67
2 20 D-40534 Two stage cylinder assembly 53 68
2 22 Three stage cylinder and reservoir assembly 54 70
2 20 D-40092 Freelift cylinder assembly 55 72
2 21 D-40091 Staging cylinder assembly 56 73
Fig. Item Fig.
# # Part# Name # Page
2 22 Two stage mast hydraulic hose assembly 57 74
2 22 Three stage mast hydraulic hose assembly 58 75
2 22 Standard reach hose assembly 59 76
2 22 A-49775 Flow divider assembly 60 77
2 23 0-40497 Reach and tilt cylinder assembly 61 78
2 22 Reach with tilt hose assembly 62 79
2 22 0-40452-01 Reach with tilt manifold valve assembly (36 volt) 63 80
2 22 0-40452-02 Reach with tilt manifold valve assembly (24 volt) 63 80
2 22 Single reach sideshifter hose assembly 64 81
2 22 Sideshifter cylinder assembly 65 82
2 22 0-40466-01 Sideshifter manifold valve assembly (36 volt) 66 83
2 22 0-40466-01 Sideshifter manifold valve assembly (24 volt) 66 83
2 22 Deep reach valve and hose assembly 67 84
2 22 Deep reach, reach cylinder and hose assembly 68 85
2 22 C-40646-01 Deep reach manifold valve assembly (36 volt) 69 86
2 22 C-40646-02 Deep reach manifold valve assembly (24 volt) 69 86
2 22 Deep reach, reach cylinder assembly 70 87
2 22 Deep reach, tilt cylinder and hose assembly 71 88
2 23 Deep reach, tilt cylinder assembly 72 89
2 22 Deep reach, sideshift hose assembly 73 90
2 24 Two stage mast installation assembly 74 91
2 24 Two stage inner column assembly 75 92
2 24 Two stage outer column assembly 76 93
2 24 Two stage cylinder assembly and related parts 77 94
2 24 Single reach assembly 78 95
2 25 Single reach standard reach front frame 79 96
assembly
2 25 Single reach tilt reach front frame assembly 80 97
2 25 A-40596 Deep reach assembly 81 98
2 25 D-40472 Sideshifter assembly 82 100
2 26 P-25008 Fork assembly 83 101
2 24 Three stage mast installation assembly 84 102
2 24 Three stage outer column assembly 85 103
2 24 Three stage intermediate column assembly 86 104
2 24 Three stage inner column assembly 87 105
2 24 Three stage freelift cylinder assembly and related 88 106
parts
2 27 Main frame and load wheel assembly 89 108
2 28 Single load wheel assembly 90 110
2 28 Articulating load wheel assembly 91 111
2 28 4 inch outrigger articulating load wheel assembly 92 112

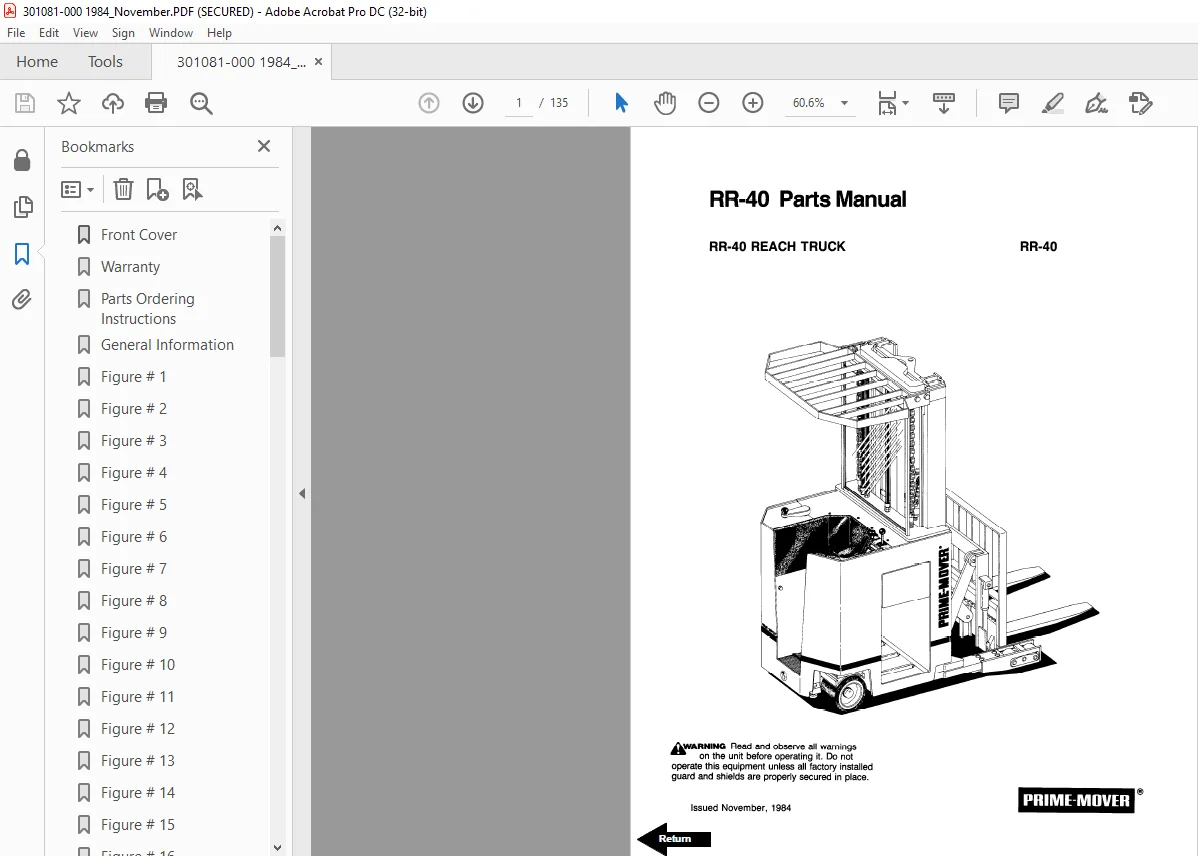

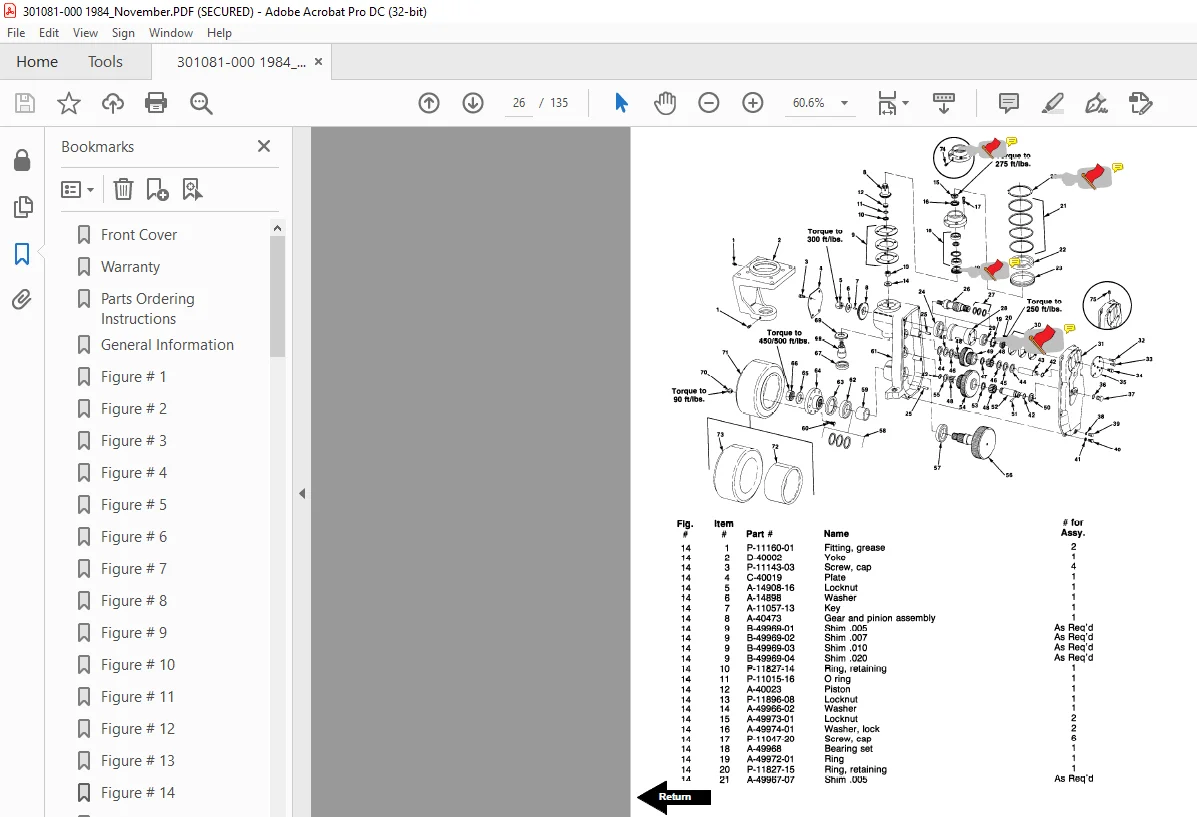

IMAGES PREVIEW OF THE MANUAL:
