BT Prime-Mover MX 80 Electric Pallet Truck Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime-Mover MX 80 Electric Pallet Truck Parts Manual – PDF DOWNLOAD

Language : English
Pages : 149
Downloadable : Yes
File Type : PDF

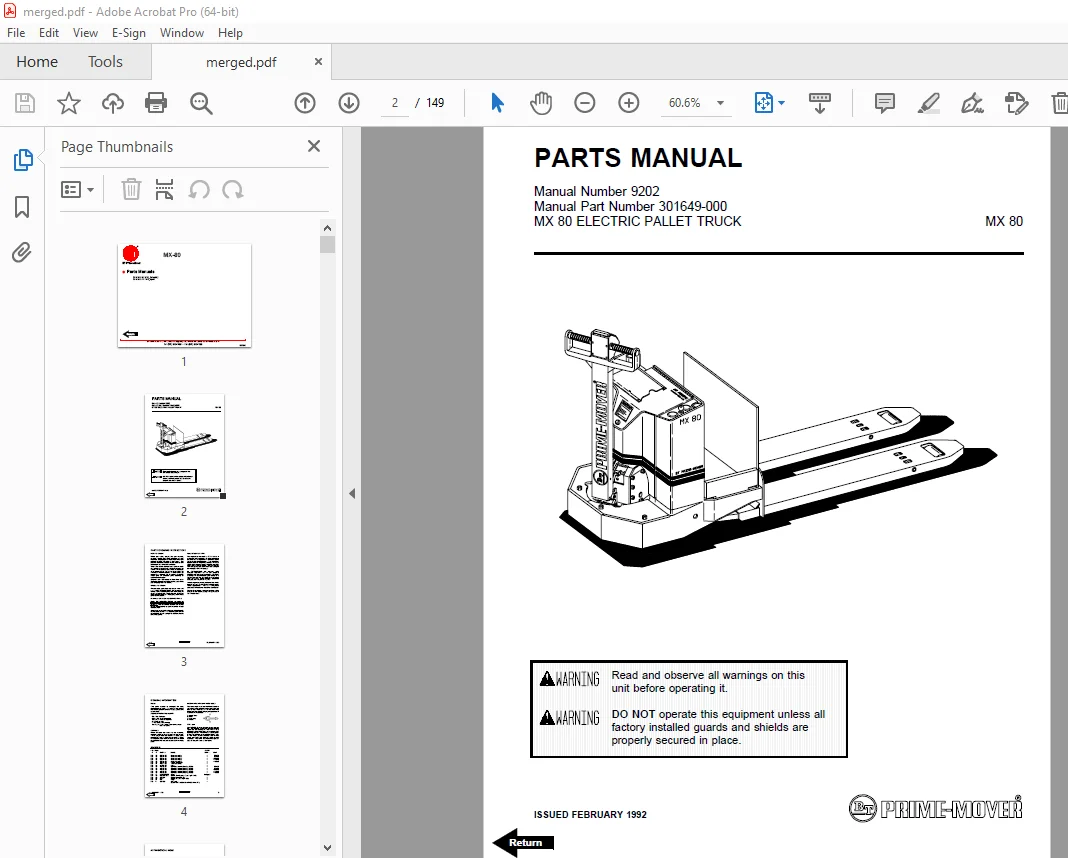

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime-Mover MX 80 Electric Pallet Truck Parts Manual – PDF DOWNLOAD

Manual Number 9202
Manual Part Number 301649-000

Front Cover 2
Parts Ordering Instructions 3
General Information 4
Alphabetical Index 5
Figure # 0 1 Decals and Parts Assembly 7
Figure # 0 2 Parts List Index 9
Figure # 1 1 Transmission and Handle Assembly 11
Figure # 1 2 Twist Grip Resistor and Transistor Control Handle Assembly 13
Figure # 1 3 Thumb Control Resistor and Transistor Control Handle Assembly 15
Figure # 1 4 Transmission Assembly, Part # I 17
Figure # 1 5 Transmission Assembly, Part # II 19
Figure # 1 6 Drive Motor Assembly 21
Figure # 2 1 Resistor Electrical Schematic 23
Figure # 2 2 Resistor Electrical Schematic Symbols 24
Figure # 2 3 Resistor Control Wiring Harness Assembly 25
Figure # 2 4 Resistor Third Speed Control Wiring 27
Figure # 2 5 Resistor Third Speed Power Component Wiring 29
Figure # 2 6 Resistor Control Panel Assembly 31
Figure # 2 7 Contactor Assembly 33
Figure # 2 8 Forward & Rearward Contactor Assembly 35
Figure # 2 9 Third Speed Contactor Panel Assembly 37
Figure # 2 10 Resistor Fourth Speed Control Wiring 39
Figure # 2 11 Resistor Fourth Speed Power Component Wiring 41

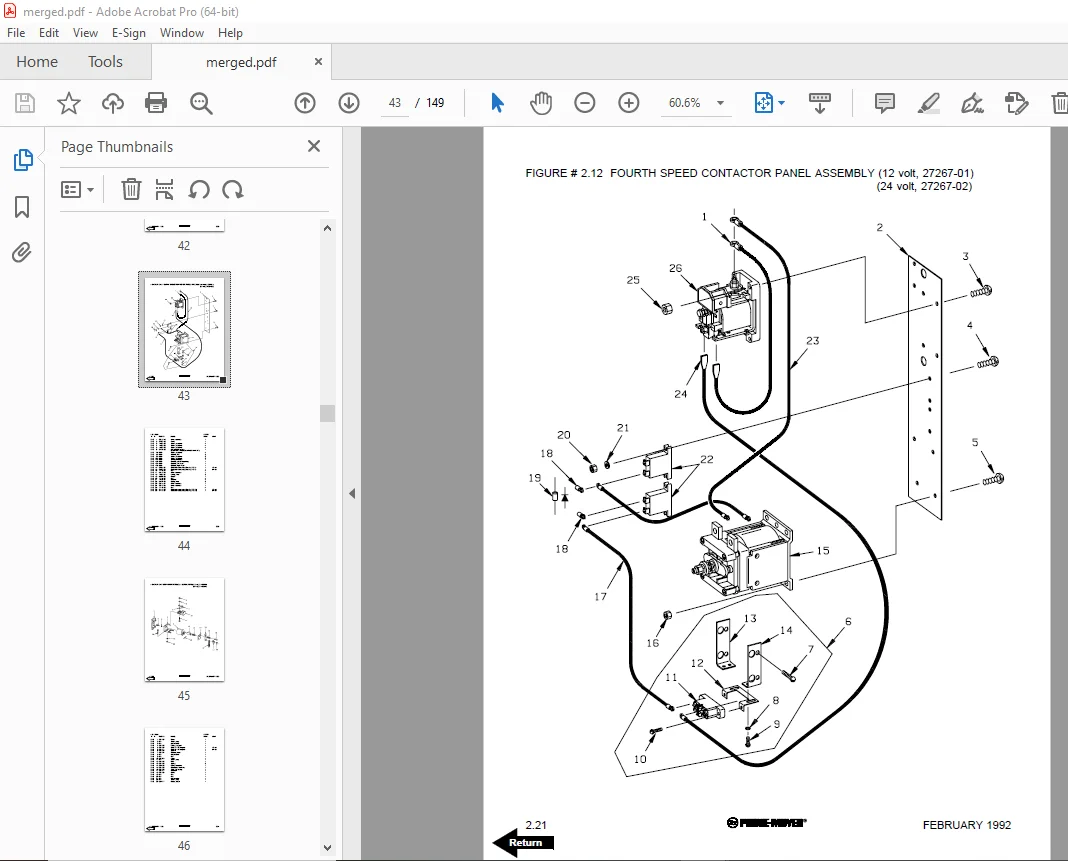

Figure # 2 12 Fourth Speed Contactor Panel Assembly 43
Figure # 2 13 Contactor Assembly 45
Figure # 2 14 Resistor Power Connector Assembly 47
Figure # 2 15 MX-80 Transistor Electrical Schematic 49
Figure # 2 16 MX-80 Transistor Electrical Schematic Symbols 50
Figure # 2 17 RX-80 Transistor Electrical Schematic 51
Figure # 2 18 RX-80 Transistor Electrical Schematic Symbols 52
Figure # 2 19 Transistor Control Wiring Harness Assembly 53
Figure # 2 20 Transistor Power Component Wiring 55
Figure # 2 21 Control Panel Assembly 57
Figure # 2 22 Forward & Rearward Contactor Assembly 59
Figure # 2 23 High Speed Contactor Assembly 61
Figure # 2 24 Transistor Power Connector Assembly 63
Figure # 2 25 Hydraulic Pump Motor Assembly 65
Figure # 2 26 MX-80, 12 Volt Drive Motor Assembly 67
Figure # 2 27 MX-80, 24 Volt Drive Motor Assembly 69
Figure # 2 28 RX-80, 12 Volt Drive Motor Assembly 71
Figure # 2 29 RX-80, 24 Volt Drive Motor Assembly 73
Figure # 3 1 Hydraulic Schematic 75
Figure # 3 2 Hydraulic Schematic Symbols 76
Figure # 3 3 Resistor Hydraulic System 77
Figure # 3 4 Transistor Hydraulic System 79
Figure # 3 5 Pump and Motor Assembly 81
Figure # 3 6 Lift Cylinder Assembly 83
Figure # 4 1 Shielding Assembly 85
Figure # 4 2 Carrier Frame Assembly 87
Figure # 4 3 Caster Assembly 89
Figure # 4 4 Lift Frame Assembly 91
Figure # 4 5 Pallet Entry Rollers 93
Figure # 4 6 Skid Adapter and Package Guard Assembly 95
Figure # 4 7 Removable Load Backrest 97
Figure # 10 1 Special Tools and Lubrications 99
Back Cover 103
Front Cover 104
Parts Ordering Instructions 105
Field Modifications 105
General Information 106
Figure # 0 1 Decals and Parts Assembly 107
Figure # 0 2 Parts List Index 109
Figure # 1 1 Transmission and Handle Assembly 111
Figure # 1 2 Twist Grip Resistor/Transistor Control Handle Assembly 113
Figure # 1 3 Thumb Control Resistor/Transistor Control Handle Assembly 115
Figure # 1 4 Transmission Assembly Part # 1 117
Figure # 1 5 Transmission Assembly Part # 2 119
Figure # 1 6 Drive Motor Assembly 121
Figure # 2 1 Resistor Electrical Schematic 123
Figure # 2 2 Resistor Electrical Schematic Symbols 124
Figure # 2 3 Resistor Control Wiring Harness Assembly 125
Figure # 2 4 Resistor Third Speed Control Wiring 127
Figure # 2 5 Resistor Third Speed Power Component Wiring 129
Figure # 2 6 Resistor Control Panel Assembly 131
Figure # 2 7 Contactor Assembly 133
Figure # 2 8 Forward & Rearward Contactor Assembly 135
Figure # 2 9 Third Speed Contactor Panel Assembly 137
Figure # 2 10 Resistor Fourth Speed Control Wiring 139
Figure # 2 11 Resistor Fourth Speed Power Component Wiring 141
Figure # 2 12 Fourth Speed Contactor Panel Assembly 143
Figure # 2 13 Contactor Assembly 145
Figure # 2 14 Resistor Power Connector Assembly 147
Back Cover 149

DESCRIPTION:

BT Prime-Mover MX 80 Electric Pallet Truck Parts Manual – PDF DOWNLOAD

Manual Number 9202
Manual Part Number 301649-000

PARTS ORDERING INSTRUCTIONS:

HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER:
Always order parts from the dealer who sold you your BT PRIME-MOVER. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
