BT Prime Mover OE-35 Electric Order Selector Parts Manual – PDF DOWNLOAD

Description

BT Prime Mover OE-35 Electric Order Selector Parts Manual – PDF DOWNLOAD

FILE DETAILS:

BT Prime Mover OE-35 Electric Order Selector Parts Manual – PDF DOWNLOAD

Language : English
Pages : 172
Downloadable : Yes
File Type : PDF

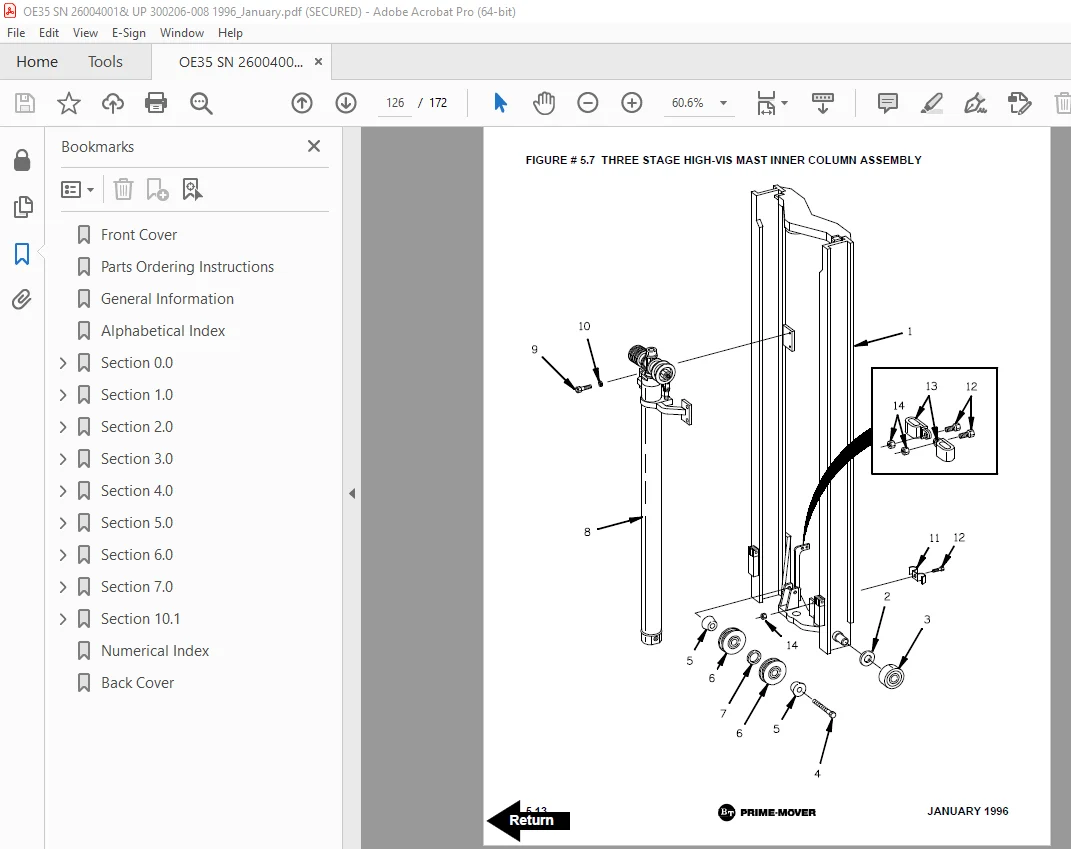

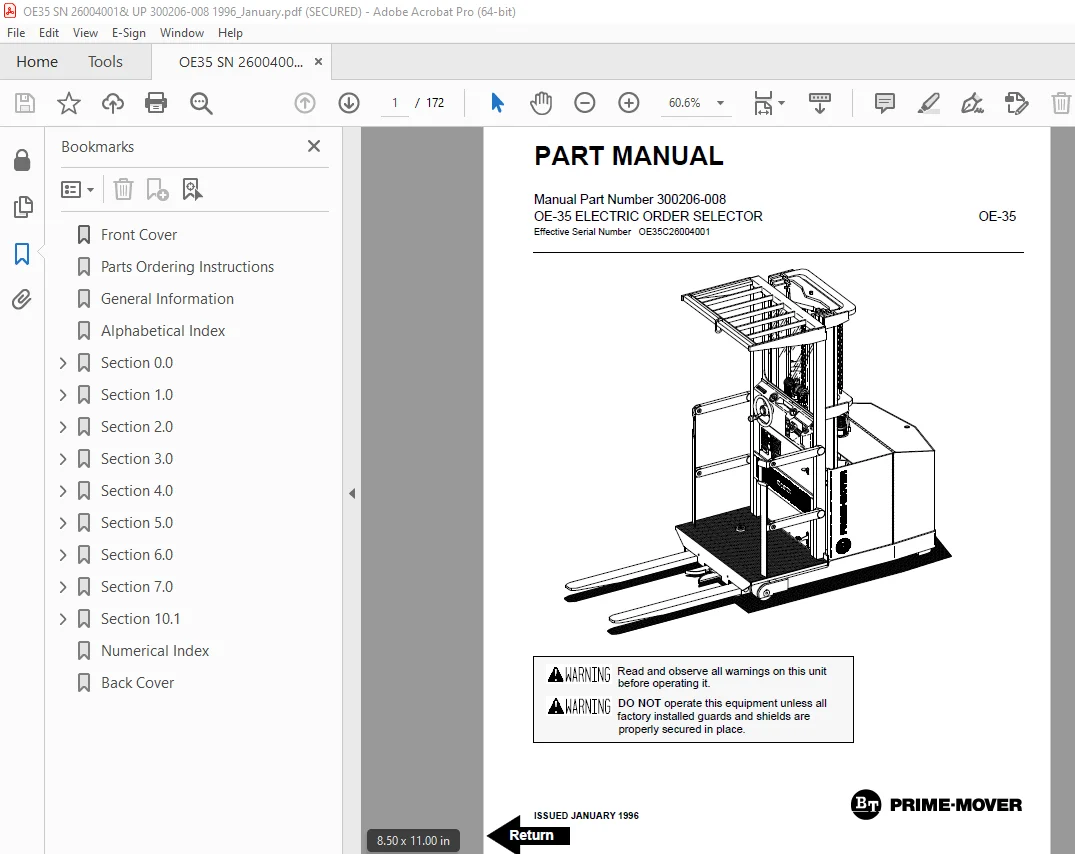

IMAGES PREVIEW OF THE MANUAL:

TABLE OF CONTENTS:

BT Prime Mover OE-35 Electric Order Selector Parts Manual – PDF DOWNLOAD

Manual Part Number 300206-008
Effective Serial Number OE35C26004001

A,B___________________________________
Battery Lift Interrupt installation 2.22 2.41
Brake Cylinder Assembly 3.4 3.5
Brake Foot Pedal and Chain Slack Switch Installation 4.4 4.7
C ____________________________________
Caster Assembly 4.13 4.25
Contactor Assembly 2.11 2.19
Contactor Panel Assembly 2.9 2.15
Contactor Panel Assembly & Related Parts for “E” & “EE” 2.8 2.13
Control Valve Assembly 3.10 3.17
D ____________________________________
Decals and Parts Assembly 0.1 0.1
Drive Motor Assembly, 24 Volt 2.15 2.27
Drive Motor Assembly, 36 Volt 2.16 2.29
E_____________________________________
Electrical Schematic 2.1 2.1
Electrical Schematic Symbols 2.2 2.2
Emergency Disconnect Contactor Assembly 2.12 2.21
F_____________________________________
Fork Mounting Installation 4.5 4.9
Forward & Rearward Contactor Assembly 2.10 2.17
Frame and Load Wheel Installation 4.2 4.3
Frame Shielding Assembly 4.1 4.1
Frame Steering Control 4.12 4.23
G,H___________________________________
Handle Control Assembly 4.7 4.13
Hydraulic Schematic 3.1 3.1
Hydraulic Schematic Symbols 3.2 3.2
JANUARY 1996 4
ALPHABETICAL INDEX
NAME FIG.# PAGE #
I,J,K,L ________________________________
Lift Platform Shielding Assembly 4.8 4.15
Lift Pump and Motor Assembly 3.8 3.13
Lift Pump Assembly 3.9 3.15
Lift Pump Contactor Assembly 2.13 2.23
Lift Pump, Control Valve and Related Parts 3.7 3.11
Lift Pump Motor Assembly 2.14 2.25
Lift Platform Mast Rollers and Safety Belt 4.9 4.17
LX Dash Display Installation 2.21 2.39
M ____________________________________
Mast Cable and Related Parts 2.4 2.5
Mast Steering Control Part I 4.10 4.19
Mast Steering Control Part II 4.11 4.21
N ____________________________________
N.D.C. Antenna and Related Parts Mounting Installation 7.7 7.9
N.D.C. Electrical Schematic, 24 Volt 7.2 7.2
N.D.C. Electrical Schematic, 36 Volt 7.3 7.3
N.D.C. Electrical Schematic Symbols 7.4 7.4
N.D.C. Feedback Potentiometer and Tachometer Installation 7.11 7.17
N.D.C. Frame Steering Control and Servo-Motor Installation 7.9 7.13
N.D.C. Main Frame Wiring Harness and Related Parts 7.6 7.7
N.D.C. Micro 70 and Related Parts Installation 7.8 7.11
N.D.C. Platform Wiring Harness and Related Parts 7.5 7.5
N.D.C. Regulator Installation, 36 Volt 7.12 7.19
N.D.C. Servo Motor Assembly 7.10 7.15
N.D.C. Truck Electrical Schematic 7.1 7.1
Numerical Index * 99.1
O,P___________________________________
Pallet Clamp Installation 4.6 4.11
Platform Hand Rail Installation 4.3 4.5
Power Component Wiring 2.6 2.9
Power Connector Assembly 2.13 2.23
Power Steering Pump Motor Assembly, 24 Volt 2.17 2.31
Power Steering Pump Motor Assembly, 36 Volt 2.18 2.33
5 JANUARY 1996
ALPHABETICAL INDEX
NAME FIG.# PAGE #
Q,R,S _________________________________
SCR Control Panel Assembly 2.7 2.11
Special Tools and Lubrications 10.1 10.1
Steering and Brake Hose Assembly 3.3 3.3
Steering Pump Assembly 3.6 3.9
Steering Pump and Motor Assembly 3.5 3.7
T_____________________________________
Three Stage HIGH-VIS Mast Free Lift Cylinder Assembly 3.15 3.27
Three Stage HIGH-VIS Mast Free Lift Cylinder Installation 5.8 5.15
Three Stage HIGH-VIS Mast Hydraulic Cylinder and Related Parts 3.13 3.23
Three Stage HIGH-VIS Mast Inner Column Assembly 5.7 5.13
Three Stage HIGH-VIS Mast Installation 5.4 5.7
Three Stage HIGH-VIS Mast Intermediate Column Assembly 5.6 5.11
Three Stage HIGH-VIS Mast Outer Column Assembly 5.5 5.9
Three Stage HIGH-VIS Mast Staging Cylinder Assembly 3.14 3.25
Torque Generator Assembly 3.16 3.29
Transmission Assembly, Part I 1.2 1.3
Transmission Assembly, Part II 1.3 1.5
Transmission Installation 1.1 1.1
Two Stage Mast Hydraulic Cylinder and Related Parts 3.11 3.19
Two Stage Mast Inner Column Assembly 5.3 5.5
Two Stage Mast Installation 5.1 5.1
Two Stage Mast Outer Column Assembly 5.2 5.3
Two Stage Mast Staging Cylinder Assembly 3.12 3.20
U,V,W_________________________________
Warning Light Assembly 2.19 2.35
Wiring Assembly for Cold Storage 2.20 2.37
Wiring Diagram Part I Frame 2.3 2.3
Wiring Diagram Part II Platform 2.5 2.7
Work Lights and Fan Assembly 6.1 6.1
X,Y,Z _________________________________

DESCRIPTION:

Manual Part Number 300206-008
Effective Serial Number OE35C26004001

PARTS ORDERING INSTRUCTIONS:
HOW TO ORDER:

• When you order, supply the part number, quantity, model and serial numbers of your machine. Supplying this information will assure prompt, efficient handling of your order. The pictorial reference number is not needed and including it can only add confusion.
• Since your dealer carries many parts in stock and maintains up-to-date prices on all parts, he will be able to process your order immediately. If, for some reason, the part is not in stock, he will order it from the factory. In either event, he maintains a current file of service manuals, which give all available parts ordering or technical information.
• All prices are FOB factory in Muscatine, Iowa. Shipping charges are added to the price of the part shipping from the factory.

WHERE TO ORDER:

Always order parts from the dealer who sold you your BT PRIME-MOVER. If it is necessary for the dealer to order parts from the factory, he is able to get prompt service for you. Parts are shipped in accordance with shipping instructions given on the order.
